WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

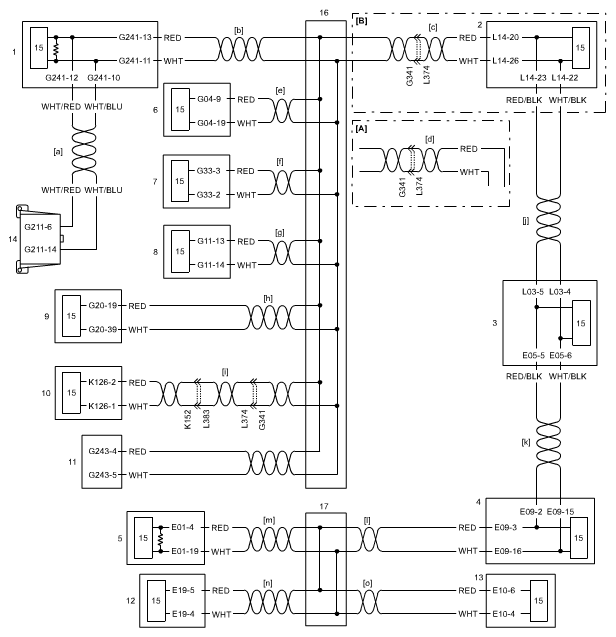

Fig 1: CAN Communication System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.

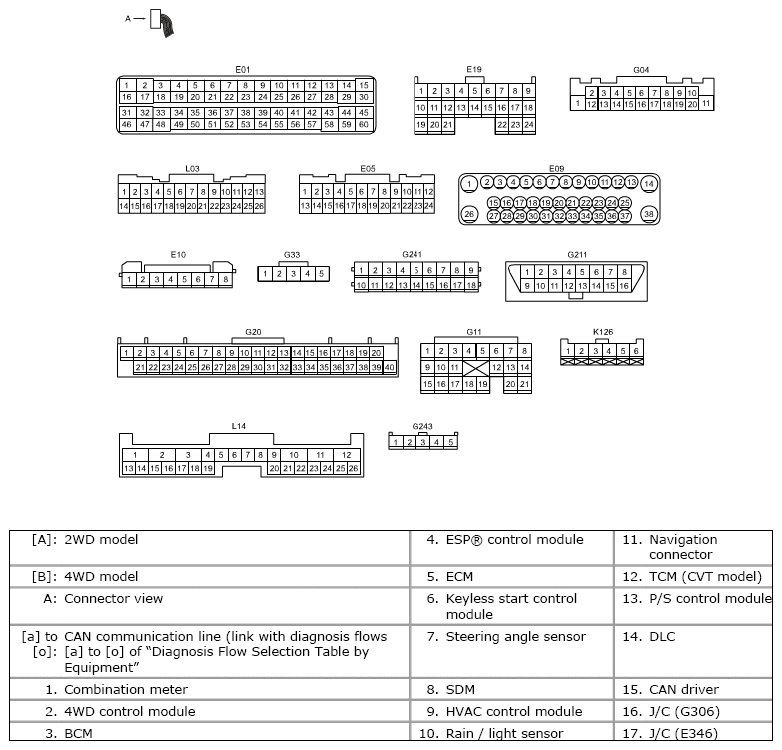

Fig 2: Identifying CAN Communication System Connector Terminals
