Transfer Assembly Components

WARNING: This page is about a different variant/trim than selected.

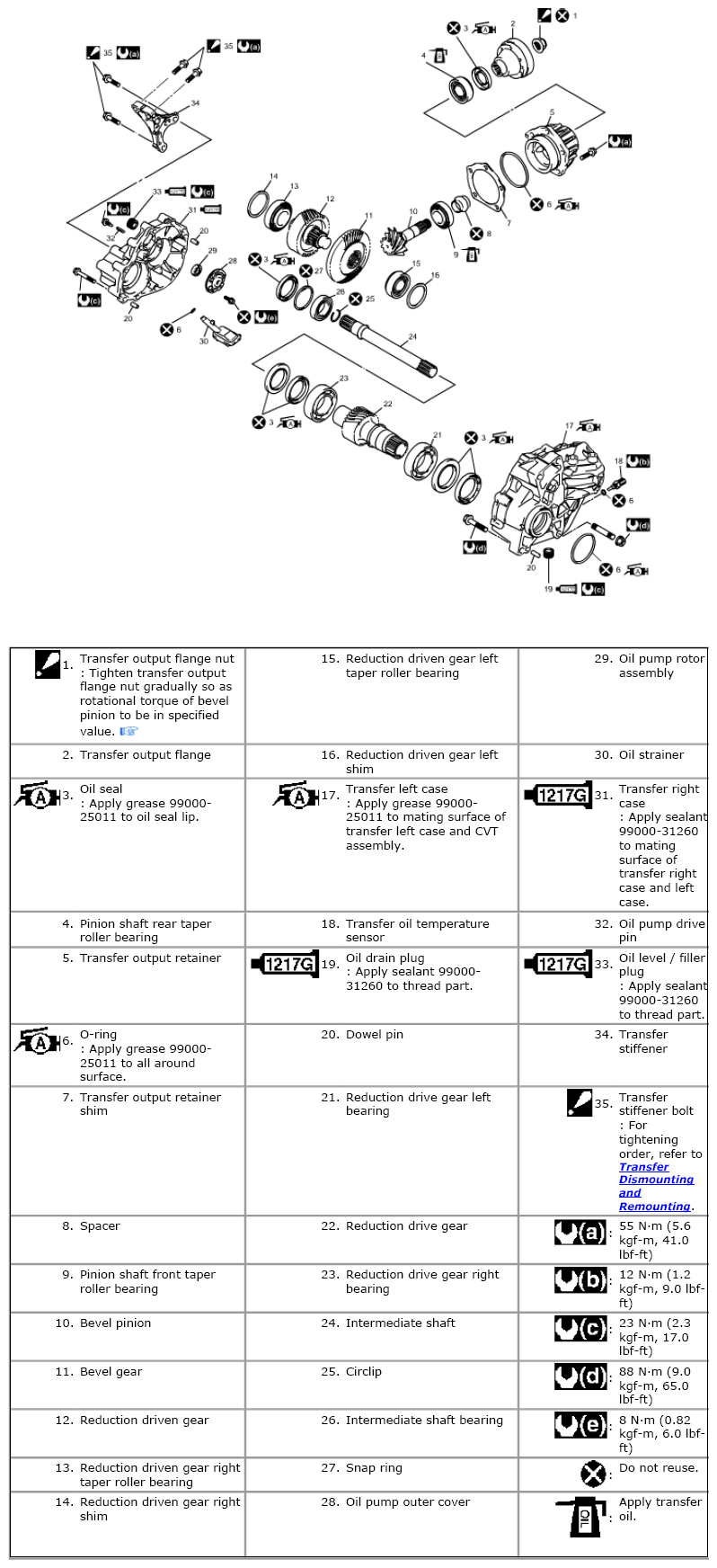

Fig 1: Transfer Assembly Replacement Components With Torque Specifications
G06528573Courtesy of SUZUKI OF AMERICA CORP.
