P/S Control Module Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Remove instrument panel undercover, see INSTRUMENT PANEL REMOVAL AND INSTALLATION .
  3. Remove side sill inner front scuff, see TRIM REMOVAL AND INSTALLATION .
  4. Remove dash side trim, see TRIM REMOVAL AND INSTALLATION .
  5. Remove center console box, see CENTER CONSOLE BOX REMOVAL AND INSTALLATION .
  6. Turn over floor carpet on passenger's side.
  7. Remove bolt (1) and P/S control module cover (2).

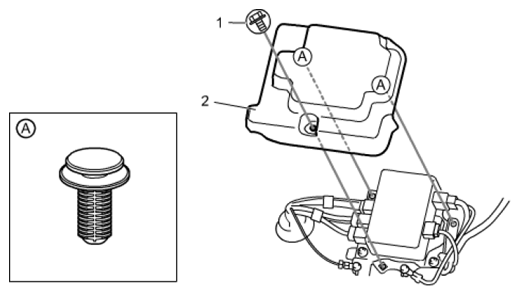

    Fig 1: Identifying P/S Control Module Cover And Bolt
    G06528966Courtesy of SUZUKI OF AMERICA CORP.
  8. Disconnect connectors (1) and ground wire (2) from P/S control module (3).
  9. Remove nuts and remove P/S control module with bracket (4) from floor panel.

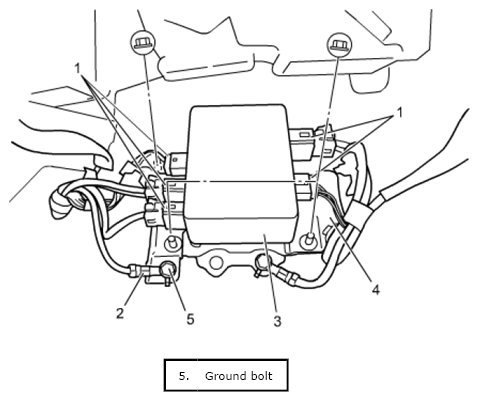

    Fig 2: Identifying P/S Control Module, Connectors And Ground Wire
    G06528967Courtesy of SUZUKI OF AMERICA CORP.
