Fuel Pump Control System Circuit Diagram: Wiring Diagram

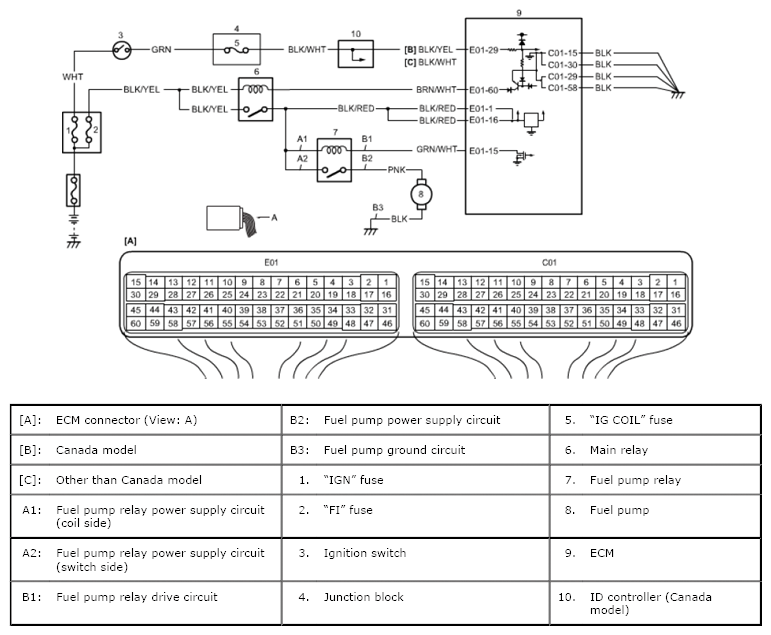

Fig 1: Fuel Pump Control System Circuit Diagram
G06867160Courtesy of SUZUKI OF AMERICA CORP.
