Circuit Diagram

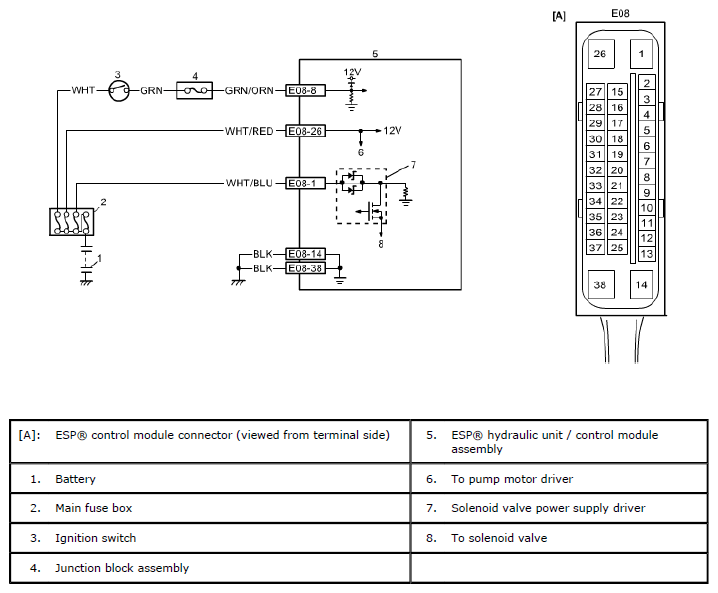

Fig 1: ESP® Hydraulic Unit/Control Module Assembly Power Supply And Ground Circuit Check - Circuit Diagram
G06866698Courtesy of SUZUKI OF AMERICA CORP.
