Module - TPMS - Remove and Replace: Install

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.

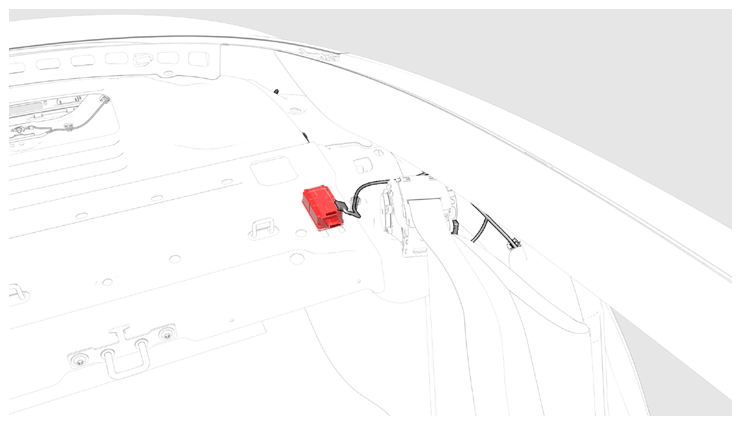

  1. Install the TPMS module on the vehicle by sliding the TPMS module towards the rear of the vehicle until the tab is attached.
    G14749967Courtesy of TESLA, INC.

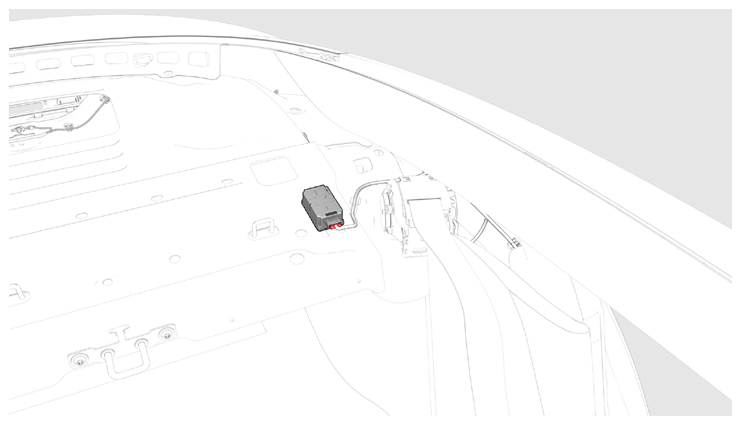

  2. Connect the TPMS module electrical connector.
    G14749968Courtesy of TESLA, INC.
  3. Install the package tray trim. See TRIM - PACKAGE TRAY (REMOVE AND REPLACE) .
  4. Install the RH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  5. Install the RH side rail trim. See TRIM - SIDE RAIL - LH (REMOVE AND INSTALL) .
  6. Install the RH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  7. Install the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  8. Install the LH side rail trim. See TRIM - SIDE RAIL - LH (REMOVE AND INSTALL) .
  9. Install the LH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  10. Install the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  11. Update the vehicle firmware. See FIRMWARE UPDATE .
  12. Perform the TPMS module sensor ID learn procedure. See TPMS (SENSOR ID TOOL LEARN) .
