Module - TPMS - Remove and Replace: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.

Last modified: 23/01/2024 21:44:04

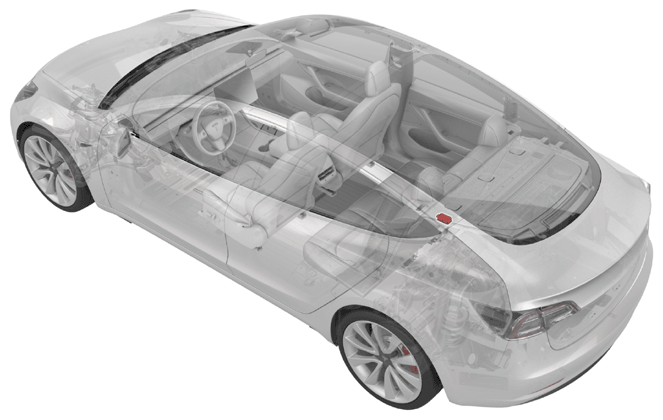

Fig 1: TPMS Module Component Location
G14749963Courtesy of TESLA, INC.
NOTE: See Personal Protection to make sure to wear proper PPE when performing below procedure.

Revision History:

NOTE: This procedure is only for Conti Gen 2 TPMS module. Tesla TPMS module is integrated in VCSEC. Refer to Module - Body Controller - Security - Remove And Replace or Module - Body Controller - Security (2nd Generation) - Remove and Replace as needed.
