TPMS - Sensor ID Tool Learn: Procedure

WARNING: This page is about a different car, the 2024 Tesla Model S, 2023 Tesla Model S, 2022 Tesla Model S, and 2021 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
  1. Review the TPMS service tool profile.
  2. Connect a laptop with Toolbox to the vehicle. See TOOLBOX 3 (CONNECT AND DISCONNECT) .
  3. In Toolbox, select the Actions  tab, and search for "TPMS Sensor Learn".
  4. Select the PROC_TPMS_X_TPMS-SENSOR-LEARN Action.
  5. Use the TPMS service tool to read and record the wheel sensors in the order displayed on the tool's screen.

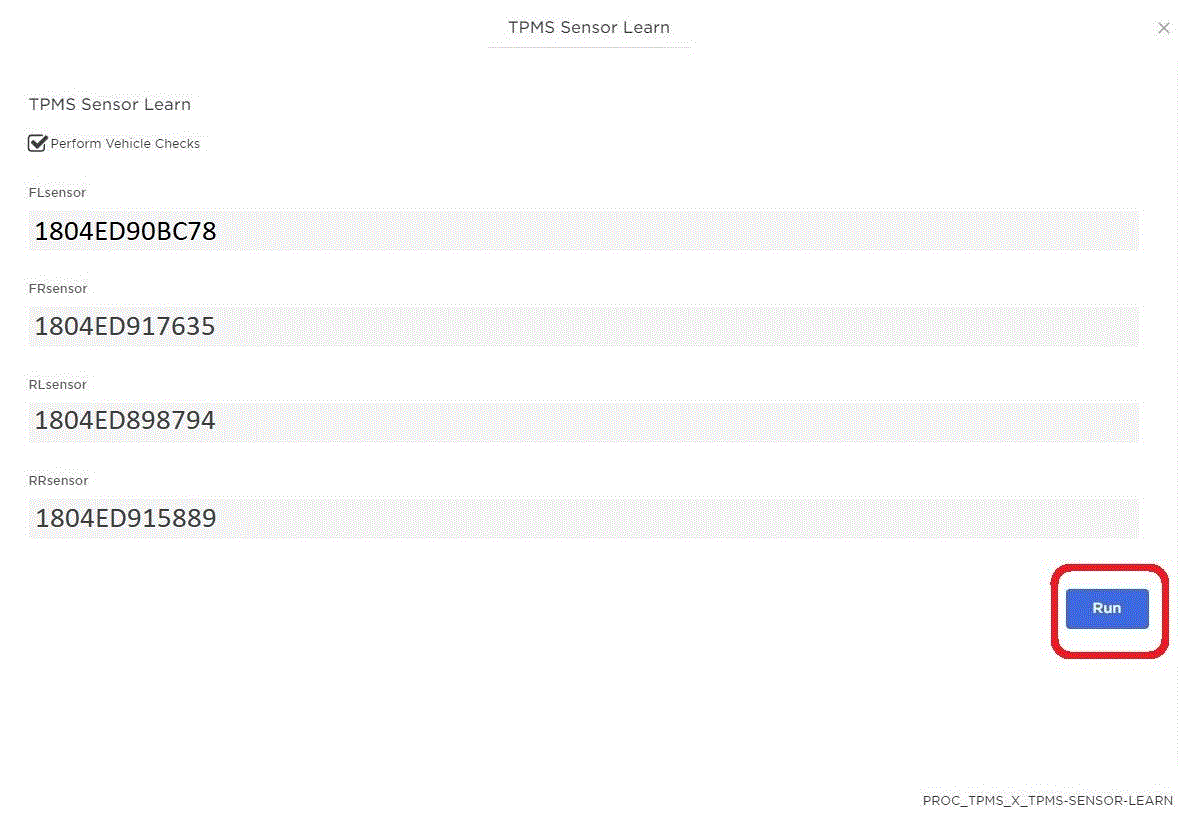

  6. In Toolbox, enter the TPMS sensor ID for each wheel from the TPMS Tool into the TPMS Sensor Learn ID form.
    G00658074Courtesy of TESLA, INC.
  7. When the Sensor IDs for all 4 wheels have been entered into the Toolbox TPMS Sensor Learn ID form, click Run.
    NOTE: Click the "X" at the top of the window after the routine is complete.
  8. Disconnect the laptop with Toolbox from the vehicle. See TOOLBOX 3 (CONNECT AND DISCONNECT) .
