Module - Inductive Charger - Center Console (2.0) - Remove And Replace: Install

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.

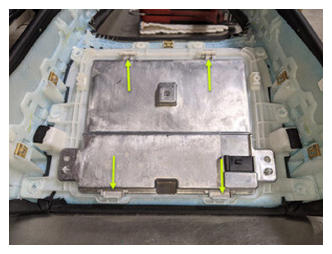

  1. Position the center console inductive charger module to the center console decor trim, and then secure the securing tabs (x2) and locating tabs (x2).
    G14824487Courtesy of TESLA, INC.

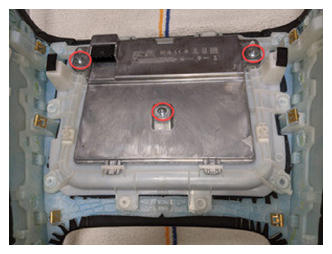

  2. Install the screws (x3) that attach the center console inductive charger module to the decor trim.

    1.3 N.m (1.0 lbs-ft)

    G14824488Courtesy of TESLA, INC.
  3. Position the center console decor trim assembly onto the center console, connect the connector, and then secure the clips (x17) that attach the decor trim to the center console.
    G14824489Courtesy of TESLA, INC.
    G14824490Courtesy of TESLA, INC.
    G14824491Courtesy of TESLA, INC.
    G14824492Courtesy of TESLA, INC.
  4. Close the center console armrest.
  5. Connect 12V/LV power. See 12V/LV Power (Disconnect and Connect) .
  6. Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  7. Close hood
  8. Move the front seat to the original positions.
  9. Raise the front windows and close the front doors.
