Decor - Center Console - Remove And Replace: Install

WARNING: This page is about a different car, the 2024 Tesla Model S, 2023 Tesla Model S, 2022 Tesla Model S, and 2021 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.

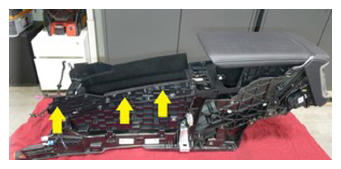

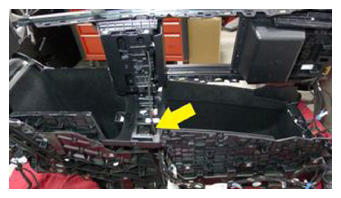

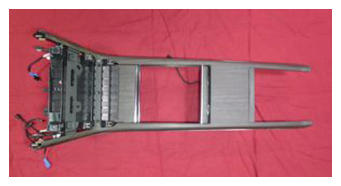

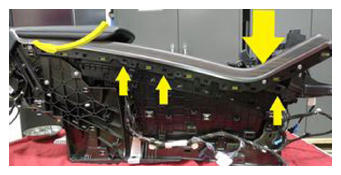

Connect the electrical connector, and then install the center console decor to the center console assembly.
NOTE: Slide into the rear brightstrip and down into the center console assembly.

NOTE: Make sure all 6 datums engage and the brightstrip is aligned.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

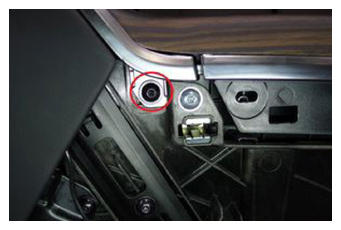

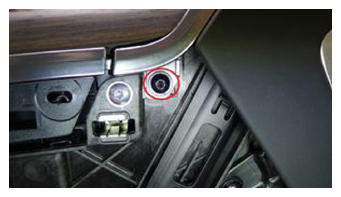

Install the screws (x2) that attach the rear brightstrip to the center console assembly.
1 N.m (.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T20 bit
NOTE: Confirm the alignment of the decor with the rear brightwork.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

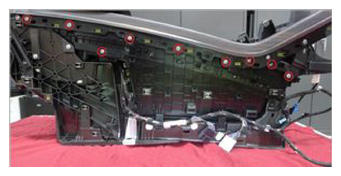

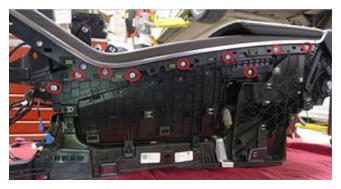

Install the screws (x18) that attach the center console decor to the center console assembly.
1 N.m (.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T20 bit
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

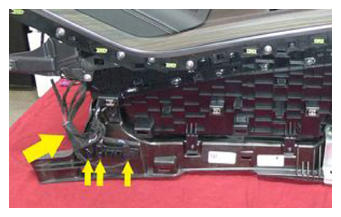

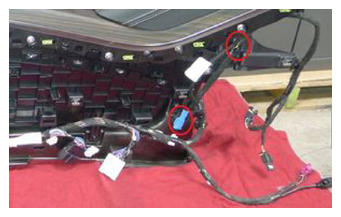

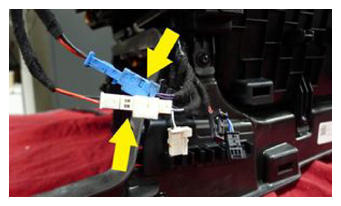

Connect the electrical connectors (x6) and clips (x2) to the center console decor electrical harness.
NOTE: 2 electrical connectors are wrapped in felt tape. Wrap the electrical connectors in felt tape.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the LH and RH center console side panels. See Side Panel - Center Console - LH (Remove And Replace) .
Install the center console assembly. See Center Console Assembly (Remove And Replace) .
