Module - Inductive Charger - Center Console (2.0) - Remove and Replace: Remove

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front doors.
  2. Move the front seats fully rearward and into the lowest position.
  3. Pivot the center console armrest up.

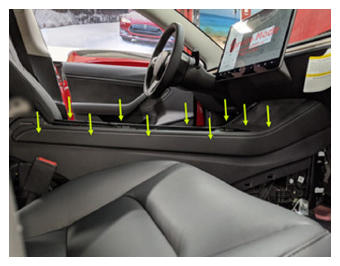

  4. Release the clips (x17) that attach the center console decor trim to the assembly.
    G14741008Courtesy of TESLA, INC.

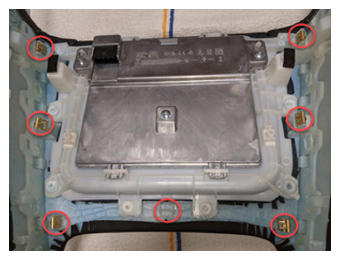

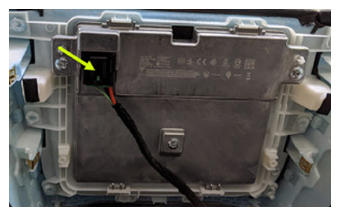

  5. Disconnect the center console inductive charger module electrical connector, and then release the surrounding clips that attach the center console decor to the center console to remove the assembly from the center console.
    G14741009Courtesy of TESLA, INC.
    G14741010Courtesy of TESLA, INC.

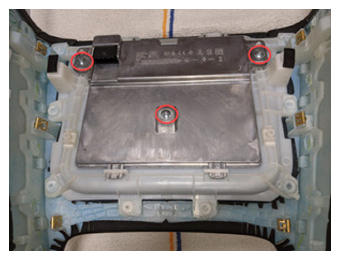

  6. Remove the screws that attach the center console wireless charger module to the center console decor.

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    • 4 in extension
    G14741011Courtesy of TESLA, INC.

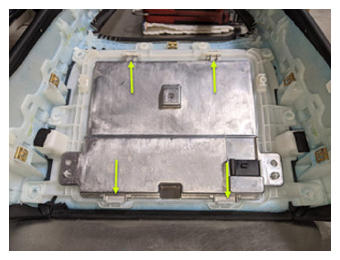

  7. Release the tabs that attach the center console wireless charger module to the center console decor, and then remove the module from the assembly.
    G14741012Courtesy of TESLA, INC.
