Light - License Plate - Remove And Replace: Removal

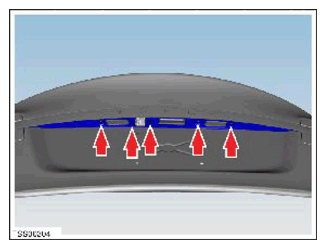

  1. Remove the screws (x5) that secure the rear applique bracket to the tailgate.
    G15035043Courtesy of TESLA, INC.
  2. Remove the rear applique bracket.

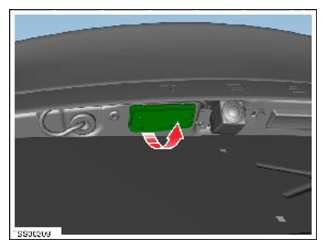

  3. Release the license plate light from the liftgate opening.
    G15035044Courtesy of TESLA, INC.

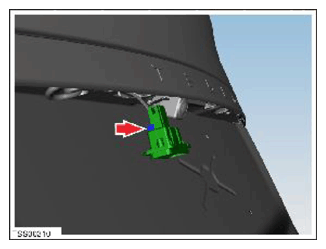

  4. Disconnect the light connector and remove the license plate light.
    G15035045Courtesy of TESLA, INC.
