Ground Strap - Front Drive Unit - Remove and Replace: Installation

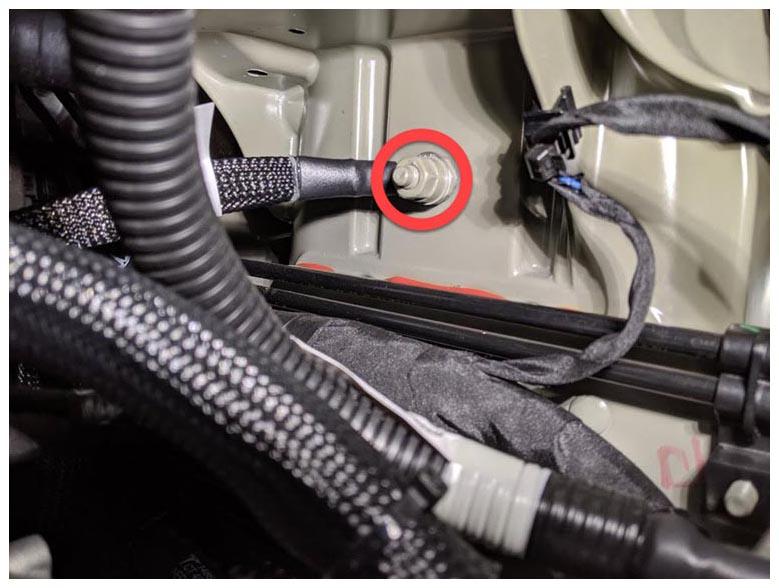

  1. Install the nut that attaches the ground strap to the body stud (torque 9 N.m).
    G14982151Courtesy of TESLA, INC.

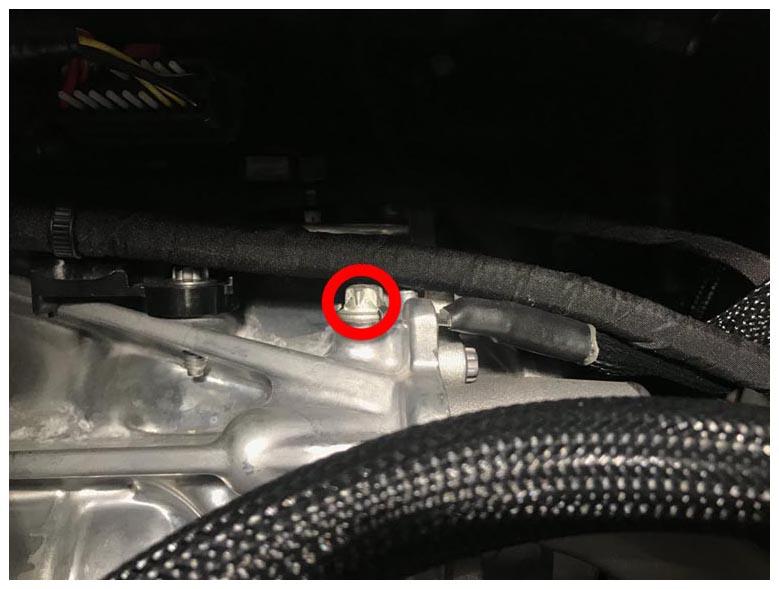

  2. Install the bolt that attaches the ground strap to the front drive unit assembly (torque 6 N.m).
    G14982152Courtesy of TESLA, INC.
  3. Install the 12V battery bracket. See Bracket - 12V Battery (Dual Motor) (Remove and Replace) .
