Sensor - Impact - C-Pillar - Remove And Replace: Removal

  1. Remove the HEPA filter outlet duct. See Duct - HEPA Filter - Outlet (Remove and Replace) .
  2. Disconnect 12V power and the first responder loop. See Disconnect 12V Power .
  3. Remove the sill panel trim. See Trim - Sill Panel - LH - Rear (Remove and Replace) .

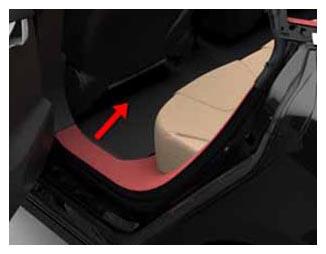

  4. Pull up the lower portion of the 'C' post lower trim panel by releasing the trim clips.
    CAUTION: Take care not to damage component(s).
    CAUTION: Replace any broken clips.
    G14979920Courtesy of TESLA, INC.
  5. Remove 'B' pillar lower trim Trim - B-Pillar - Lower - LH (Remove And Install)
  6. Disconnect impact sensor harness connector.
  7. Remove screw (x1) securing impact sensor to body (torque 10 N.m).
    CAUTION: The screw is left-hand threaded/reverse threaded. However, when the screw is being loosened from the tip (as opposed to the head), it functions the same as a normal screw.
    G14979921Courtesy of TESLA, INC.

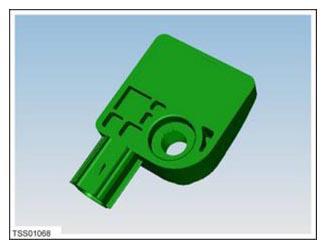

  8. Remove impact sensor.
    G14979922Courtesy of TESLA, INC.
