Bushing - Rear Drive Unit - RH - Remove and Replace: Install

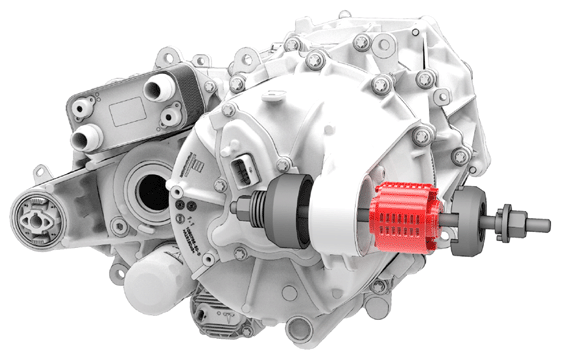

Set up the bushing tool to press in the new bushing.
NOTE: Use cups "D" and "E" when assembling the special tool, as shown.

Courtesy of TESLA, INC.
Turn the nut on the thrust washer to press the new bushing into the drive unit.
Separate the bushing tool, and then remove it from the drive unit.
nstall the rear drive unit. See: Drive Unit - Rear - (3DU) Remove and Install .
Check the vehicle wheel alignment, and adjust if necessary. See FOUR WHEEL ALIGNMENT CHECK .
