Sensor - Impact - Door - Front - Remove And Replace: Removal
- Disconnect 12V power See Disconnect 12V Power
.
- Remove the door trim panel See Panel - Door Trim - Front - LH (Remove and Install)
.
- Remove the impact sensor from the door:

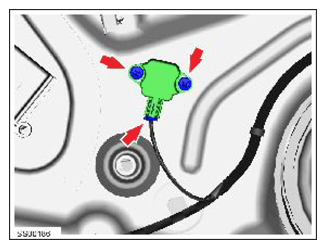

- Vehicles built before February 11, 2019:
Remove the screws (x2) that attach the impact sensor to the door (torque 5 N.m), and then disconnect the sensor harness.
 Courtesy of TESLA, INC.
|

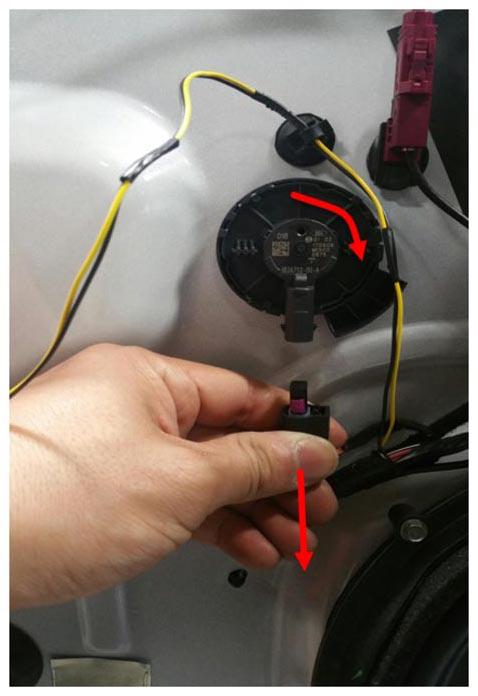

- Vehicles built after February 11, 2019:
Depress the locking tab on the impact sensor, and then pull the connector away from the sensor. Rotate the impact sensor clockwise 90 degrees to remove the impact sensor from the door.
 Courtesy of TESLA, INC.
|
