Connector End View - X080 (Fremont: 07/11/2018 - 01/04/2019)

Tesla Part Number  1015192-00-A

Connector  FEP 42122600

Color  BK

Connector Location:

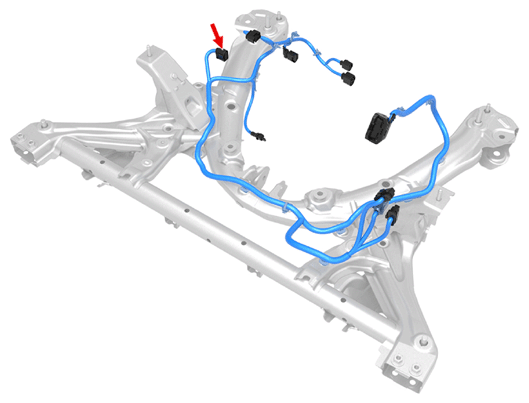

Fig 1: Connector Component Location - X080 (Fremont: 07/11/2018 - 01/04/2019)
G16617235Courtesy of TESLA, INC.

Connector Pinout:

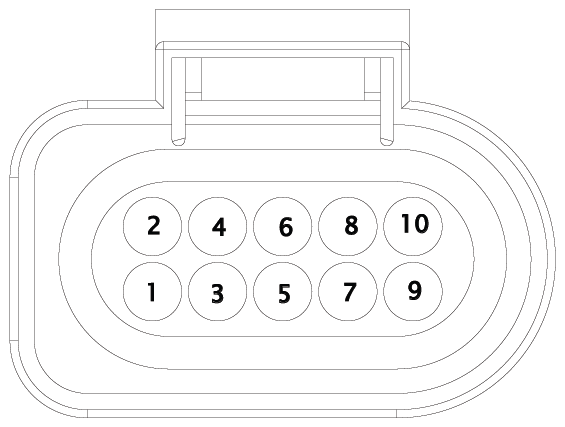

Fig 2: Connector End View - X080 (Fremont: 07/11/2018 - 01/04/2019)
G16617236Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 AMP 969005-2 1.6x0.6FS RD 0.35     X912F 5
2 AMP 969005-2 1.6x0.6FS VT 0.35     X912F 4
3 AMP 969005-2 1.6x0.6FS GN 0.35     X912F 7
4 AMP 969005-2 1.6x0.6FS YE 0.35     X912F 6
5 AMP 969005-2 1.6x0.6FS WH 0.35     X912F 10
6 AMP 969005-2 1.6x0.6FS VT 0.35     X912F 9
7 AMP 969005-2 1.6x0.6FS BN 0.35     X912F 13
8 AMP 969005-2 1.6x0.6FS BU 0.35     X912F 8
9 AMP 969005-2 1.6x0.6FS GY 0.35     X912F 12
10 AMP 969005-2 1.6x0.6FS OG 0.35     X912F 11
