Ground Strap - Front Drive Unit - Remove and Replace: Install

Installation procedure is the reverse of removal, except for the following:

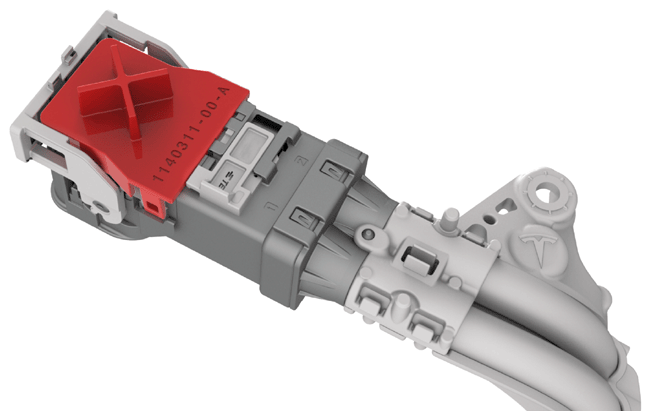

• Use the front drive unit HV harness connector special tool when reinstalling the front drive unit HV harness connector.

  Courtesy of TESLA, INC.

• When installing the front drive unit HV harness connector, slowly latch the release handle while pressing the front drive unit HV harness connector into the front drive unit.
  NOTE: The front drive unit alignment teeth and HV harness connector alignment teeth should be interlocked.
• The vehicle electrical isolation procedure does not need to be performed during installation.
