Center Console (2.0) (Structural Pack) - Remove And Install: Install
WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.

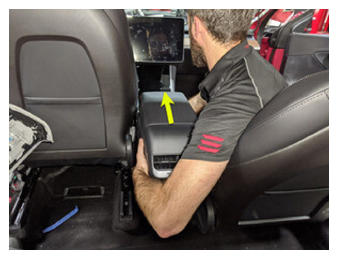

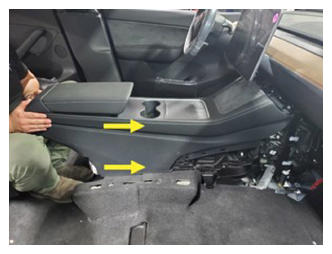

- With assistance, position the center console onto the rails, and then push the assembly forward.CAUTION: Force applied must be parallel to the rails.

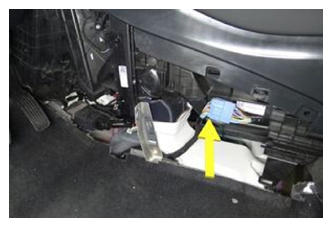

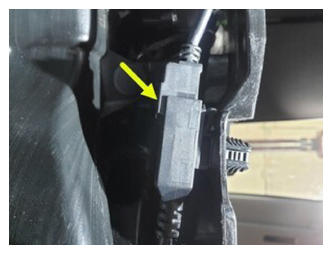

- Connect the center console harness electrical connector.NOTE: The connector is located behind the LH center console side carpet.
- Connect LV power. See 12 V/LV POWER (DISCONNECT AND CONNECT)
- Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .

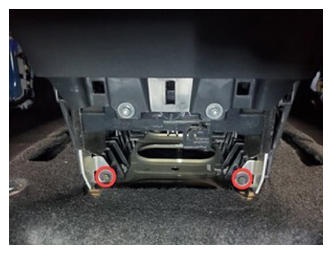

- Install the bolts (x2) that attach the center console to the lower rails.
9.5 N.m (7.0 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 8 mm socket
- Install the center console lower rear panel. See PANEL - LOWER REAR - CENTER CONSOLE (REMOVE AND REPLACE) .
- Move the front seats rearward.

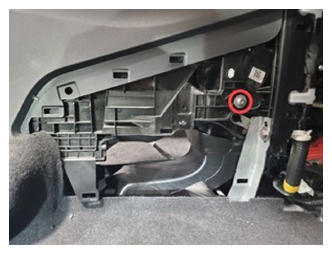

- Install the bolt that attaches the RH side of the center console to the instrument panel.
6.5 N.m (4.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- T30 socket

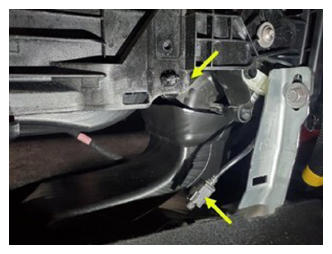

- Connect the USB harness electrical connector at RH front of the center console.
- Install the RH center console side panel. See Side Panel - Center Console - LH (Remove And Replace) .
- Install front passenger floor mat.
- Move the front passenger seat to the original position.

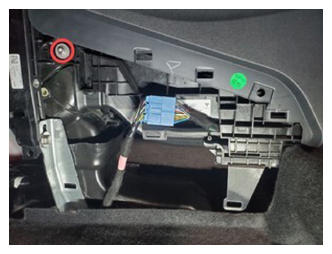

- Install the bolt that attaches the LH side of the center console to the instrument panel.
6.5 N.m (4.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- T30 socket
- Install the LH center console side panel. See.Side Panel - Center Console - LH (Remove And Replace)
- Install driver floor mat.
- Move the driver seat to the original position.
- Raise all the windows and close all the doors.
