Center Console (2.0) (Structural Pack) - Remove And Install: Remove
WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
- Open all the doors and lower all the windows.
- Move the driver seat rearward.
- Remove the driver floormat.

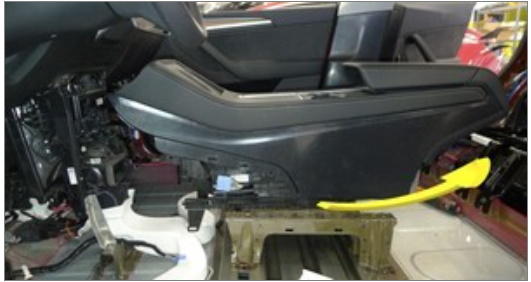

- Remove the LH center console side panel. See SIDE PANEL - CENTER CONSOLE - LH (REMOVE AND REPLACE) .

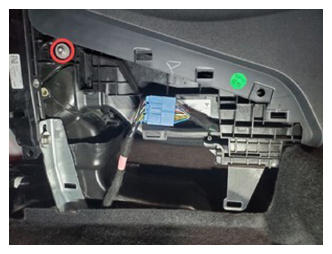

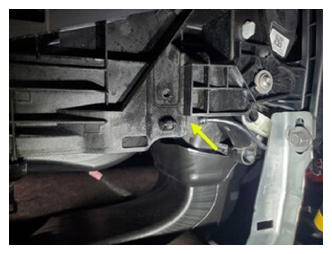

- Remove the bolt that attaches the LH side of the center console to the instrument panel.
6.5 N.m (4.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- T30 socket
- Repeat step 2 through step 4 for the RH side of the vehicle.

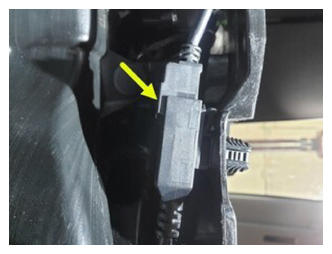

- Disconnect the USB harness electrical connector at the right front of the center console.NOTE: The connector is located behind the RH center console side bracket.

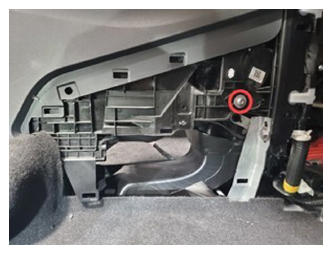

- Remove the bolt that attaches the RH side of the center console to the instrument panel.
6.5 N.m (4.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- T30 socket
- Move the front seats forward.
- Remove the center console lower rear panel. See PANEL - LOWER REAR - CENTER CONSOLE (REMOVE AND REPLACE)
- Remove the bolts (x2) that attach the center console to the lower rails.
9.5 N.m (7.0 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 8 mm socket
- Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE)
- Disconnect LV power. See 12 V/LV POWER (DISCONNECT AND CONNECT)
- Disconnect the center console harness electrical connector.NOTE: The connector is located behind the LH center console side carpet.

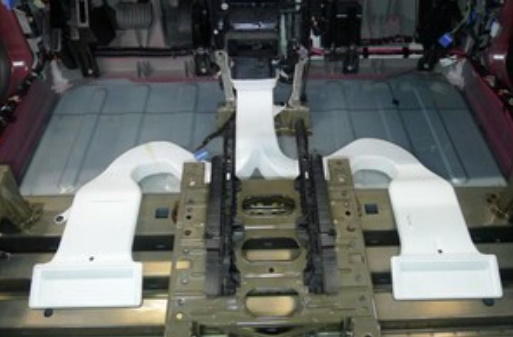

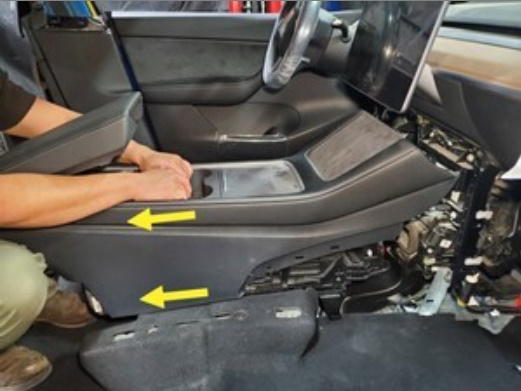

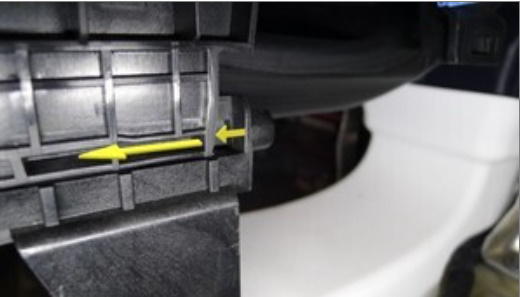

- Slide the center console assembly rearward and out of the riser rails.WARNING: Take note of the surrounding components to avoid personal injury and vehicle damage.CAUTION: Force applied must be parallel to the rails.
Tip: Use the cupholders to pull the console rearward. Shift center console from side to side to loosen if necessary.

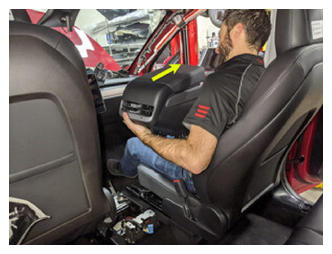

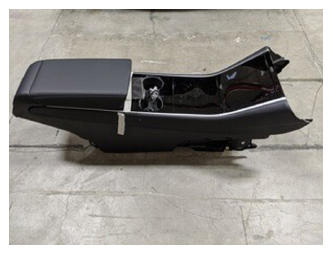

- With assistance, remove the center console from the vehicle.NOTE: Verify the rotating lids are in the closed position.NOTE: Tilt the rear of console upward, and then pull the assembly towards the rear of vehicle to remove.
