Module - Inductive Charger - Center Console (2.0) - Remove And Replace: Remove
WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
- Open the front doors and lower the front windows.
- Move the front seats to the most rearward and lowest position.
- Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
- Disconnect 12V/LV power. See 12V/LV Power (Disconnect and Connect) .

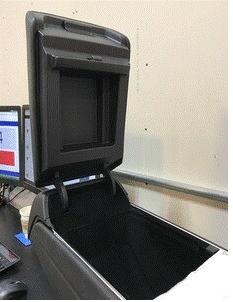

- Pivot the center console armrest up for access.

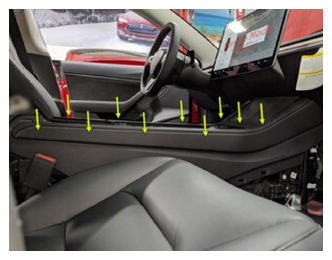

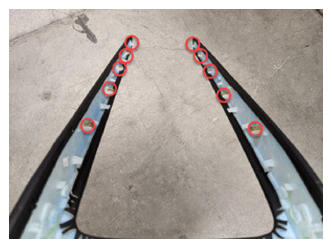

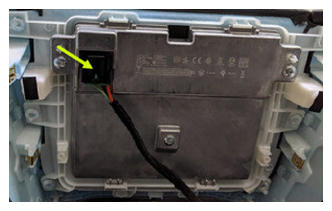

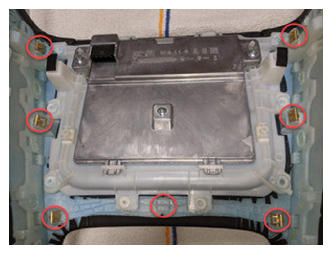

- Release the clips (x17) that attach the center console decor trim to the center console, disconnect the connector, and then remove the decor trim from the center console.NOTE: Release the surrounding clips first, and then release the front upper portion of trim.

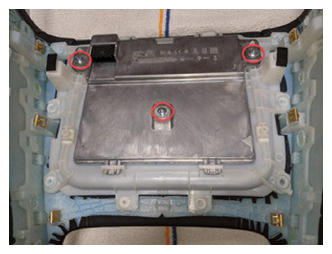

- Remove the screws (x3) that attach the center console inductive charger module to the decor trim.
1.3 N.m (1.0 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- Torx T20 socket

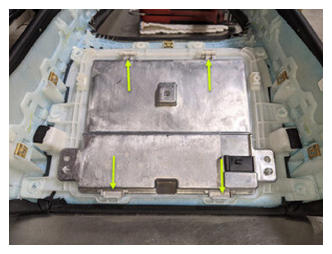

- Release the securing tabs (x2) and locating tabs (x2) to remove the inductive charger module from the center console decor trim.
