Center Console Assembly - Remove And Replace: Install
WARNING: This page is about a different car, the 2024 Tesla Model S, 2023 Tesla Model S, 2022 Tesla Model S, and 2021 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.

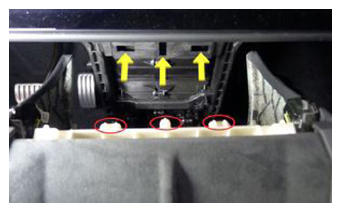

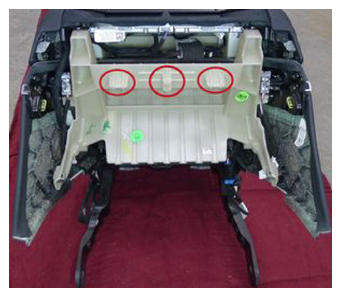

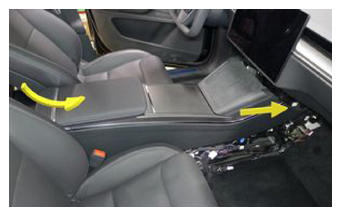

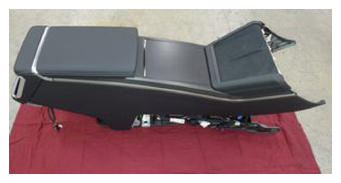

- With an assistant, install the console assembly on the vehicle:NOTE: x3 datumsNOTE: Carefully maneuver the front of the center console assembly under and into the instrument panel carrier and lower the rear of the center console into place. Align the datums into the instrument panel carrier and engage forward.

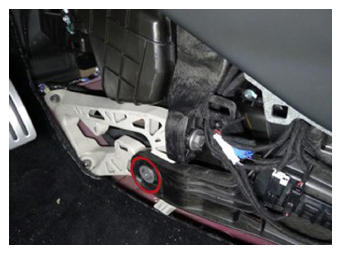

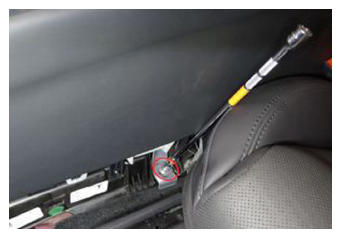

- Install the bolt that attaches the LH toeboard lower bracket to the center console. Repeat this step for the RH bracket.
10 N.m (7.4 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket

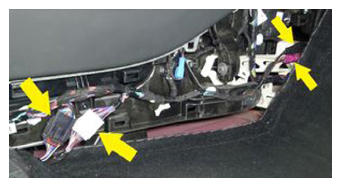

- Fasten the harness clips (x2), and then connect the center console electrical connectors (x4).NOTE: Make sure all connector locks are engaged.

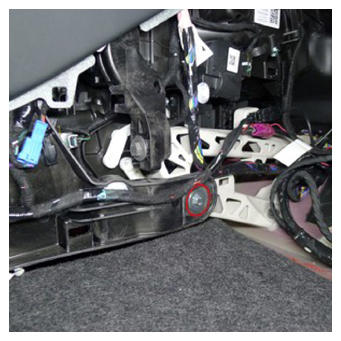

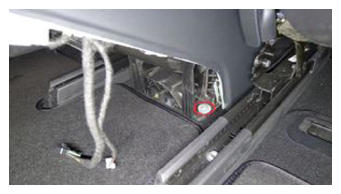

- Install the bolts (x2) that attach the LH and RH console carrier center bracket.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Install the LH and RH center console side panel carpets. See Carpet - Side Panel - Center Console - LH (Remove And Replace) .
- Install the LH and RH floor mats.
- Install the instrument panel service panel. See Service Panel - Instrument Panel (Remove and Replace) .
- Install the center console phone dock. See Phone Dock - Center Console (Remove And Replace) .
- Move the driver and front passenger seats fully forward.

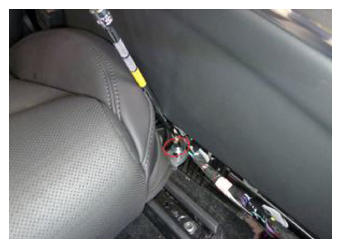

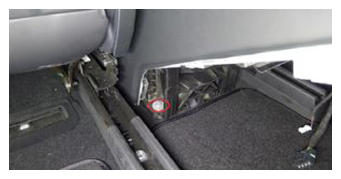

- Install the bolts (x2) that attach the LH and RH rear console carrier.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Install the center console lower rear panel. See Panel - Lower Rear - Center Console (Remove And Replace) .
- Restore the driver and front passenger seats back to their original position.
- Raise all windows and close all doors.
