Module - ECU - Occupant Classification System (OCS) - Front Passenger - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model S, 2023 Tesla Model S, 2022 Tesla Model S, and 2021 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the RH doors and lower the RH windows.
  2. Move the front passenger seat forward.
  3. Remove the front passenger seat. See Seat Assembly - 1st Row - LH (Remove And Replace) .
  4. Place the front passenger seat on a protected surface with the underside accessible.

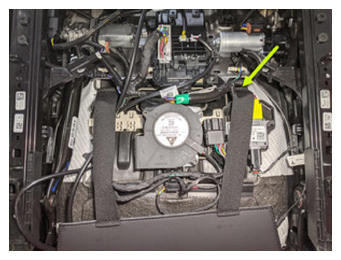

  5. Release the LH seat back elastic strap from the seat frame.
    G15081599Courtesy of TESLA, INC.

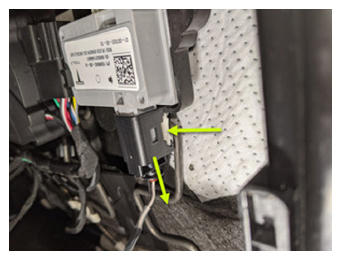

  6. Slide the locking tab toward the left of the connector, and then release the OCS sensor mat electrical connector downward to disconnect it from the front passenger seat OCS ECU module.
    G15081600Courtesy of TESLA, INC.

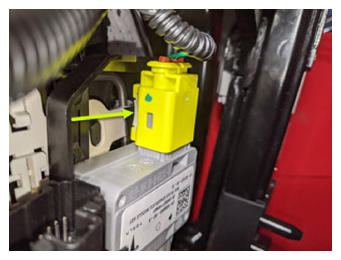

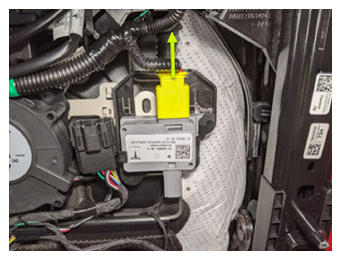

  7. Slide the locking tab toward the left of the connector, and then release the airbag electrical connector downward to disconnect it from the front passenger seat OCS ECU module.
    G15081601Courtesy of TESLA, INC.
    G15081602Courtesy of TESLA, INC.

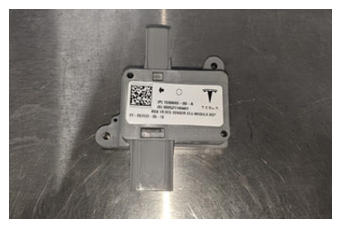

  8. Press the locking tabs (x2), and then slide the front passenger seat OCS ECU module upward to remove it from the seat bracket.
    G15081603Courtesy of TESLA, INC.
    G15081604Courtesy of TESLA, INC.
