Tie Rod End - LH - Remove And Replace: Removal
- Remove the road wheel Wheel (Remove And Install)
.
- Loosen the tie rod end jam nut (torque 70 N.m).
CAUTION:
To prevent tie rod damage, always restrain the tie rod with a wrench when loosening or tightening the jam nut.

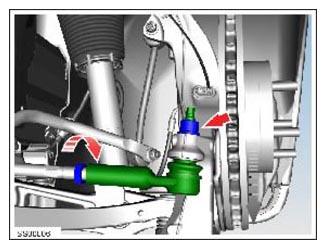

- Restrain the tie rod ball-pin with a wrench and remove and discard the nut that secures the tie rod end to the steering arm (torque 103.5 N.m).
CAUTION:
To prevent ball joint damage, always hold the ball joint pin with a wrench while loosening or tightening the lock nut.
 Courtesy of TESLA, INC.
|
- Release the tie rod end from the knuckle.
- Noting the number of turns required, unscrew the tie rod end.
