Tuner - FM/HD/XM - Remove And Replace: Install

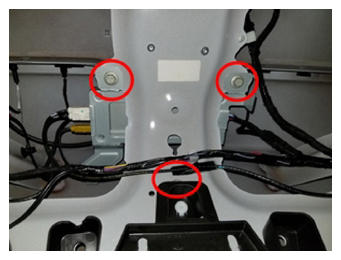

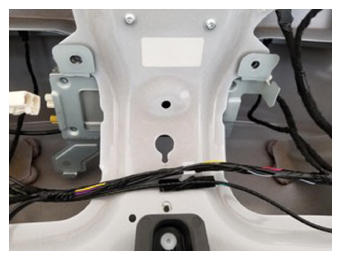

- Position the FM/HD tuner into the liftgate, and then install the bolts (x3) that attach the tuner to the liftgate.
NaN N.m (NaN ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket

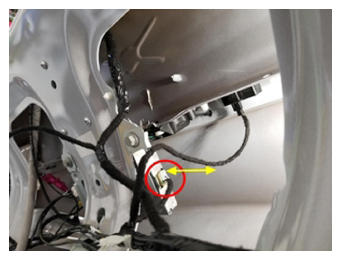

- Connect the RH liftgate harness electrical connector on the RH side of the FM/HD tuner.

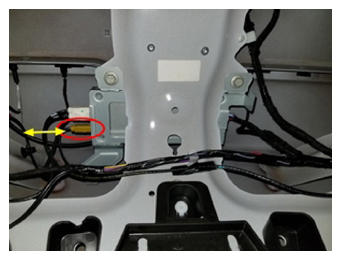

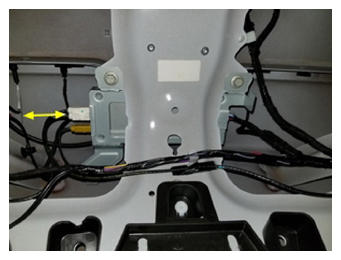

- Connect the RH liftgate harness electrical connector on the LH side of the FM/HD tuner.

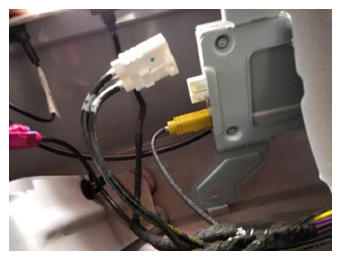

- Connect the coax connector on the tuner harness to the FM/HD tuner.
- Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
- Connect a laptop with Toolbox 3 to the vehicle.
- In Toolbox, click the Actions tab, and then type "Tuner" in the search field.
- Click the play button next to PING-BASH_TUNER , and then click Run .
- Disconnect Toolbox and remove the laptop from the vehicle.
