Bracket - Homelink - Remove And Replace: Install

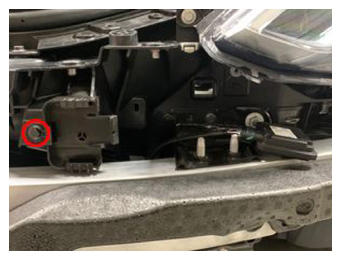

Position the homelink bracket into the vehicle, and then install the bolt that attaches the bracket to the vehicle.
5 N.m (3.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

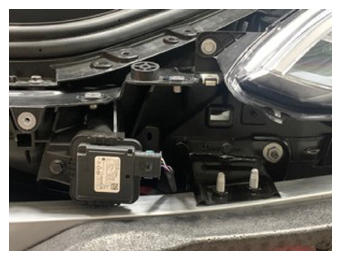

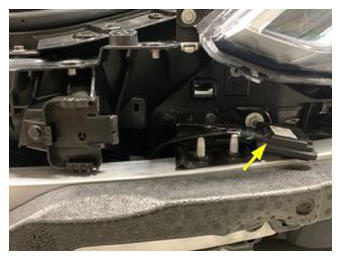

Install the homelink module.

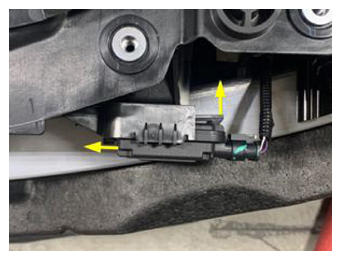

1. Release the locking tab.
2. Slide the module to the RH side of the vehicle.
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the front fascia assembly. See Fascia Assembly - Front (Remove and Install) .
