Puddle Light - Front Door - LH - Remove And Replace: Install

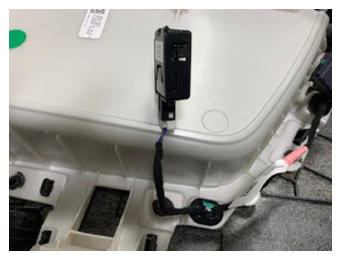

  1. Connect the LH front door puddle light to the LH front door harness.
    G15092154Courtesy of TESLA, INC.

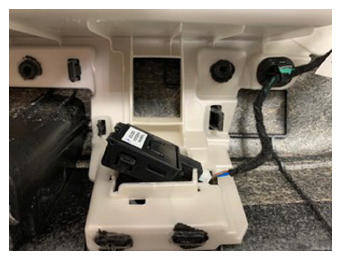

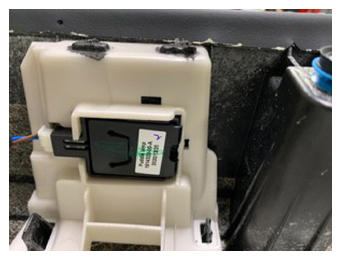

  2. Install the LH front door puddle light into the LH front door trim panel.
    G15092155Courtesy of TESLA, INC.
    G15092156Courtesy of TESLA, INC.

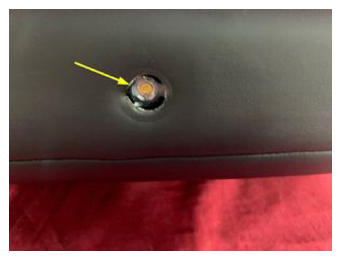

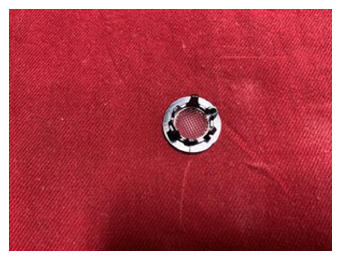

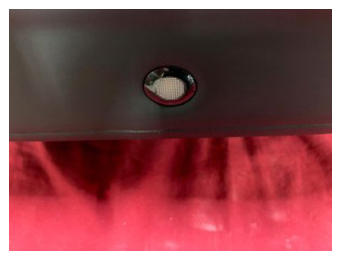

  3. Install the LH front door puddle light bezel into the LH front door trim panel.
    NOTE: Align the tabs (x3) with the slots in puddle light, and then push the bezel into lamp assembly.
    G15092157Courtesy of TESLA, INC.
    G15092158Courtesy of TESLA, INC.
    G15092159Courtesy of TESLA, INC.
  4. Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace) .
  5. Install the LH front door decor trim. See Decor - Trim - Front Door - LH (Remove and Replace) .
  6. Raise the LH front window and close the LH front door.
