Remove And Replace

  1. Open LH front door
  2. Lower LH front window
  3. Press brake pedal to turn on drive rails
  4. Set air suspension ride height to "Very High"
    NOTE: Using center display > Controls > Suspension > "Very High"
  5. Turn wheel fully to the right
  6. Open hood
    NOTE: Via Center Display > Controls > Frunk Open

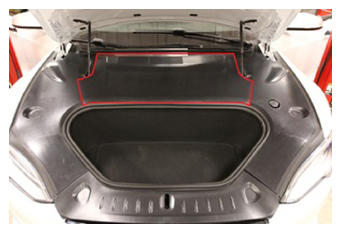

  7. Remove rear underhood apron
    NOTE: 8x clips
    G15092863Courtesy of TESLA, INC.
    G15092864Courtesy of TESLA, INC.

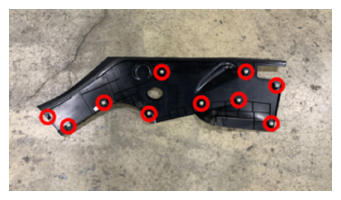

  8. Remove LH underhood apron
    NOTE: 10x clips
    G15092865Courtesy of TESLA, INC.
    G15092866Courtesy of TESLA, INC.

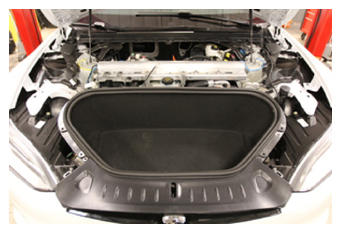

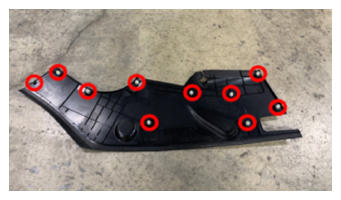

  9. Remove RH underhood apron
    NOTE: 10x clips
    G15092867Courtesy of TESLA, INC.
    G15092868Courtesy of TESLA, INC.

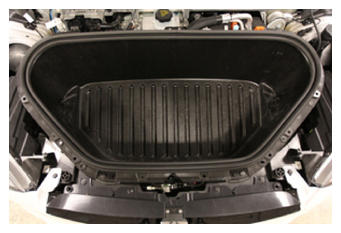

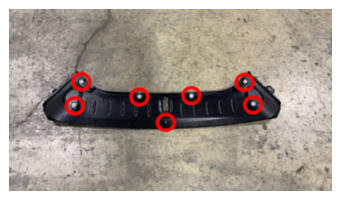

  10. Remove front underhood apron
    NOTE: 7x clips
    G15092869Courtesy of TESLA, INC.
    G15092870Courtesy of TESLA, INC.

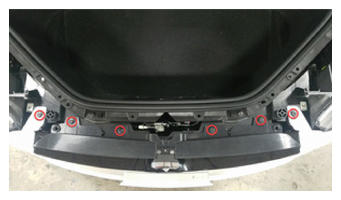

  11. Remove bolts securing fascia bracket to carrier
    NOTE: 6x bolts, 10 mm, 4 N.m
    G15092871Courtesy of TESLA, INC.

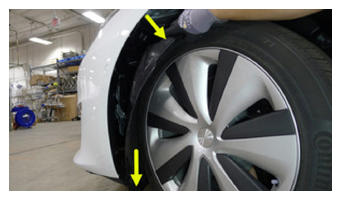

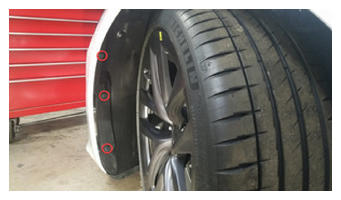

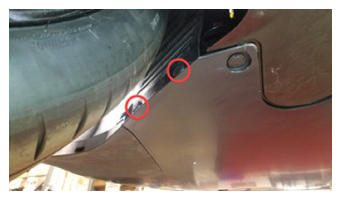

  12. Remove push clips securing LH front wheel arch liner to fascia and move to the side for access
    NOTE: 5x push clips, Shift bottom of liner down and flex top of liner against tire
    G15092872Courtesy of TESLA, INC.
    G15092873Courtesy of TESLA, INC.
    G15092874Courtesy of TESLA, INC.

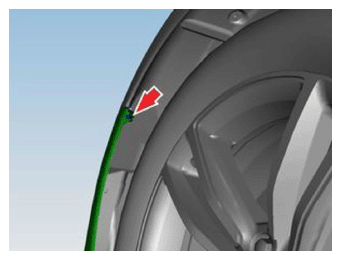

  13. Remove bolt securing front fascia to LH fender bracket
    NOTE: 1x bolt, T25, 5 N.m
    G15092875Courtesy of TESLA, INC.
  14. Press brake pedal to turn on drive rails
    G15092876Courtesy of TESLA, INC.

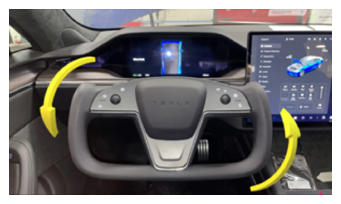

  15. Turn wheel fully to the left
    G15092877Courtesy of TESLA, INC.

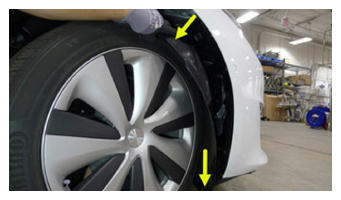

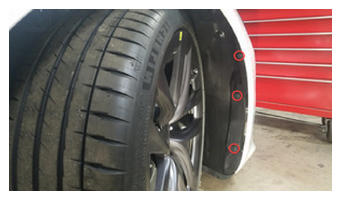

  16. Remove push clips securing RH front wheel arch liner to fascia and move to the side for access
    NOTE: 5x push clips, Shift bottom of liner down and flex top of liner against tire
    G15092878Courtesy of TESLA, INC.
    G15092879Courtesy of TESLA, INC.
    G15092880Courtesy of TESLA, INC.

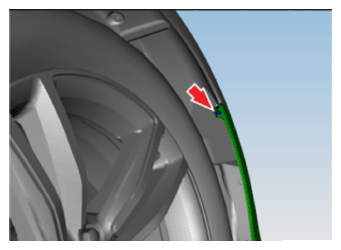

  17. Remove bolt securing front fascia to RH fender bracket
    NOTE: 1x bolt, T25, 5 N.m
    G15092881Courtesy of TESLA, INC.

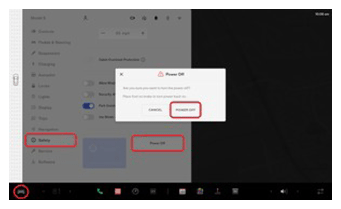

  18. Power off vehicle from center display
    NOTE: Via Controls > Safety & Security > Power Off
    G15092882Courtesy of TESLA, INC.

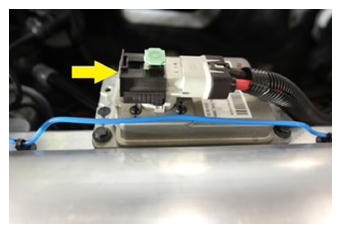

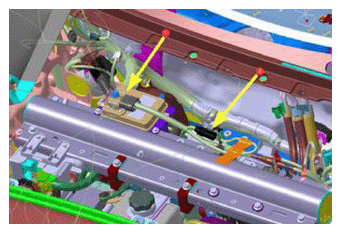

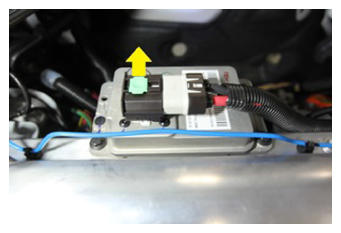

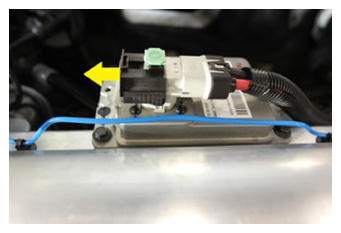

  19. Disconnect LV battery connector and First Responder Loop
    NOTE: 2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection
    G15092883Courtesy of TESLA, INC.
    G15092884Courtesy of TESLA, INC.
    G15092885Courtesy of TESLA, INC.
    G15092886Courtesy of TESLA, INC.

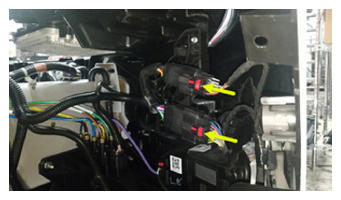

  20. Disconnect front fascia harness
    NOTE: 2x connectors, Pull red tab to disengage lock then disconnect, Located behind RH wheel arch liner
    G15092887Courtesy of TESLA, INC.
  21. Release front fascia valance from front aero shield
    NOTE: 3x bolts, 10 mm, 6 N.m, 2x clips, 2x datums, Do not remove 3x middle bolts
    G15092888Courtesy of TESLA, INC.
    G15092889Courtesy of TESLA, INC.
  22. Release fascia from fender brackets and pull forward to remove from vehicle
    NOTE: Set fascia on protected surface, Recommend assistance
    G15092890Courtesy of TESLA, INC.
    G15092891Courtesy of TESLA, INC.
  23. Disconnect battery backed siren connector
    NOTE: 1x connector
    G15092892Courtesy of TESLA, INC.

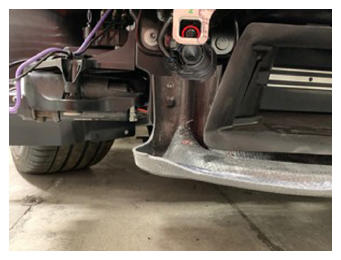

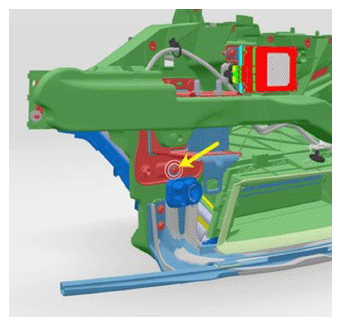

  24. Remove bolt securing battery backed siren to front bumper beam complete
    NOTE: 1x bolt, 10 mm, 8 N.m
    G15092893Courtesy of TESLA, INC.
    G15092894Courtesy of TESLA, INC.
  25. Install bolt securing battery backed siren to front bumper beam complete
    NOTE: 1x bolt, 10 mm, 8 N.m
    G15092895Courtesy of TESLA, INC.
    G15092896Courtesy of TESLA, INC.
  26. Connect battery backed siren connector
    NOTE: 1x connector
    G15092897Courtesy of TESLA, INC.

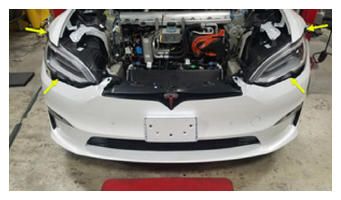

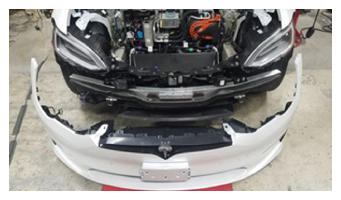

  27. Install front fascia onto vehicle and secure fascia to fender brackets
    NOTE: Recommend Assistance, Route fascia harness while installing, Verify front fascia valance sits under front aero shield before proceeding
    G15092898Courtesy of TESLA, INC.
    G15092899Courtesy of TESLA, INC.

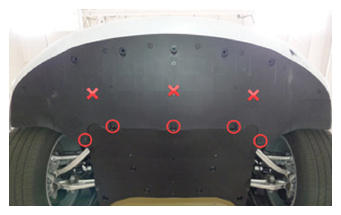

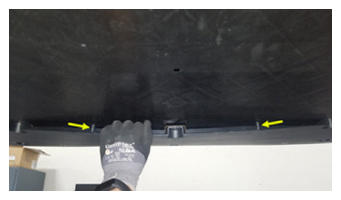

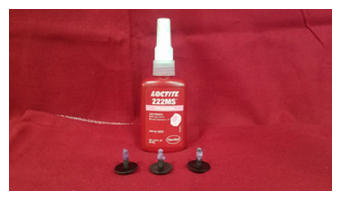

  28. Apply Loctite 222 to fasteners and secure front fascia valance to front aero shield
    NOTE: 3x bolts, 10 mm, 6 N.m, 2x clips, 2x datums, Insert valance datums into aero shield holes, Do not remove 3x middle bolts
    G15092900Courtesy of TESLA, INC.
    G15092901Courtesy of TESLA, INC.
    G15092902Courtesy of TESLA, INC.
  29. Connect front fascia harness
    NOTE: 2x connectors, Engage locking tab, Located behind RH wheel arch liner
    G15092903Courtesy of TESLA, INC.
  30. Install bolt securing fascia to RH fender bracket
    NOTE: 1x bolt, T25, 5 N.m
    G15092904Courtesy of TESLA, INC.

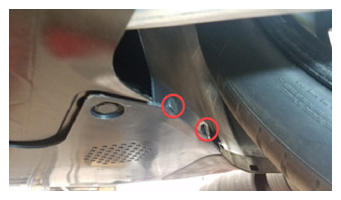

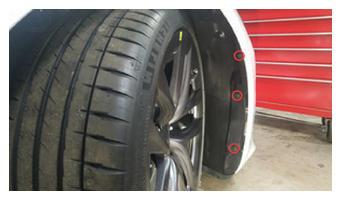

  31. Install push clips securing RH front wheel liner to fascia
    NOTE: 5x push clips
    G15092905Courtesy of TESLA, INC.
    G15092906Courtesy of TESLA, INC.

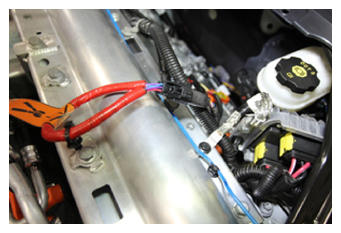

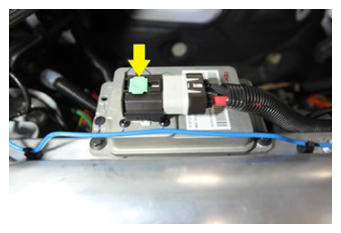

  32. Connect First Responder Loop and LV battery connector
    NOTE: 2x connectors Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated
    G15092907Courtesy of TESLA, INC.
    G15092908Courtesy of TESLA, INC.
    G15092909Courtesy of TESLA, INC.
    G15092910Courtesy of TESLA, INC.
  33. Press brake pedal to turn on drive rails
    G15092911Courtesy of TESLA, INC.
  34. Turn wheel fully to the right
  35. Install bolt securing fascia to LH fender bracket
    NOTE: 1x bolt, T25, 5 N.m
    G15092912Courtesy of TESLA, INC.
  36. Install push clips securing LH front wheel liner to fascia
    NOTE: 5x push clips
    G15092913Courtesy of TESLA, INC.
    G15092914Courtesy of TESLA, INC.
  37. Install bolts securing fascia bracket to carrier
    NOTE: 6x bolts, 10 mm, 4 N.m
    G15092915Courtesy of TESLA, INC.

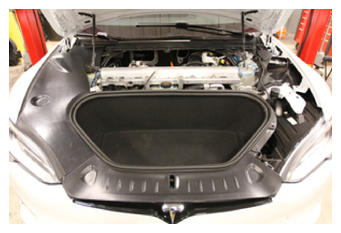

  38. Install RH underhood apron
    NOTE: 10x clips
    G15092916Courtesy of TESLA, INC.
    G15092917Courtesy of TESLA, INC.

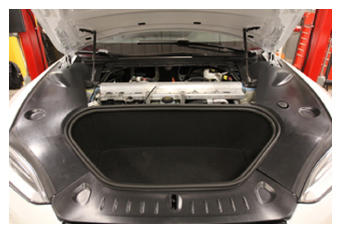

  39. Install LH underhood apron
    NOTE: 10x clips
    G15092918Courtesy of TESLA, INC.
    G15092919Courtesy of TESLA, INC.

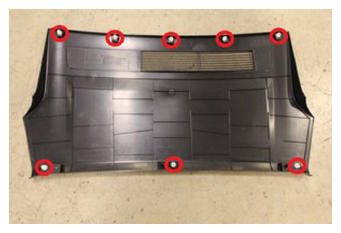

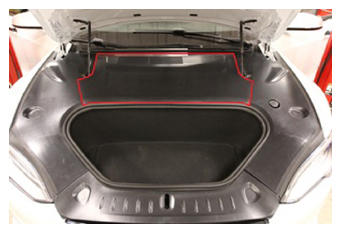

  40. Install rear underhood apron
    NOTE: 8x clips
    G15092920Courtesy of TESLA, INC.
    G15092921Courtesy of TESLA, INC.

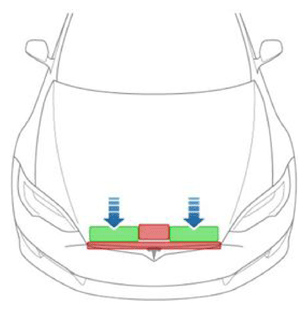

  41. Close hood
    NOTE: Press firmly in green highlighted areas (see image), Damage may result from pressure elsewhere on hood
    G15092922Courtesy of TESLA, INC.
  42. Press brake pedal to turn on drive rails
  43. Turn steering wheel back to center
  44. Set air suspension ride height to "Medium"
    NOTE: Using center display, Controls > Suspension > "Medium'
  45. Close LH front door
