System - Windshield Washer - Remove And Replace: Remove
- Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace)
.
- Remove the LH underhood apron. See Underhood Apron - LH (Remove and Replace)
.

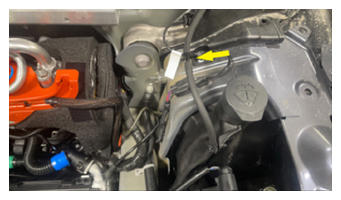

- Disconnect the shock tower hose from the washer tank hose.
 Courtesy of TESLA, INC.
|
- Raise and support the vehicle. See Raise Vehicle - 2 Post Lift
.

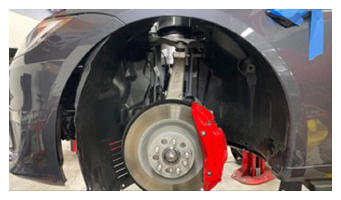

- Remove the LH front wheel. See Wheel (Remove and Install)
.

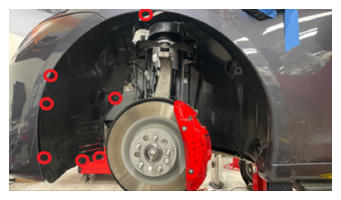

- Release the clips (x7) that attach the front portion of the LH front wheel house liner to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

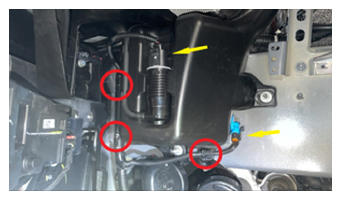

- Disconnect the wiring harness from the washer system and release the clips (x3) that attach the harness to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove the horn assembly. See HORN ASSEMBLY (REMOVE AND REPLACE) .

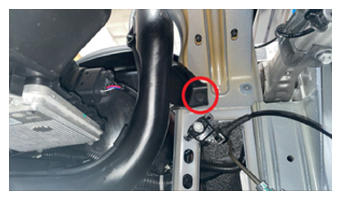

- Remove the clip that attaches the bottle neck to the vehicle.
 Courtesy of TESLA, INC.
|

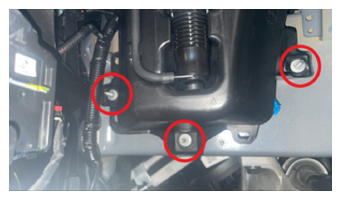

- Remove the nuts (x3) that attach the washer system to the vehicle.
 Courtesy of TESLA, INC.
|

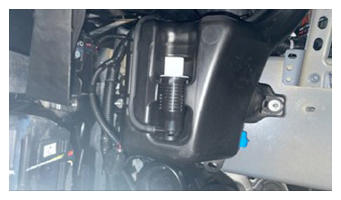

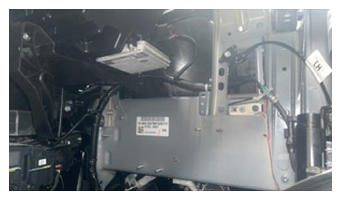

- Remove the washer system from the vehicle.
 Courtesy of TESLA, INC.
|
