Tweeter Assembly - Front Door - LH (with Tether) - Remove and Replace: Install
WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.

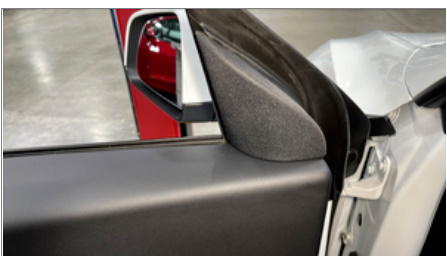

- Position the LH front door tweeter onto the door assembly, feed the strap in, secure it over the body hook, and then hang the tweeter assembly aside.NOTE:
Make sure the tether stays in the position circled in red.
NOTE:Install the tether using the routing noted during removal.
Tip: Use a trim to aid in installation if needed.
- Install the LH front door trim panel. See Panel - Door Trim - Front - LH - Remove And Install .
- Position the LH front door tweeter assembly onto the door panel, connect the connector, and then secure the clips (x2) and hook that attach the assembly to the door panel and body.NOTE:
Make sure the component is fully engaged and the tether is not exposed from under the trim.
- Raise the LH front window and close the LH front door.
