Removal (Tegra based MCU)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Tesla Model S, 2019 Tesla Model S, 2018 Tesla Model S, 2017 Tesla Model S, and 2016 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.

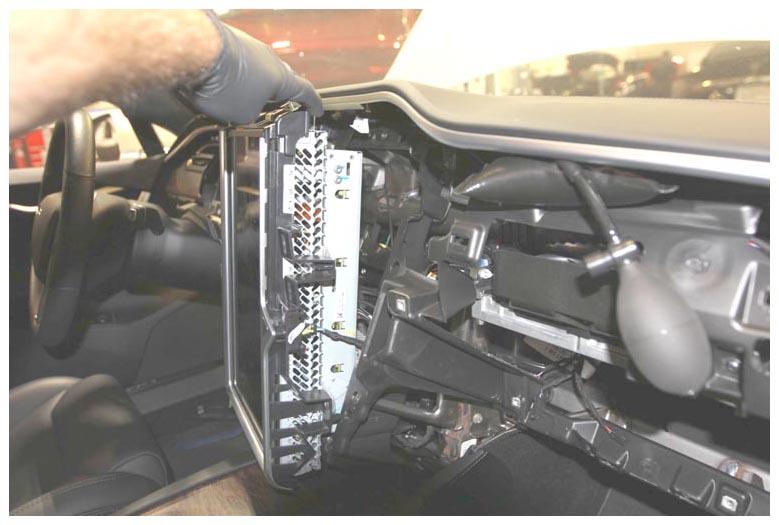

  1. Perform the procedure to remove the MCU from the instrument panel, but do not disconnect any cables or harnesses from the MCU, refer to MEDIA CONTROL UNIT (REMOVE AND INSTALL) .
    G14979996Courtesy of TESLA, INC.

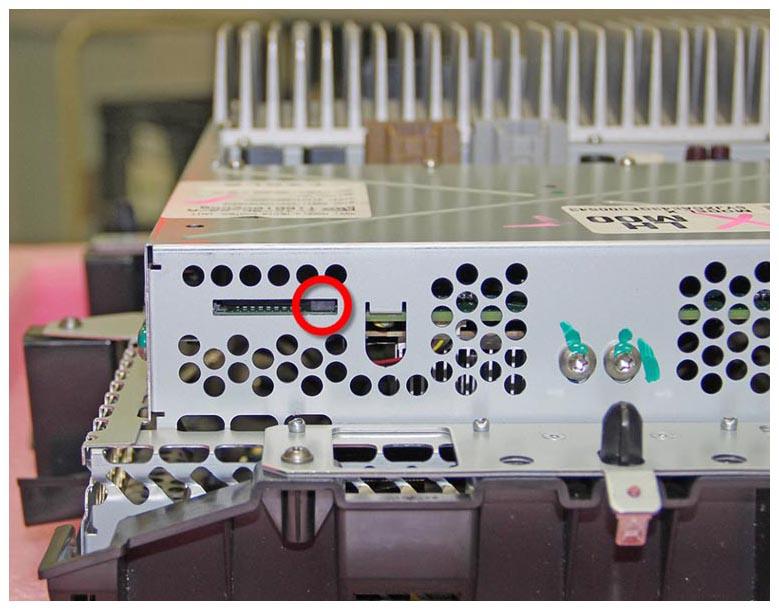

  2. Working from the top of the MCU, carefully use a precision screwdriver or plastic probe to press the SD card retaining tab to the right to eject the SD card from the socket.
    CAUTION: Take care not to damage component(s).
    NOTE: The following image shows the SD card socket with the SD card removed for clarity.
    G14979997Courtesy of TESLA, INC.

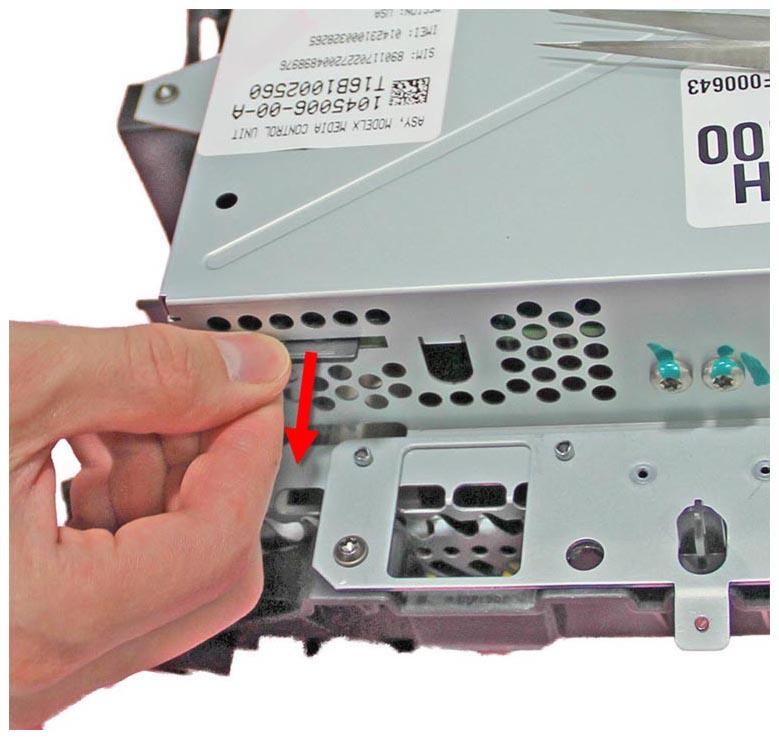

  3. Remove the SD card from the MCU.
    G14979998Courtesy of TESLA, INC.
  4. Destroy the SD card by cutting the card in half through the center, and then cut each piece into half, resulting in 4 pieces.
    CAUTION: It is mandatory to destroy the SD card to protect user data.
