Buckle - 2nd Row - LH - Remove And Replace: Remove

  1. Open all the doors and lower the LH front window.
  2. Move the front seats forward.
  3. Remove LH and RH 2nd row seat outer bolsters. See Bolster - Outer - Seat - 2nd Row - LH (Remove and Replace) .
  4. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .

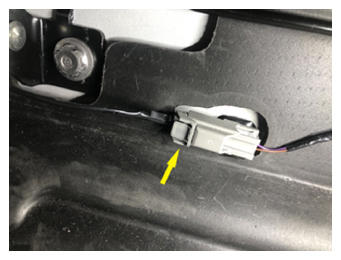

  5. Disconnect the LH 2nd row buckle electrical connector.
    G15099834Courtesy of TESLA, INC.

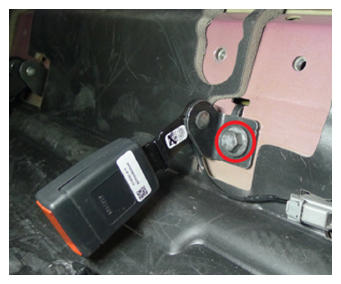

  6. Remove and discard the bolt that attaches the LH 2nd row buckle to the vehicle.

    40 N.m (29.5 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 15 mm socket
    G15099835Courtesy of TESLA, INC.

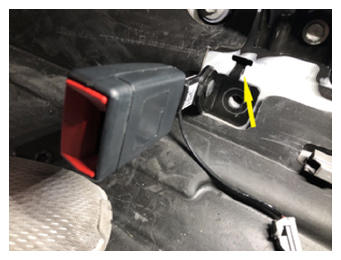

  7. Release the locating tab, and then remove LH 2nd row buckle from the vehicle.
    G15099836Courtesy of TESLA, INC.
