Puddle Light - Front Door - LH - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Remove the LH front door decor trim. See Decor - Trim - Front Door - LH (Remove and Replace) .
  3. Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace) .

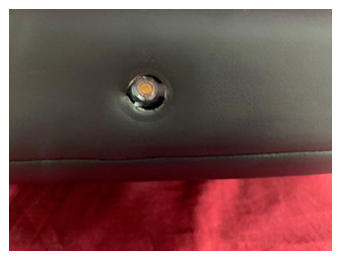

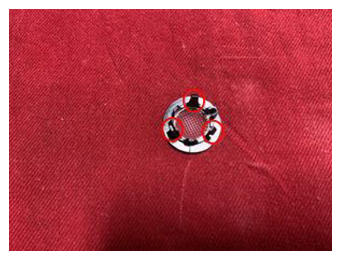

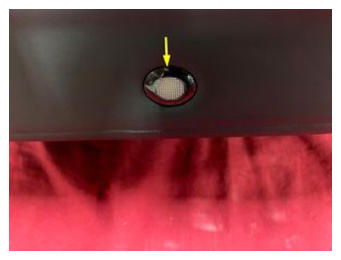

  4. Release the tabs (x3) that attach the LH front door puddle light bezel to the LH front door trim panel, and then remove the bezel from the panel.
    NOTE: Pry the bezel from door trim panel.
    G15092146Courtesy of TESLA, INC.
    G15092147Courtesy of TESLA, INC.
    G15092148Courtesy of TESLA, INC.

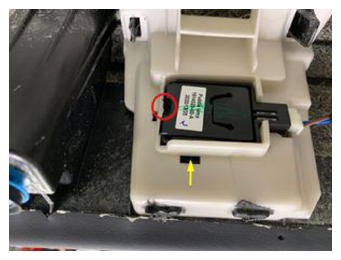

  5. Use a 90 degree pick to depress the locking tabs (x3), and then use a pocket screwdriver to pry the LH front door puddle light through the access hole in the LH front door trim panel.
    G15092149Courtesy of TESLA, INC.
    G15092150Courtesy of TESLA, INC.
    G15092151Courtesy of TESLA, INC.

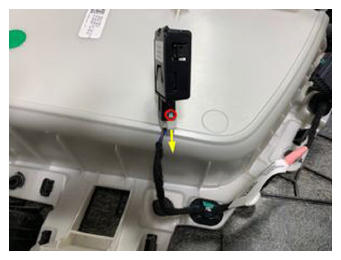

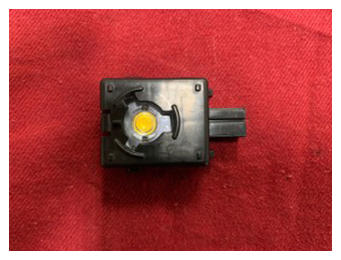

  6. Release the locking tab, and then disconnect the LH front door puddle light from the door trim panel harness.
    G15092152Courtesy of TESLA, INC.
    G15092153Courtesy of TESLA, INC.
