Harness - Front End Module - Remove and Replace: Remove

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the LH front door.
  2. Remove the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
  3. Remove the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .

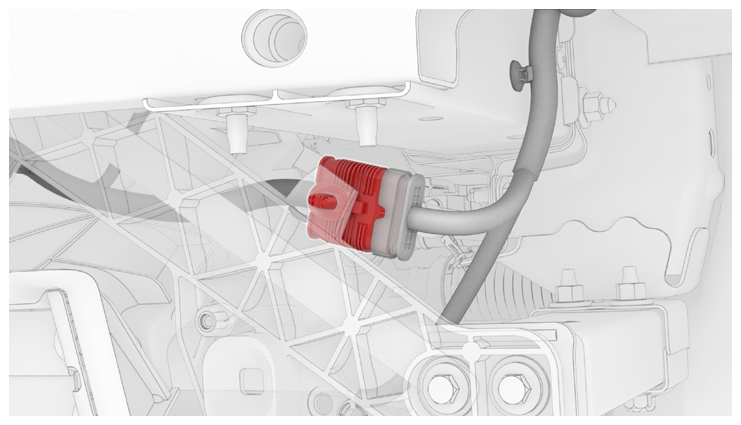

  4. Release the connector locks, and then disconnect the LH and RH front end carrier electrical harness connectors.
    G14742764Courtesy of TESLA, INC.

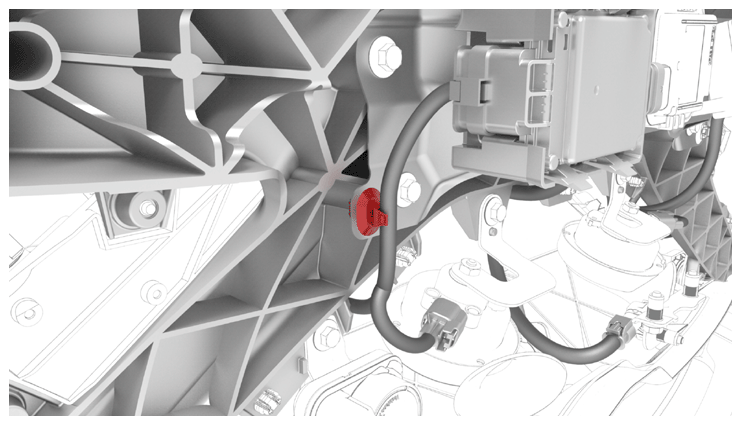

  5. Release the clip that attaches the front radar sensor wiring harness to the front end carrier.
    G14742765Courtesy of TESLA, INC.

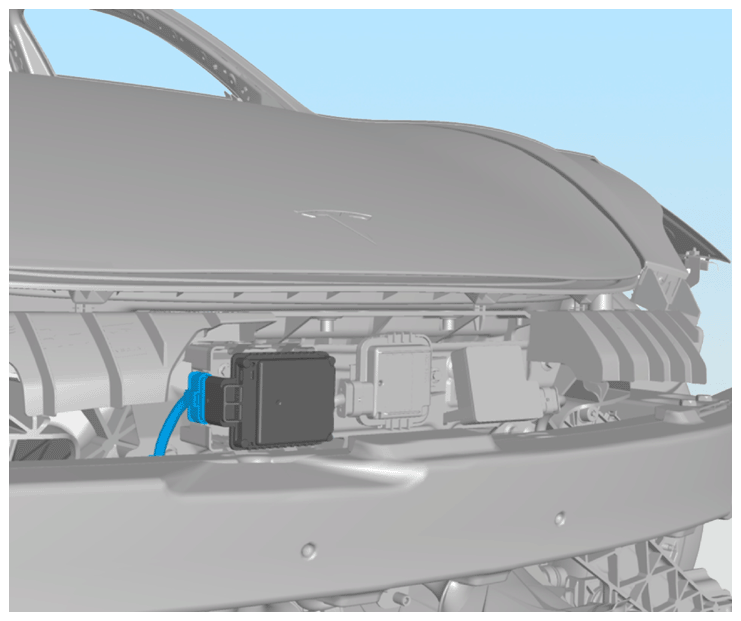

  6. Disconnect the electrical harness connector from the radar sensor.
    G14742766Courtesy of TESLA, INC.

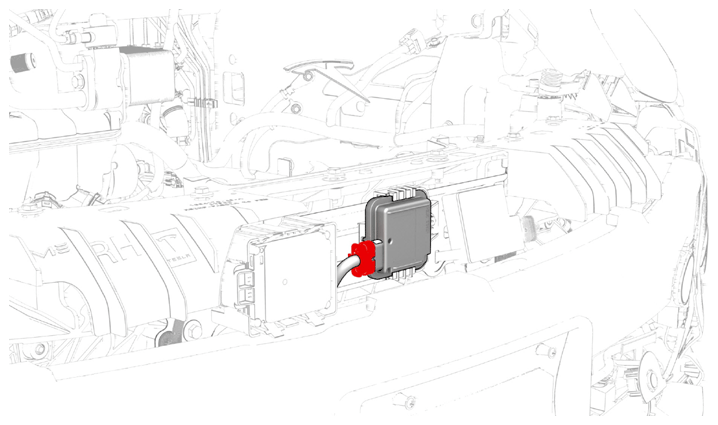

  7. Disconnect the electrical connector from the HomeLink transmitter module, if applicable.
    G14742767Courtesy of TESLA, INC.

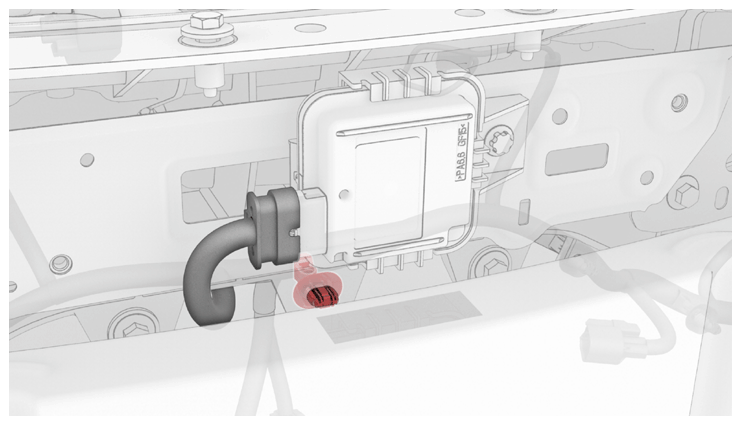

  8. Release the clip that attaches the BLE assembly wiring harness to the front end carrier, and then disconnect the electrical harness connector from the front BLE assembly.
    NOTE: The BLE assembly is only available on cars produced before December 2017.
    G14742768Courtesy of TESLA, INC.

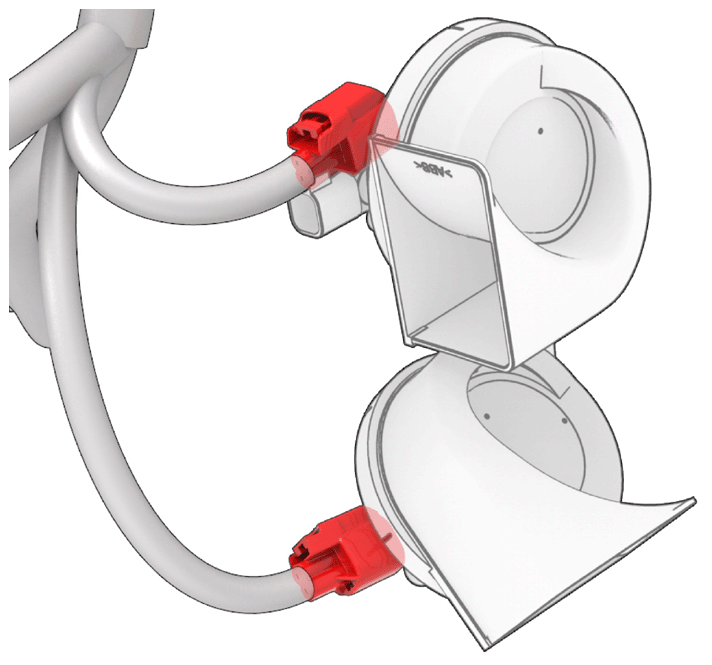

  9. Disconnect the electrical connectors (x2) from the horn assembly.
    G14742769Courtesy of TESLA, INC.

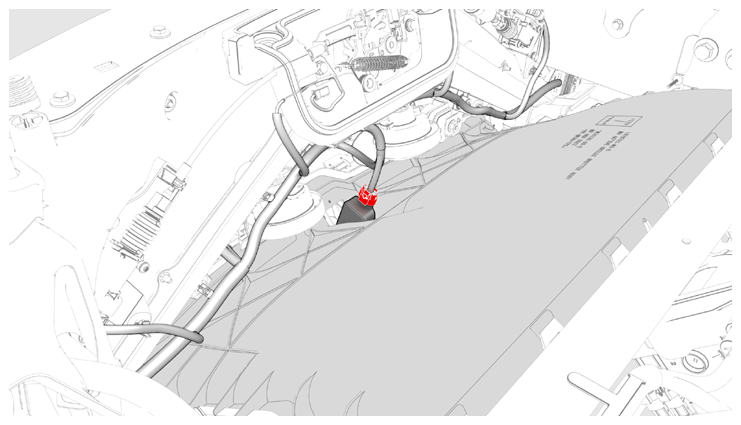

  10. Release the connector lock, and then disconnect the active grille shutter electrical connector.
    G14742770Courtesy of TESLA, INC.
  11. Release the clips (x11) that attach the FEM electrical harness to the front end carrier, and then remove the harness from the front end carrier.
