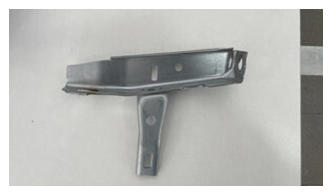

Riser - Instrument Panel - Remove And Replace: Remove
WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
- Open the LH front door and fully lower the LH front window.
- Move the driver seat fully rearward.
- Remove the LH front floormat.
- Remove the LH center console side panel carpet. See Side Panel - Center Console - LH (Remove and Replace) .

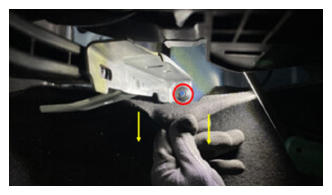

- Remove the clip that attaches the carpet to the instrument panel riser.

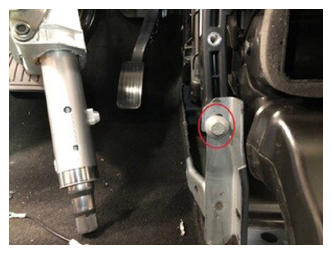

- Remove the bolt that attaches the instrument panel riser to the cross car beam.
25 N.m
Tip:
Use of the following tool(s) is recommended:
- 13 mm socket
- Flex head ratchet/flex head torque wrench
- 3 in extension

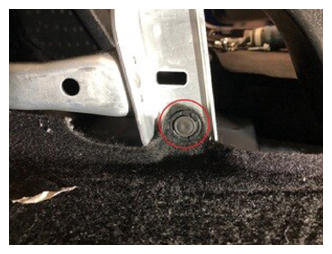

- Remove the nut that attaches the instrument panel riser to the body, and then remove the riser from the vehicle.
25 N.m
NOTE: Note the direction of the instrument panel riser during removal.Tip:
Use of the following tool(s) is recommended:
- 13 mm socket
- Flex head ratchet/flex head torque wrench
- 6 in extension
