Accelerator - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  2. Disconnect 12V/LV power. See 12 V/LV POWER (DISCONNECT AND CONNECT) .
  3. Remove the driver knee airbag. See Airbag - Knee - Driver (Remove and Replace) .
  4. Remove the LH footwell duct. See Duct - Footwell - LH - Remove And Replace .

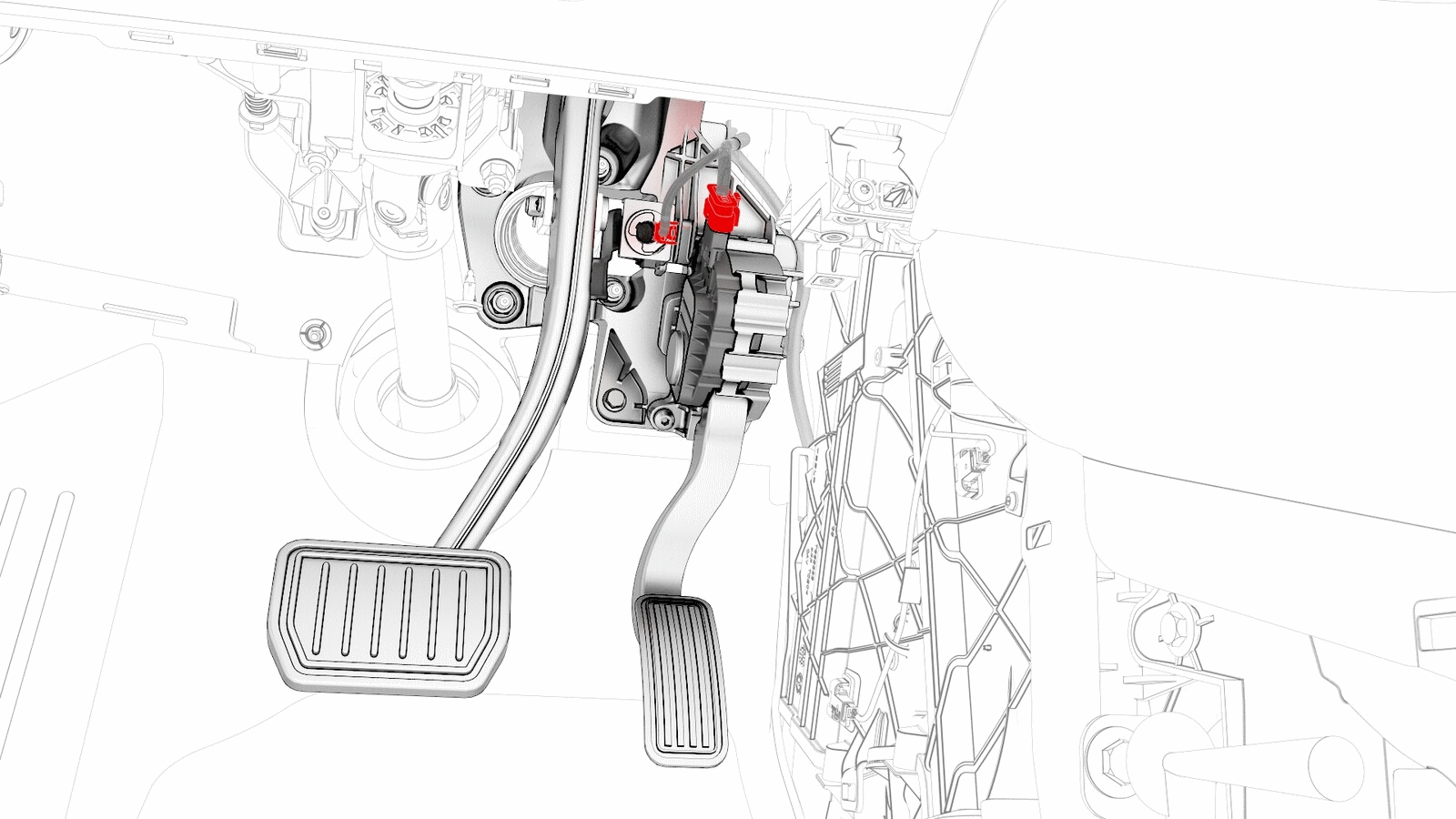

  5. Disconnect the electrical connector from the accelerator.
    CAUTION:

    If the connector locking tab is red, pull the red locking tab away from the pedal housing.

    G00624439Courtesy of TESLA, INC.

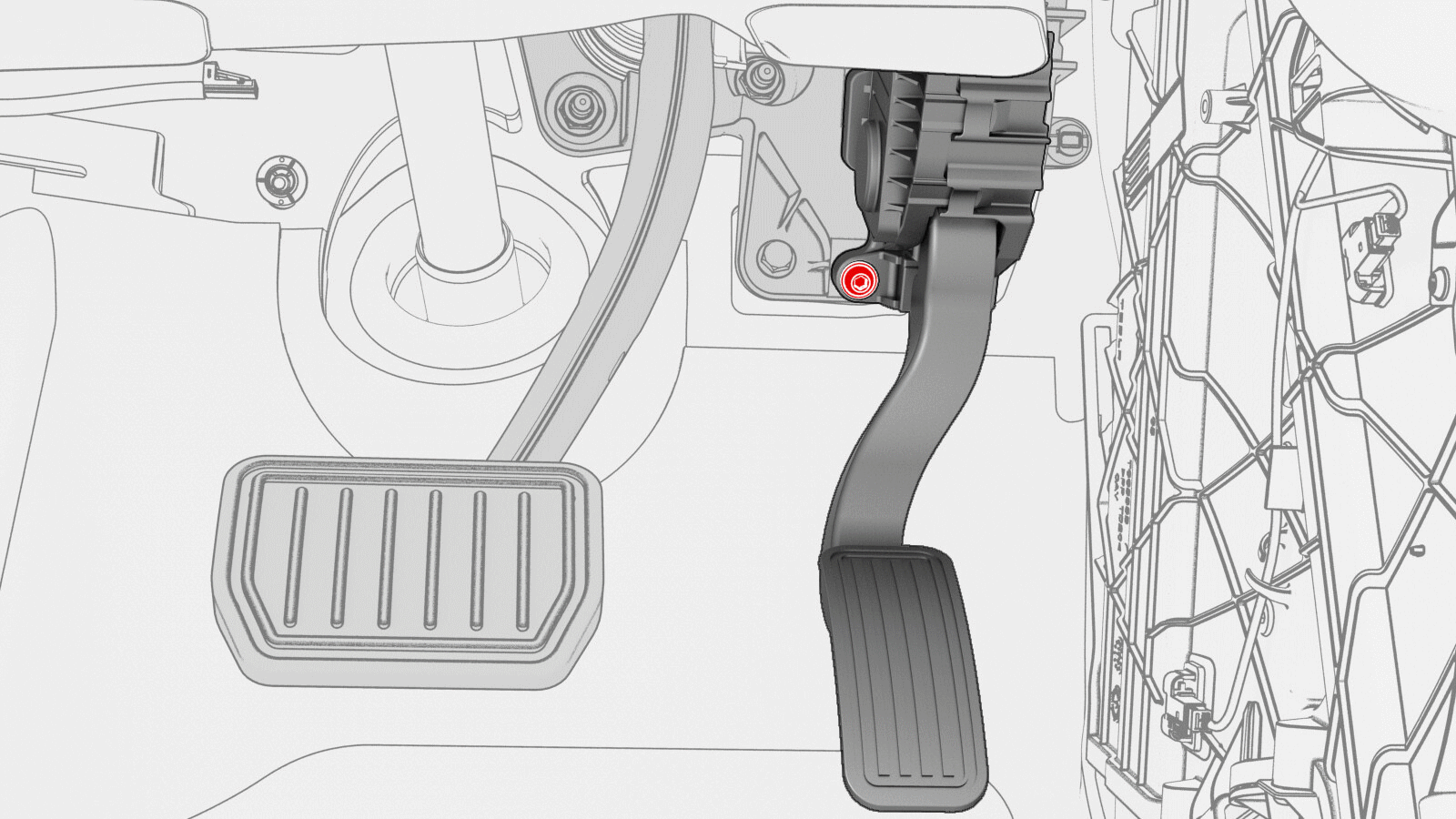

  6. Remove the bolt that attaches the accelerator to the body.
    G00624440Courtesy of TESLA, INC.
  7. Slide the accelerator downwards, and then remove the accelerator from the vehicle.
