Sensor - Occupant Classification System - 1st Row - RH - Remove And Replace: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Tesla Model S, 2019 Tesla Model S, 2018 Tesla Model S, 2017 Tesla Model S, and 2016 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This component cannot be serviced individually. To service this component, perform the following:
  1. Remove the driver seat foam Foam And Trim Assembly - Driver's Seat (1st Generation) (Remove And Install) .
  2. Remove OCS sensor mat from FSC vent heat pad.
    NOTE: Be cautious when removing to avoid damage to head pad.
    G14979923Courtesy of TESLA, INC.
    G14979924Courtesy of TESLA, INC.

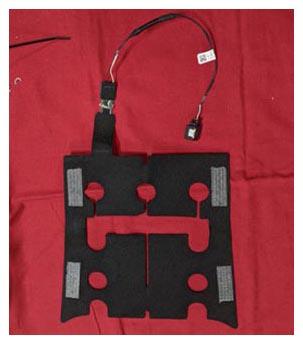

    G14979925Courtesy of TESLA, INC.
