Bushing - Drive Unit - Front - Remove And Replace: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Tesla Model S, 2019 Tesla Model S, 2018 Tesla Model S, 2017 Tesla Model S, and 2016 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
Last modified: 11/09/2020 16:31:57
WARNING:
To avoid personal injury, eye protection must be worn when performing this operation.
WARNING:
To avoid personal injury, safety-toe shoes and cut-resistant gloves are recommended when performing this operation.

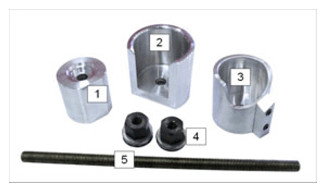

The drive unit bushing tool set includes the following parts:
| 1 | Driver |
| 2 | Front bushing cup |
| 3 | Rear bushing cup |
| 4 | Nut bearing assemblies |
| 5 | Threaded rod |
