Overhead Console - Front (without e-Call Button) (EMEA) - Retrofit: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the LH front door and lower the window.
  2. Put the vehicle in service mode through the touchscreen. See SERVICE MODE
  3. Disconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT)
  4. Remove the front overhead console. See Overhead Console - Front - Remove and Replace
  5. Pull the FOHC connector (X299) outwards for access

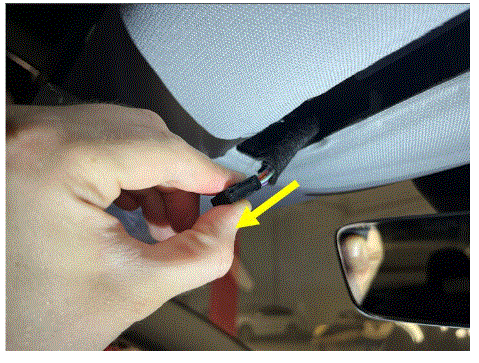

    G00651341Courtesy of TESLA, INC.
  6. Remove 2 - 4 cm of the electrical tape from the harness.
    NOTE: Take care not to damage the wires while using a blade to remove the tape.

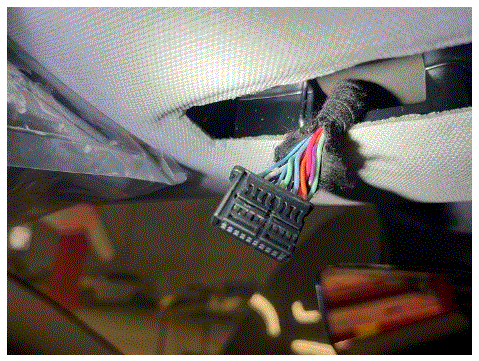

    G00651342Courtesy of TESLA, INC.
  7. Release the locking clips from the connector

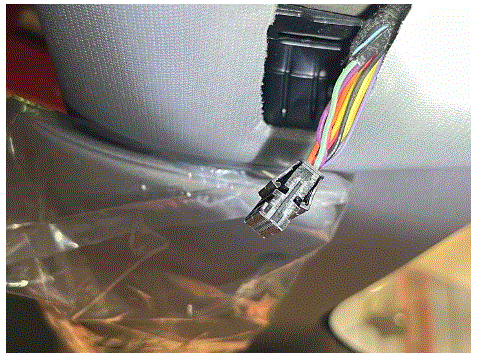

    G00651343Courtesy of TESLA, INC.
  8. Remove pin 6 (X299-6) from the connector
    NOTE: Use the pin drag kit to release the locking tab, then pull out the wire.

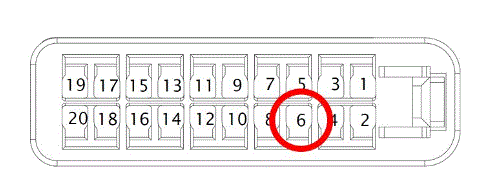

    G00651344Courtesy of TESLA, INC.

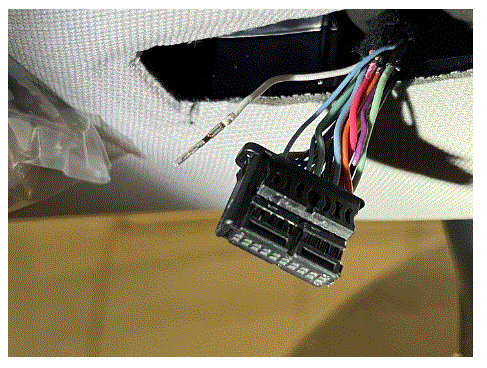

    G00651345Courtesy of TESLA, INC.

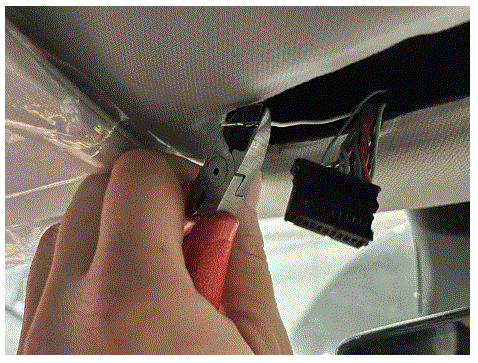

  9. Cut off the terminal from the removed wire.
    G00651346Courtesy of TESLA, INC.
  10. Apply heat shrink tube to the cut wire end, and then apply heat to prevent the wire from making contact.

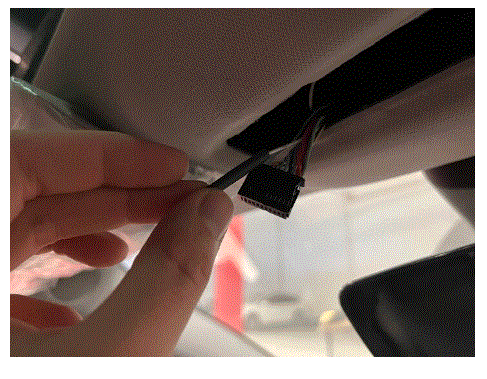

    G00651347Courtesy of TESLA, INC.
  11. Remove pin 12 (X299-12) from the electrical connector, and then repeat steps 9and 10.
  12. Remove pin 14 (X299-14) from the electrical connector, and then repeat steps 9 and 10.
  13. Remove pin 15 (X299-15) from the electrical connector, and then repeat steps 9 and 10.
  14. Remove pin 16 (X299-16) from the electrical connector, and then repeat steps 9 and 10.
  15. Use electrical tape to attach the removed wires from connector X299 to the FOHC harness.
    NOTE: Use the yellow electrical tape in the kit to denote a rework has been performed.

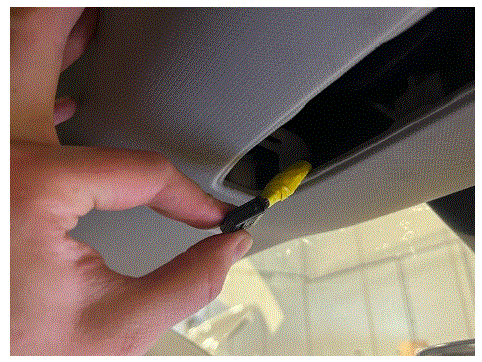

    G00651348Courtesy of TESLA, INC.
  16. Install the front overhead console assembly to the headliner. See Overhead Console - Front - Remove and Replace .
  17. Connect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
  18. Connect a laptop with Toolbox 3 to the vehicle. See TOOLBOX 3 (CONNECT AND DISCONNECT) .
  19. Usie Toolbox 3 to change the configuration value for eCallEnabled  to enabled_ui_sos  . See GATEWAY CONFIGURATION (DISPLAY AND CHANGE) .
  20. On the touchscreen, touch Controls > Safety  and make sure that the SOS  shortcut button (1) and the SOS EMERGENCY CALL  button (2) are available on the touchscreen.
    NOTE: The SOS  shortcut button (1) takes the user directly to the Safety and Security tab, the SOS EMERGENCY CALL  button (2) makes the actual call when touched.

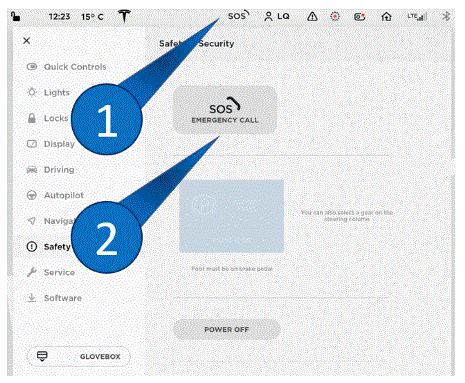

    G00651349Courtesy of TESLA, INC.
  21. Using toolbox 3:
    1. Select the Actions  tab, and then type "VFOHC" in the search field.
    2. Run the ODIN routine TEST-SELF_VCLEFT_X_VFOHC and allow the routine to complete.
    3. Disconnect the laptop from the vehicle.
  22. Reinstall the vehicle firmware. See SOFTWARE REINSTALL - TOUCHSCREEN .
  23. Exit Service Mode. See SERVICE MODE .
  24. Inform the customer why the e-Call functionality has changed after the headliner retrofit and instruct them how to use the touchscreen to make an emergency call.
