Tuner - FM/HD - Remove And Replace: Install

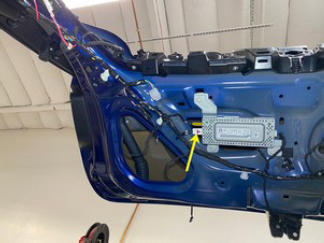

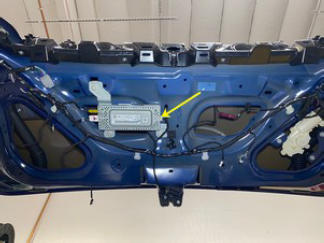

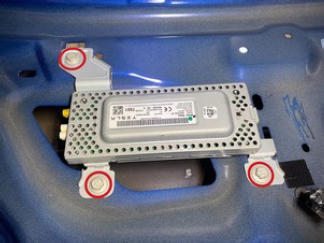

- Position the HD FM tuner into the liftgate, and then install the bolts (x3) that attach the tuner to the liftgate.
8 N.m (5.9 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket

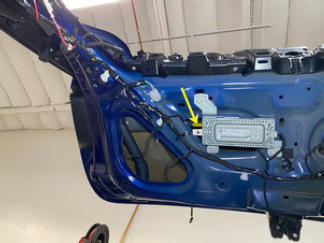

- Connect the electrical connectors (x2) and coax connector to the FM HD tuner.
- Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace)
