Bushing -- Front Drive Unit -- RH - Remove and Replace: Remove

Remove the front subframe assembly from the vehicle.

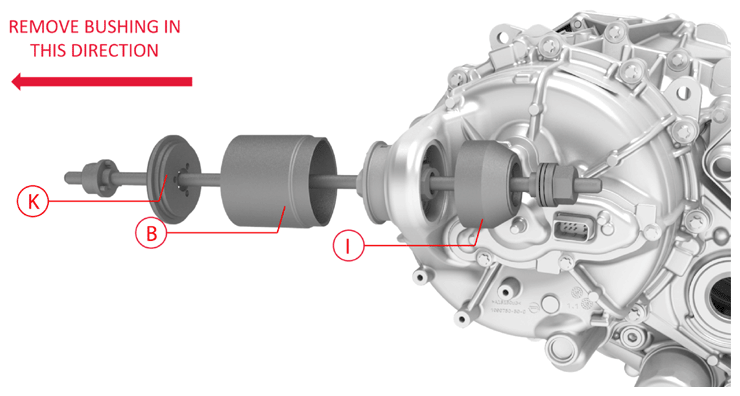

Install the bushing tool on the RH front drive unit bushing.
NOTE: Use cups "K", "B", and "I" when assembling the special tool, as shown.

NOTE: Other assemblies hidden for clarity

Courtesy of TESLA, INC.

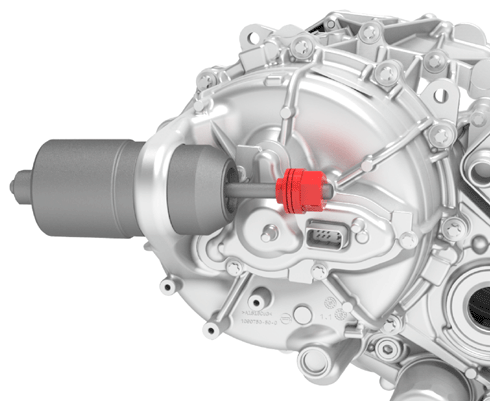

Turn the bearing-side bushing tool nut with a wrench while holding the opposite nut in place.
CAUTION: Apply torque only to the bearing-side bushing tool nut.

NOTE: Apply torque only to the nut highlighted red

Courtesy of TESLA, INC.

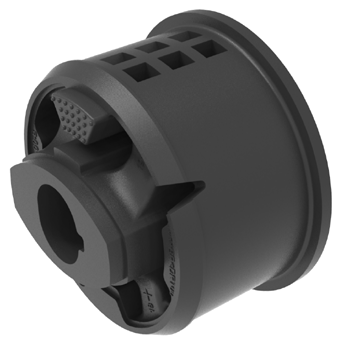

When the bushing has been pushed out of the front drive unit, separate the bushing tool, and then remove the bushing.

Courtesy of TESLA, INC.
