Bushing - Gearbox - Front Drive Unit - Remove and Replace: Install

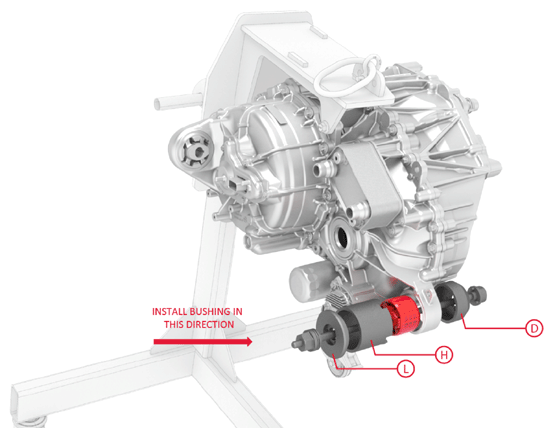

- Set up the bushing tool to press in the new bushing.NOTE: Use cups "L", "H", and "D" when assembling the special tool, as shown.

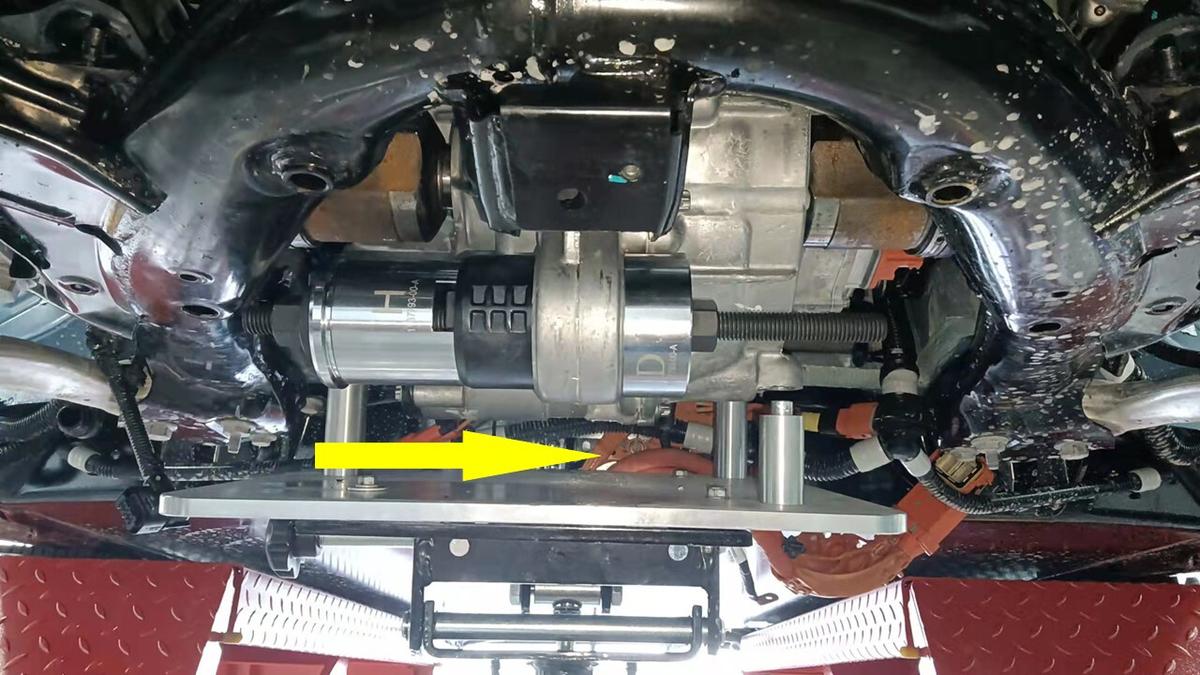

- Turn the bearing-side bushing tool nut with a wrench until the bushing is fully installed.
- Separate the bushing tool, and then remove it from the drive unit.

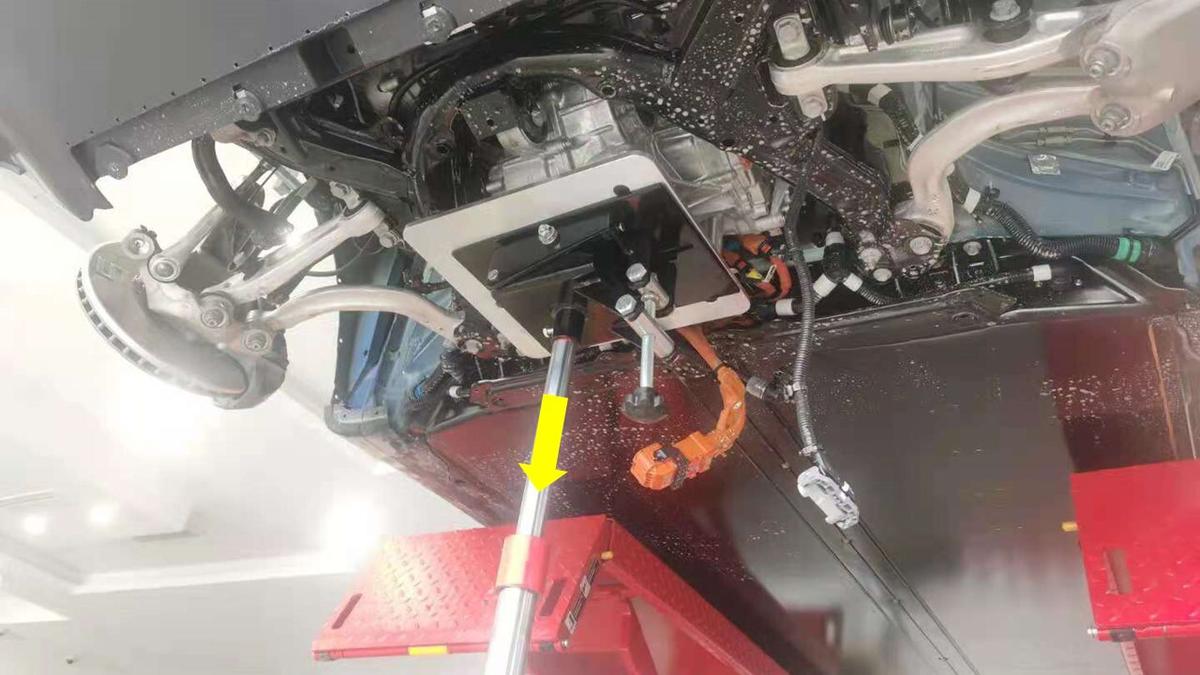

- Install the front drive unit to the vehicle.

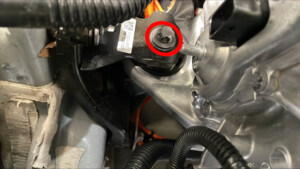

- Install the front drive unit mount bolt.
80 N.m (59.0 ft-lbs)
Tip: Raise or lower the pole jack as needed to help release the bolt.
Tip: Use of the following tool(s) is recommended:
- Ratchet/torque wrench
- 18 mm socket
- Flex head ratchet/flex head torque wrench

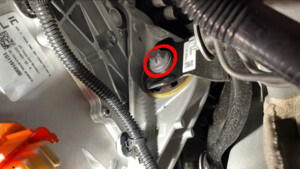

- Install the bolt that attaches the RH motor mount to the RH motor mount bracket.
Tip: Raise or lower the pole jack as needed to help install the bolt.
Tip: Use of the following tool(s) is recommended:
- Flex head ratchet/flex head torque wrench
- External Torx E18
- 3 in extension
- Adapter

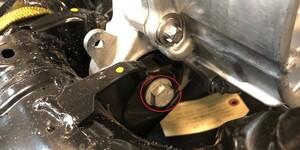

- Install the bolt that attaches the LH motor mount to the LH motor mount bracket.
Tip: Raise or lower the pole jack as needed to help release the bolt.
Tip: Use of the following tool(s) is recommended:
- Flex head ratchet/flex head torque wrench
- External Torx E18
- 3 in extension
- Adapter

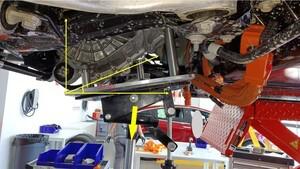

- Remove the front drive unit stand and transmission jack from the front drive unit.
- Install the front aero shield panel to the vehicle. See PANEL - AERO SHIELD - FRONT (REMOVE AND REPLACE) .
