- Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace)
.
- Disconnect LV power. See LV Power (Disconnect And Connect)
.
- Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace)
.
- Remove the front underhood apron. See Underhood Apron - Front (Remove and Replace)
.
- Remove the underhood storage unit access panel. See Underhood Storage Unit Access Panel (Remove and Replace)
.

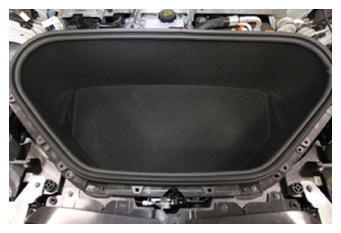

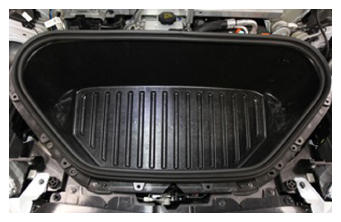

- Remove the underhood storage unit carpet.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace)
.

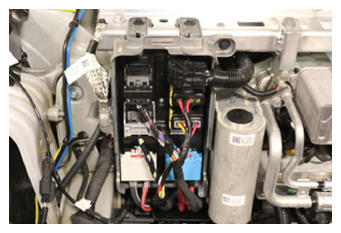

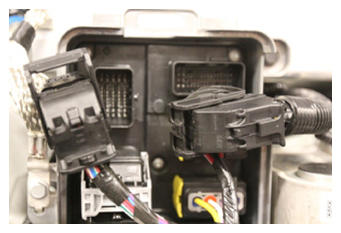

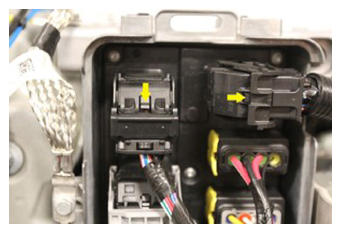

- Release the upper locking connectors (x2) on the front body controller module.
NOTE:
Push in locking tabs, and then lift the levers to release.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

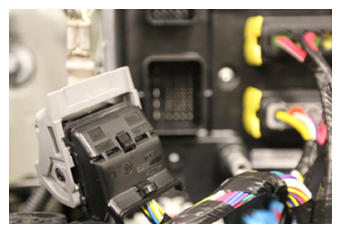

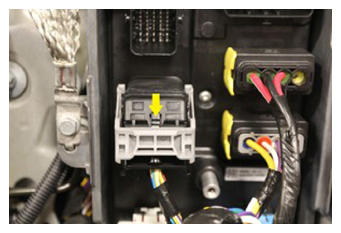

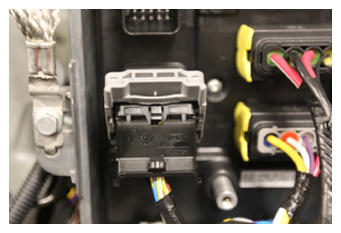

- Release the LH middle locking connector on the front body controller module.
NOTE:
Push in locking tab, and then lift the lever to release.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

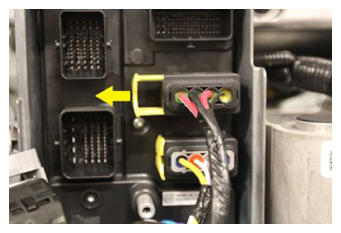

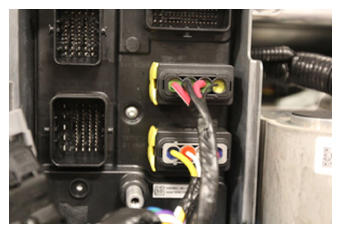

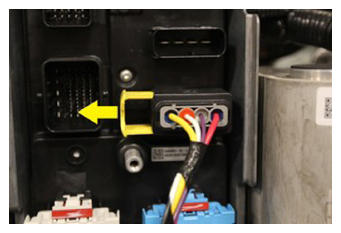

- Release RH middle locking connectors (x2) on the front body controller module.
NOTE:
Slide the locking mechanism outwards to release.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

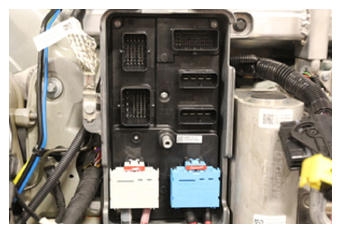

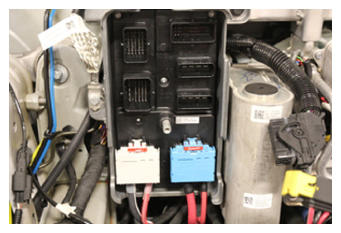

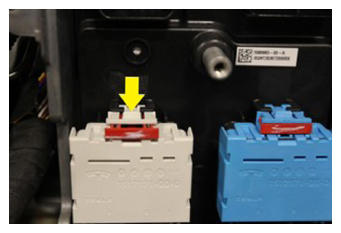

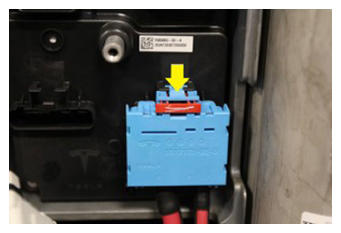

- Release the lower locking connectors (x2) on the front body controller module.
NOTE:
Slide the red locking tab outwards to release.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

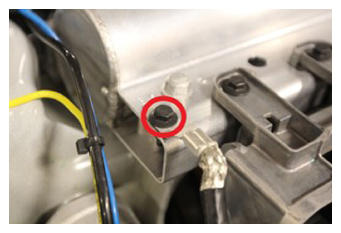

- Remove the bolt that attaches the ground cable for the front body controller module.
NOTE:
10 mm, 10 N.m
 Courtesy of TESLA, INC.
|

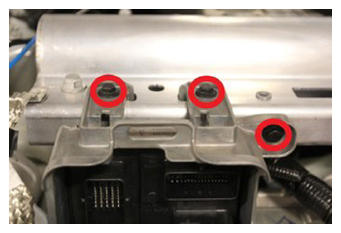

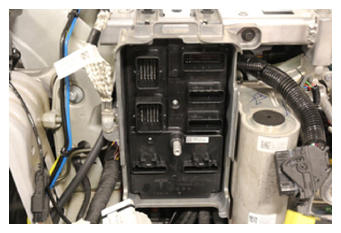

- Remove the bolts (x3) that attach the front body controller module to the body.
NOTE:
10 mm, 10 N.m
 Courtesy of TESLA, INC.
|

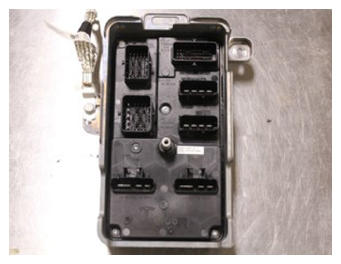

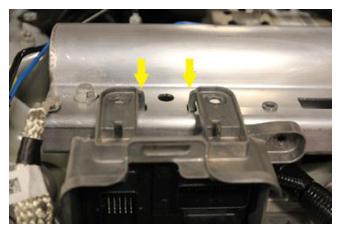

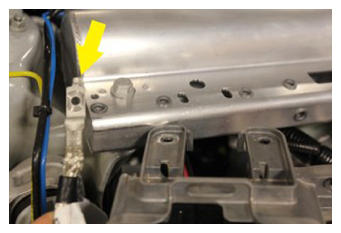

- Remove front body controller module from vehicle, and then release the ground cable from the multi system beam.
NOTE:
2x locating tabs, 1x ground cable
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
