Module - Body Controller - RH - Remove And Replace: Install

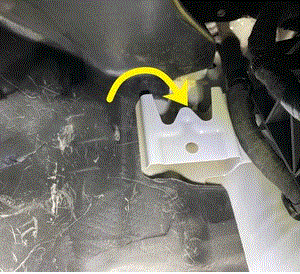

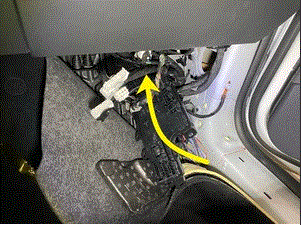

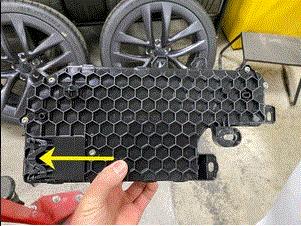

- Install the RH body controller module to the vehicle.NOTE: Attach the tab onto the body and align into the body stud

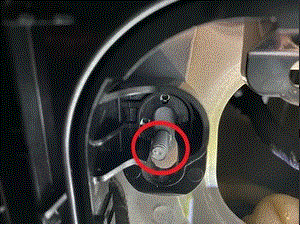

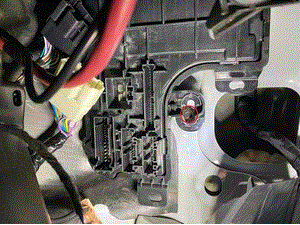

- Install a new nut that attaches the RH body controller to the body.
6 Nm (4.4 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
- Ratchet/torque wrench

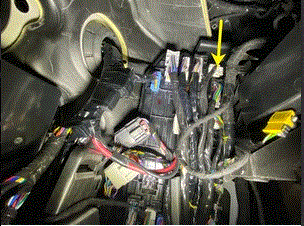

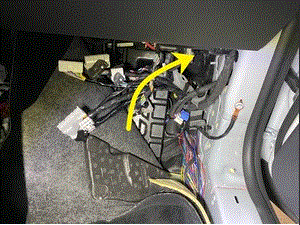

- Position the harness bundle back to the RH body controller.
- Fasten the clips (x2) that attach the RH harness bracket to the body.

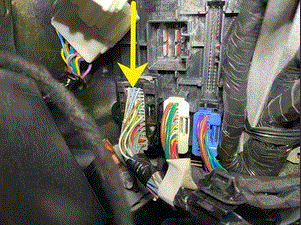

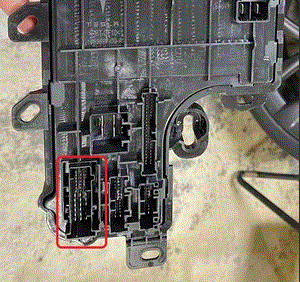

- Connect the door electrical connector (J11) to the RH body controller module.

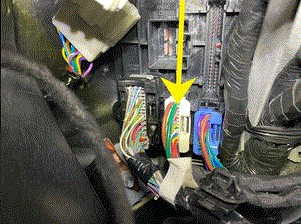

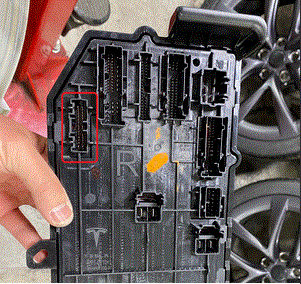

- Connect the door electrical connector (J10) to the RH body controller module.

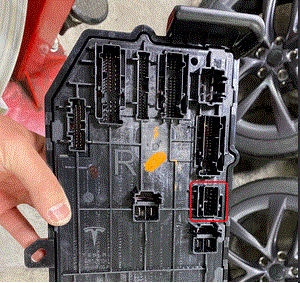

- Connect the dash electrical connector (J12) to the RH body controller module.
- Fasten the clips (x2) that attach the harness connectors to the RH body controller module.
- Connect the harness connectors (x2) to the RH body controller module.
- Connect the power electrical connector (J14 X056) to the RH body controller module.
- Connect the body 6 electrical connector (J8 X062) to the RH body controller module.
- Connect the body 2 electrical connector (J3 X051) to the RH body controller module.

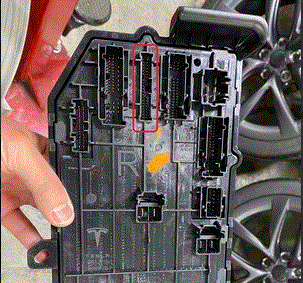

- Connect the understood storage unit electrical connector (J9 X050) to the RH body controller module.
- Connect the body electrical connector (J2 X050) to the RH body controller module.
- Connect the body electrical connector (J4) to the RH body controller module.
- Connect the body 5 electrical connector (J6/J7 X060A/B) to the RH body controller module.
- Connect the body 4 electrical connector (X054) to the RH body controller module.
- Return the RH main carpet back into place.
- Install the front passenger knee airbag. See Knee Airbag - Front Passenger - Remove And Replace
.NOTE: No need to install the front passenger knee airbag cover.
- Install the passenger footwell cover. See Cover - Footwell - Passenger - Remove And Replace .
- Connect LV power. See LV Power - Disconnect And Connect .
- Connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3 - Connect And Disconnect .
- In Toolbox 3, click the Actions tab, type "Service_Redeploy" into the search field, click UPDATE_SERVICE-REDEPLOY, click Run , and allow the routine to complete.
- Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
- Install the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH - Remove And Replace .
- Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH - Remove And Replace .
- Move the RH front seat back to its original position.
- In Toolbox 3, click the Actions tab, type "VCRIGHT replacement" into the search field, click PROC_VCRIGHT_X_POST-REPLACEMENT-PROCEDURE, click Run , and allow the routine to complete.
- Disconnect Toolbox and remove the laptop from the vehicle. See Toolbox 3 - Connect And Disconnect .
