Rear Drive Unit Assembly - Bushing, Gearcase, 3DUR - Remove And Replace: Remove
- Remove the rear drive unit. See REAR DRIVE UNIT ASSEMBLY - ASSEMBLY, 3DUR, MOSFET - HC - REMOVE AND REPLACE

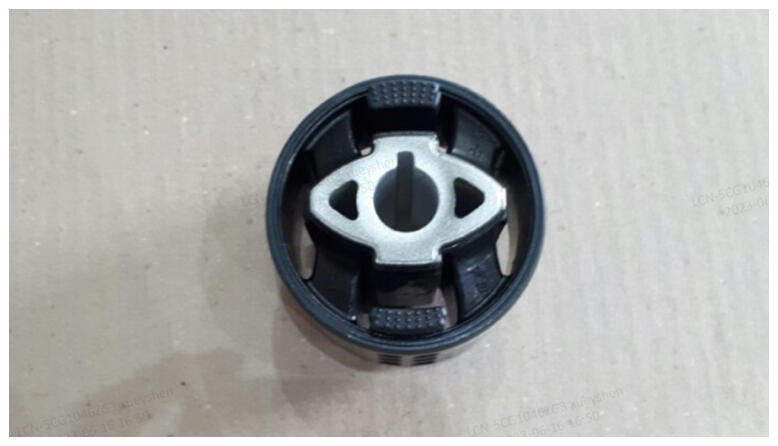

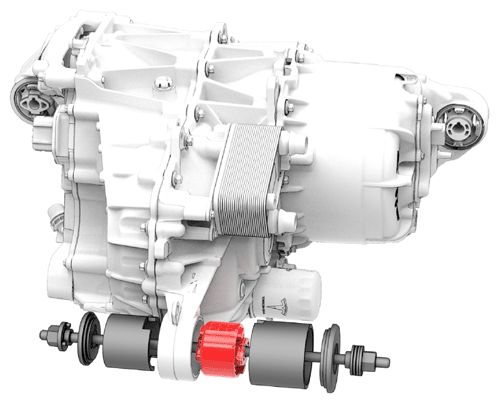

- Install the drive unit bushing tool onto the rear bushing.
- Turn the nut on the thrust washer to remove the bushing from the drive unit.
- Separate the bushing tool, and then remove it from the drive unit.
