Rear Drive Unit Assembly - Assembly, 3DUR, MOSFET - HC - Remove And Replace: Install

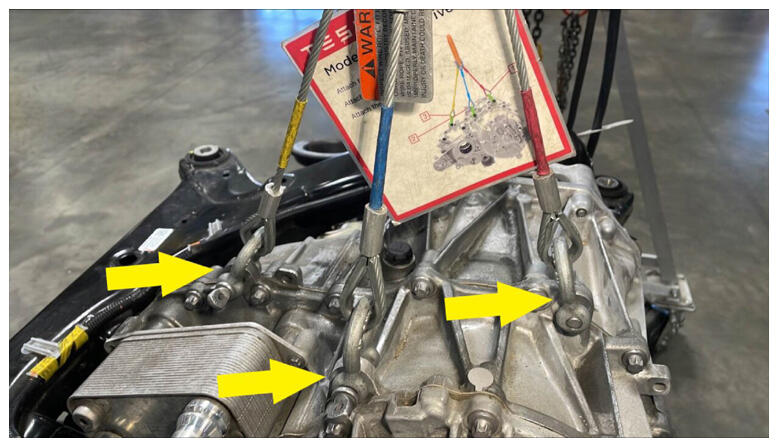

  1. Attach drive unit sling tool to the replacement drive unit.
    NOTE: 3x hooks.
    G16604202Courtesy of TESLA, INC.

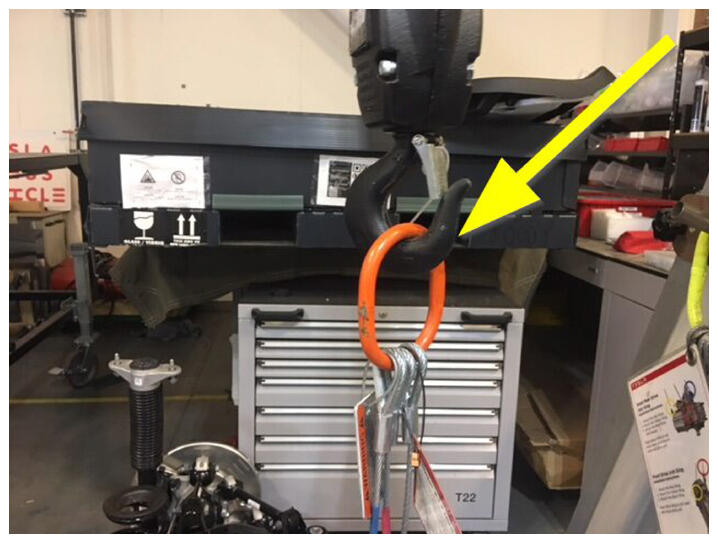

  2. Secure drive unit sling to gantry.
    G16604203Courtesy of TESLA, INC.

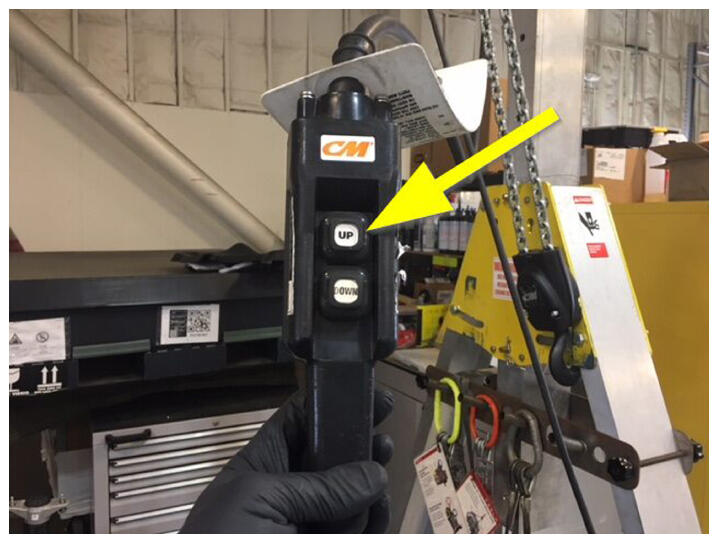

  3. Raise drive unit out of M3 drive unit crate.
    G16604204Courtesy of TESLA, INC.

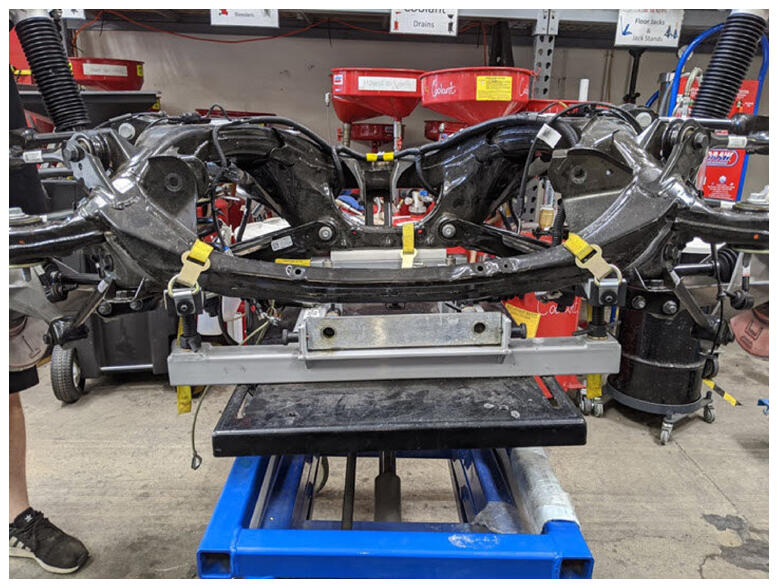

  4. Move subframe and lifting tool underneath drive unit.
    G16604205Courtesy of TESLA, INC.

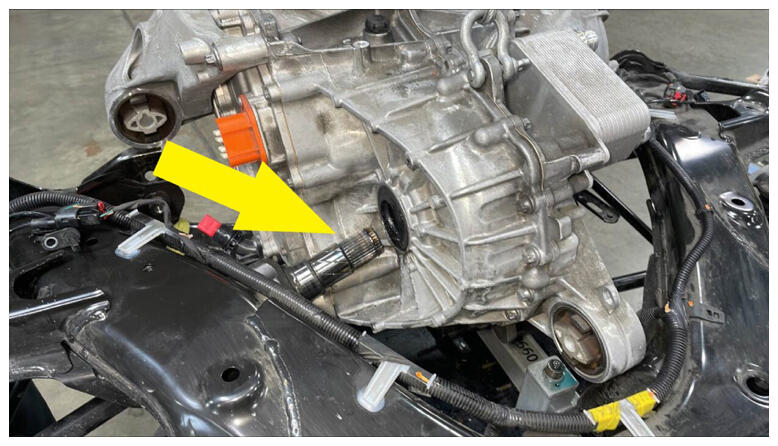

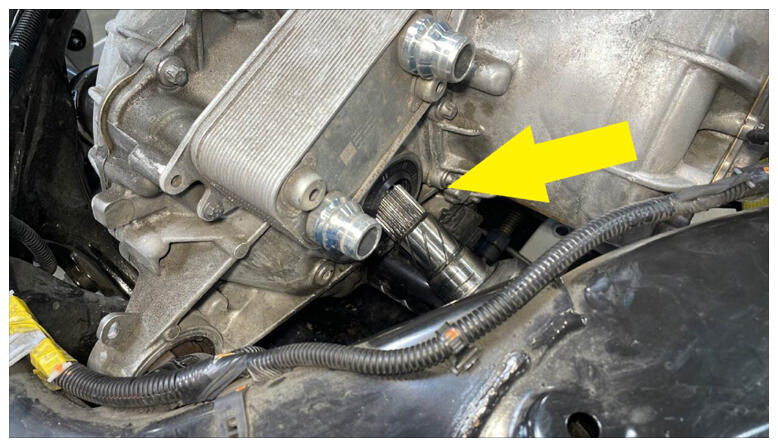

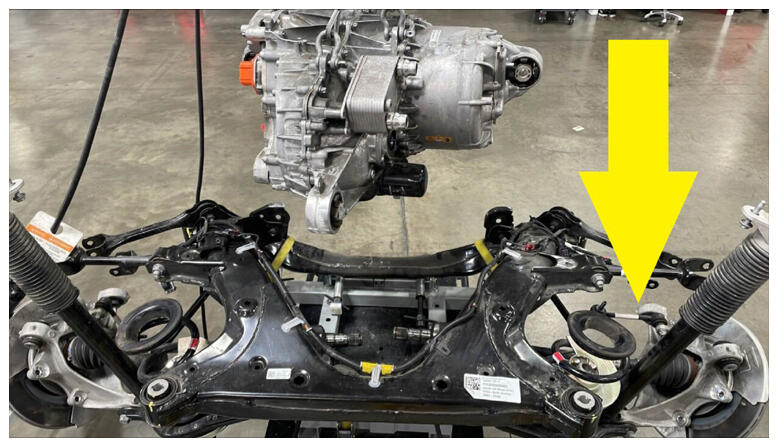

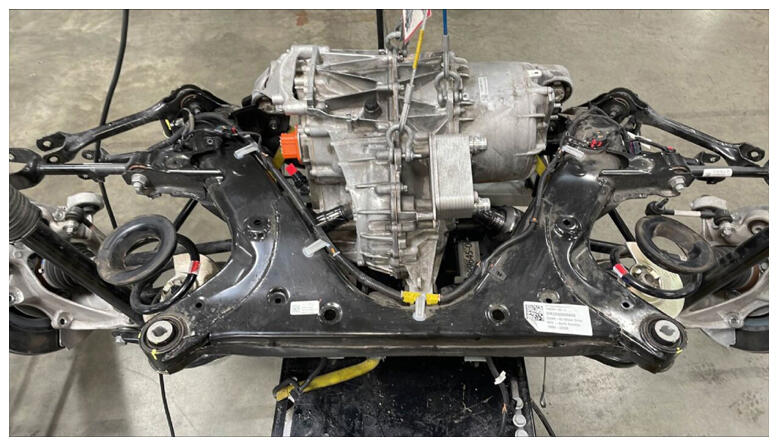

  5. Lower RDU into the rear subframe.
    NOTE: Carefully lower rear drive unit into subframe, As the RDU is lowered maneuver the axles into drive unit for later installation.
    G16604206Courtesy of TESLA, INC.
    G16604207Courtesy of TESLA, INC.
    G16604208Courtesy of TESLA, INC.
    G16604209Courtesy of TESLA, INC.
  6. Install rear bolt securing drive unit to subframe, hand tight.
    NOTE: 1x bolt, 18 mm, 80 N.m, Torque at a later step.
    G16604210Courtesy of TESLA, INC.

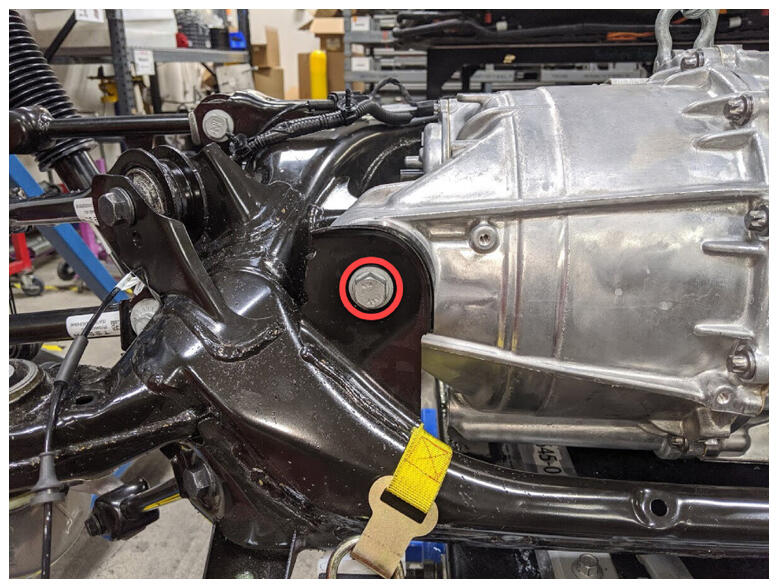

  7. Install RH bolt securing drive unit to subframe, hand tight.
    NOTE: 1x bolt, 18 mm, 80 N.m, Torque at a later step.
    G16604211Courtesy of TESLA, INC.
  8. Install LH bolt securing drive unit to subframe, hand tight.
    NOTE: 1x bolt, 18 mm, 80 N.m, Torque at a later step.
    G16604212Courtesy of TESLA, INC.

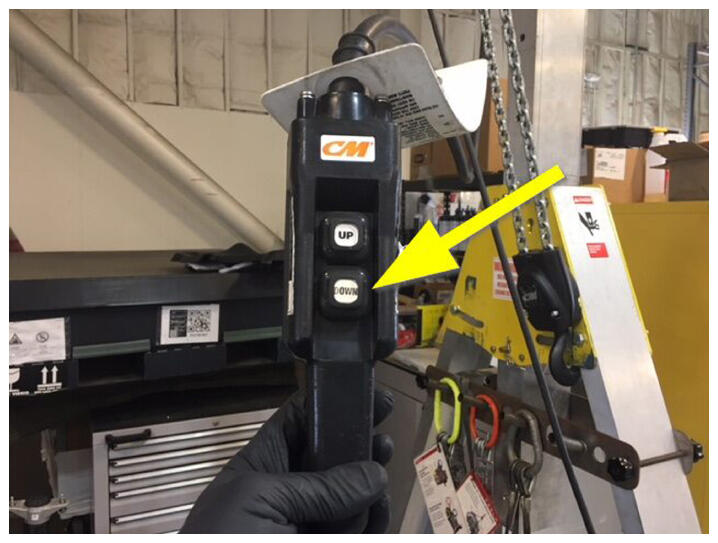

  9. Lower sling to release tension on the cables.
    G16604213Courtesy of TESLA, INC.

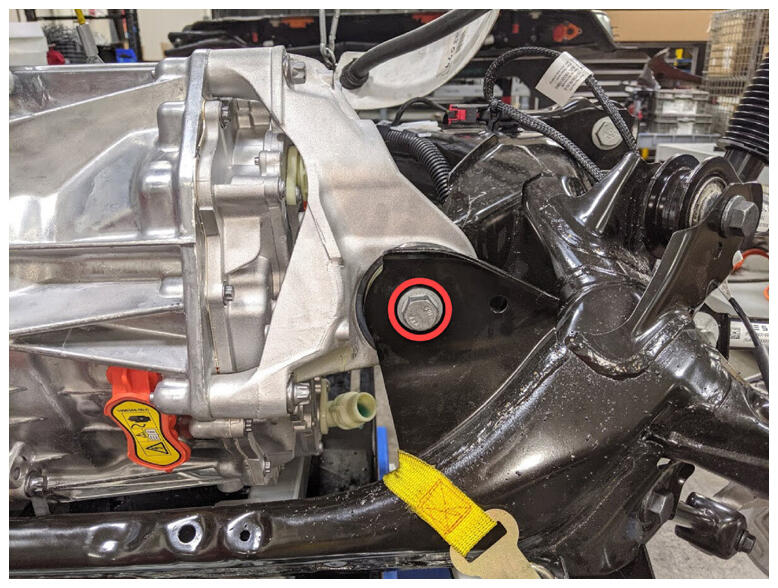

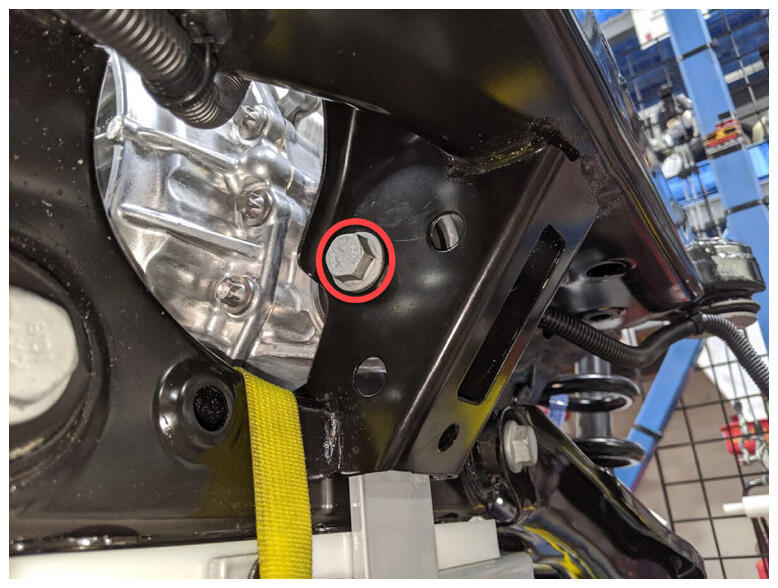

  10. Torque motor mount bolts.
    NOTE: 3x bolts, 18 mm, 80 N.m.
    G16604214Courtesy of TESLA, INC.
    G16604215Courtesy of TESLA, INC.
    G16604216Courtesy of TESLA, INC.
  11. Release drive unit sling tool from RDU.
    NOTE: 3x shackles.
    G16604217Courtesy of TESLA, INC.

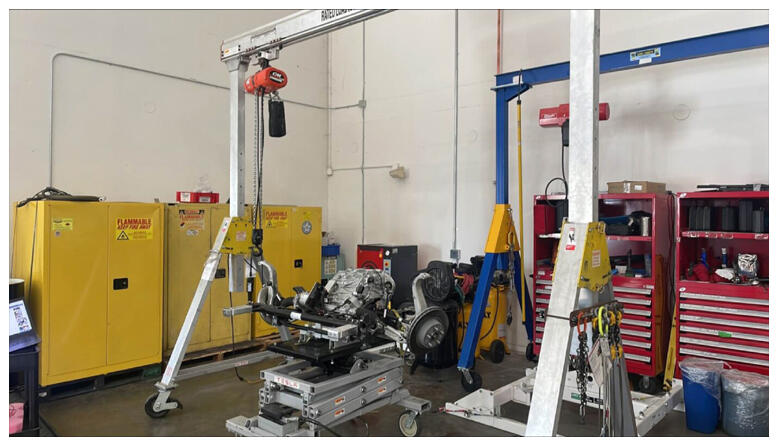

  12. Move subframe assembly away from under gantry.
    G16604218Courtesy of TESLA, INC.

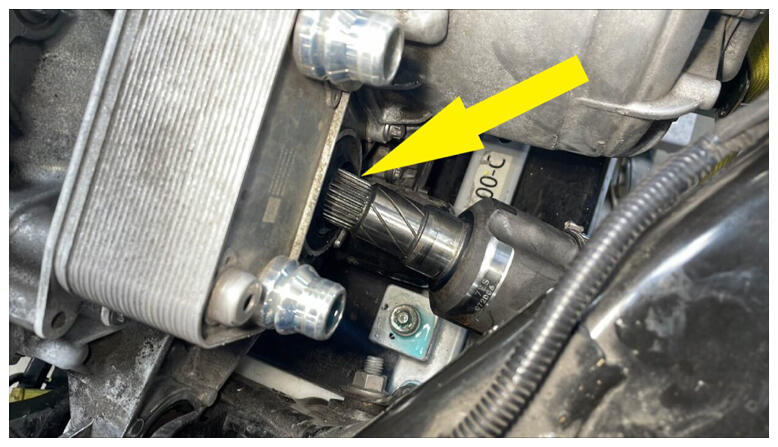

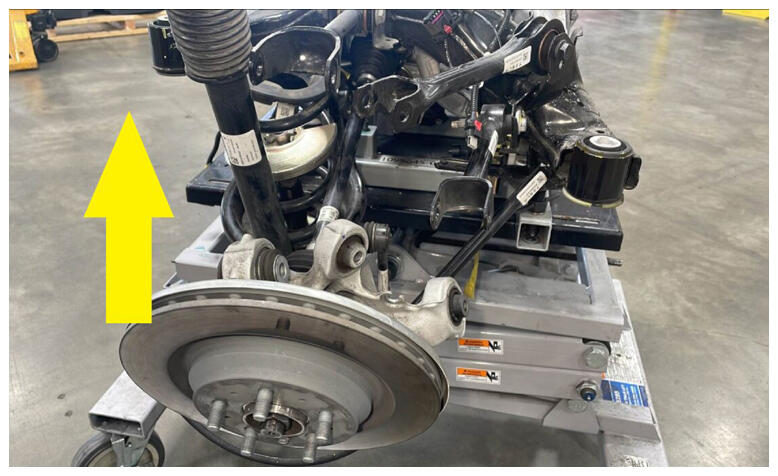

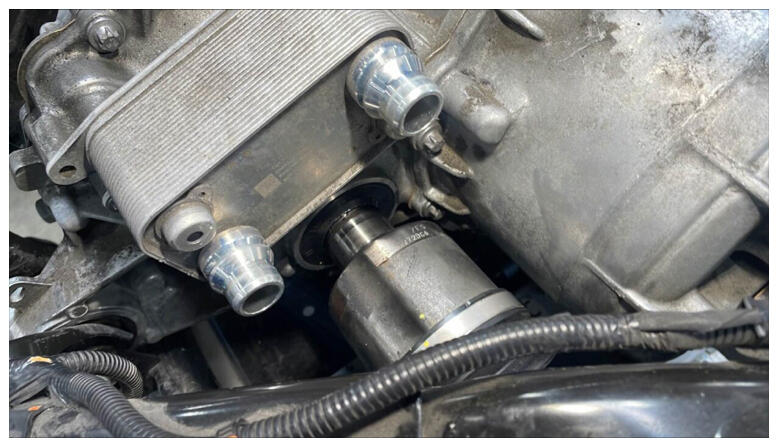

  13. Position and align the RH half shaft axle splines into the RDU.
    NOTE: Recommend assistance, Correctly position the axle splines into the drive unit, Take time to make sure they are seated together correctly, Do not force them together in a way they are not meant to mate, See images for reference, Lift up on RH knuckle as needed.
    G16604219Courtesy of TESLA, INC.
    G16604220Courtesy of TESLA, INC.
    G16604221Courtesy of TESLA, INC.

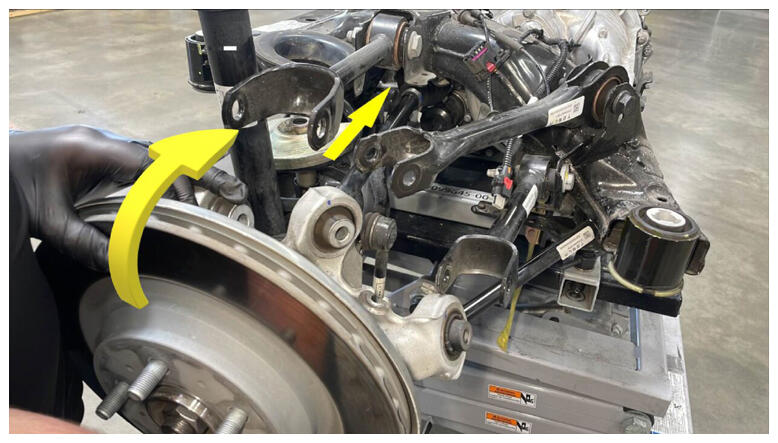

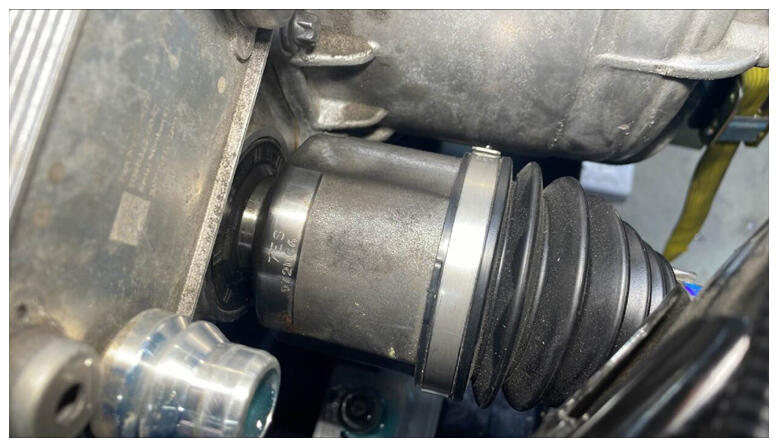

  14. Fully seat the RH rear half shaft into the RDU.
    NOTE: 1x half shaft, Straighten out the knuckle and half shaft assembly, Apply shifting force to seat the axle into the RDU, Take the time to verify the half shaft is fully seated, Do not apply an excessive amount force, If axle is not seating then make sure the splines are properly aligned and the assembly is leveled straight when seating.
    G16604222Courtesy of TESLA, INC.
    G16604223Courtesy of TESLA, INC.
    G16604224Courtesy of TESLA, INC.
  15. Install RH rear toe link to knuckle and hand tighten nut and bolt.
    NOTE: 1x bolt, 1x nut, 18 mm, 76 N.m, Recommend assistance, Torque at later step.
    G16604225Courtesy of TESLA, INC.

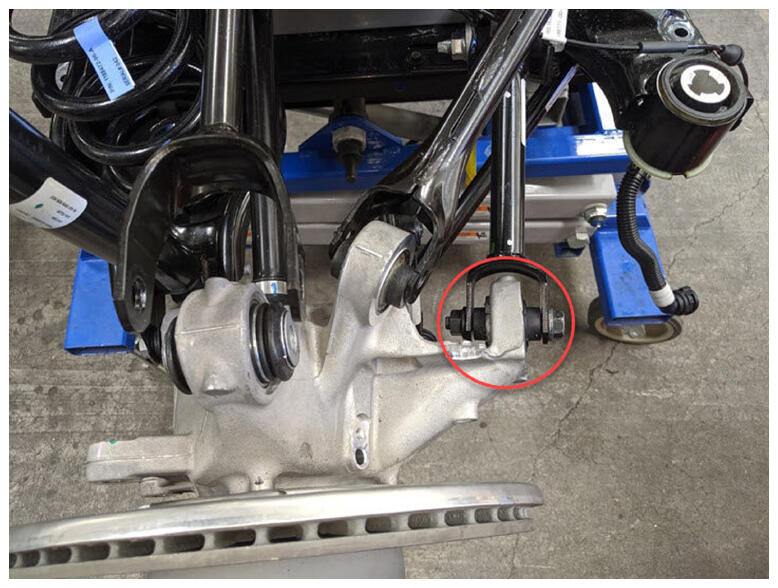

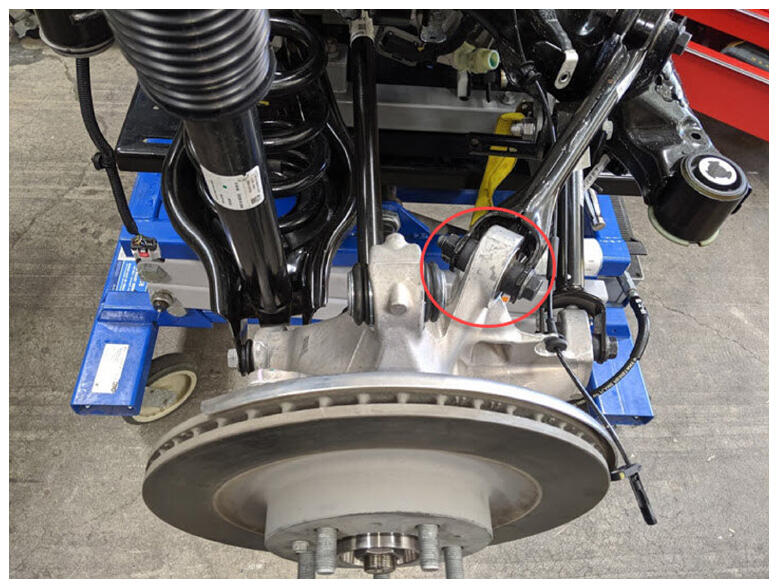

  16. Install RH rear upper fore link to knuckle and hand tighten nut and bolt.
    NOTE: 1x bolt, 1x nut, 18 mm, 76 N.m, Recommend assistance, Torque at later step.
    G16604226Courtesy of TESLA, INC.
  17. Install RH upper aft link to knuckle and hand tighten nut and bolt.
    NOTE: 1x bolt, 1x nut, 21 mm, 134 N.m, Recommend assistance.
    G16604227Courtesy of TESLA, INC.

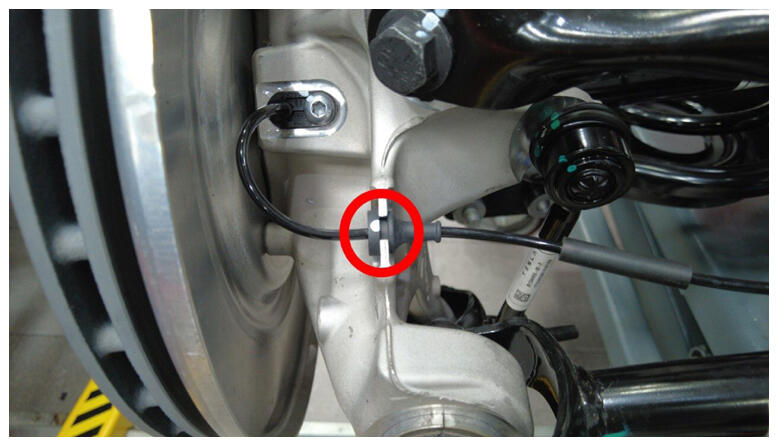

  18. Install grommet securing RH wheel speed sensor to knuckle.
    NOTE: 1x grommet.
    G16604228Courtesy of TESLA, INC.

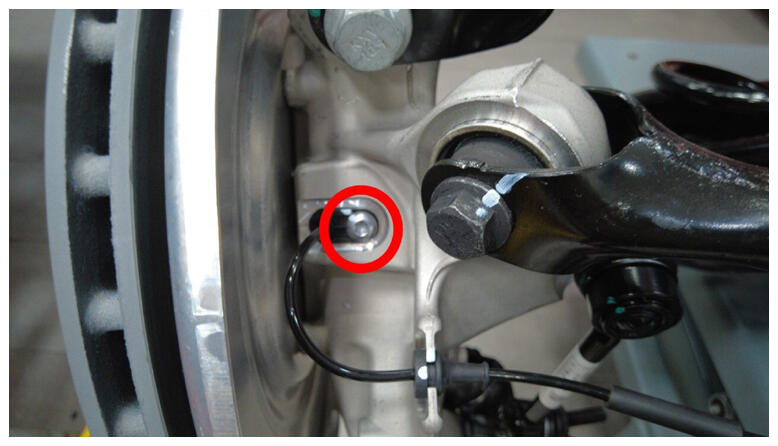

  19. Install bolt securing RH wheel speed sensor to knuckle.
    NOTE: 1x bolt, 10 mm, 5 N.m.
    G16604229Courtesy of TESLA, INC.

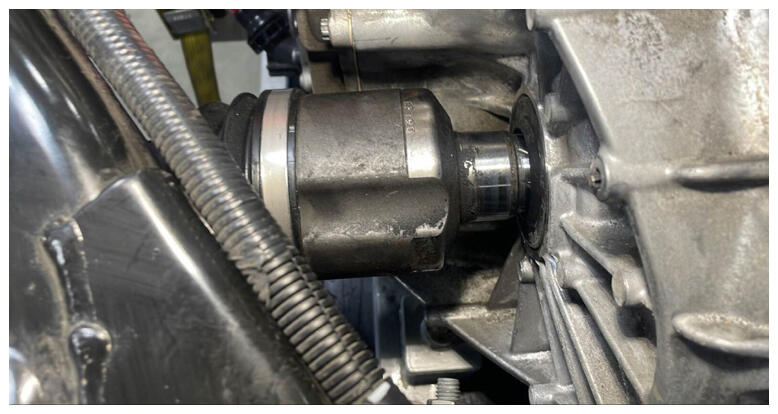

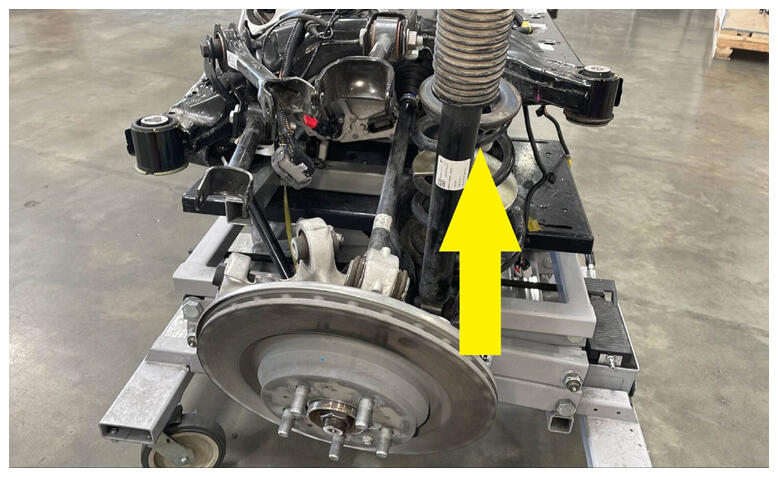

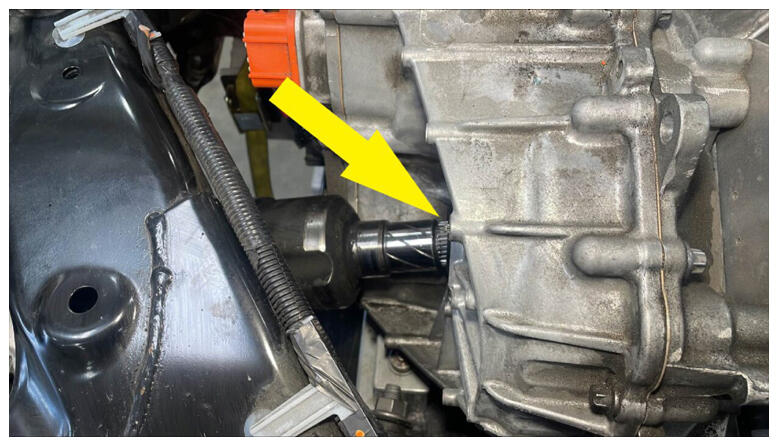

  20. Position and align the LH half shaft axle splines into the RDU.
    NOTE: Recommend assistance, Correctly position the axle splines into the drive unit, Take time to make sure they are seated together correctly, Do not force them together in a way they are not meant to mate, See images for reference, Lift up on LH knuckle as needed.
    G16604230Courtesy of TESLA, INC.
    G16604231Courtesy of TESLA, INC.
    G16604232Courtesy of TESLA, INC.

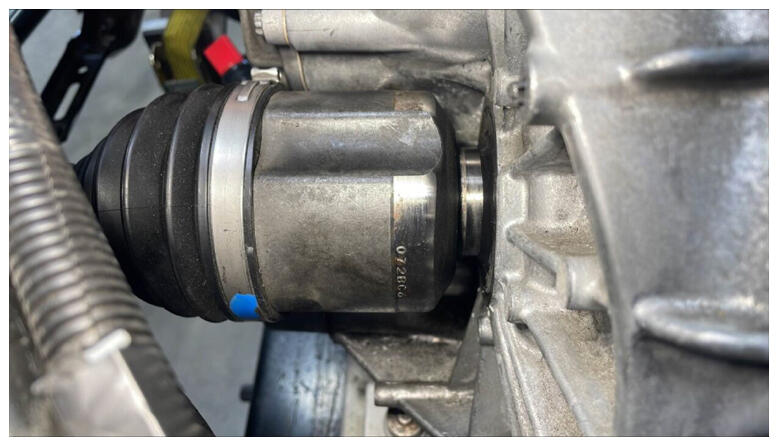

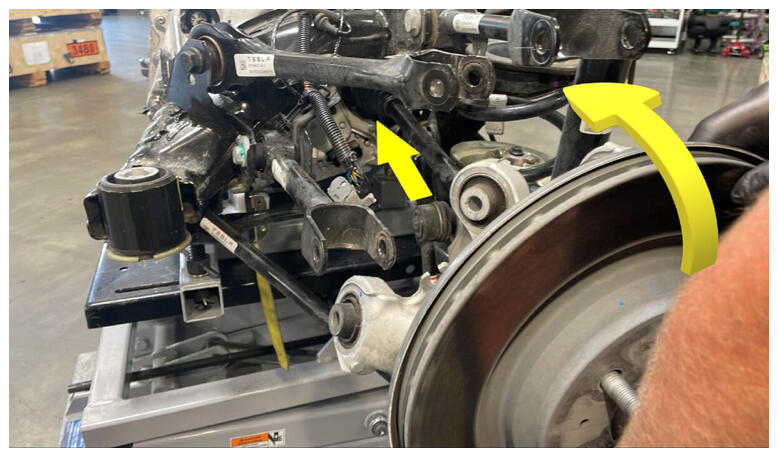

  21. Fully seat the LH front half shaft into the RDU.
    NOTE: 1x half shaft, Straighten out the knuckle and half shaft assembly, Apply shifting force to seat the axle into the RDU, Take the time to verify the half shaft is fully seated, Do not apply an excessive amount force, If axle is not seating then make sure the splines are properly aligned and the assembly is leveled straight when seating.
    G16604233Courtesy of TESLA, INC.
    G16604234Courtesy of TESLA, INC.
    G16604235Courtesy of TESLA, INC.

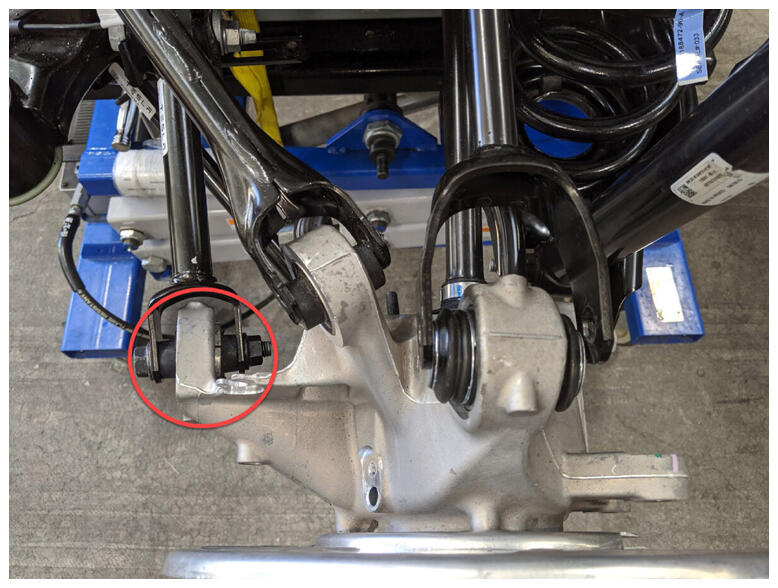

  22. Install LH rear toe link to knuckle and hand tighten nut and bolt.
    NOTE: 1x bolt, 1x nut, 18 mm, 76 N.m, Recommend assistance, Torque at later step.
    G16604236Courtesy of TESLA, INC.

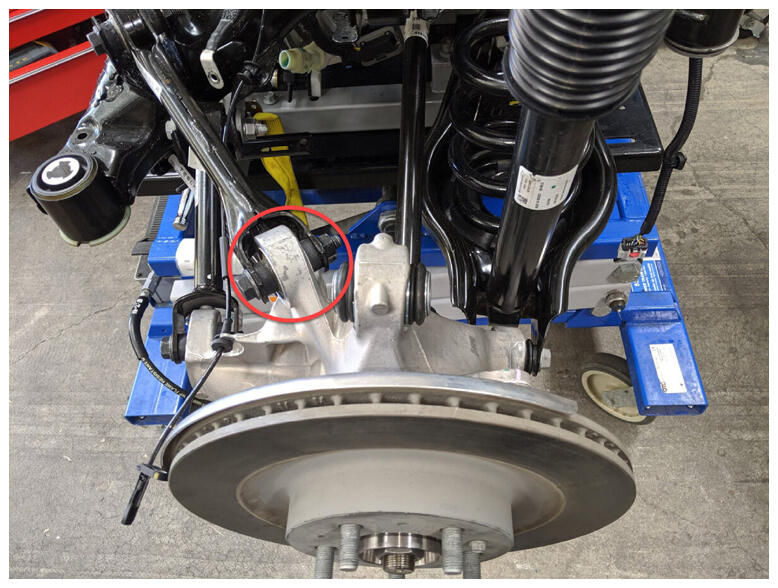

  23. Install nut and bolt securing LH rear upper fore link to knuckle.
    NOTE: 1x bolt, 1x nut, 18 mm, 76 N.m, Torque at later step.
    G16604237Courtesy of TESLA, INC.

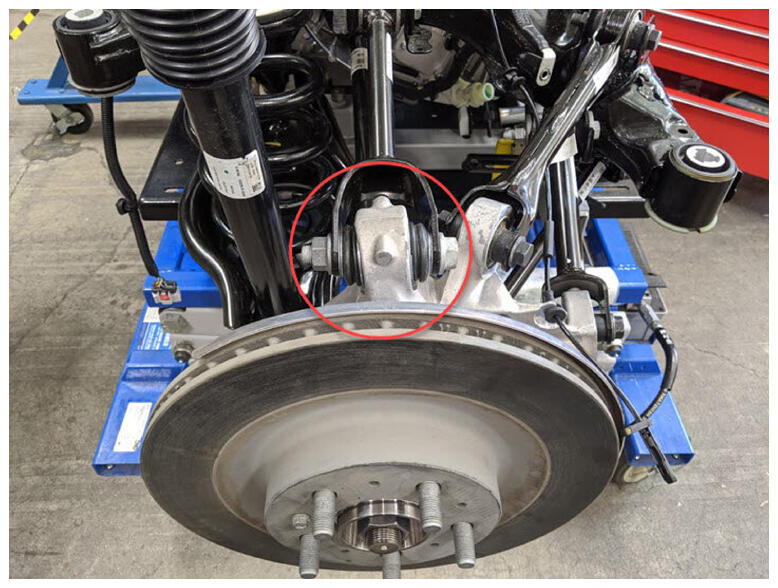

  24. Install LH upper aft link to knuckle and hand tighten nut and bolt.
    NOTE: 1x bolt, 1x nut, 21 mm, 134 N.m, Recommend assistance.
    G16604238Courtesy of TESLA, INC.

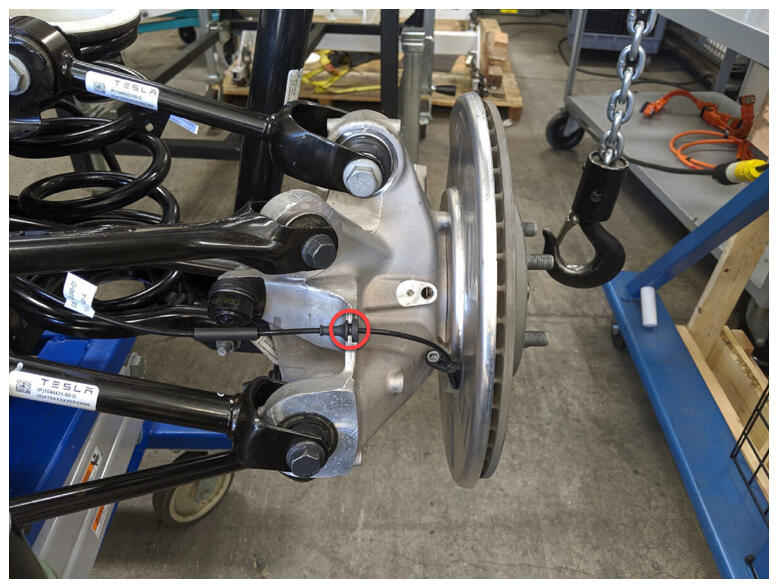

  25. Install grommet securing LH rear wheel speed sensor to knuckle.
    NOTE: 1x grommet.
    G16604239Courtesy of TESLA, INC.

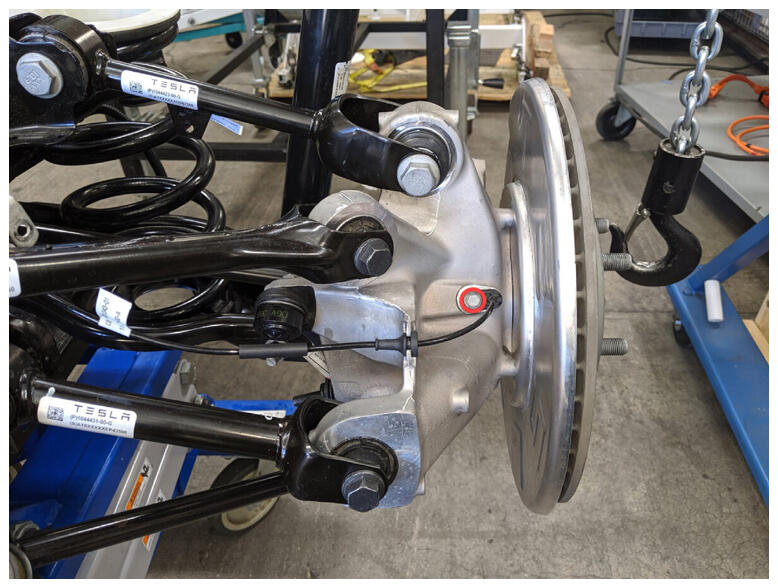

  26. Install LH wheel speed sensor to LH rear knuckle.
    NOTE: 1x bolt, 10 mm, 5 N.m.
    G16604240Courtesy of TESLA, INC.

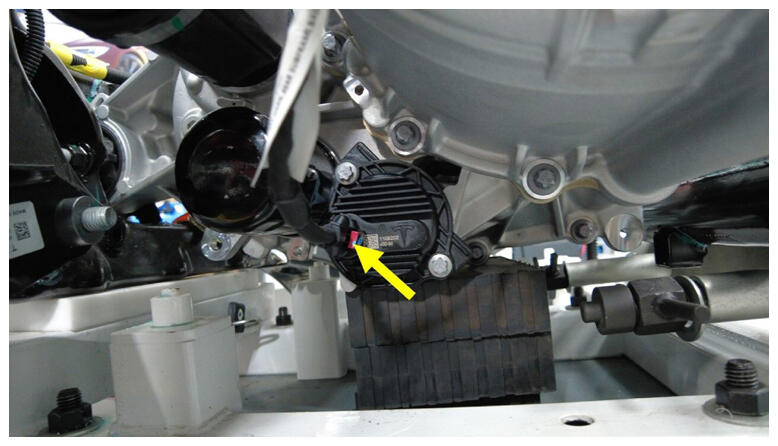

  27. Connect oil pump connector.
    NOTE: 1x connector.
    G16604241Courtesy of TESLA, INC.

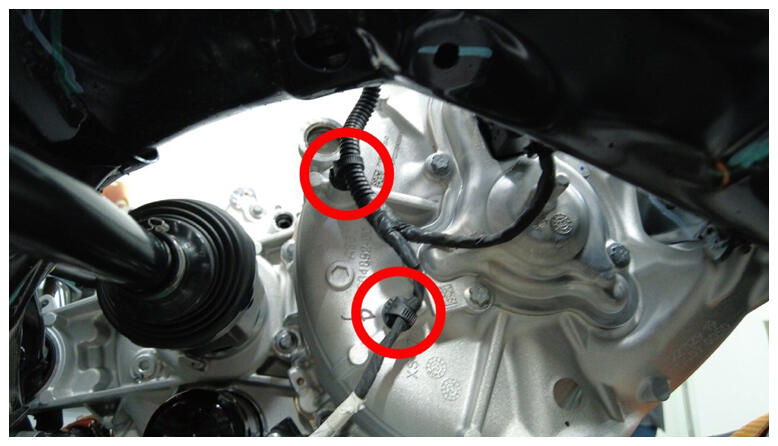

  28. Secure clips onto rear drive unit.
    NOTE: 2x clips.
    G16604242Courtesy of TESLA, INC.

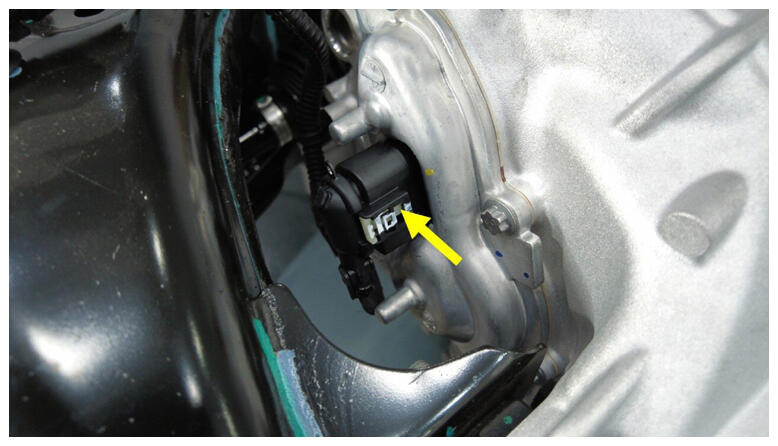

  29. Connect resolver connector.
    NOTE: 1x connector.
    G16604243Courtesy of TESLA, INC.

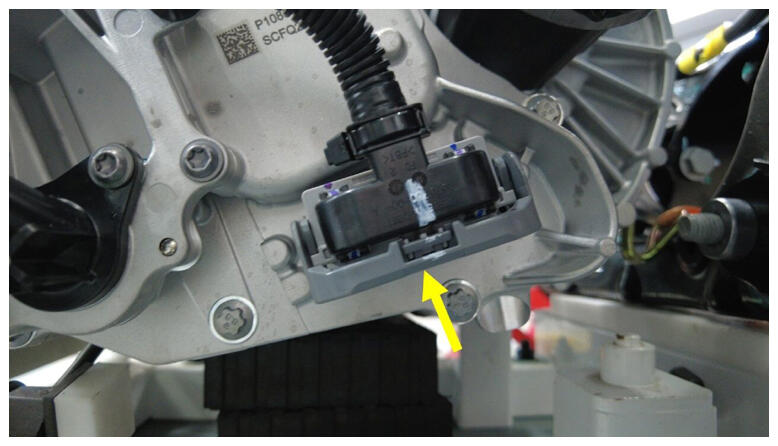

  30. Connect RDU logic connector.
    NOTE: 1x connector, Engage locking handle.
    G16604244Courtesy of TESLA, INC.

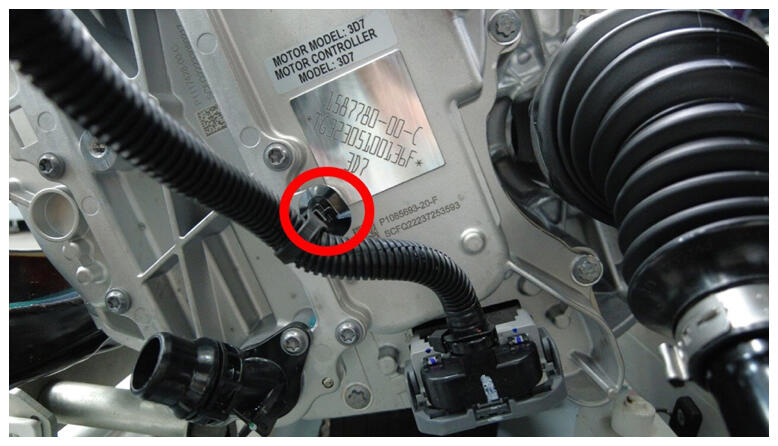

  31. Secure RDU logic connection clip.
    NOTE: 1x clip.
    G16604245Courtesy of TESLA, INC.

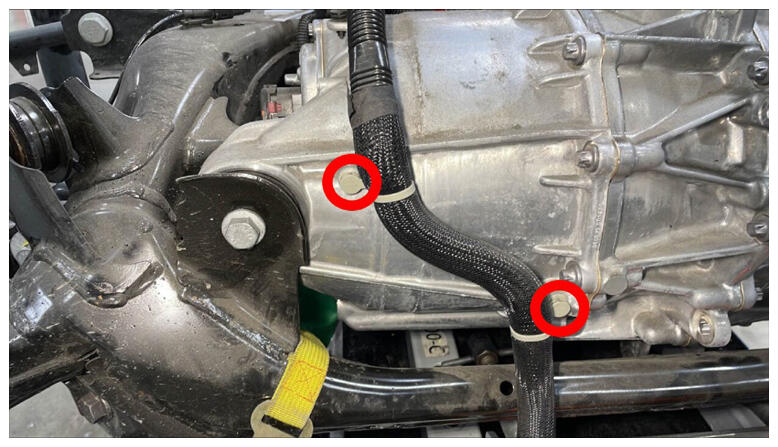

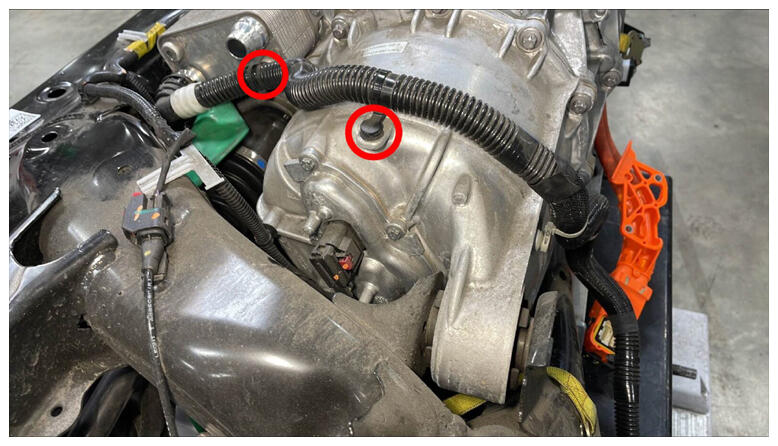

  32. Position and secure RDU outlet hose onto RDU assembly.
    NOTE: 4x fir tree clips.
    G16604246Courtesy of TESLA, INC.
    G16604247Courtesy of TESLA, INC.

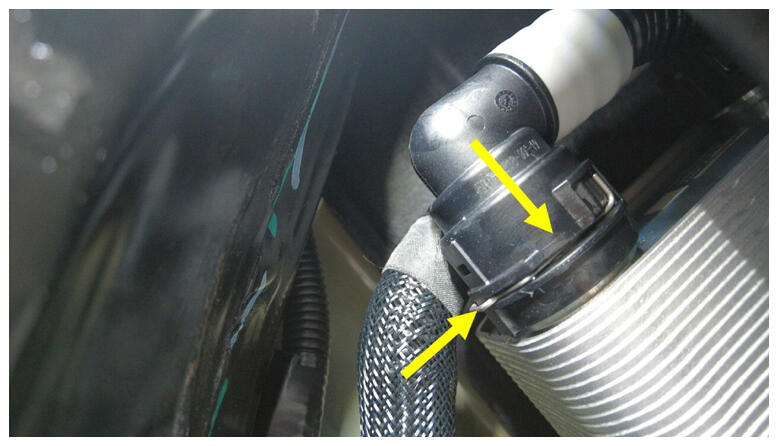

  33. Install RDU outlet hose to RDU heat exchanger.
    NOTE: 1x spring clips, 2x Plug, Remove plug from heat exchanger, Perform push-pull-push test to make sure hose is fully engaged, Clean excess coolant from area.
    G16604248Courtesy of TESLA, INC.

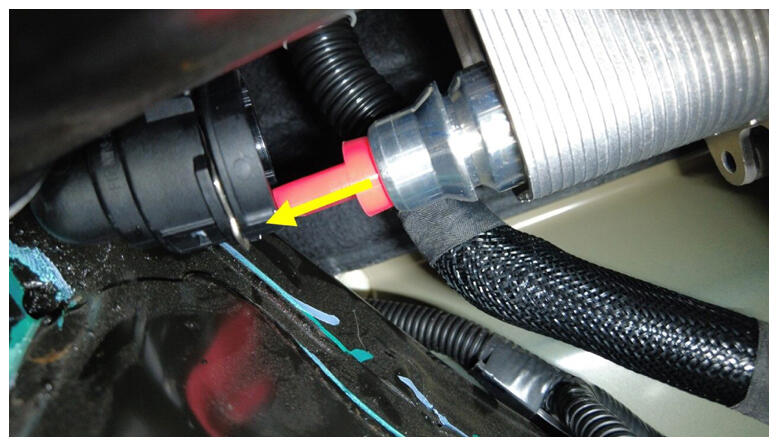

    G16604249Courtesy of TESLA, INC.

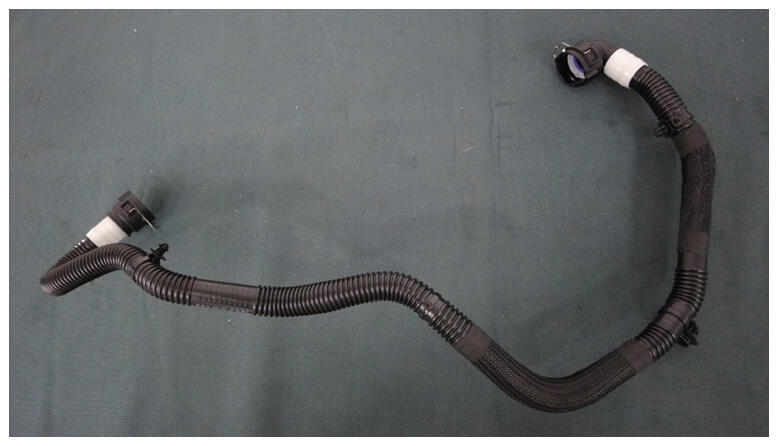

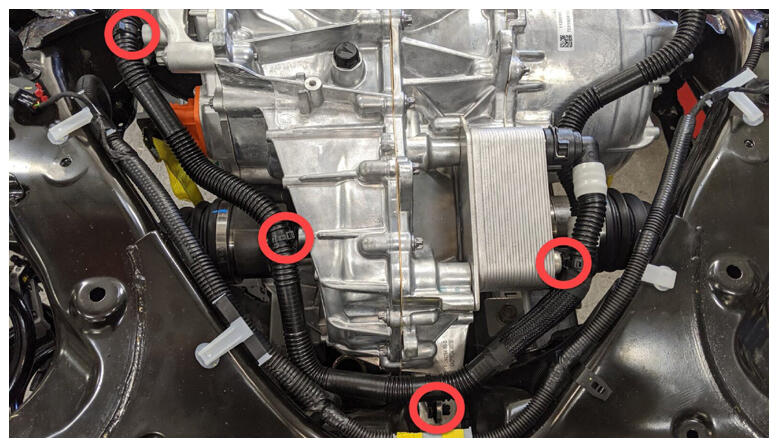

  34. Position and secure RDU inverter to coolant hose onto RDU.
    NOTE: 4x clips.
    G16604250Courtesy of TESLA, INC.
    G16604251Courtesy of TESLA, INC.
    G16604252Courtesy of TESLA, INC.

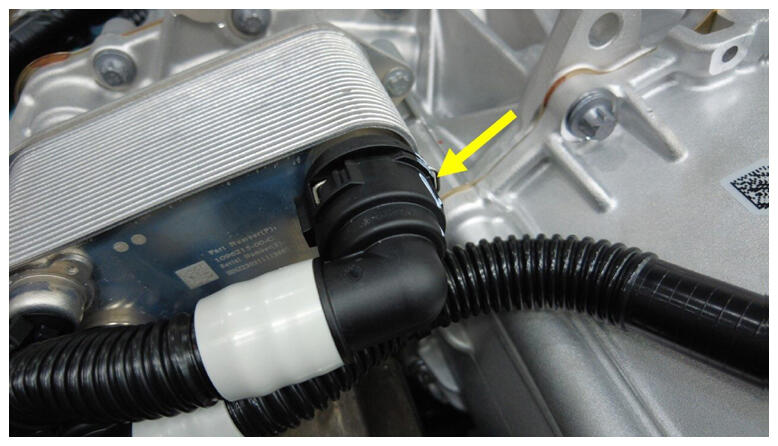

  35. Secure RDU inverter to oil cooler hose onto heat exchanger.
    NOTE: 1x spring clip, 1x plug, Clean excess coolant from area, Perform push-pull-push test to make sure hose is fully engaged.
    G16604253Courtesy of TESLA, INC.

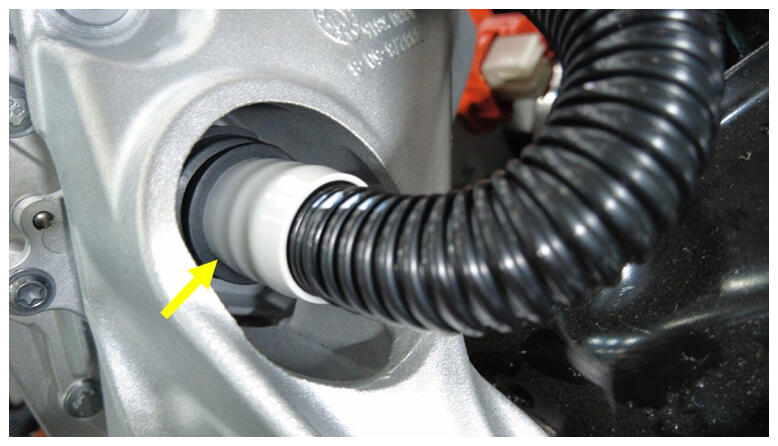

  36. Secure inverter to cooler hose to inverter.
    NOTE: 1x spring clip, Perform push-pull-push test to make sure hose is fully engaged.
    G16604254Courtesy of TESLA, INC.

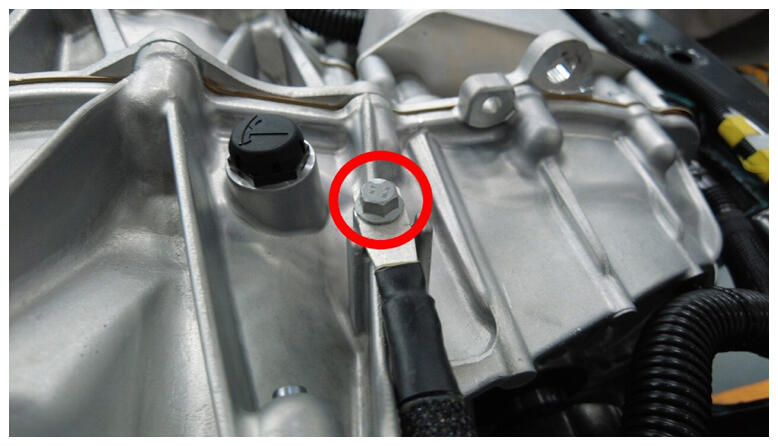

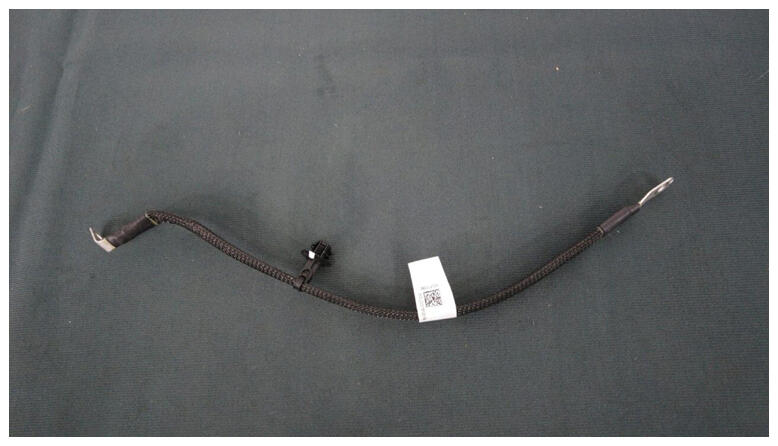

  37. Install ground strap harness onto RDU assembly.
    NOTE: 1x bolt, 10 mm, 6 N.m.
    G16604255Courtesy of TESLA, INC.
    G16604256Courtesy of TESLA, INC.

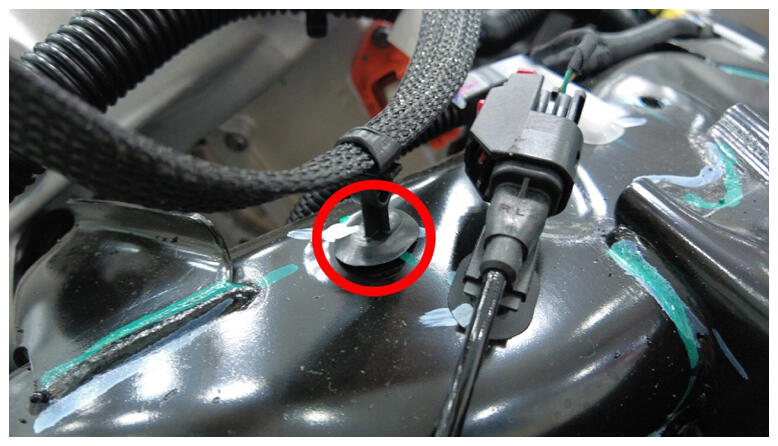

  38. Secure RDU ground strap clip onto subframe.
    NOTE: 1x clip.
    G16604257Courtesy of TESLA, INC.

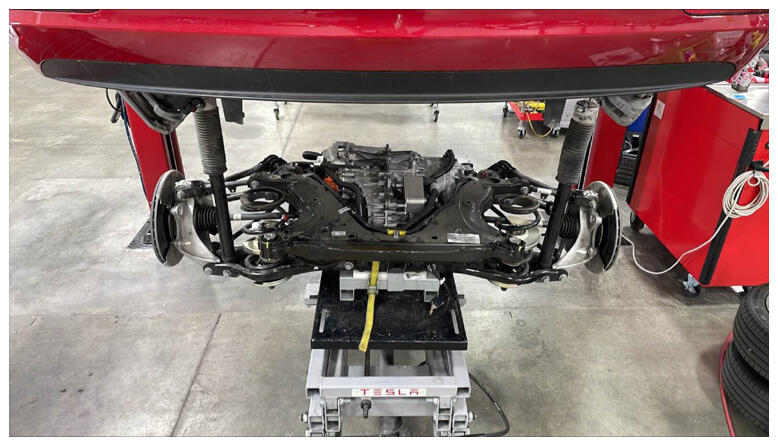

  39. Position subframe and rear drive unit assembly under vehicle.
    G16604258Courtesy of TESLA, INC.

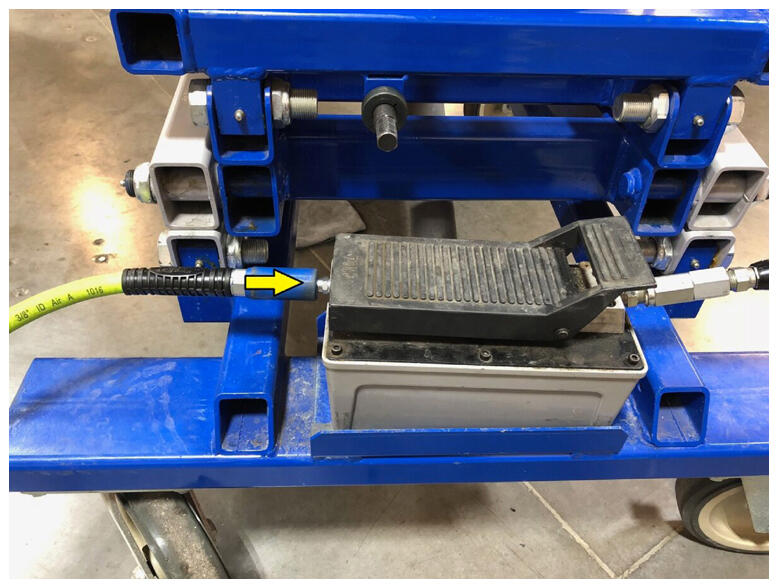

  40. Connect air supply to subframe lifting tool.
    G16604259Courtesy of TESLA, INC.
  41. Raise subframe and rear drive unit assembly into position.
    NOTE: Use caution to not damage components while raising subframe.
    G16604260Courtesy of TESLA, INC.

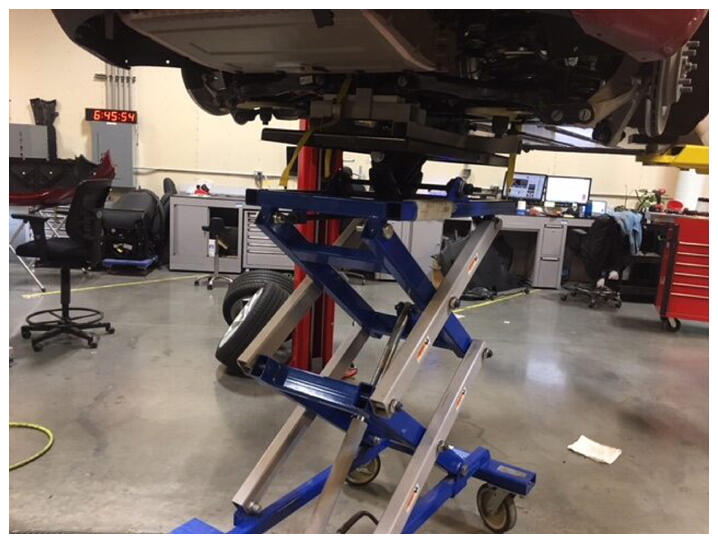

  42. Install RH rear bolt securing rear subframe to body hand tight.
    NOTE: 1x bolt, 21 mm, 165 N.m, Install new bolt, Torque at later step.
    G16604261Courtesy of TESLA, INC.
  43. Install LH rear bolt securing rear subframe to body hand tight.
    NOTE: 1x bolt, 21 mm, 165 N.m, Install new bolt, Torque at later step.
    G16604262Courtesy of TESLA, INC.

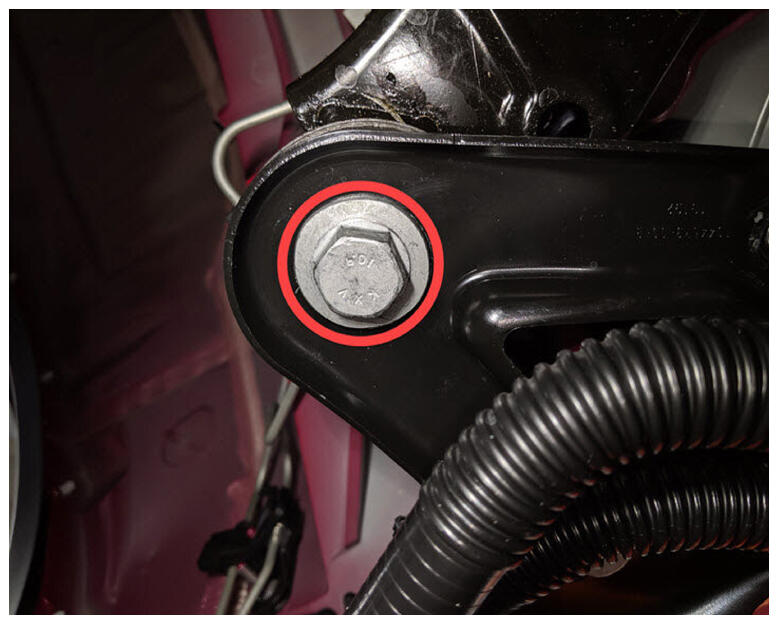

  44. Install LH front bolt and shear plate to rear subframe hand tight.
    NOTE: 1x bolt, 21 mm, 130 N.m, Install new bolt, Torque at later step.
    G16604263Courtesy of TESLA, INC.

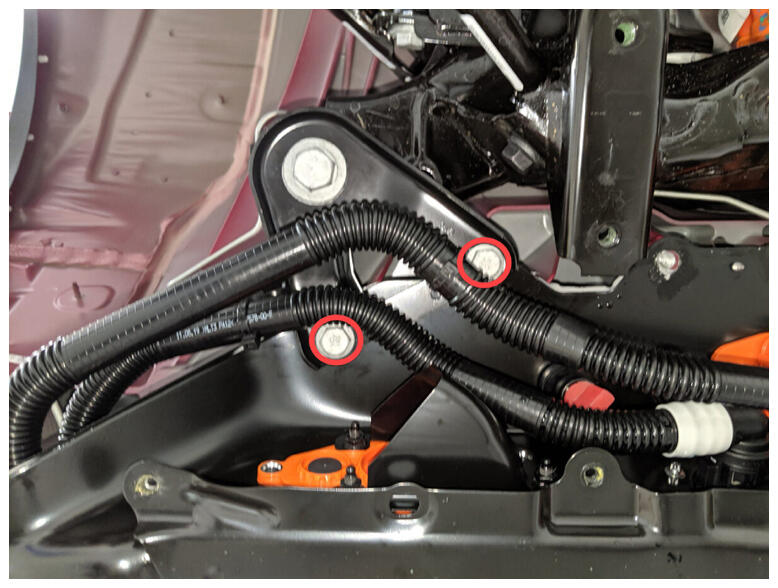

  45. Install bolts securing LH shear plate to HV battery hand tight.
    NOTE: 2x bolts, 13 mm, 35 N.m.
    G16604264Courtesy of TESLA, INC.

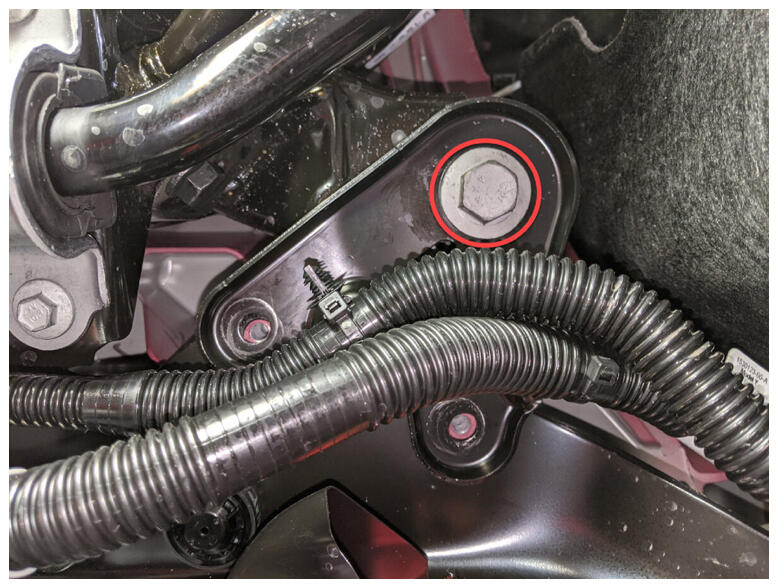

  46. Install RH front bolt and shear plate to rear subframe hand tight.
    NOTE: 1x bolt, 21 mm, 130 N.m, Install new bolt, Torque at later step.
    G16604265Courtesy of TESLA, INC.
  47. Install bolts securing RH shear plate to HV battery hand tight.
    NOTE: 2x bolts, 13 mm, 35 N.m.
    G16604266Courtesy of TESLA, INC.

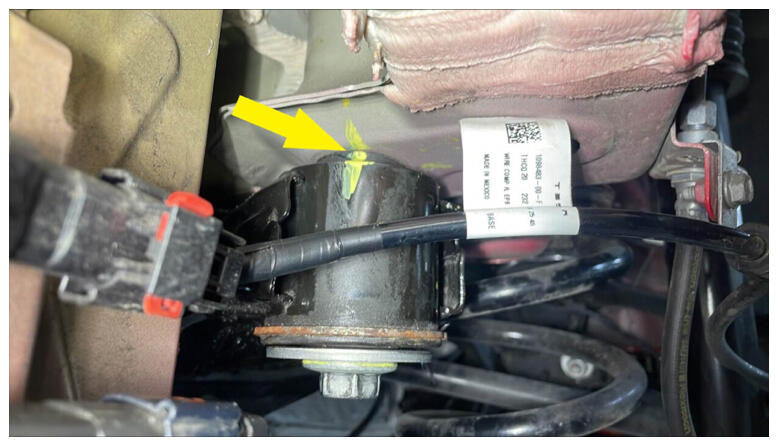

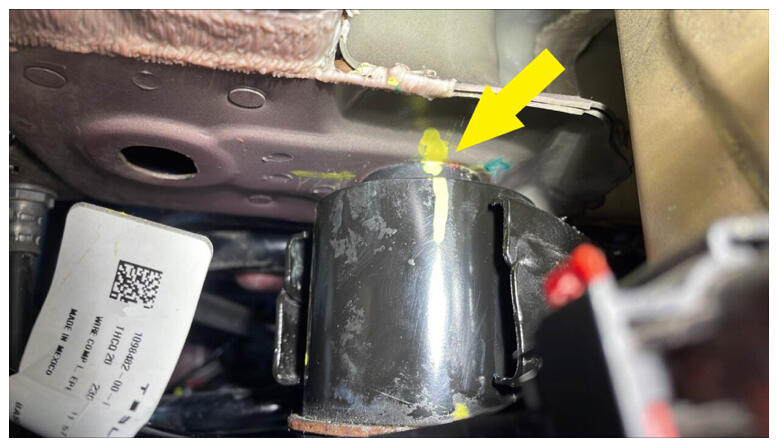

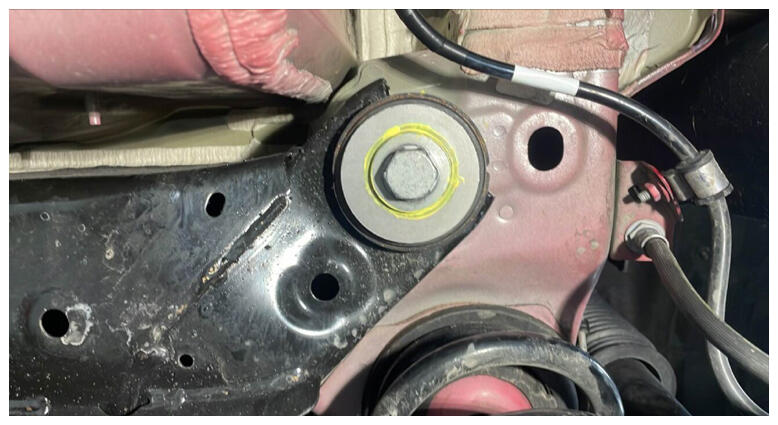

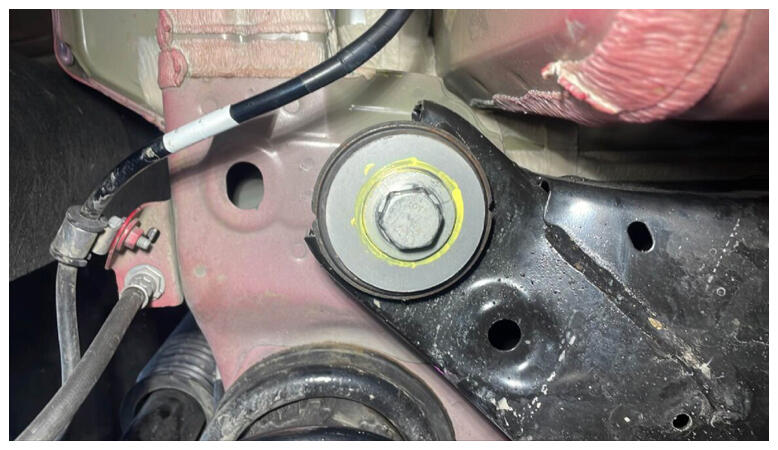

  48. Position subframe to marked location.
    NOTE: Use previous markings to align subframe to body, Return to original position as close as possible.
    G16604267Courtesy of TESLA, INC.
    G16604268Courtesy of TESLA, INC.
    G16604269Courtesy of TESLA, INC.
    G16604270Courtesy of TESLA, INC.

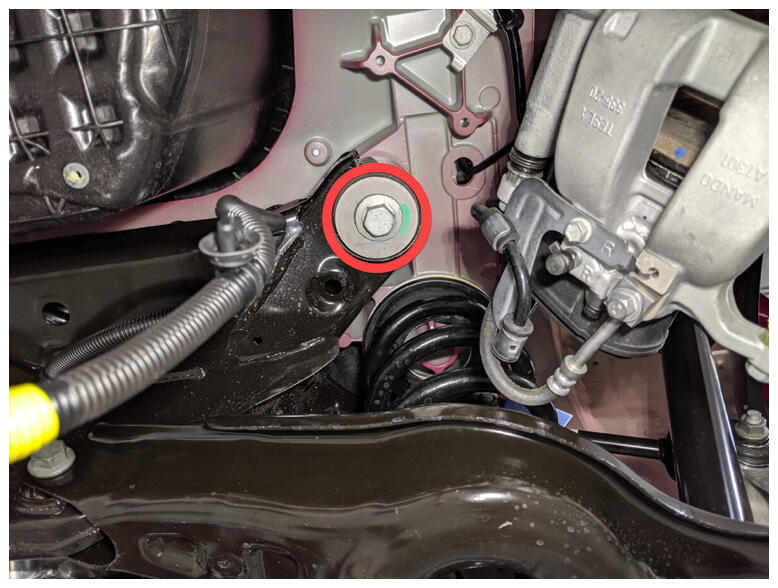

  49. Torque bolt securing RH rear of subframe to body.
    NOTE: 1x rear bolt, 21 mm, 165 N.m, Mark bolt after torque.
    G16604271Courtesy of TESLA, INC.

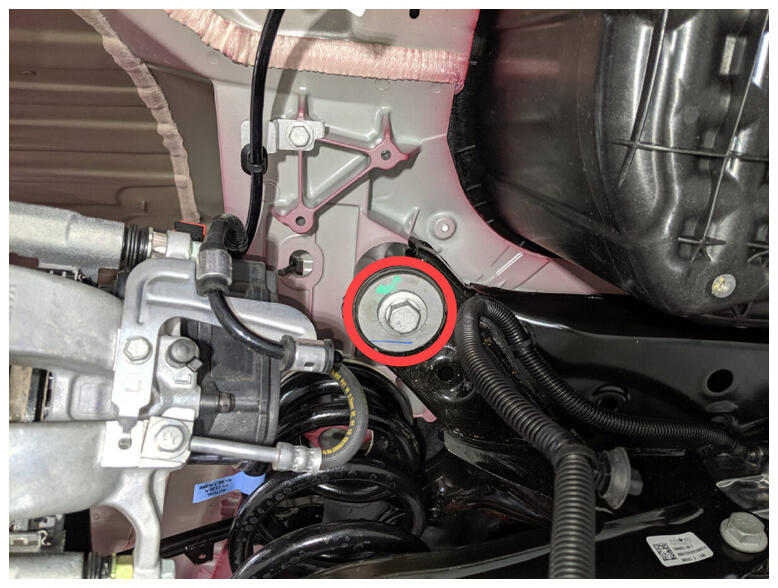

  50. Torque bolt securing LH rear of subframe to body.
    NOTE: 1x rear bolt, 21 mm, 165 N.m, Mark bolt after torque.
    G16604272Courtesy of TESLA, INC.

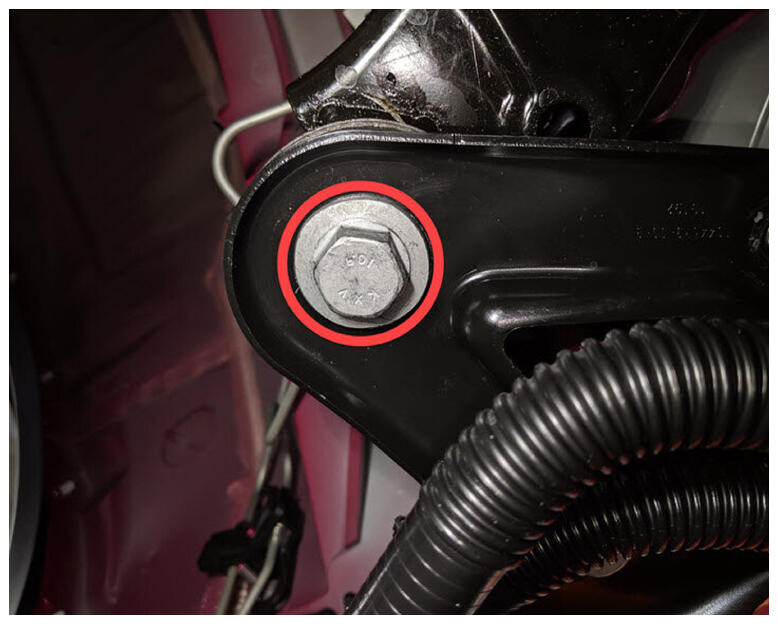

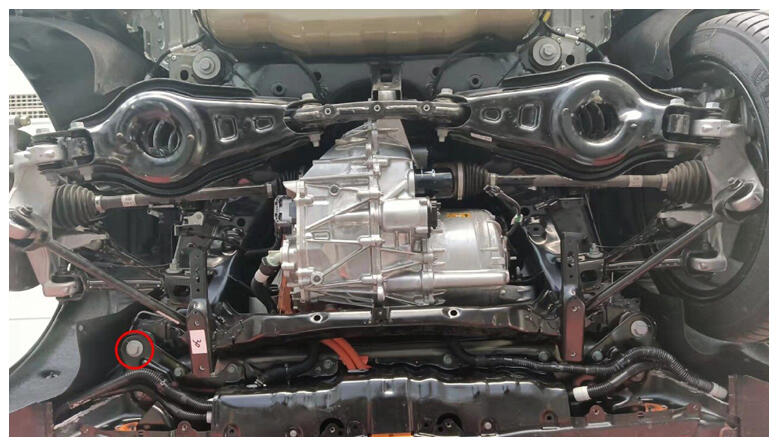

  51. Torque bolt securing subframe and LH shear plate to body.
    NOTE: 1x front bolt, 21 mm, 130 N.m, Mark bolt after torque.
    G16604273Courtesy of TESLA, INC.
    G16604274Courtesy of TESLA, INC.

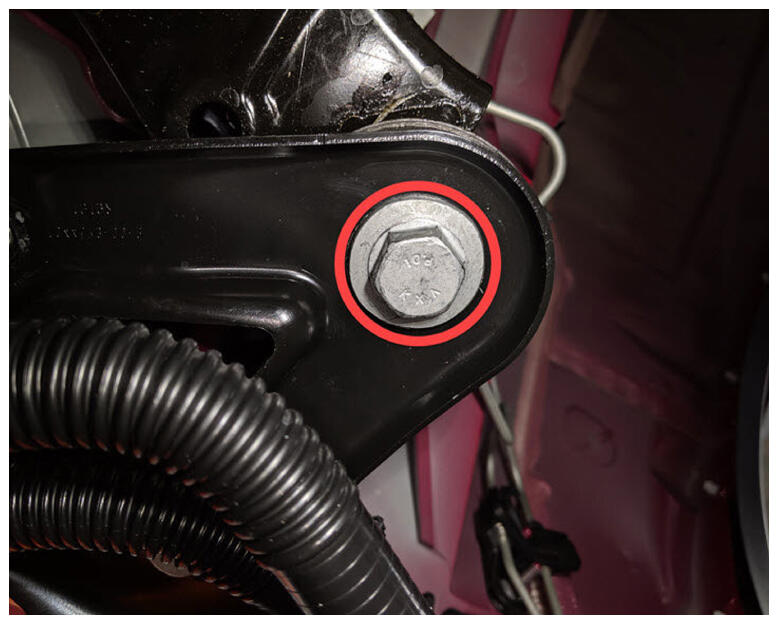

  52. Torque bolt securing subframe and RH shear plate to body.
    NOTE: 1x front bolt, 21 mm, 130 N.m, Mark bolt after torque.
    G16604275Courtesy of TESLA, INC.

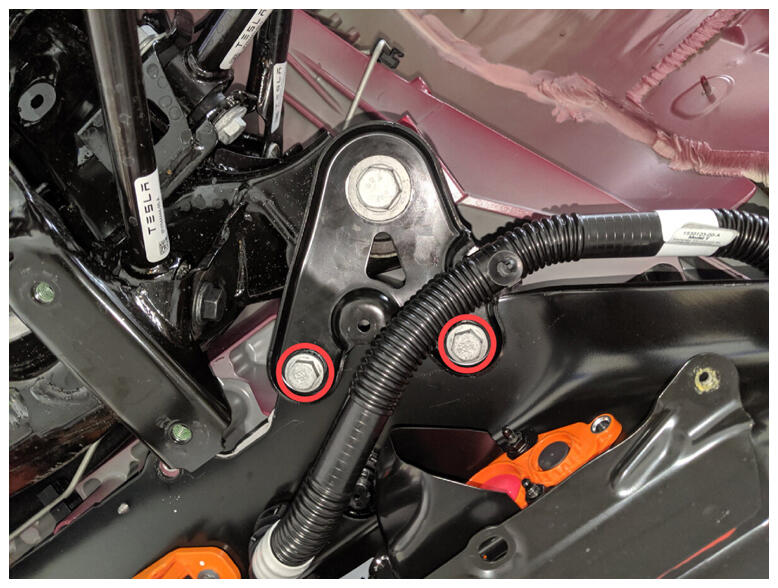

  53. Torque bolts securing shear plates to vehicle.
    NOTE: 4x bolts, 13 mm, 35 N.m.
    G16604276Courtesy of TESLA, INC.
    G16604277Courtesy of TESLA, INC.

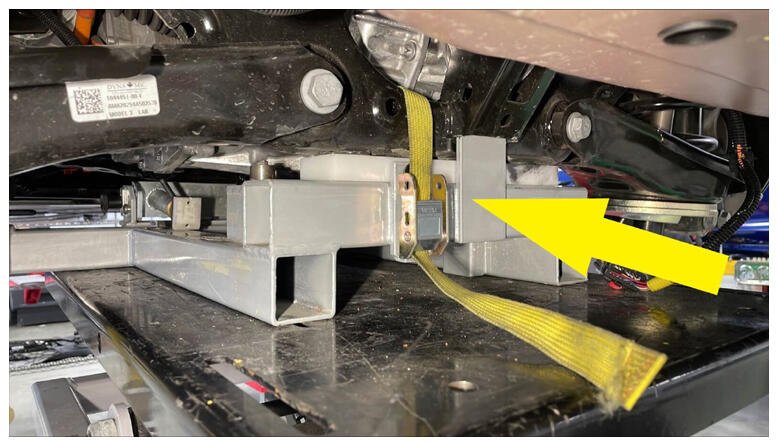

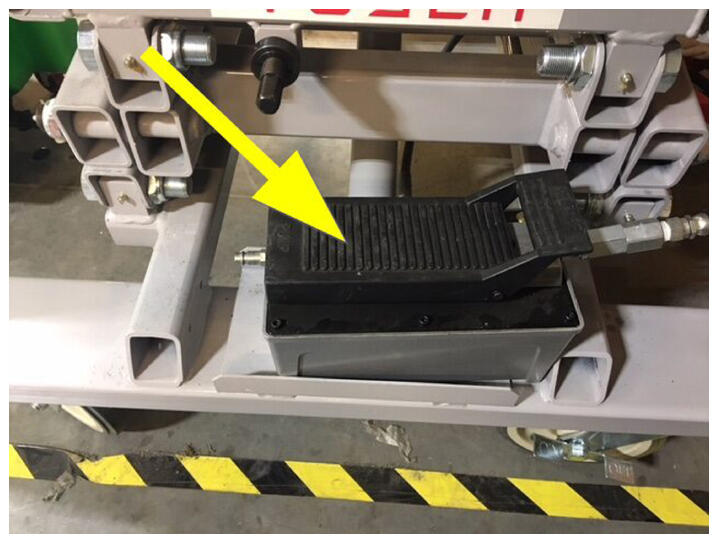

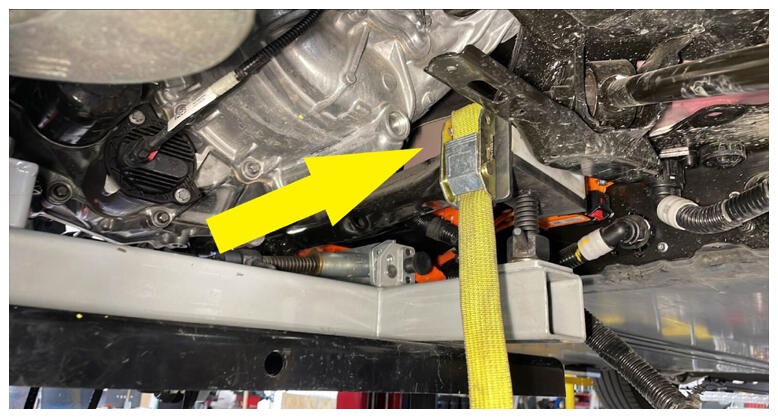

  54. Lower rear subframe lifting tool from vehicle.
    NOTE: Verify yellow safety straps are removed from subframe.

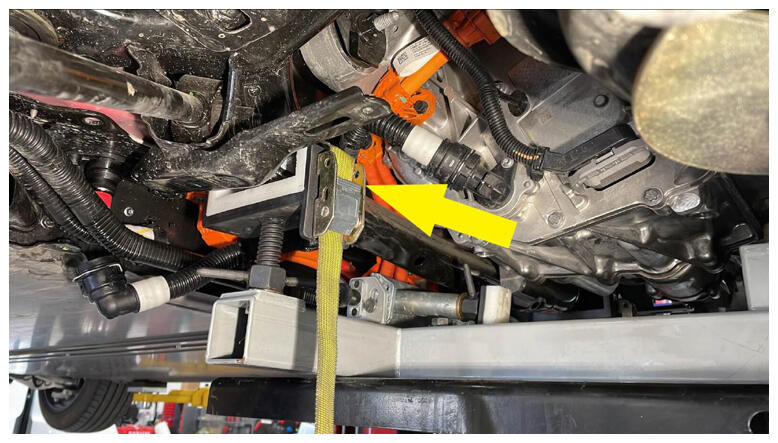

    G16604278Courtesy of TESLA, INC.
    G16604279Courtesy of TESLA, INC.
    G16604280Courtesy of TESLA, INC.
    G16604281Courtesy of TESLA, INC.

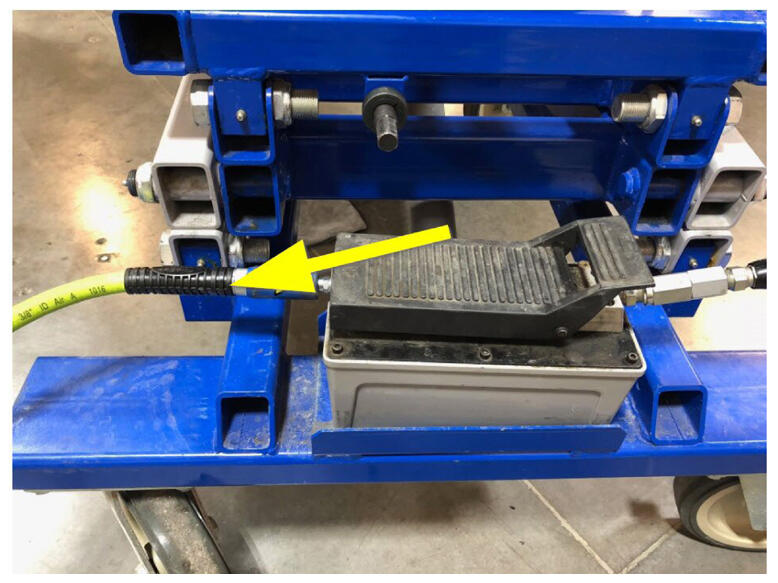

  55. Disconnect air supply from subframe lifting tool.
    G16604282Courtesy of TESLA, INC.

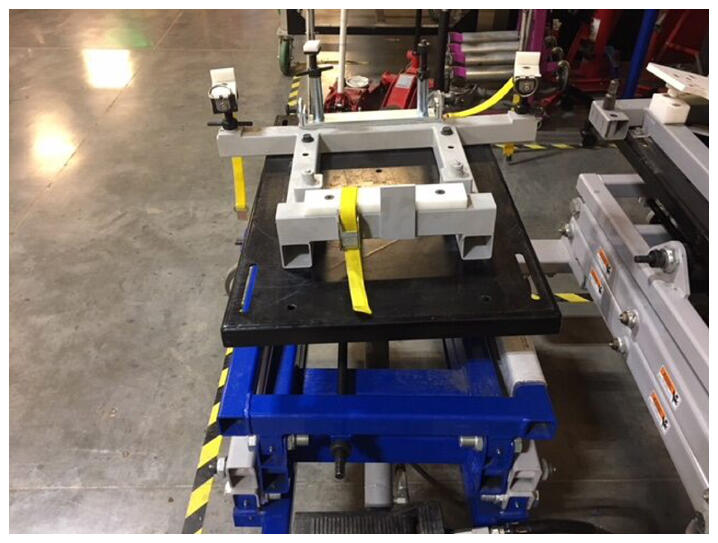

  56. Remove subframe lifting tool from underneath vehicle.
    G16604283Courtesy of TESLA, INC.

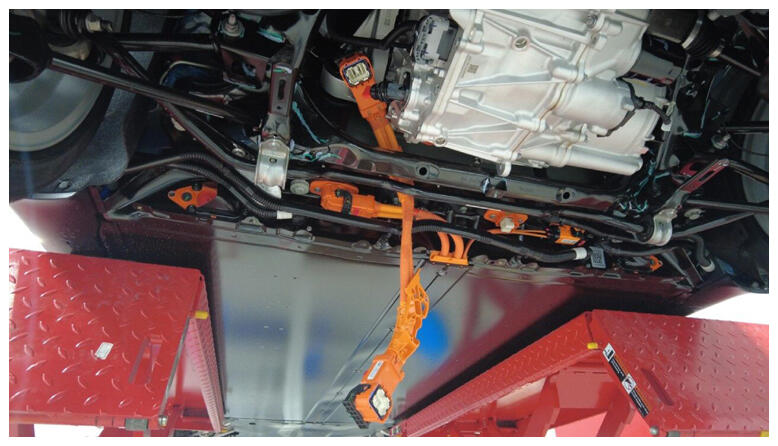

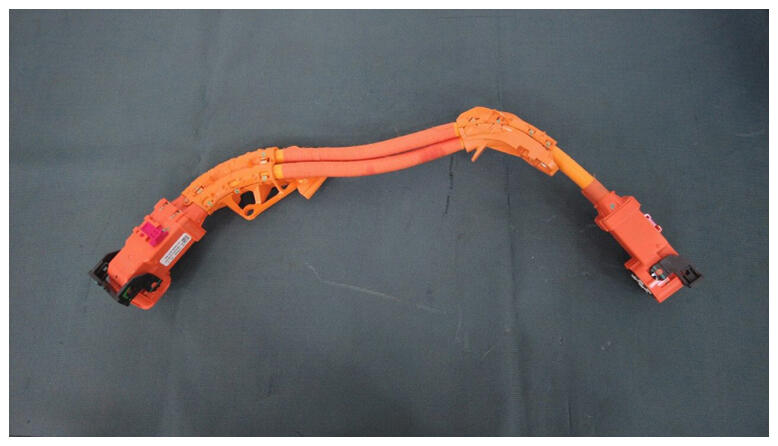

  57. Install RDU HV harness.
    NOTE: Route cable between rear drive unit, subframe and battery, Rotate into connection position.
    G16604284Courtesy of TESLA, INC.
    G16604285Courtesy of TESLA, INC.
    G16604286Courtesy of TESLA, INC.
    G16604287Courtesy of TESLA, INC.

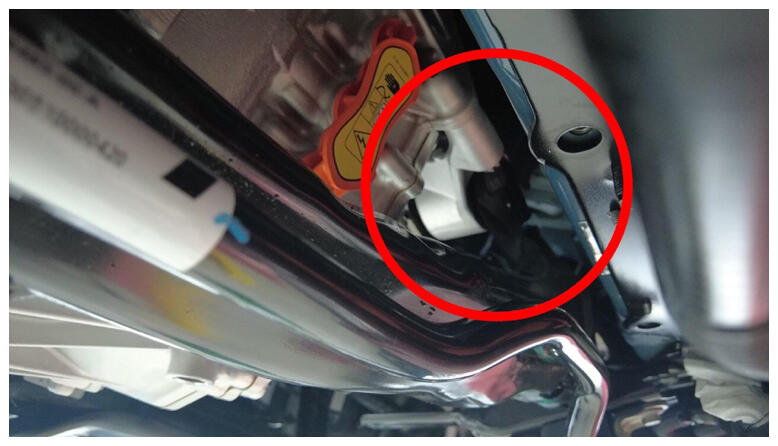

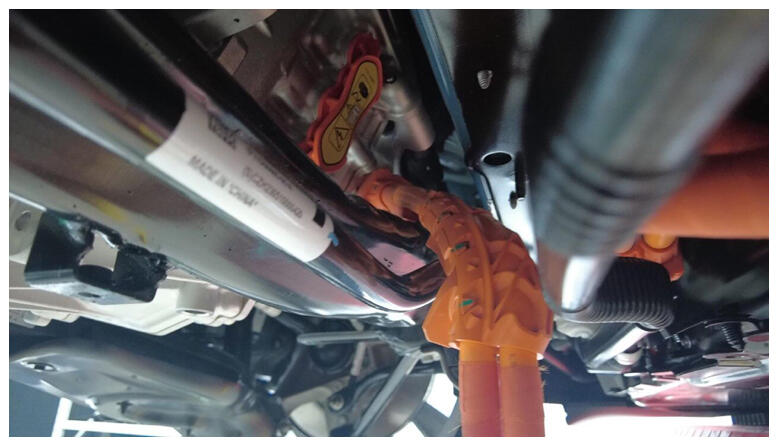

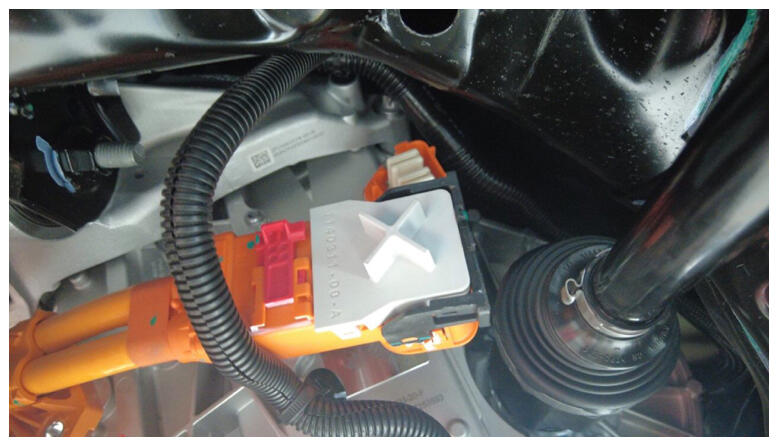

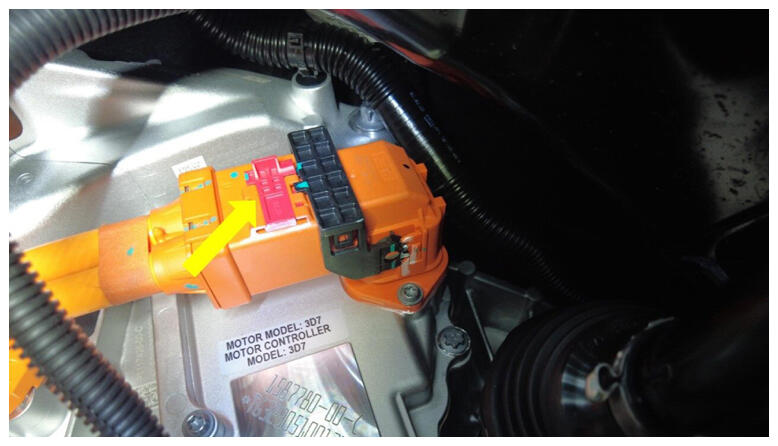

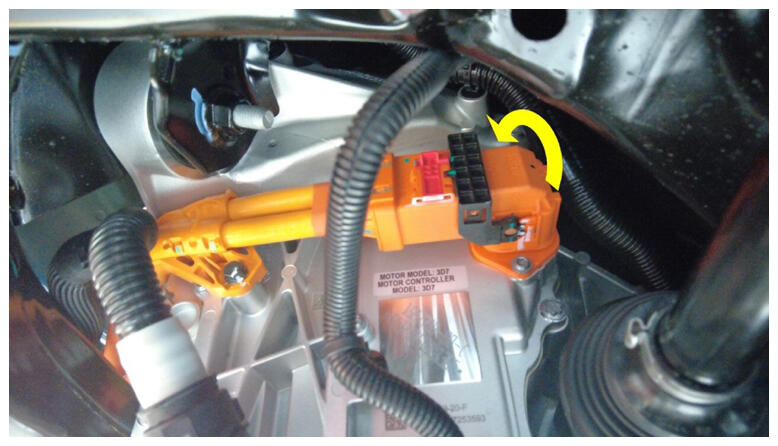

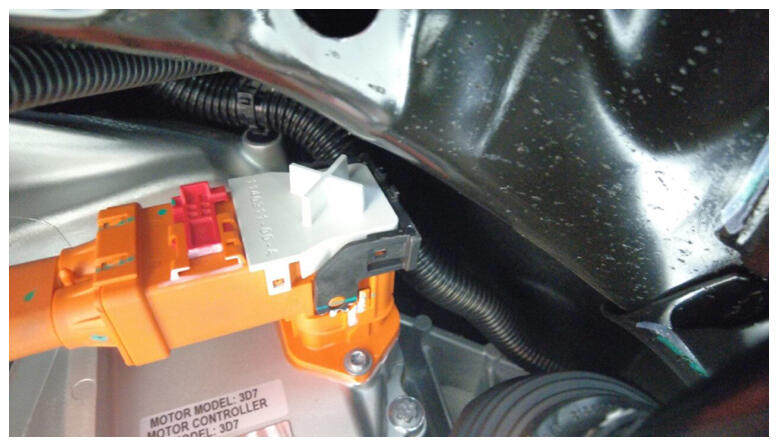

  58. Connect RDU HV harness to RDU.
    NOTE: 1x connector, Install HV connector lever lock to RDU HV cable connector, Align connector to RDU then remove HV connector lever lock before fully latch connector, Use one hand to support the connector while other latching locking tab, Once installed, verify that the latch is not damaged and fully secured in the latched position.
    G16604288Courtesy of TESLA, INC.
    G16604289Courtesy of TESLA, INC.
    G16604290Courtesy of TESLA, INC.
    G16604291Courtesy of TESLA, INC.

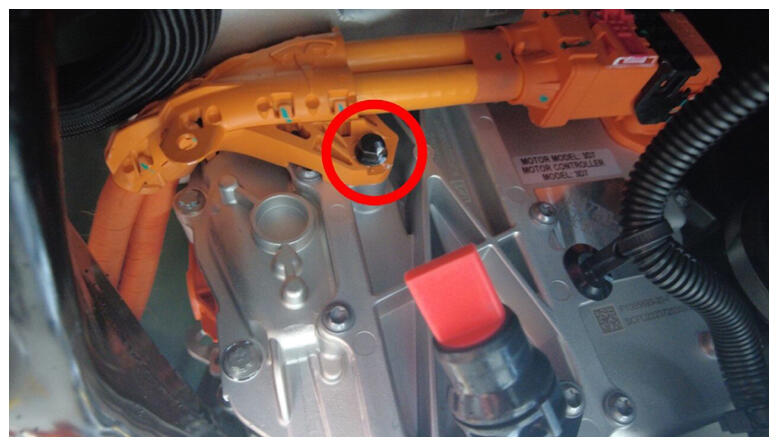

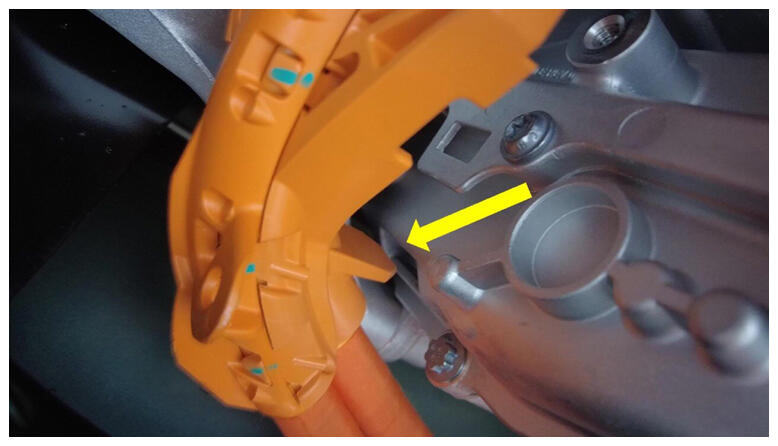

  59. Install bolt securing RDU HV cable bracket to RDU.
    NOTE: 1x location tab, 1x bolt, 10 mm, 6 N.m.
    G16604292Courtesy of TESLA, INC.
    G16604293Courtesy of TESLA, INC.

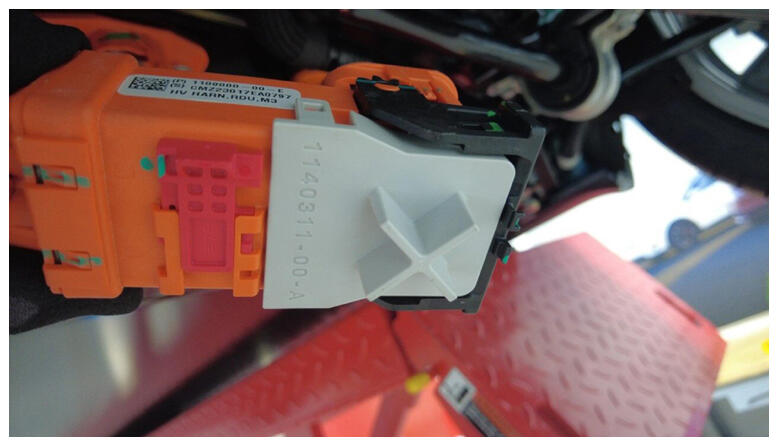

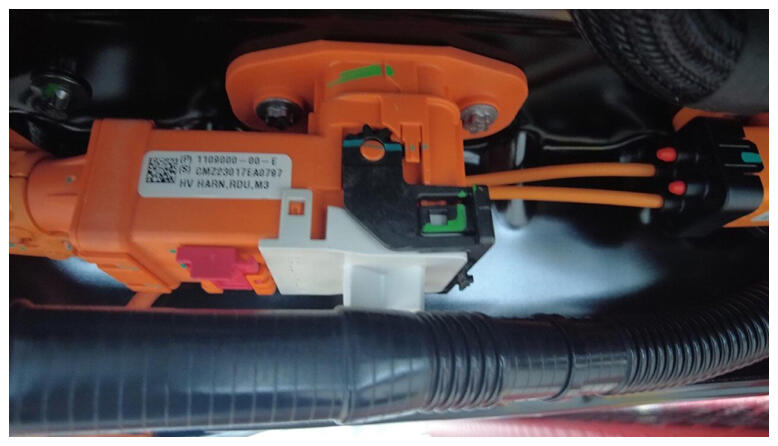

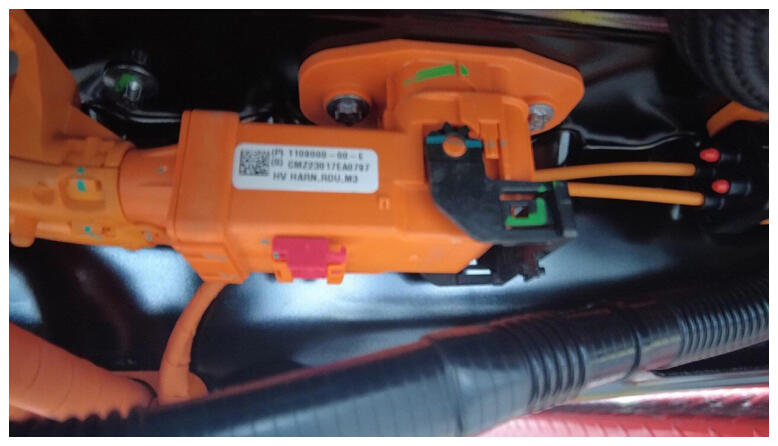

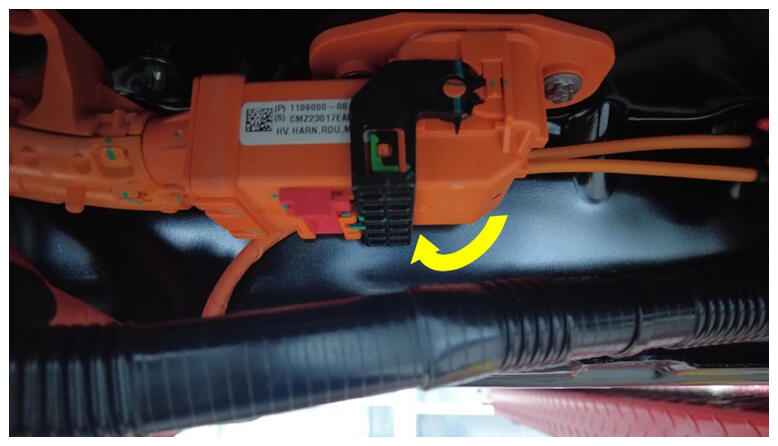

  60. Connect RDU HV cable to HV battery.
    NOTE: 1x connector, Make sure the connector lock is 90 degrees from the connector before beginning to secure the connector, Use one hand to support the connector while other latching locking tab. Once installed, verify that the latch is not damaged and fully secured in the latched position.
    G16604294Courtesy of TESLA, INC.
    G16604295Courtesy of TESLA, INC.
    G16604296Courtesy of TESLA, INC.
    G16604297Courtesy of TESLA, INC.
    G16604298Courtesy of TESLA, INC.

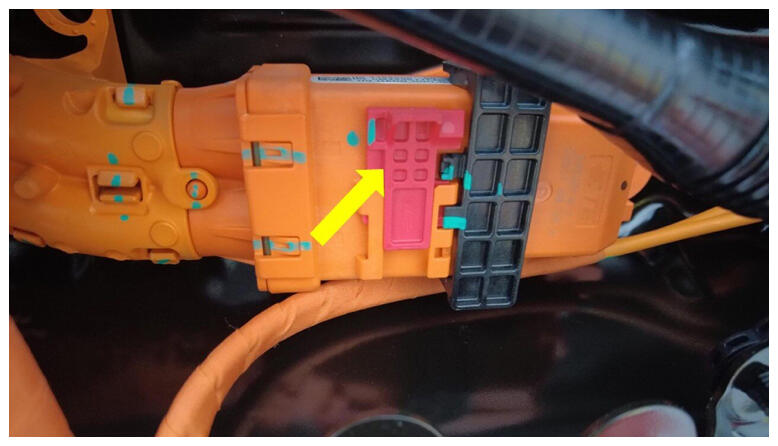

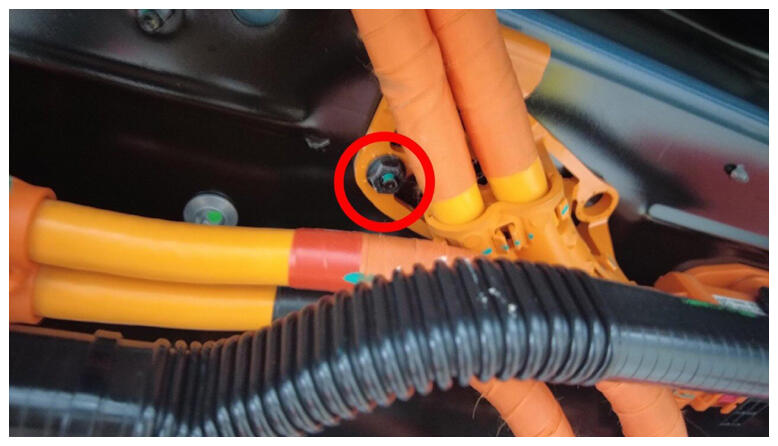

  61. Install nut securing RDU HV cable bracket to HV battery.
    NOTE: 1x nut, 10 mm, 10 N.m, Number of fasteners may vary.
    G16604299Courtesy of TESLA, INC.
  62. Position coolant drain container underneath LH RDU area.
    G16604300Courtesy of TESLA, INC.

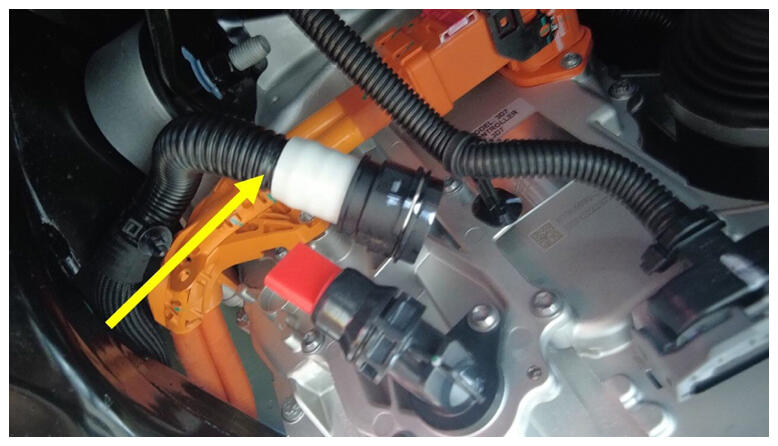

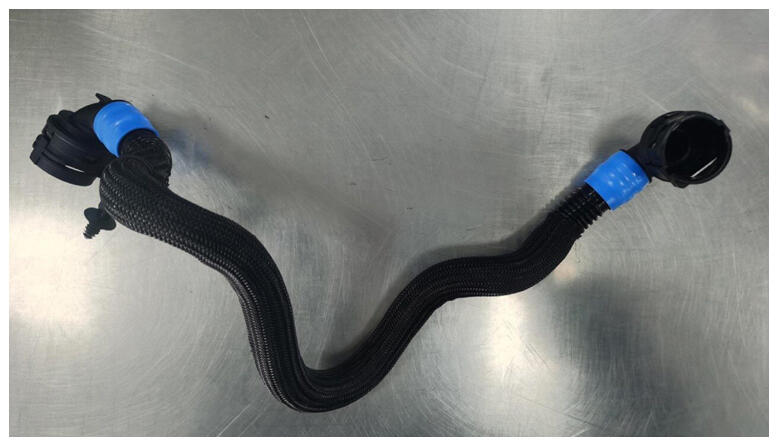

  63. Install RDU inverter inlet tube into subframe.
    NOTE: Maneuver hose as needed to position between rear subframe and RDU HV cable harness.
    G16604301Courtesy of TESLA, INC.
    G16604302Courtesy of TESLA, INC.

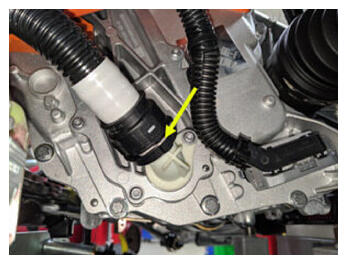

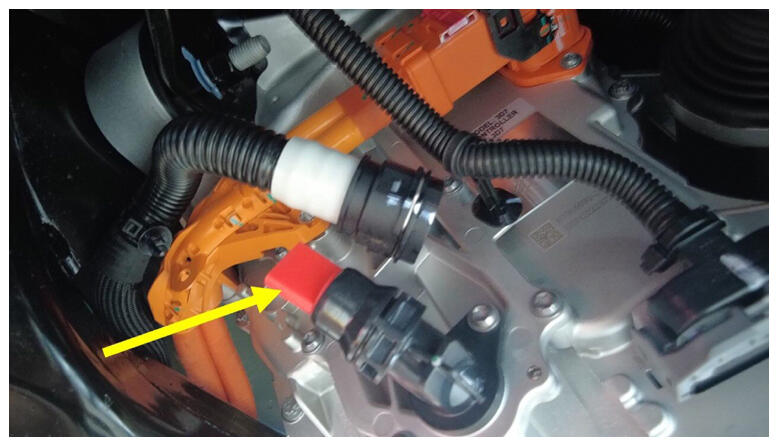

  64. Remove plug from fluid coupling and connect RDU inverter inlet tube.
    NOTE: 1x spring clip, 1x plug, Perform push-pull-push test to make sure hose is fully engaged.
    G16604303Courtesy of TESLA, INC.
    G16604304Courtesy of TESLA, INC.

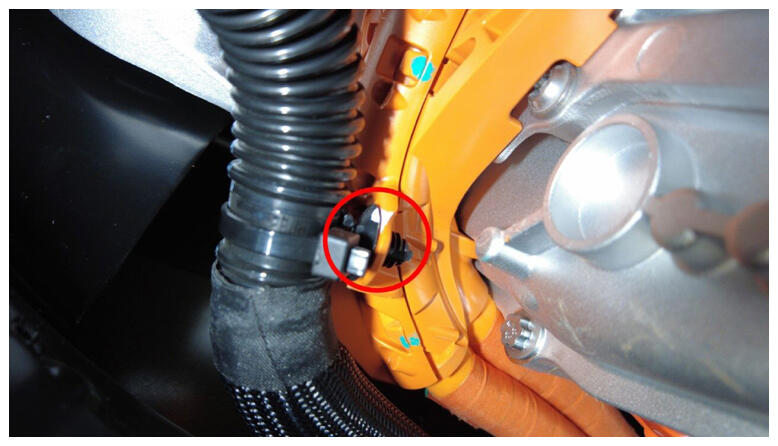

  65. Secure RDU inverter inlet tube onto RDU HV cable harness.
    NOTE: 1x fir tree clip.
    G16604305Courtesy of TESLA, INC.

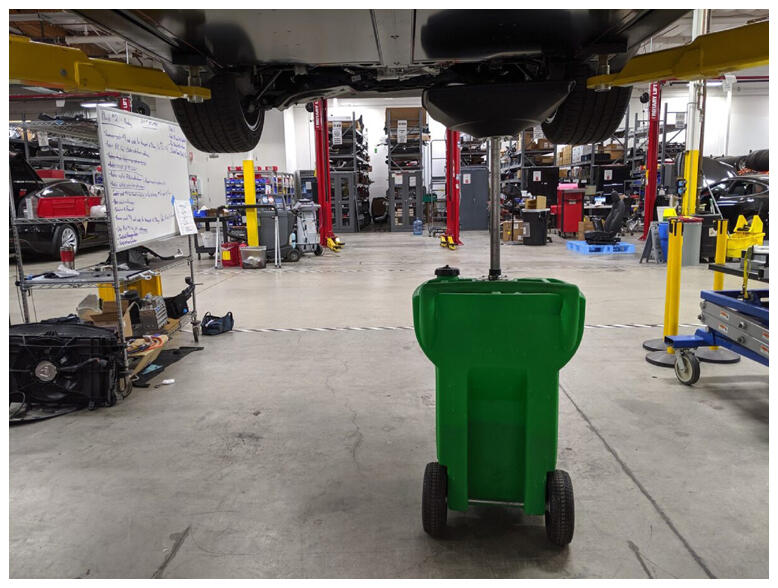

  66. Position coolant drain container underneath LH rear of HV battery.
    G16604306Courtesy of TESLA, INC.

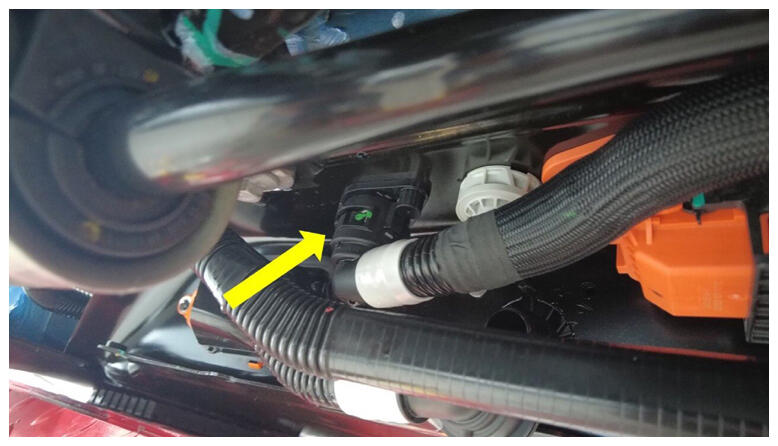

  67. Remove plug from HV battery and connect RDU inverter inlet tube.
    NOTE: 1x spring clip, 1x plug, Perform push-pull-push test to make sure hose is fully engaged.
    G16604307Courtesy of TESLA, INC.

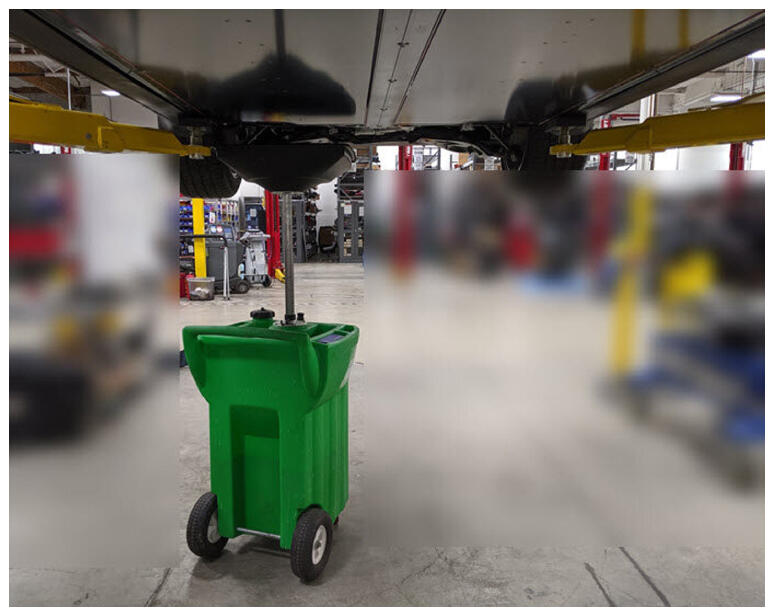

  68. Position coolant drain container underneath RH rear of vehicle.
    G16604308Courtesy of TESLA, INC.

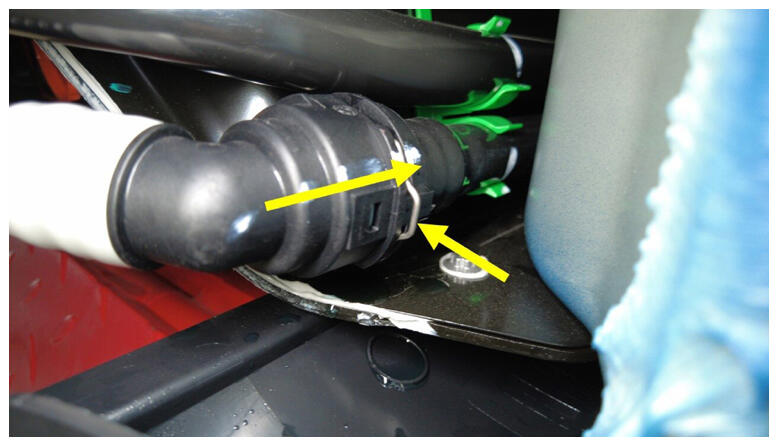

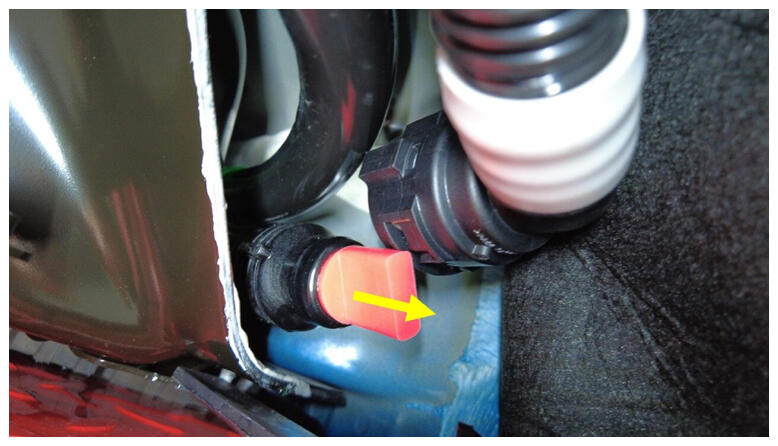

  69. Install RDU outlet hose to PT return tube.
    NOTE: 1x spring clips, 2x Plug, Remove plug from PT return tube, Perform push-pull-push test to make sure hose is fully engaged, Clean excess coolant from area.
    G16604309Courtesy of TESLA, INC.
    G16604310Courtesy of TESLA, INC.

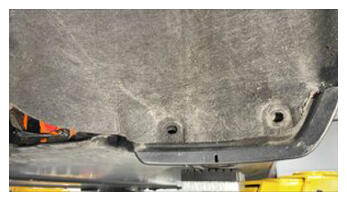

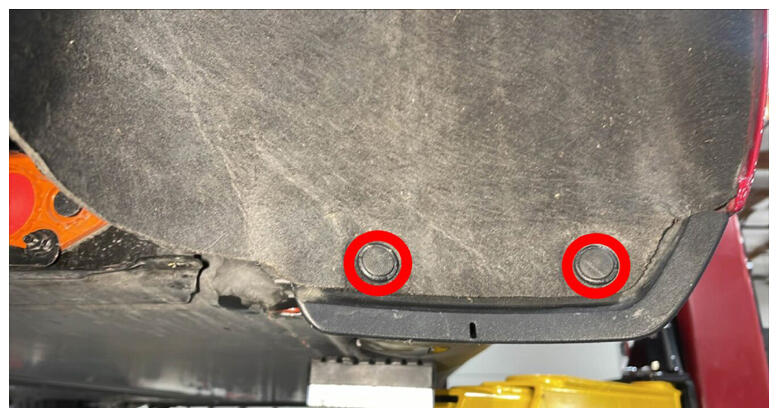

  70. Secure push clips securing RH rear wheel liner to rocker panel.
    NOTE: 2x clips.
    G16604311Courtesy of TESLA, INC.
    G16604312Courtesy of TESLA, INC.
  71. Remove coolant drain container from underneath vehicle.

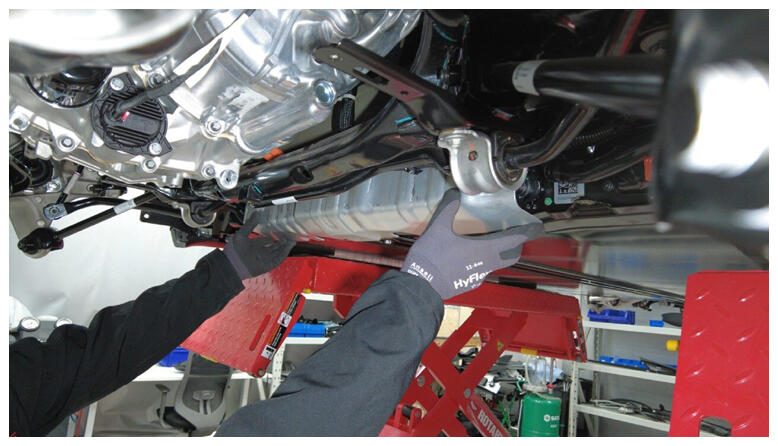

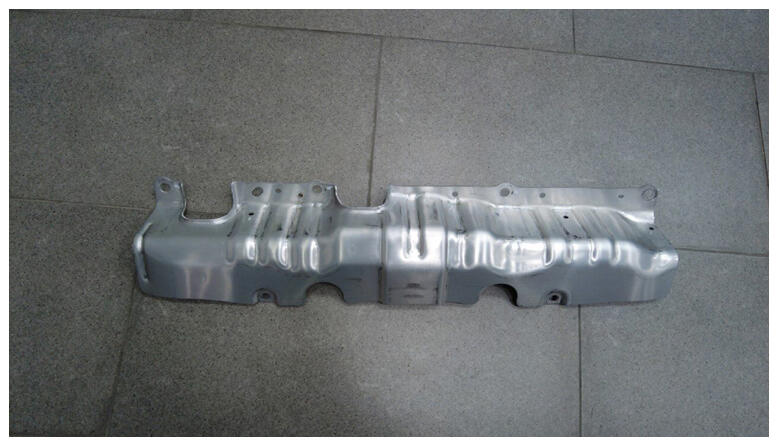

  72. Position HV battery rear skid plate enclosure onto HV battery for installation.
    NOTE: Recommend assistance if needed.
    G16604313Courtesy of TESLA, INC.
    G16604314Courtesy of TESLA, INC.

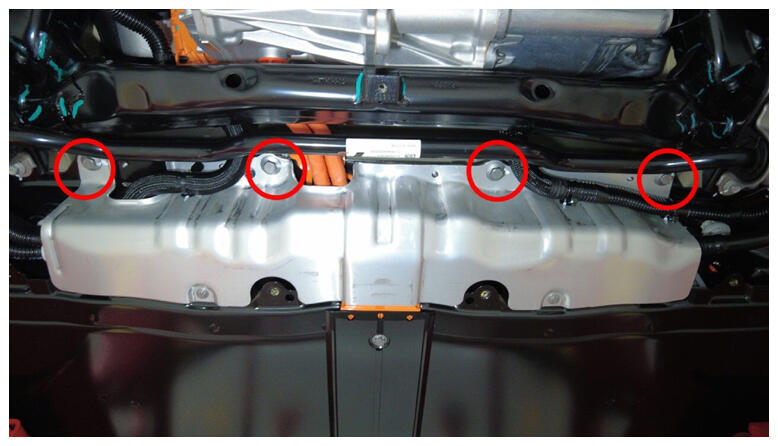

  73. Install upper bolts securing HV battery rear skid plate enclosure hand tight.
    NOTE: 4x bolts, 13 mm, 35 N.m, Torque at later step.
    G16604315Courtesy of TESLA, INC.
  74. Install upper nut securing HV battery rear skid plate enclosure hand tight.
    NOTE: 1x nut, 10 mm, 13 N.m, Torque at later step.
    G16604316Courtesy of TESLA, INC.

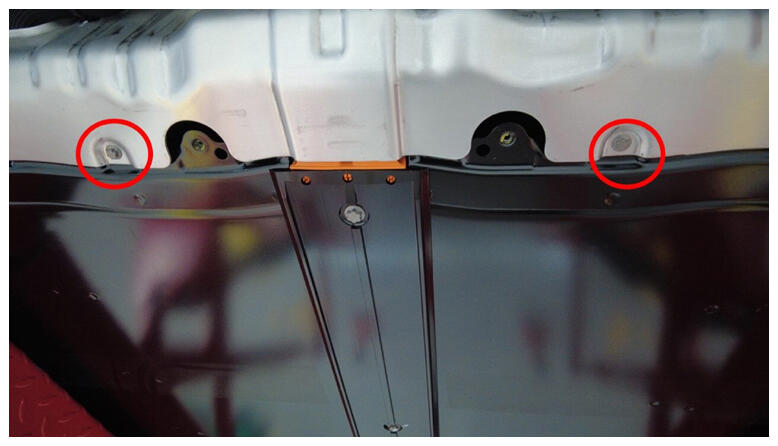

  75. Install lower bolts securing HV battery rear skid plate enclosure.
    NOTE: 2x bolts, EP10, 13 N.m, Earlier vins may be equipped with additional bolts.
    G16604317Courtesy of TESLA, INC.
  76. Torque bolts securing HV battery rear skid plate enclosure to vehicle.
    NOTE: 4x bolts, 13 mm, 35 N.m.
    G16604318Courtesy of TESLA, INC.

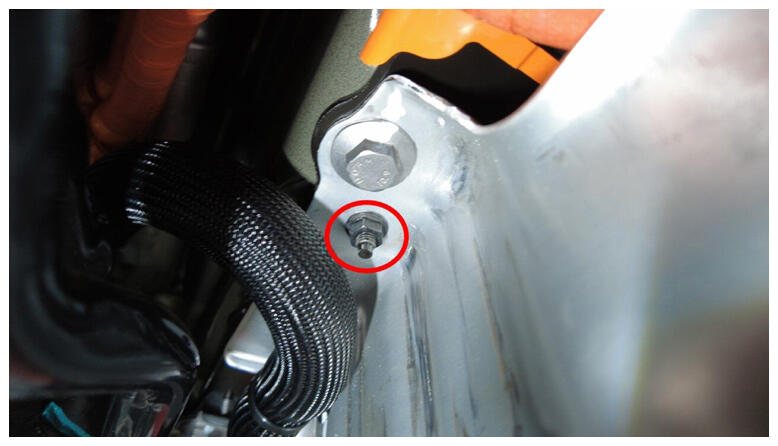

  77. Torque upper nut securing HV battery rear skid plate enclosure.
    NOTE: 1x nut, 10 mm, 13 N.m.
    G16604319Courtesy of TESLA, INC.

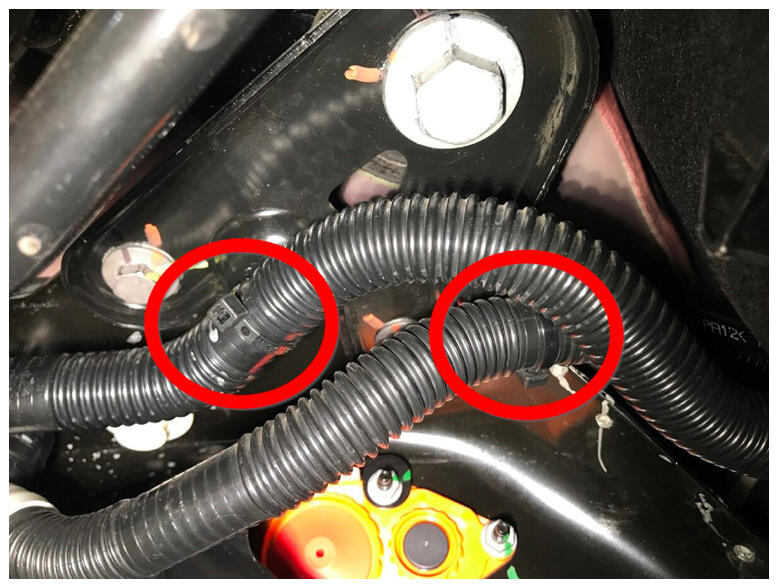

  78. Install clips securing coolant hoses to RH shear plate.
    NOTE: 2x fir tree clips.
    G16604320Courtesy of TESLA, INC.

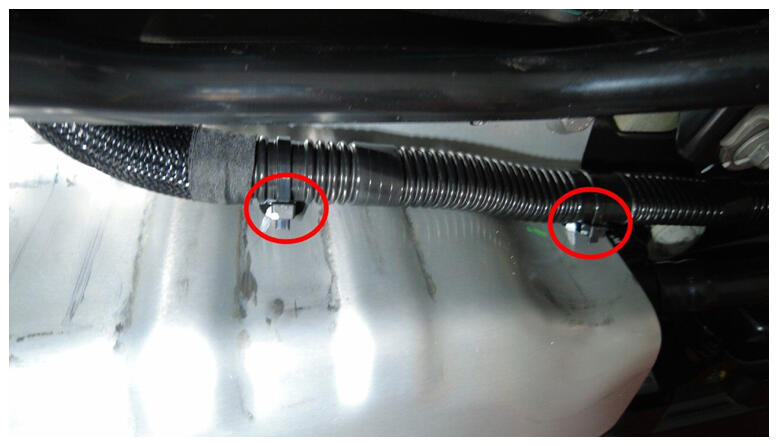

  79. Install RH side hose clips to HV battery rear skid plate enclosure.
    NOTE: 2x fir tree clips.
    G16604321Courtesy of TESLA, INC.

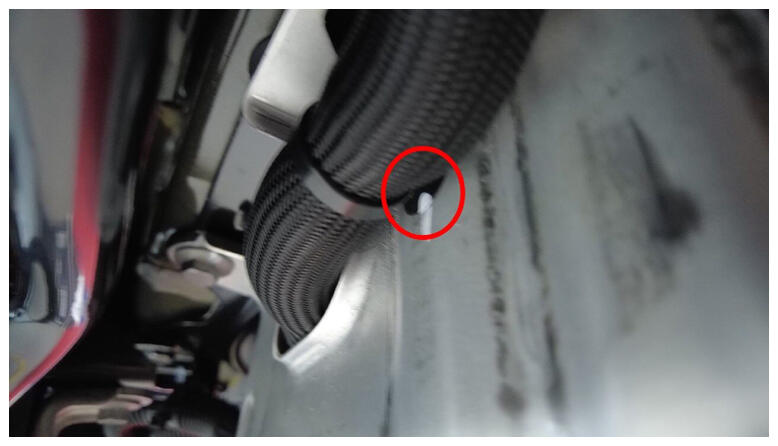

  80. Install LH side hose clip to HV battery rear skid plate enclosure.
    NOTE: 1x clip.
    G16604322Courtesy of TESLA, INC.

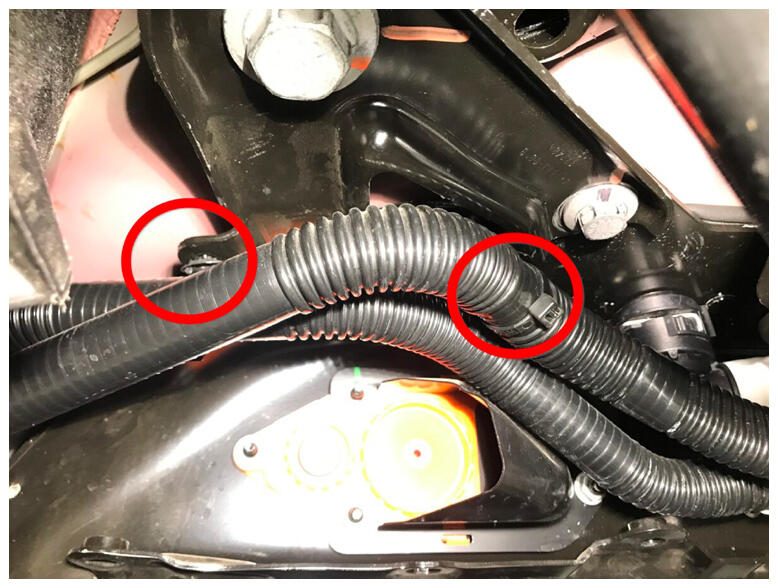

  81. Install clips securing coolant hoses to LH shear plate.
    NOTE: 2x fir tree clips.
    G16604323Courtesy of TESLA, INC.

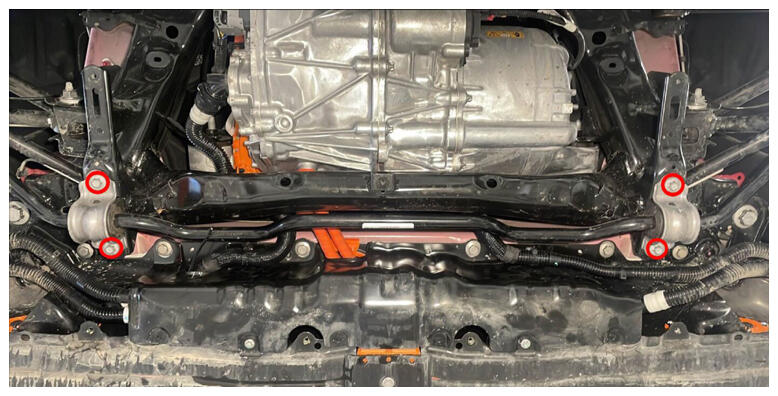

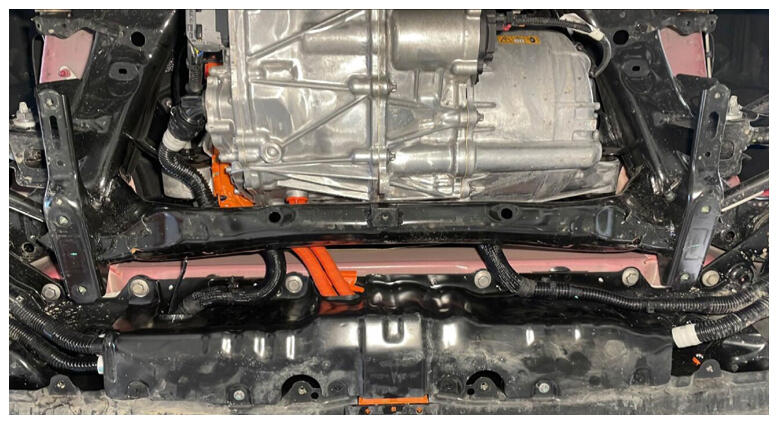

  82. Position rear stabilizer bar into vehicle and install fasteners.
    NOTE: 4x patch bolts, 11 mm, 30 N.m, Position rear stabilizer bar into vehicle, Thread in fasteners and torque down evenly, Install new patch bolts.
    G16604324Courtesy of TESLA, INC.
    G16604325Courtesy of TESLA, INC.

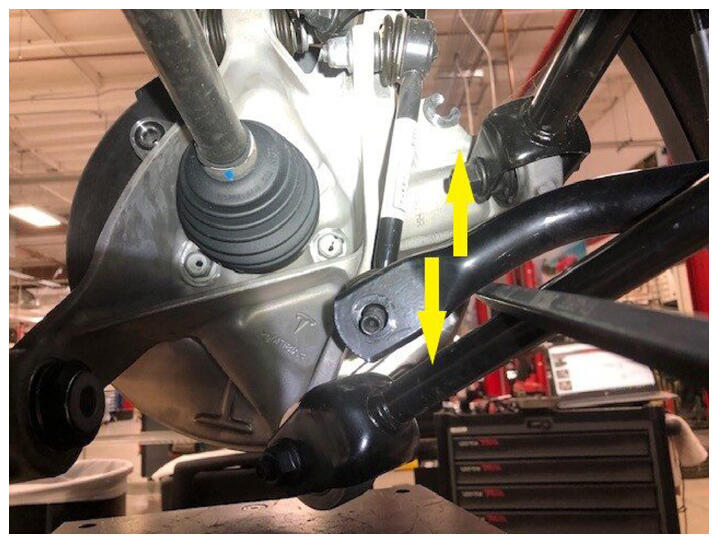

  83. Position LH rear end link into stabilizer bar.
    NOTE: Adjust the end link to align with stabilizer bar, Also may need to move the stabilizer bar up/down to get the correct angle to install end link.
    G16604326Courtesy of TESLA, INC.

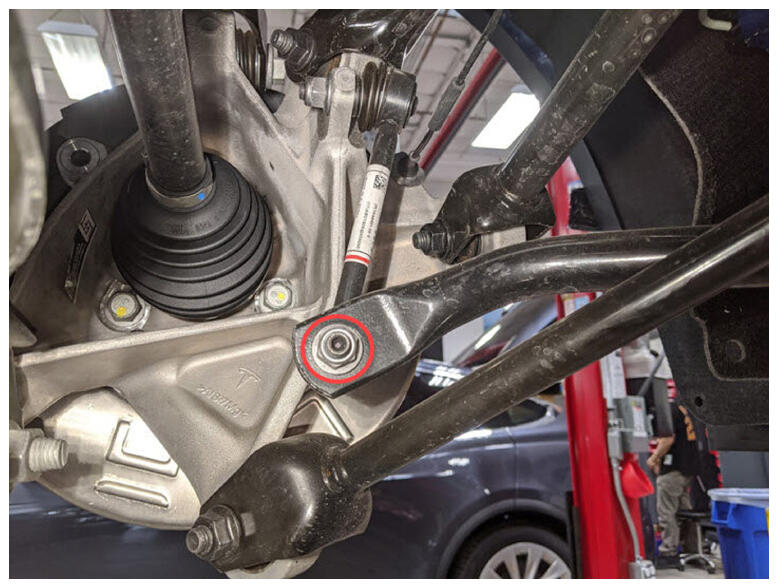

  84. Install nut securing LH rear end link to stabilizer bar.
    NOTE: 1x nyloc nut, 15 mm, 55 N.m, Counter-hold ball joint with 5 mm hex, Install new nyloc nut, Mark bolt after torque.
    G16604327Courtesy of TESLA, INC.

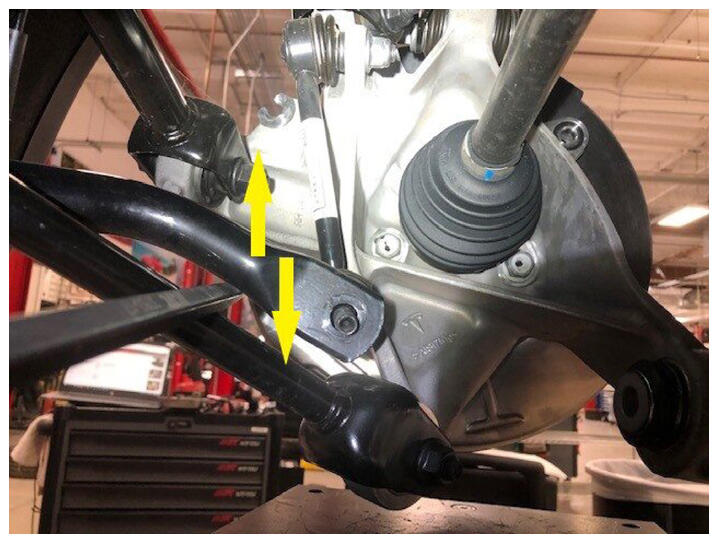

  85. Position RH rear end link into stabilizer bar.
    NOTE: Adjust the end link to align with stabilizer bar, Also may need to move the stabilizer bar up/down to get the correct angle to install end link.
    G16604328Courtesy of TESLA, INC.
  86. Install nut securing RH rear end link to stabilizer bar.
    NOTE: 1x nyloc nut, 15 mm, 55 N.m, Counter-hold ball joint with 5 mm hex, Install new nyloc nut, Mark bolt after torque.
    G16604329Courtesy of TESLA, INC.

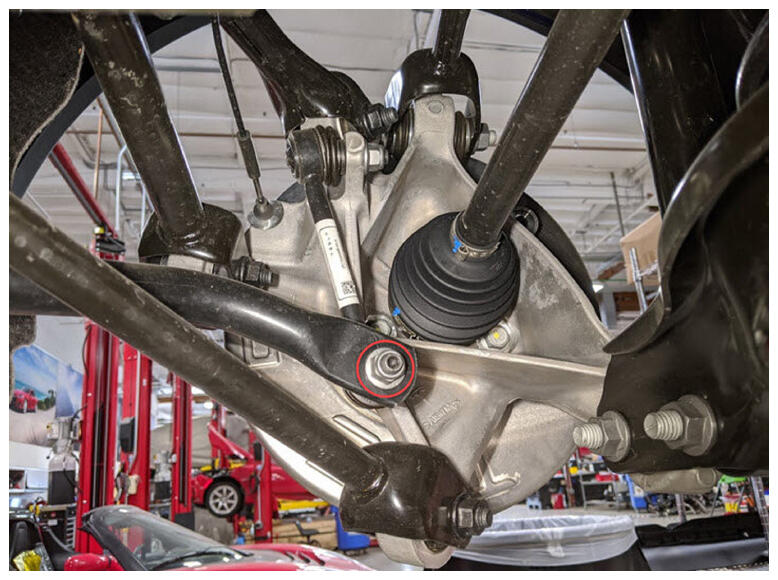

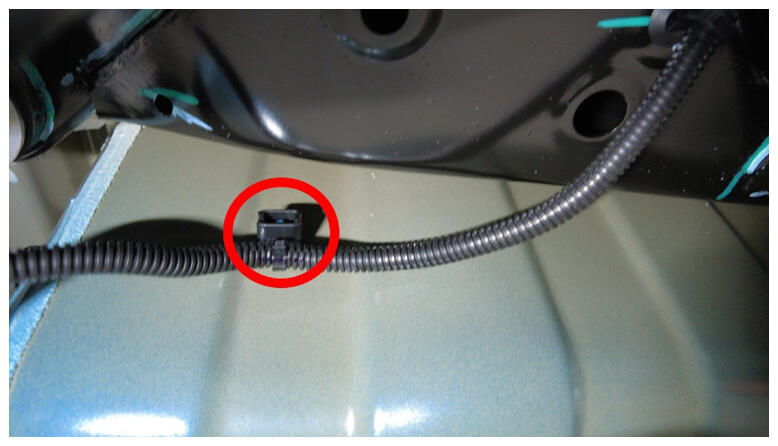

  87. Install RH side subframe harness clip to body.
    NOTE: 1x barrel clip.
    G16604330Courtesy of TESLA, INC.

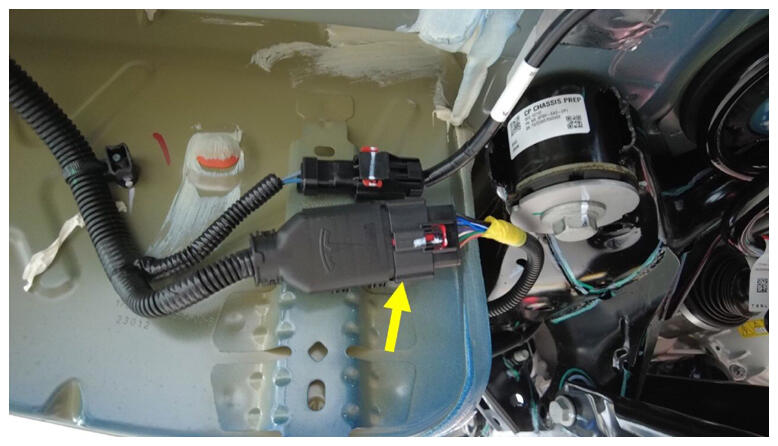

  88. Connect RH side subframe harness connector.
    NOTE: 1x connector.
    G16604331Courtesy of TESLA, INC.
  89. Lower vehicle partially and set lift onto locks.
    NOTE: Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height.

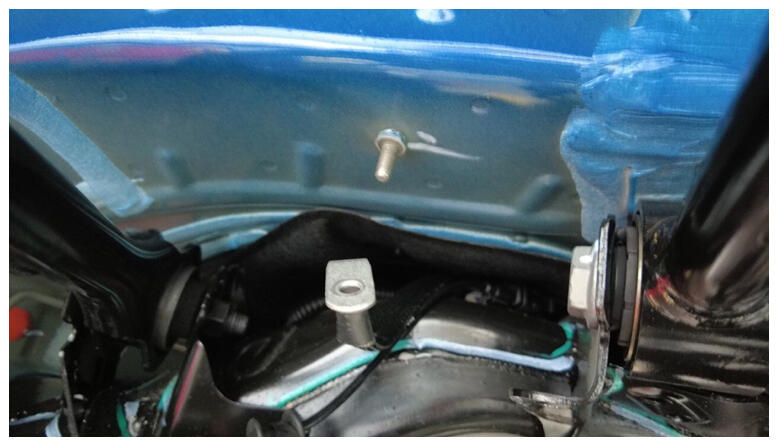

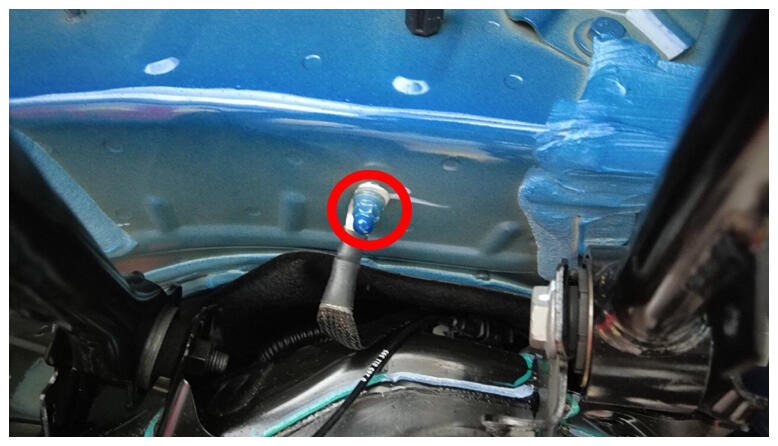

  90. Install RDU ground strap.
    NOTE: 1x bolt, 10 mm, 10 N.m, Re-install 1x washer if vehicle had this washer during removal, Located at LH rear wheel well area.
    G16604332Courtesy of TESLA, INC.
    G16604333Courtesy of TESLA, INC.

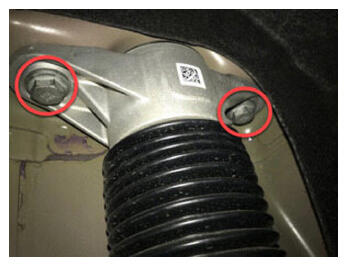

  91. Install bolts securing LH damper to body at top mount.
    NOTE: 2x bolts, 15 mm, 41 N.m.
    G16604334Courtesy of TESLA, INC.

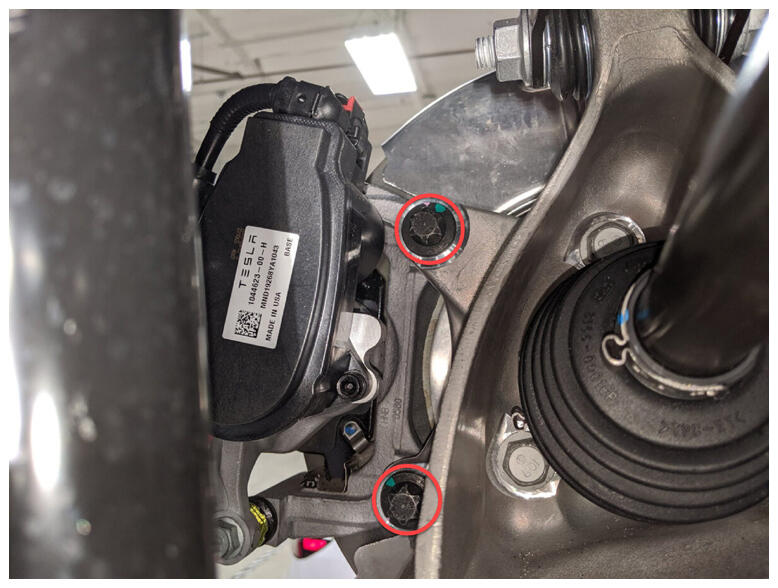

  92. Install LH rear brake caliper onto knuckle.
    NOTE: 2x bolt, E18, 83 N.m, Install new bolts, Remove the S-hook from vehicle.
    G16604335Courtesy of TESLA, INC.

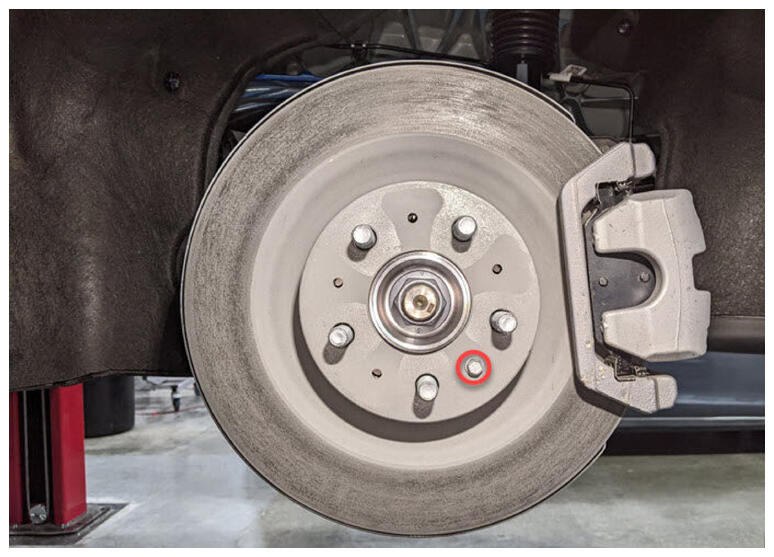

  93. Remove bolt securing LH rear rotor to hub.
    NOTE: 1x bolt, 10 mm, 5 N.m, Early production vehicles may not be equipped with bolt securing rotor.
    G16604336Courtesy of TESLA, INC.

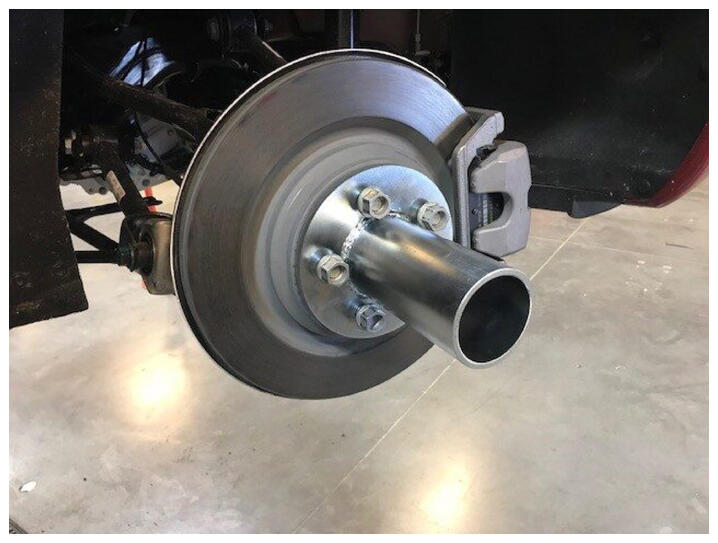

  94. Install hub jack adapter onto LH rear hub.
    NOTE: 5x lug nuts, 21 mm, Hand tight.
    G16604337Courtesy of TESLA, INC.

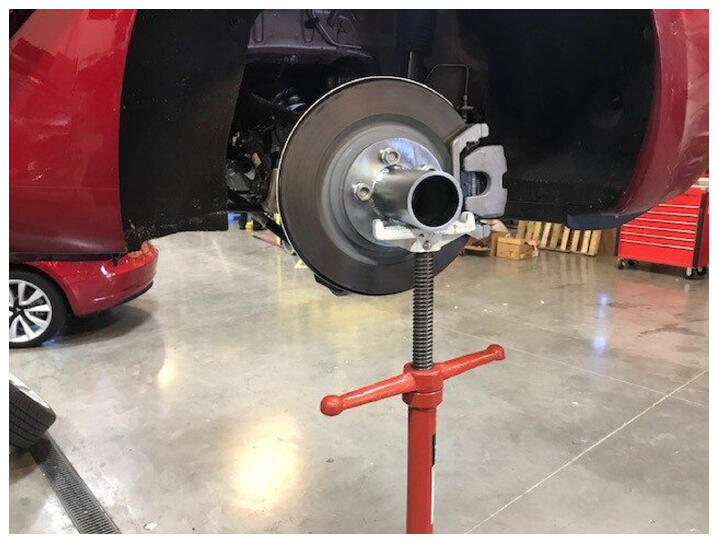

  95. Position and raise support stand to simulate LH rear suspension at ride height.
    G16604338Courtesy of TESLA, INC.

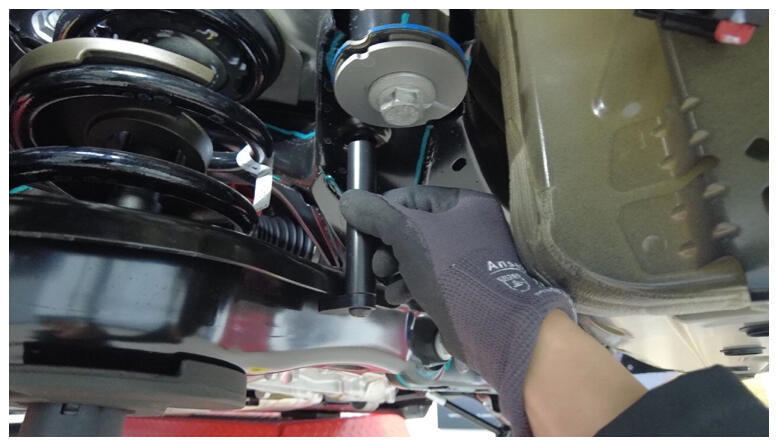

  96. Use rear ride height torque gauge to verify RH suspension is set to ride height specification.
    NOTE: May need to slightly adjust stand or spring compressor.
    G16604339Courtesy of TESLA, INC.

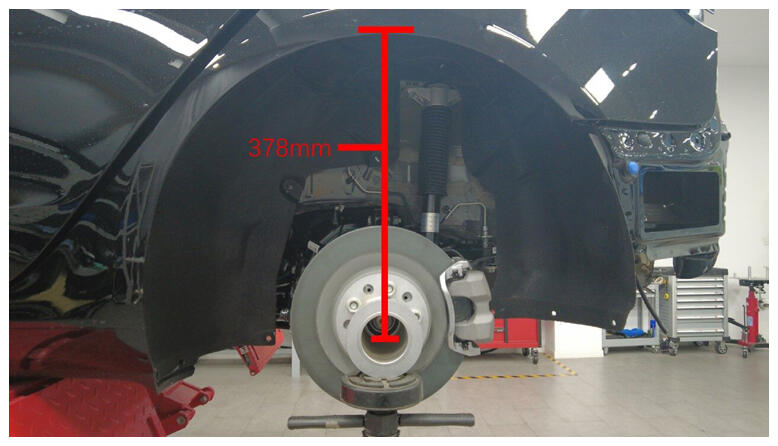

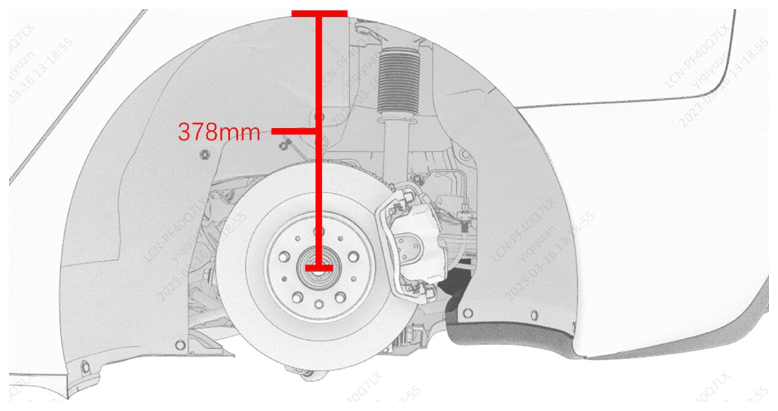

  97. Measure from bottom of quarter panel to center of axle as a secondary check to make sure LH suspension is set to ride height.
    NOTE: Distance should be 378 mm.
    G16604340Courtesy of TESLA, INC.
    G16604341Courtesy of TESLA, INC.

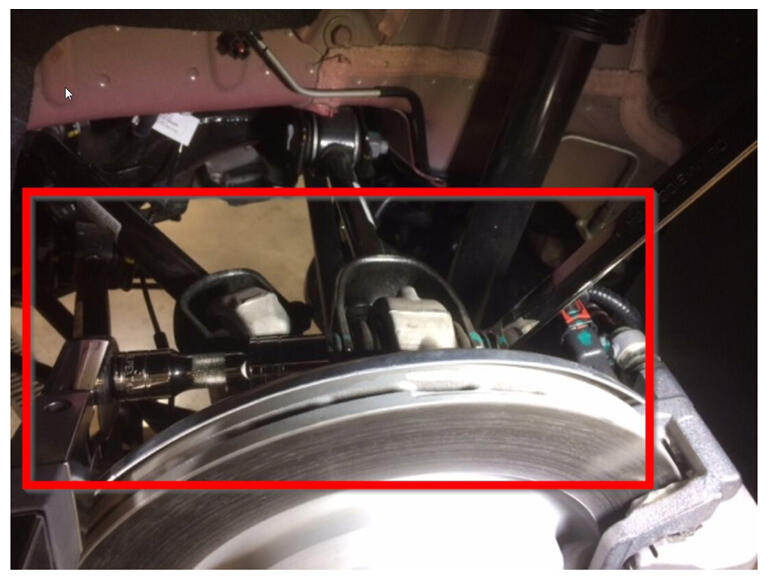

  98. Torque bolt securing LH rear upper aft link to knuckle.
    NOTE: 1x bolt, 21 mm, 134 N.m, Mark with paint pen.
    G16604342Courtesy of TESLA, INC.
  99. Torque bolt securing LH rear upper fore link to knuckle.
    NOTE: 1x bolt, 18 mm, 76 N.m, Mark with paint pen.
    G16604343Courtesy of TESLA, INC.

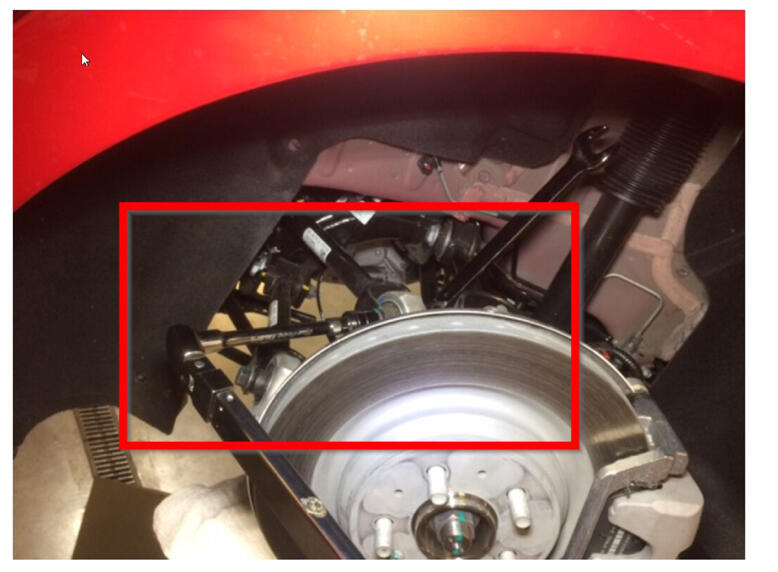

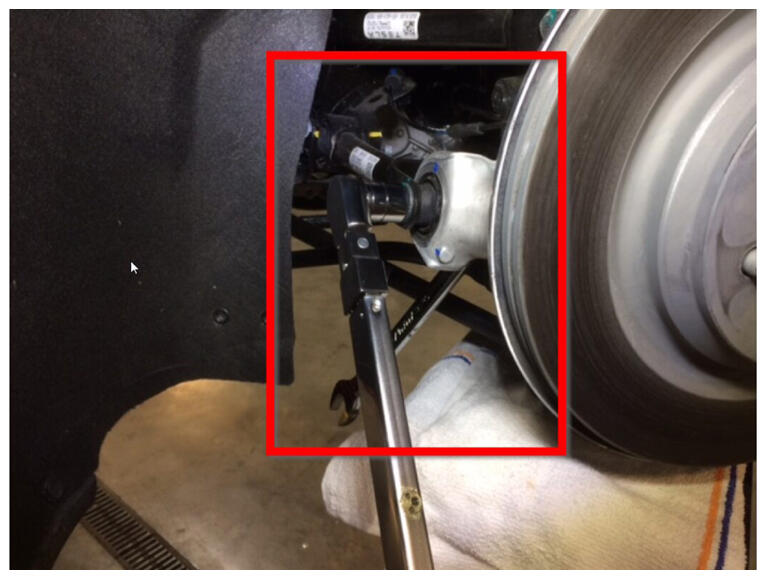

  100. Torque bolt securing LH rear toe link to knuckle.
    NOTE: 1x bolt, 18 mm, 76 N.m, Mark with paint pen.
    G16604344Courtesy of TESLA, INC.

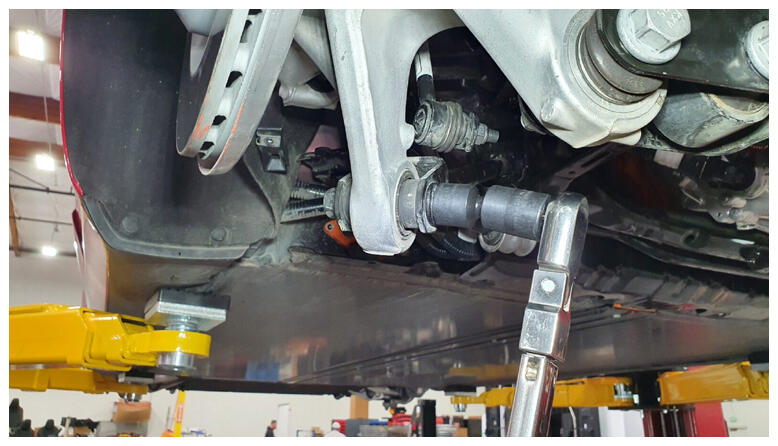

  101. Torque bolt securing LH rear lower fore link to knuckle.
    NOTE: 1x bolt, 18 mm, 76 N.m, Mark with paint pen.
    G16604345Courtesy of TESLA, INC.
  102. Remove support stand from underneath LH rear suspension.
    G16604346Courtesy of TESLA, INC.
  103. Remove hub jack adapter from LH rear hub.
    NOTE: 5x lug nuts, 21 mm, Hand tight.
    G16604347Courtesy of TESLA, INC.

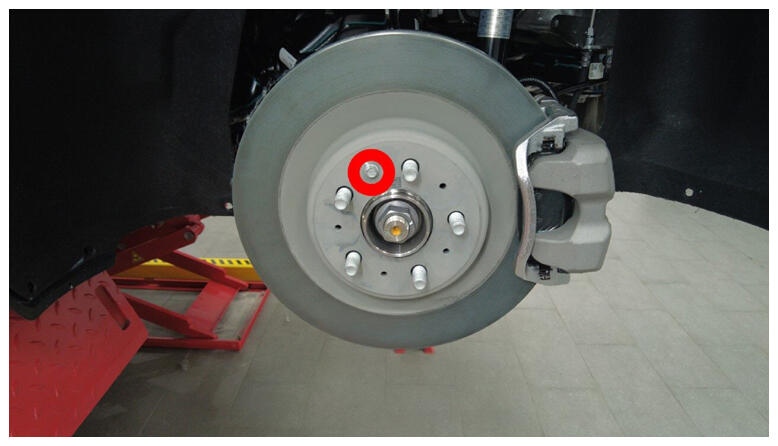

  104. Install bolt securing LH rear rotor to LH rear hub.
    NOTE: 1x bolt, 10 mm, 5 N.m.
    G16604348Courtesy of TESLA, INC.

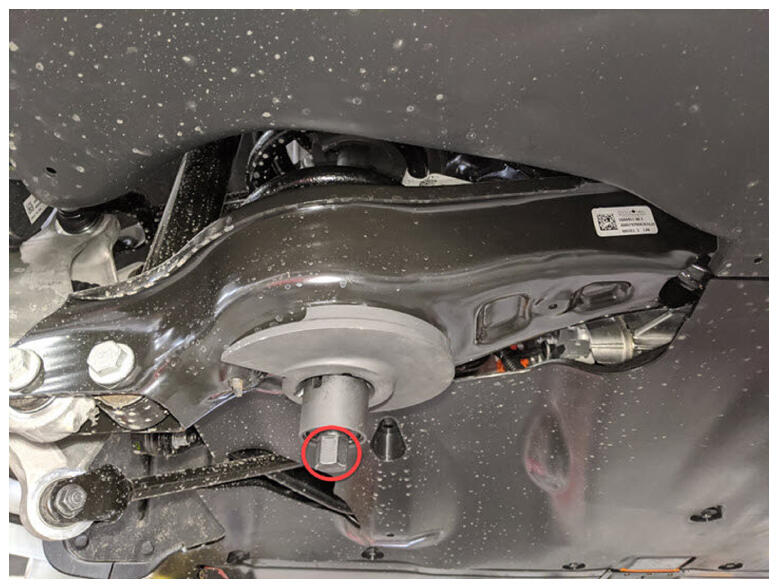

  105. Remove spring compressor from LH rear coil spring.
    G16604349Courtesy of TESLA, INC.
    G16604350Courtesy of TESLA, INC.
    G16604351Courtesy of TESLA, INC.

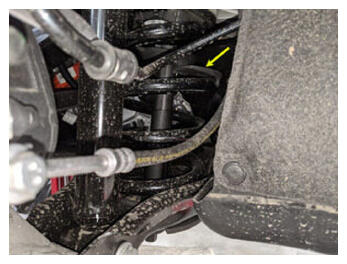

  106. Install bolts securing RH damper to body at top mount.
    NOTE: 2x bolts, 15 mm, 41 N.m.

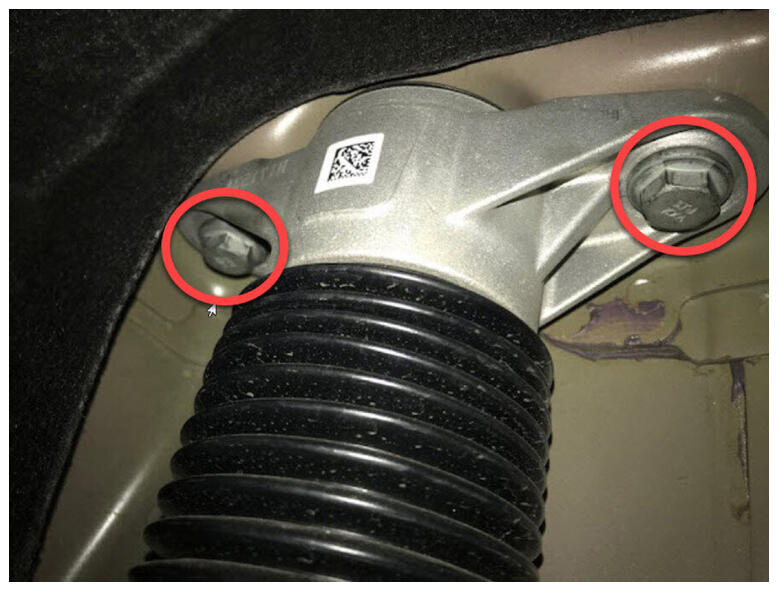

    G16604352Courtesy of TESLA, INC.

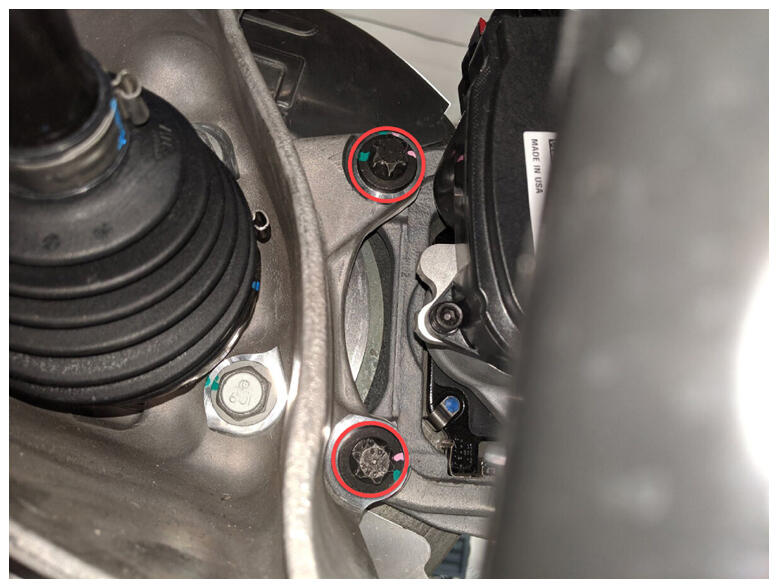

  107. Install RH rear brake caliper onto knuckle.
    NOTE: 2x bolt, E18, 83 N.m, Install new bolts, Remove the S-hook from vehicle.
    G16604353Courtesy of TESLA, INC.
  108. Remove bolt securing RH rotor to hub.
    NOTE: 1x bolt, 10 mm, 5 N.m.
    G16604354Courtesy of TESLA, INC.

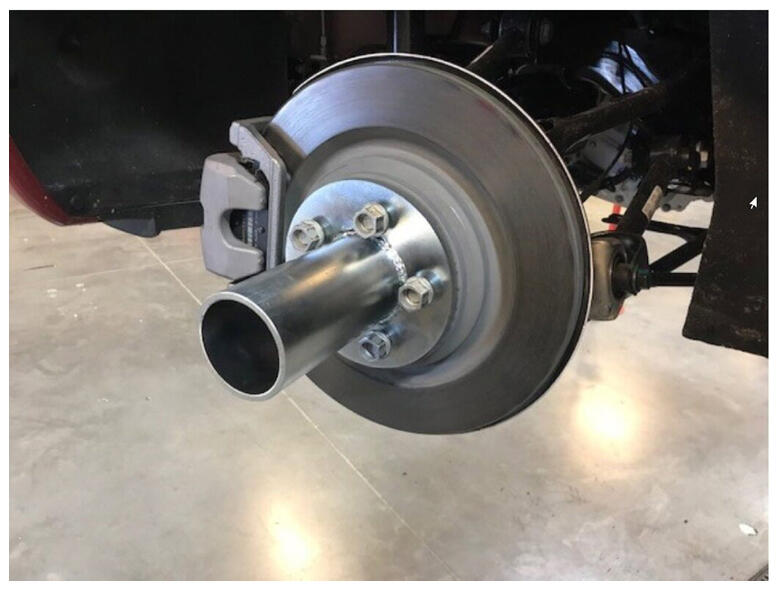

  109. Install hub jack adapter onto RH rear hub.
    NOTE: 5x lug nuts, 21 mm, Hand tight.
    G16604355Courtesy of TESLA, INC.

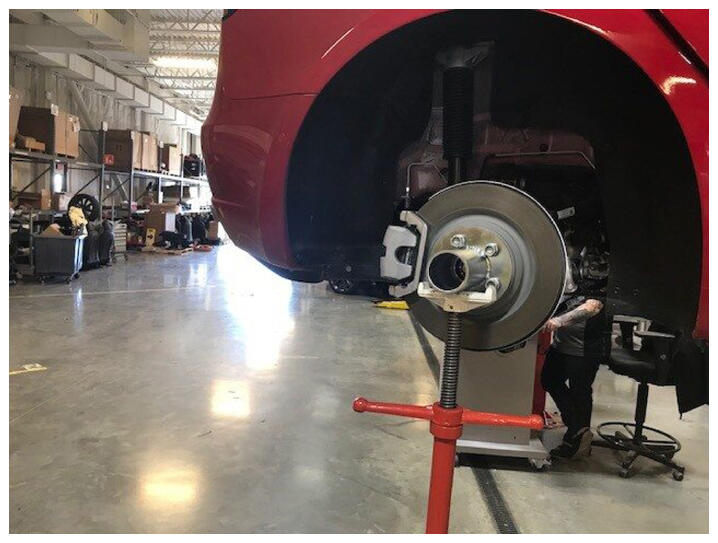

  110. Position and raise support stand to simulate RH rear suspension at ride height.
    G16604356Courtesy of TESLA, INC.

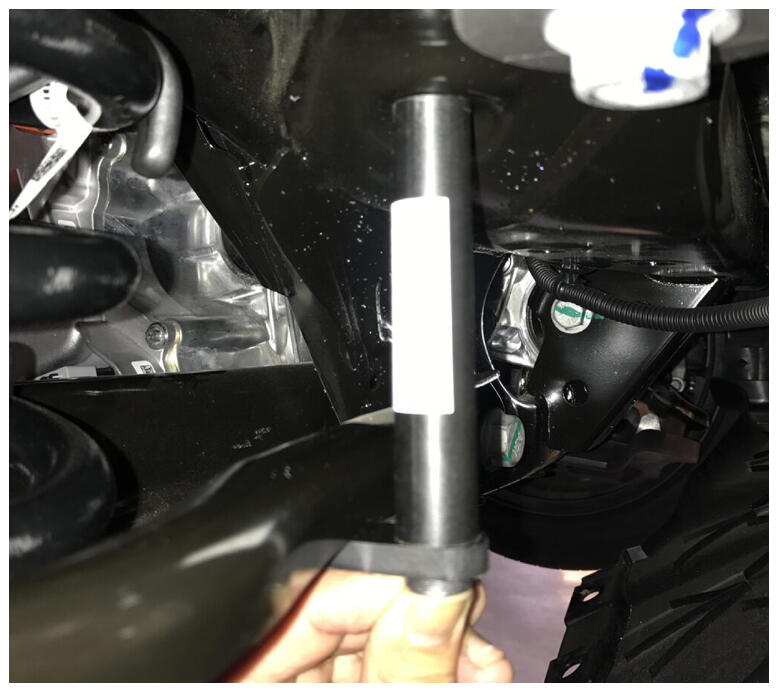

  111. Use rear ride height torque gauge to verify RH suspension is set to ride height specification.
    NOTE: May need to slightly adjust stand or spring compressor.
    G16604357Courtesy of TESLA, INC.
  112. Measure from bottom of quarter panel to center of axle as a secondary check to make sure RH suspension is set to ride height.
    NOTE: Distance should be 378 mm.

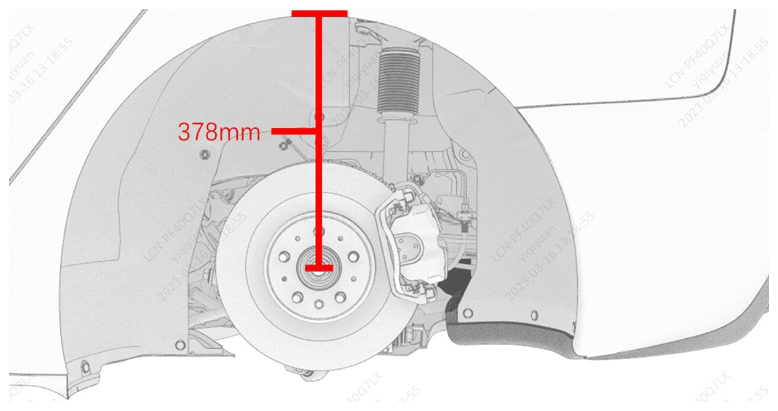

    G16604358Courtesy of TESLA, INC.
    G16604359Courtesy of TESLA, INC.

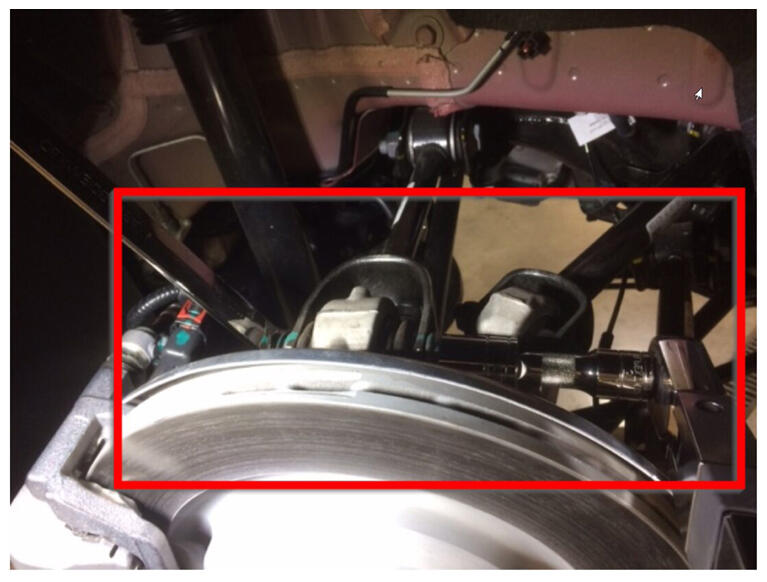

  113. Torque bolt securing RH rear upper aft link to knuckle.
    NOTE: 1x bolt, 21 mm, 134 N.m, Mark with paint pen.
    G16604360Courtesy of TESLA, INC.

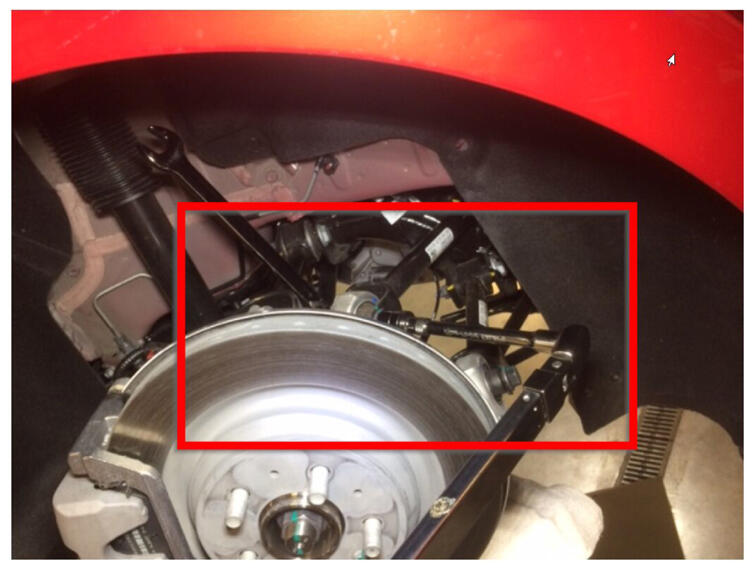

  114. Torque bolt securing RH rear upper fore link to knuckle.
    NOTE: 1x bolt, 18 mm, 76 N.m, Mark with paint pen.
    G16604361Courtesy of TESLA, INC.

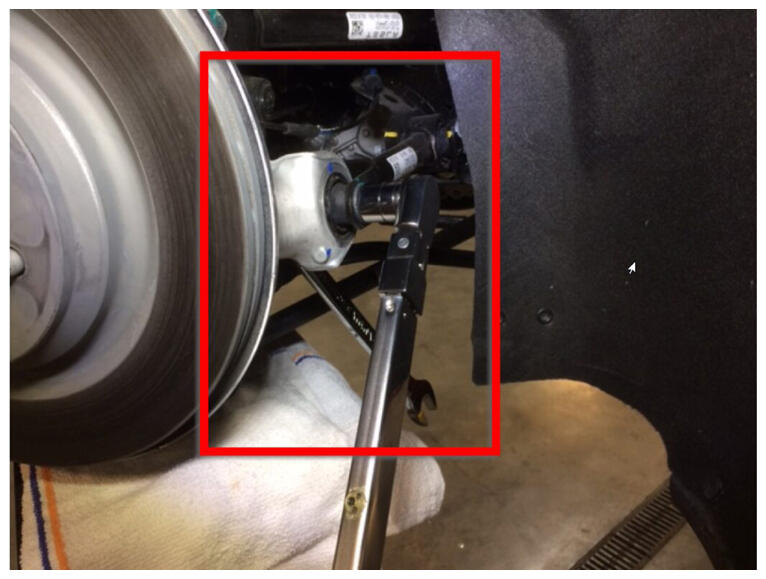

  115. Torque bolt securing RH rear toe link to knuckle.
    NOTE: 1x bolt, 18 mm, 76 N.m, Mark with paint pen.
    G16604362Courtesy of TESLA, INC.

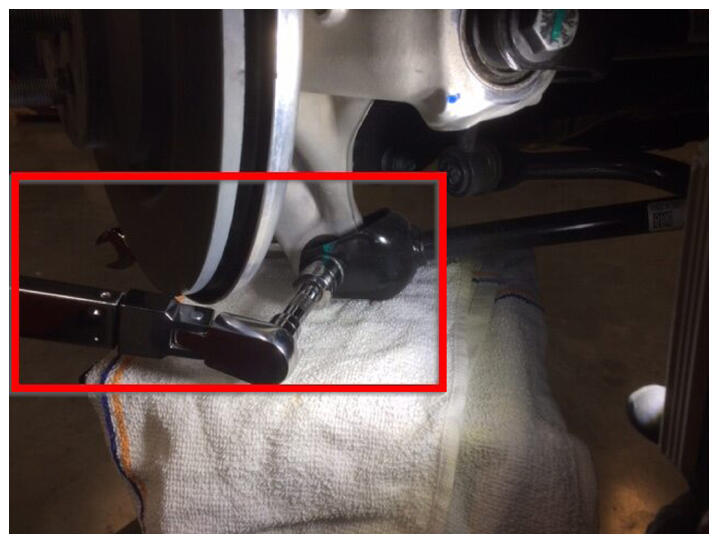

  116. Torque bolt securing RH rear lower fore link to knuckle.
    NOTE: 1x bolt, 18 mm, 76 N.m, Mark with paint pen.
    G16604363Courtesy of TESLA, INC.
  117. Remove support stand from underneath RH suspension.
    G16604364Courtesy of TESLA, INC.

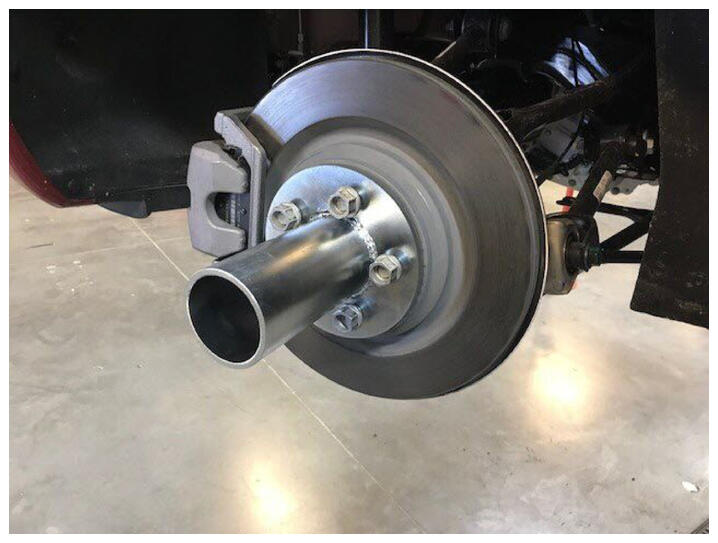

  118. Remove hub jack adapter from RH rear hub.
    NOTE: 5x lug nuts, 21 mm, Hand tight.
    G16604365Courtesy of TESLA, INC.

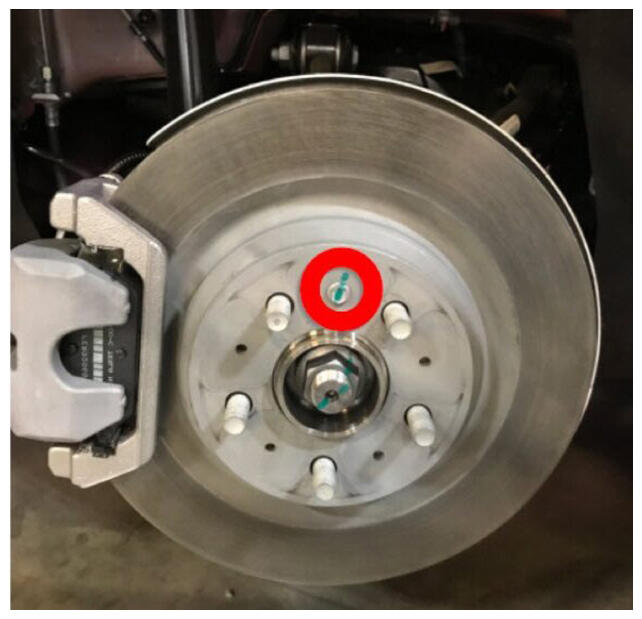

  119. Install bolt securing RH rotor to hub.
    NOTE: 1x bolt, 10 mm, 5 N.m.
    G16604366Courtesy of TESLA, INC.

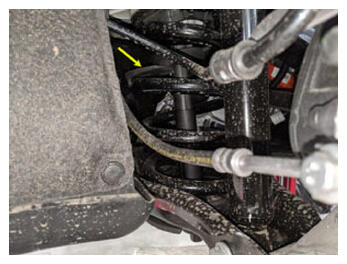

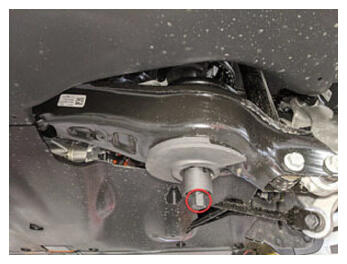

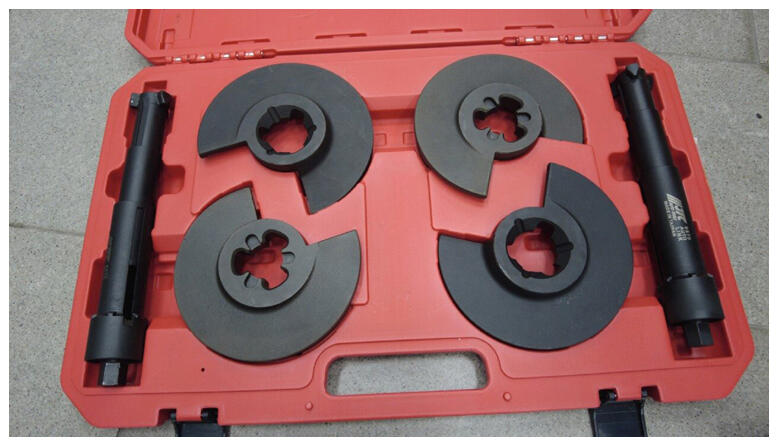

  120. Remove spring compressor from RH rear coil spring.
    NOTE: Tooling may vary per service center.
    G16604367Courtesy of TESLA, INC.
    G16604368Courtesy of TESLA, INC.
    G16604369Courtesy of TESLA, INC.

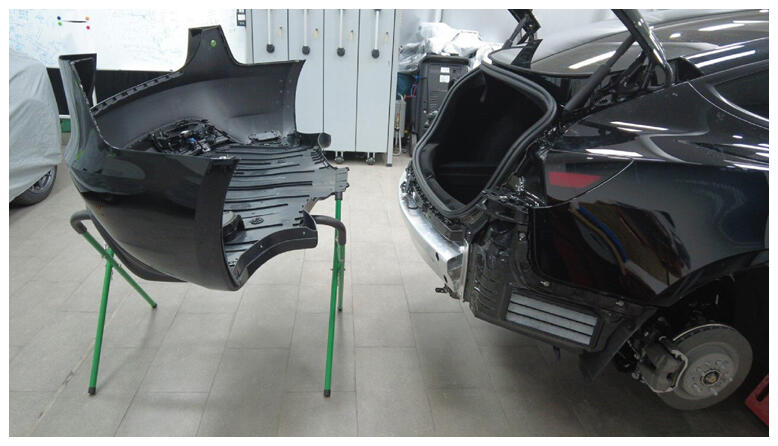

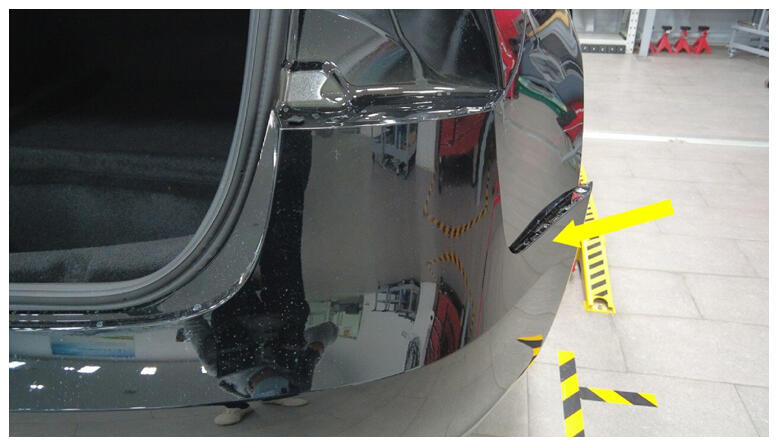

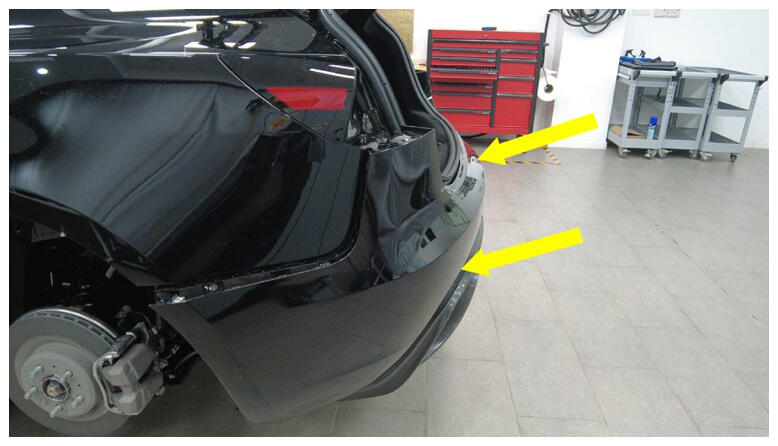

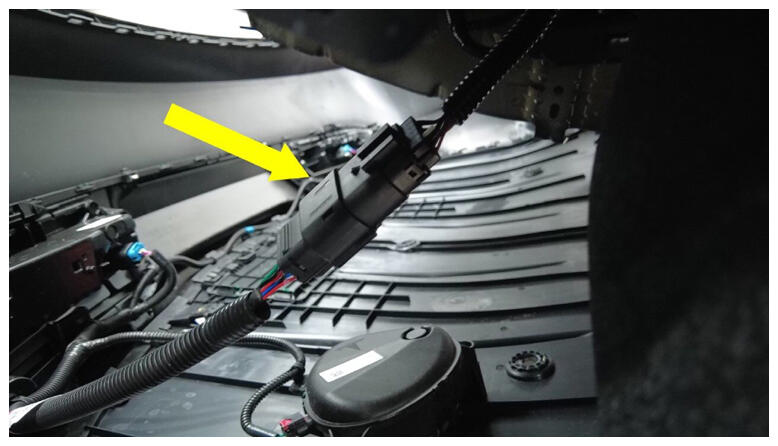

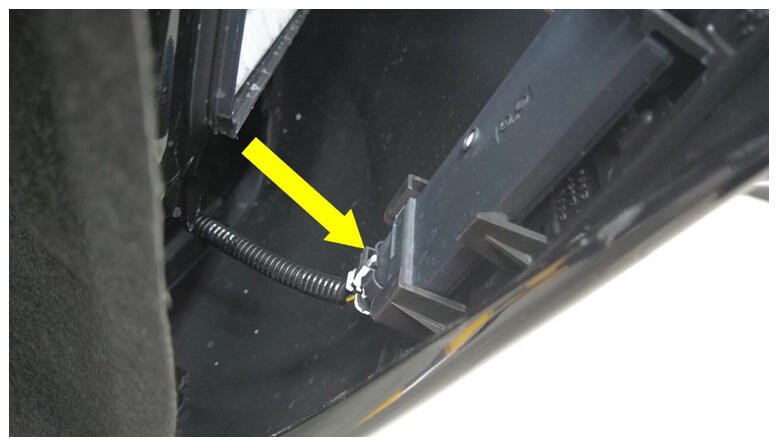

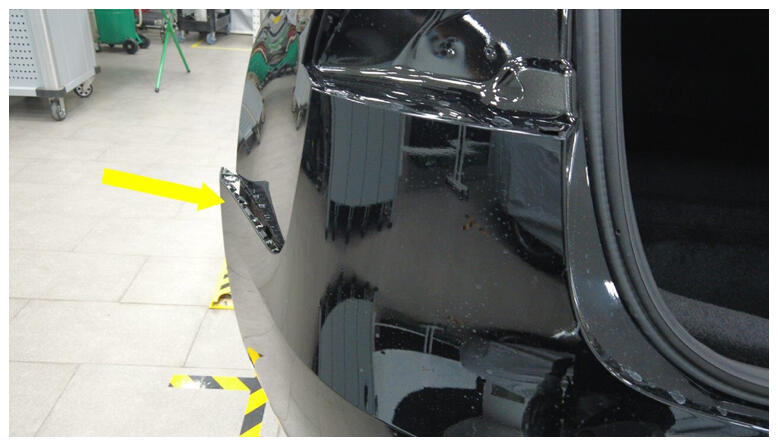

  121. Install rear fascia.
    NOTE: 2x connector, Recommend assistance.
    G16604370Courtesy of TESLA, INC.
    G16604371Courtesy of TESLA, INC.
    G16604372Courtesy of TESLA, INC.
    G16604373Courtesy of TESLA, INC.
    G16604374Courtesy of TESLA, INC.
    G16604375Courtesy of TESLA, INC.

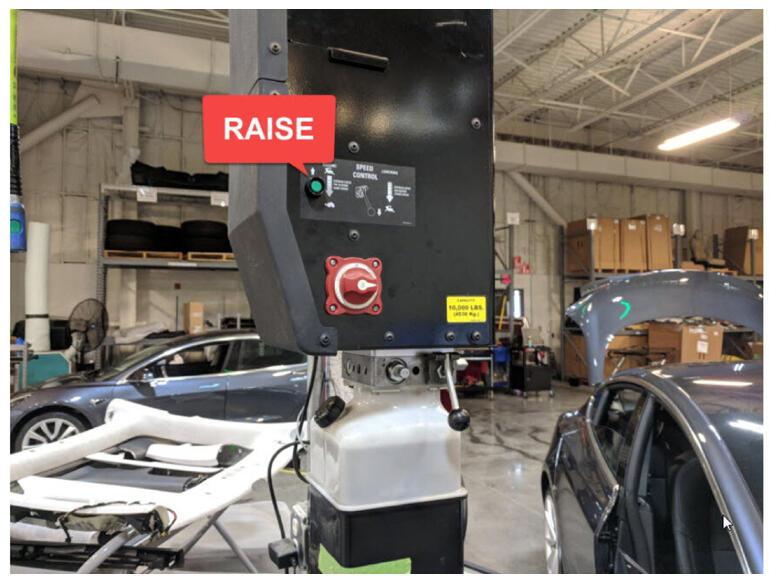

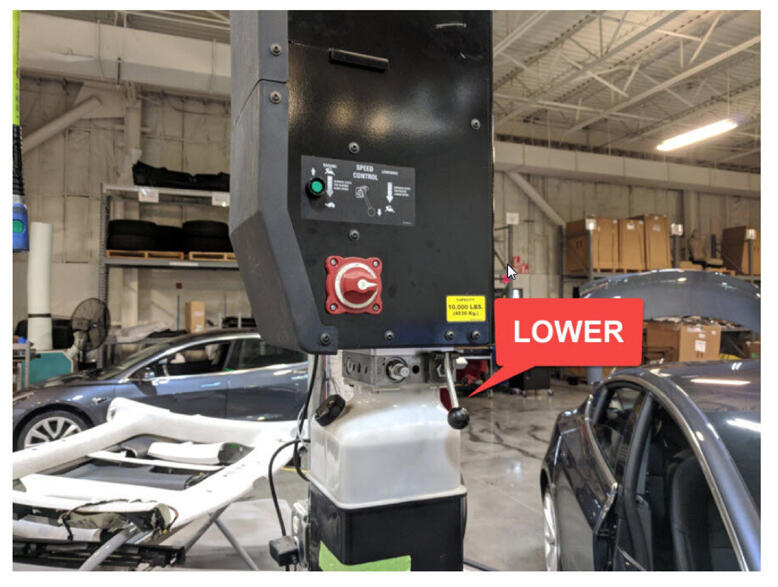

  122. Raise vehicle fully and lower lift onto locks.
    NOTE: Set vehicle to comfortable working height, Make sure there's an audible click of locks on both sides before lowering, otherwise vehicle may tilt to side.
    G16604376Courtesy of TESLA, INC.
    G16604377Courtesy of TESLA, INC.

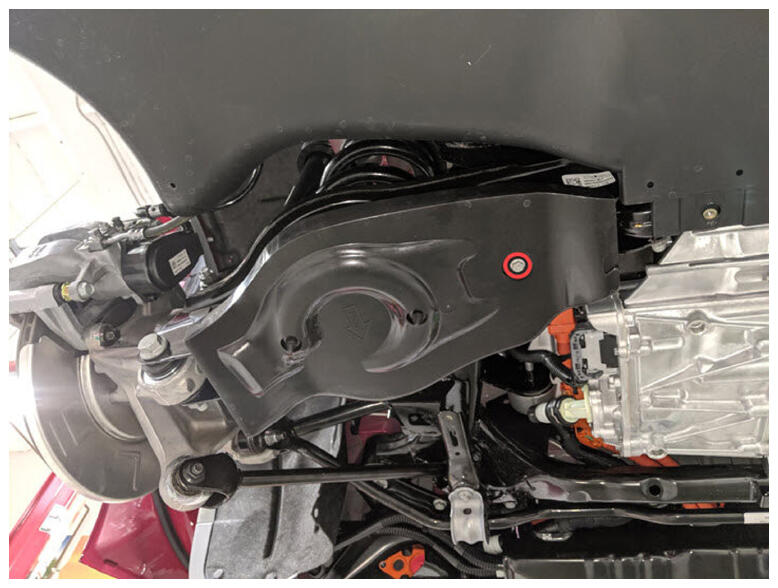

  123. Install LH rear suspension cover.
    NOTE: 1x bolt, 10 mm, 6 N.m, 2x tabs.
    G16604378Courtesy of TESLA, INC.

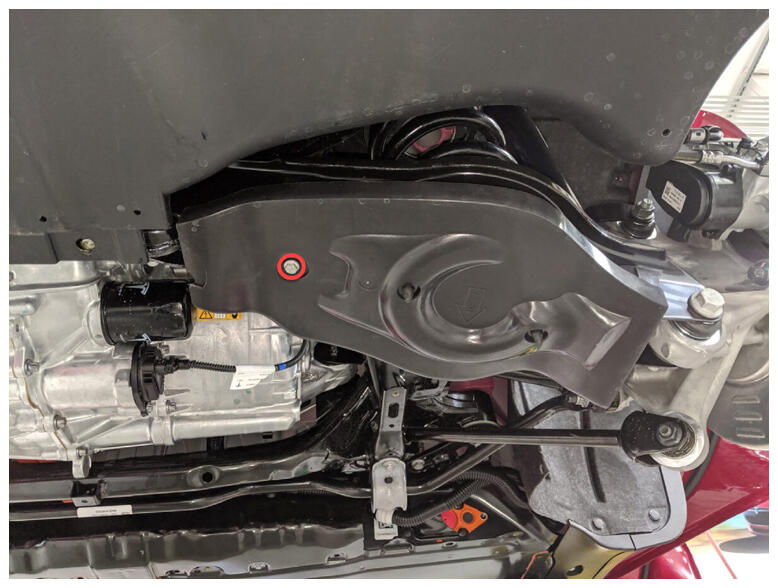

  124. Install RH rear suspension cover.
    NOTE: 1x bolt, 10 mm, 6 N.m, 2x tabs.
    G16604379Courtesy of TESLA, INC.

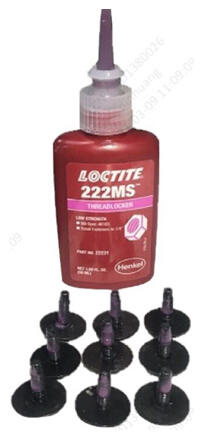

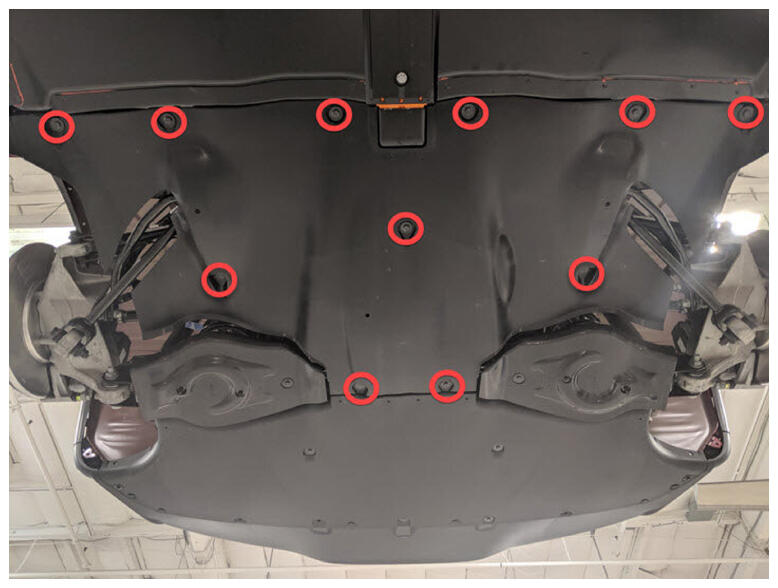

  125. Install rear aero shield.
    NOTE: 11x bolts, 10 mm, 5 N.m, Apply Loctite 222 onto rear aero shield bolts.
    G16604380Courtesy of TESLA, INC.
    G16604381Courtesy of TESLA, INC.

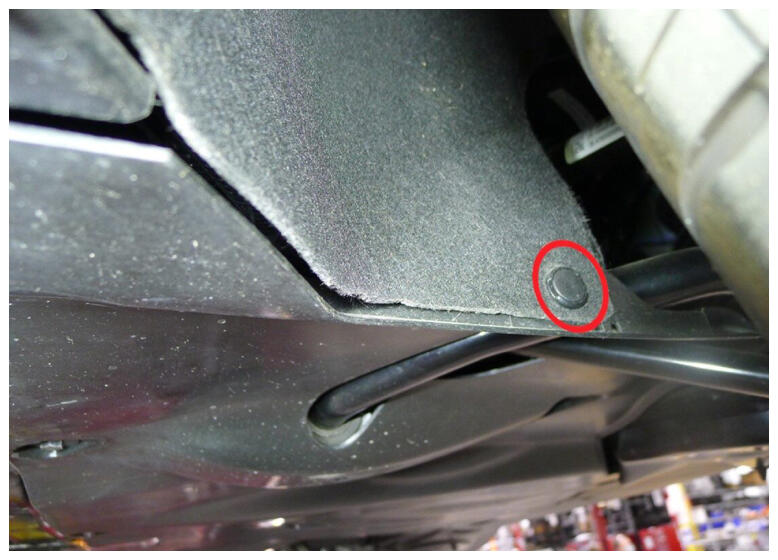

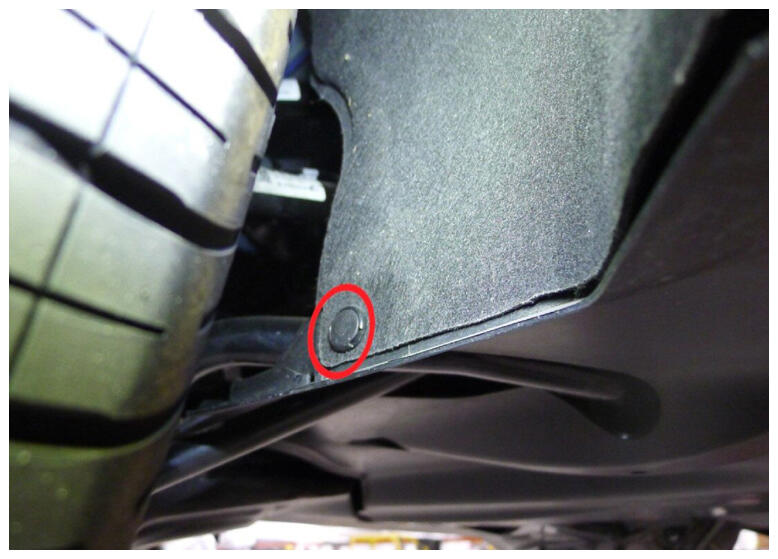

  126. Install LH and RH clips securing rear aero shield to wheel house liner.
    NOTE: 2x clips.
    G16604382Courtesy of TESLA, INC.
    G16604383Courtesy of TESLA, INC.

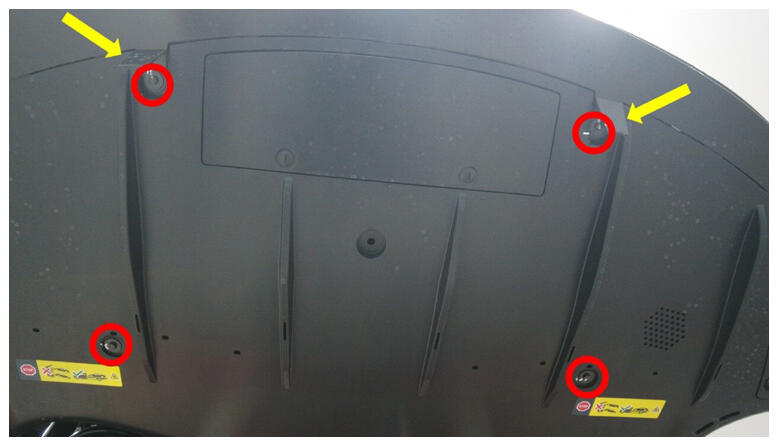

  127. Apply Loctite 222 onto bolts and install bolts securing rear diffuser to body.
    NOTE: 4x bolts, 10 mm, 4 N.m, 2x fastener covers.
    G16604384Courtesy of TESLA, INC.
  128. Lower vehicle partially and set onto locks.
    NOTE: Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height.

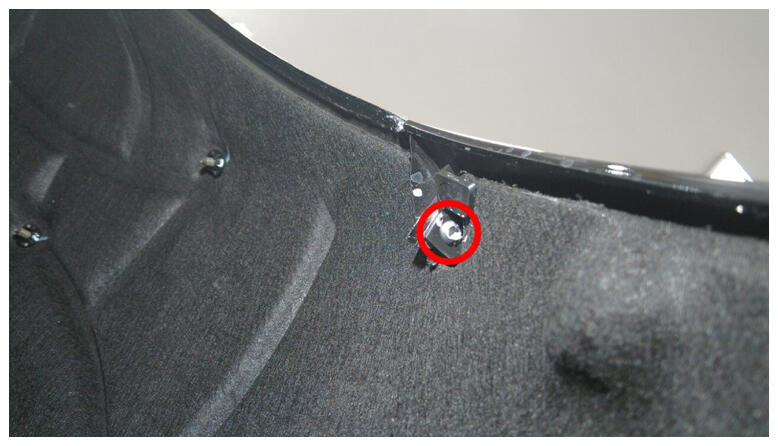

  129. Install screw securing rear fascia to LH quarter panel.
    NOTE: 1x screw, T25, 2 N.m.
    G16604385Courtesy of TESLA, INC.

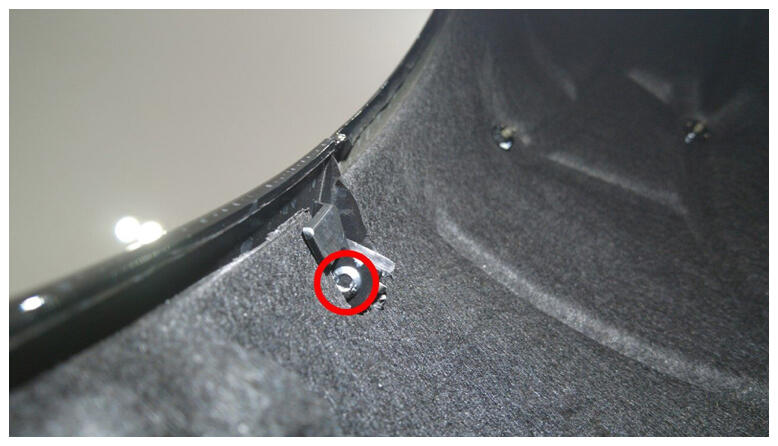

  130. Install screw securing rear fascia to RH quarter panel.
    NOTE: 1x screw, T25, 2 N.m.
    G16604386Courtesy of TESLA, INC.

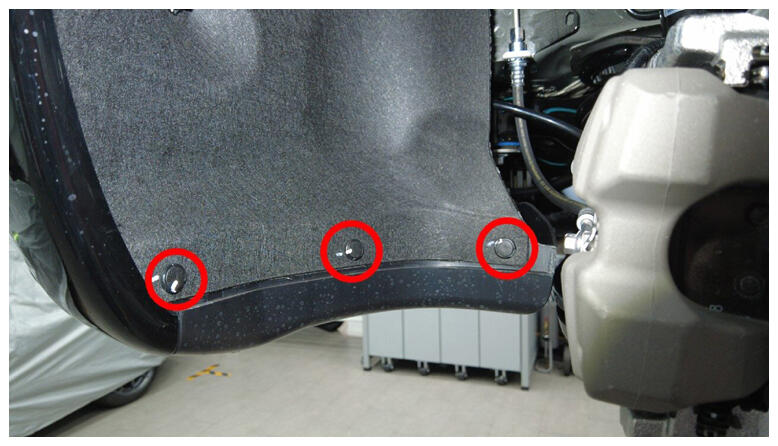

  131. Install lower clips securing RH rear wheel liner.
    NOTE: 3x push clips.
    G16604387Courtesy of TESLA, INC.

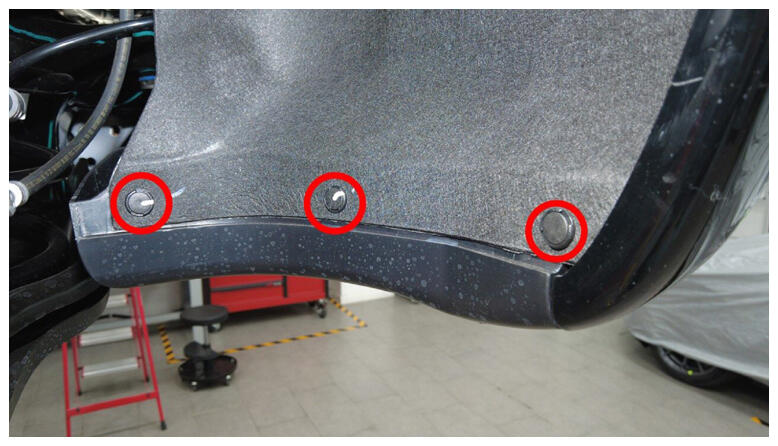

  132. Install lower clips securing LH rear wheel liner.
    NOTE: 3x push clips.
    G16604388Courtesy of TESLA, INC.

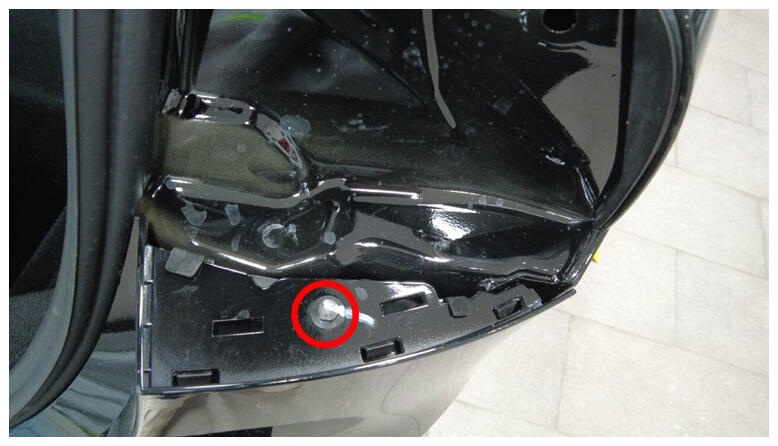

  133. Install bolt securing RH corner of rear fascia.
    NOTE: 1x bolt, 10 mm, 4 N.m.
    G16604389Courtesy of TESLA, INC.

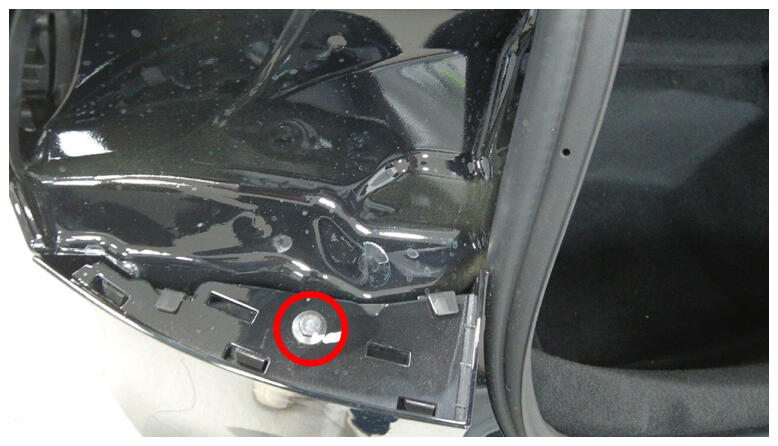

  134. Install bolt securing LH corner of rear fascia.
    NOTE: 1x bolt, 10 mm, 4 N.m.
    G16604390Courtesy of TESLA, INC.

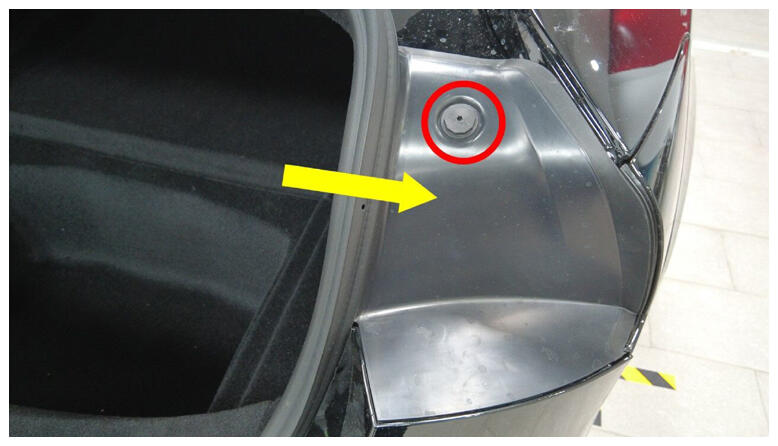

  135. Install RH trough trim.
    NOTE: 3x clips, 1x bolt, T20, 1.2 N.m.
    G16604391Courtesy of TESLA, INC.
    G16604392Courtesy of TESLA, INC.

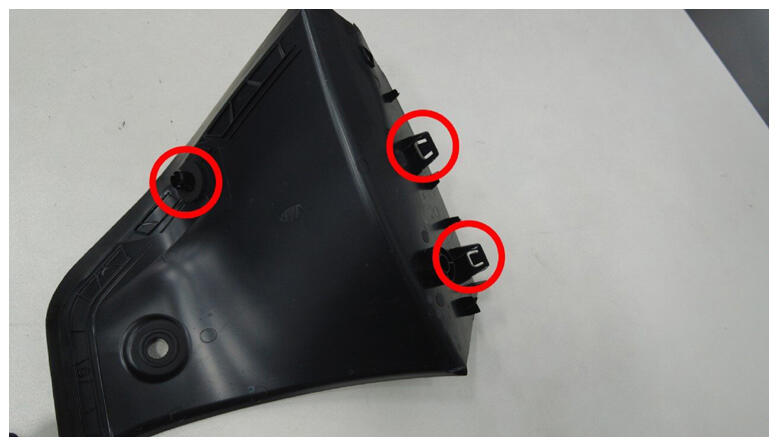

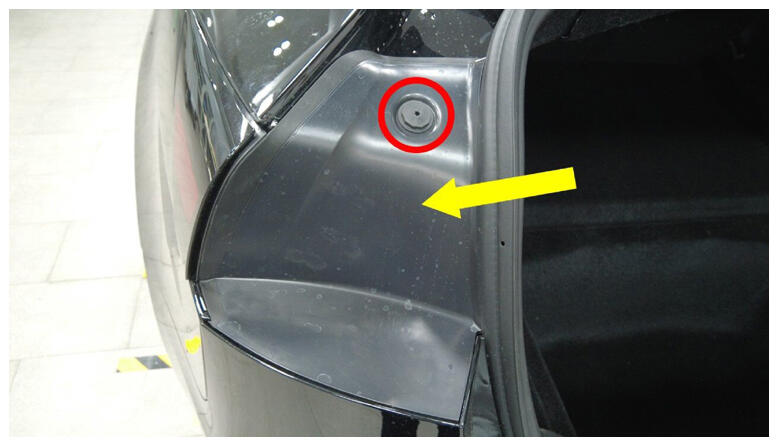

  136. Install LH trough trim.
    NOTE: 3x clips, 1x bolt, T20, 1.2 N.m.
    G16604393Courtesy of TESLA, INC.
    G16604394Courtesy of TESLA, INC.

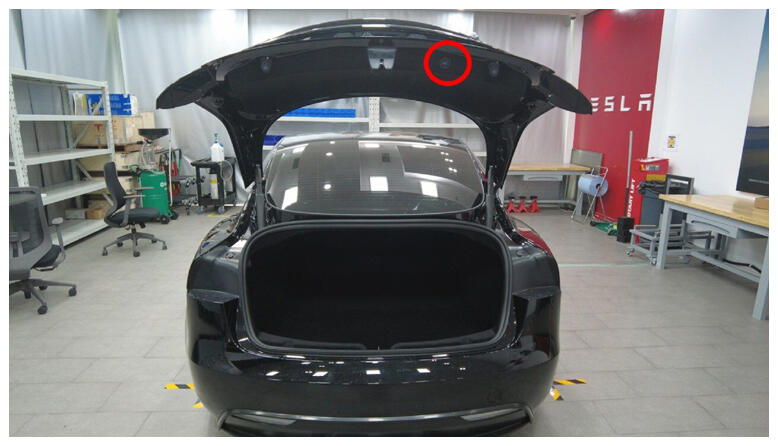

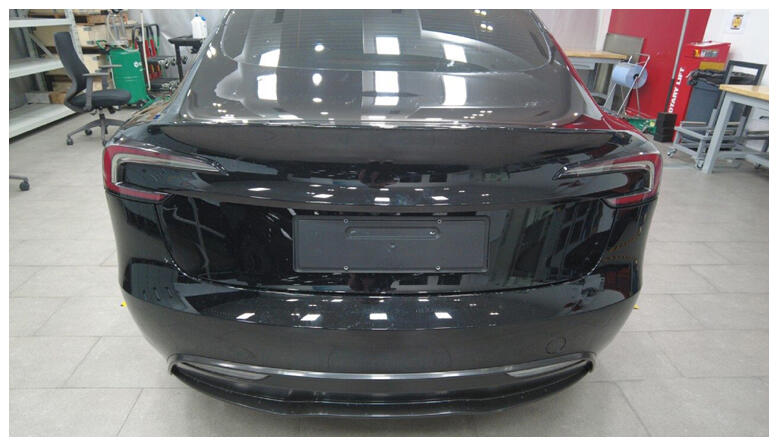

  137. Close trunk via interior switch.
    G16604395Courtesy of TESLA, INC.
    G16604396Courtesy of TESLA, INC.
  138. Install LH rear wheel.
    NOTE: 5x nuts, 21 mm, 175 N.m, Start lug nuts by hand before using power tool.
  139. Install RH rear wheel.
    NOTE: 5x nuts, 21 mm, 175 N.m, Start lug nuts by hand before using power tool.

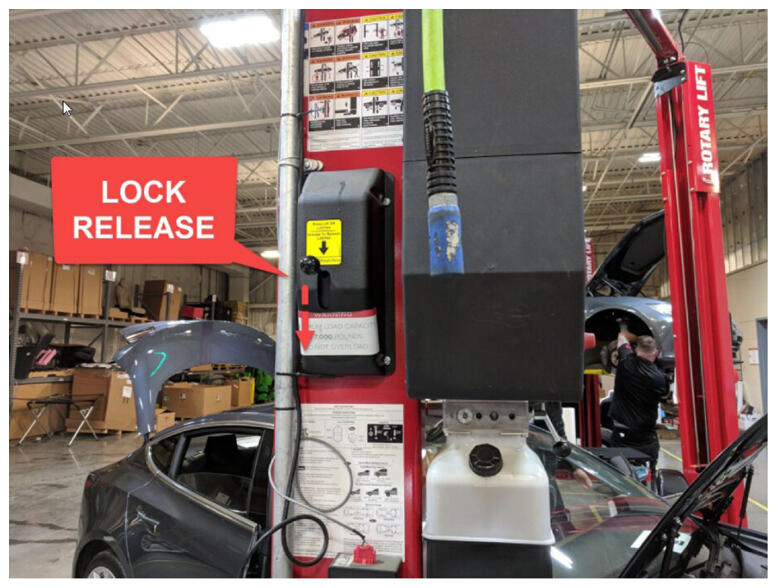

  140. Lower vehicle fully.
    NOTE: Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered.
    G16604397Courtesy of TESLA, INC.
    G16604398Courtesy of TESLA, INC.
    G16604399Courtesy of TESLA, INC.
  141. Torque LH rear wheel.
    NOTE: 5x nuts, 21 mm, 175 N.m.
  142. Torque RH rear wheel.
    NOTE: 5x nuts, 21 mm, 175 N.m.
  143. Install LH rear wheel center cap.
    NOTE: 1x cap, Verify emblem is aligned with valve stem.
  144. Install RH rear wheel center cap.
    NOTE: 1x cap, Verify emblem is aligned with valve stem.
  145. Remove coolant bottle cap.
    G16604400Courtesy of TESLA, INC.

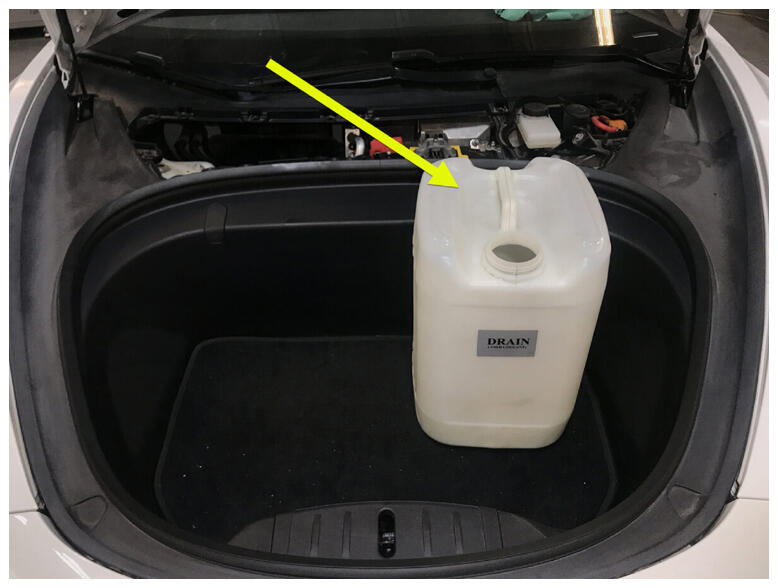

  146. Place empty coolant container into front storage area.
    G16604401Courtesy of TESLA, INC.

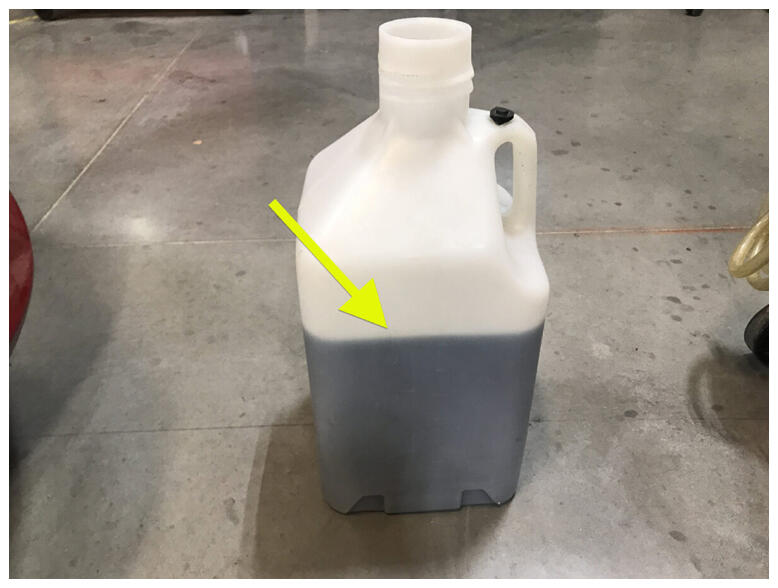

  147. Fill container with at least 15L of coolant.
    G16604402Courtesy of TESLA, INC.
  148. Place filled coolant container into front storage area.

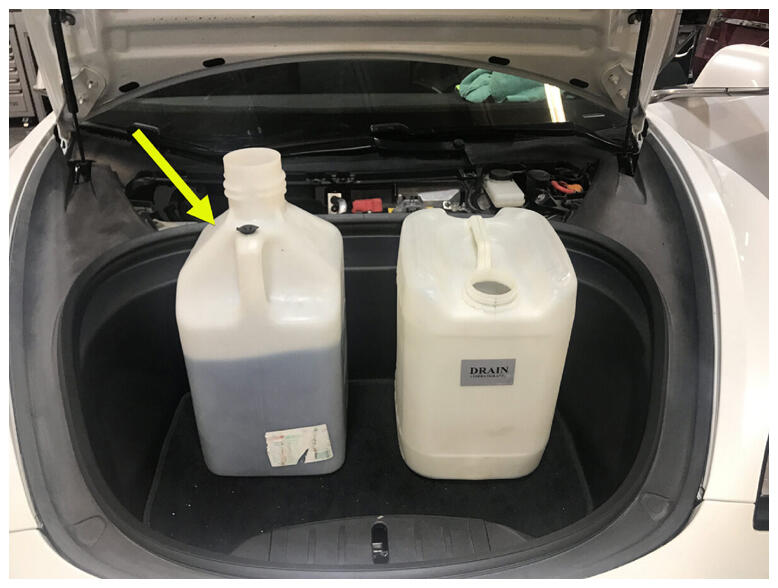

    G16604403Courtesy of TESLA, INC.
  149. Install refill tool cap onto coolant bottle assembly.

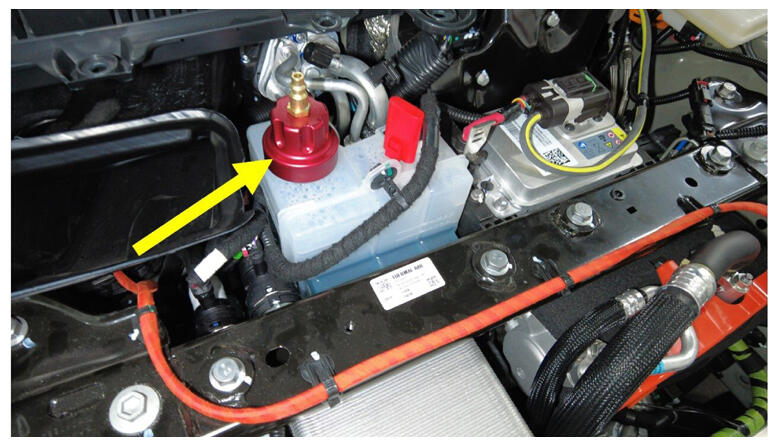

    G16604404Courtesy of TESLA, INC.

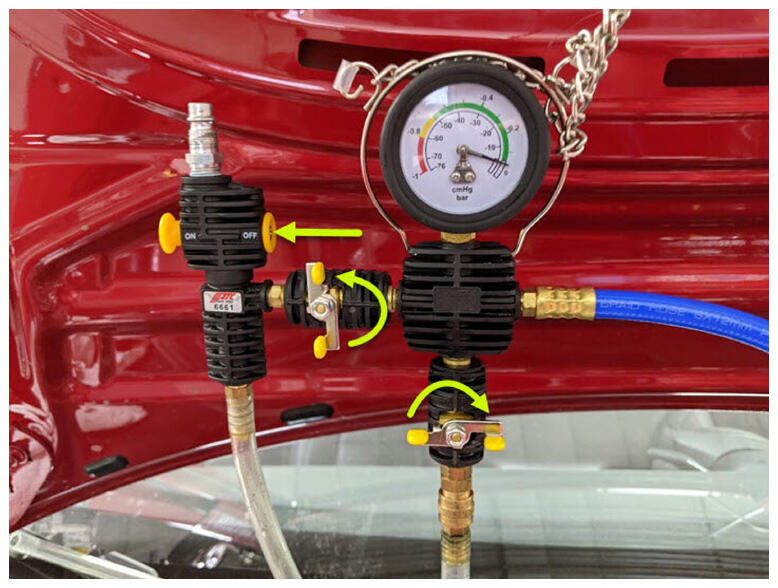

  150. Setup vacuum refill tool.
    NOTE: Verify all valves on refill tool are in the closed position, See image for clarity.
    G16604405Courtesy of TESLA, INC.
    G16604406Courtesy of TESLA, INC.

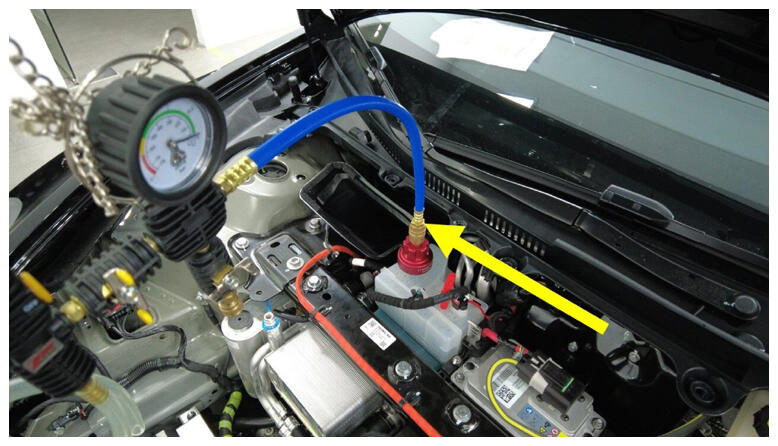

  151. Install vacuum refill hose into refill cap on coolant bottle.
    NOTE: Perform push-pull-push test to verify hose is fully engaged.
    G16604407Courtesy of TESLA, INC.

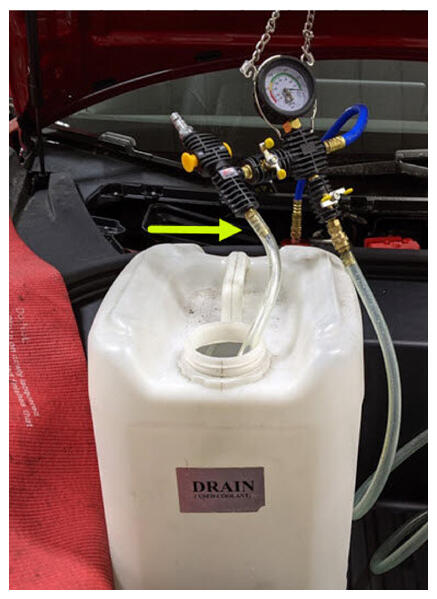

  152. Position overflow hose into empty container.
    G16604408Courtesy of TESLA, INC.

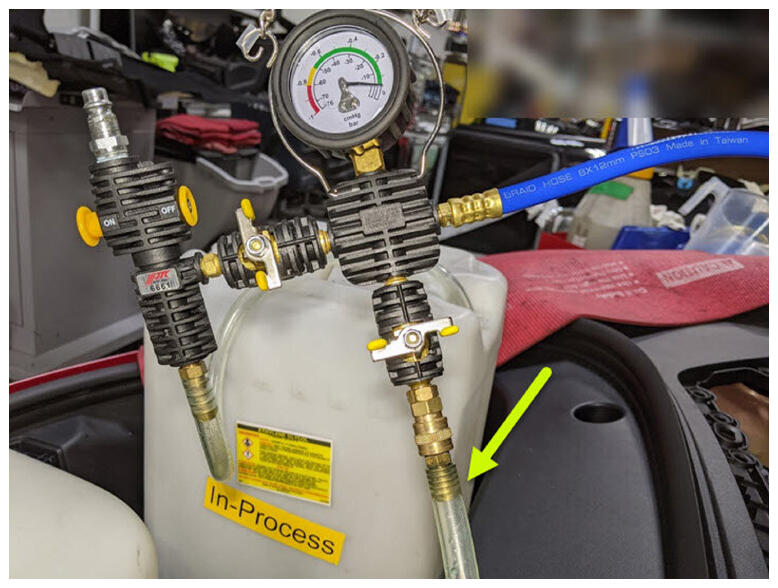

  153. Place refill hose inside filled coolant container.
    NOTE: Make sure hose end is fully submerged into coolant.
    G16604409Courtesy of TESLA, INC.
    G16604410Courtesy of TESLA, INC.

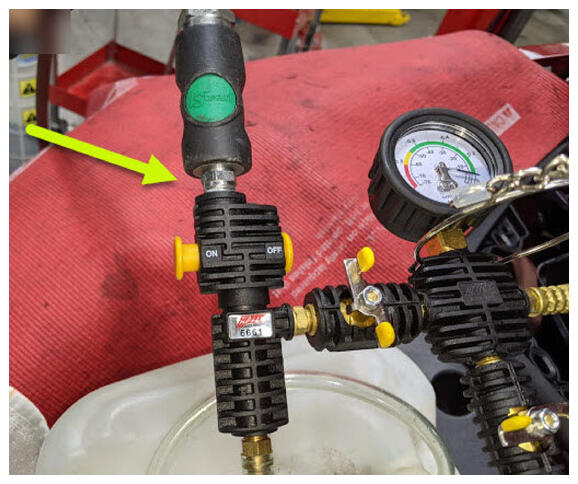

  154. Connect shop air supply to coolant refill tool.
    NOTE: If not already done, Verify refill valve is set to off.
    G16604411Courtesy of TESLA, INC.

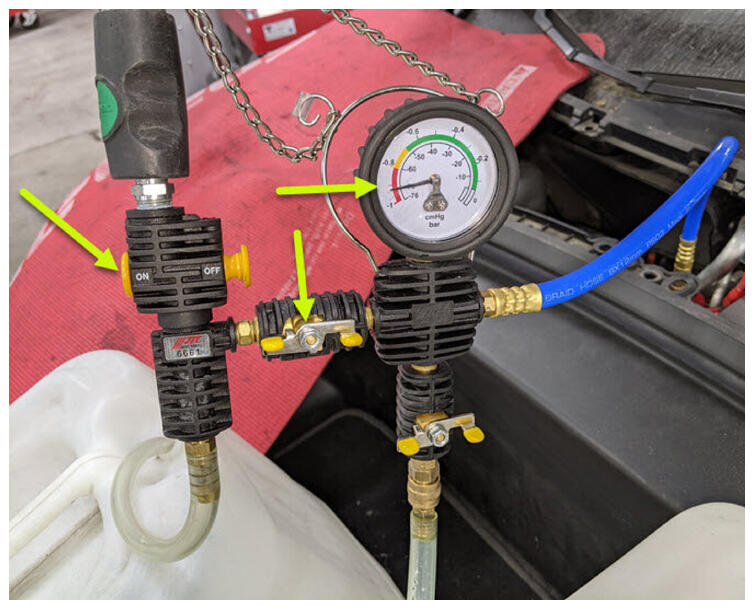

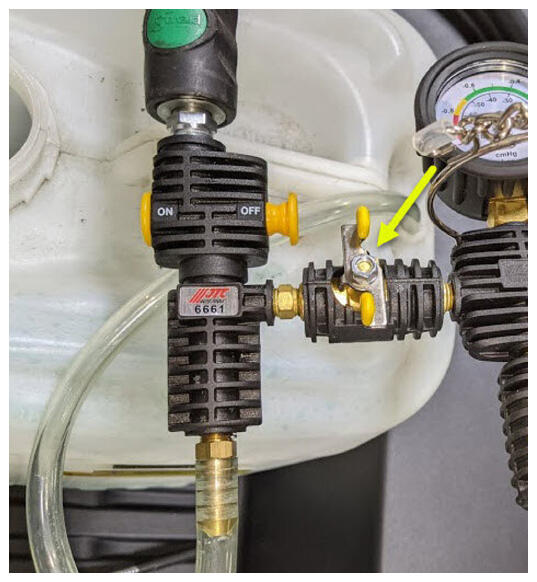

  155. Open air inlet valve to draw a vacuum, Once gauge stabilizes, Fully close valve.
    NOTE: Gauge stabilizes roughly (60-70 cmHg), Vacuum should not drop after the valves are closed.
    G16604412Courtesy of TESLA, INC.
    G16604413Courtesy of TESLA, INC.
  156. Slowly open coolant refill valve to allow coolant to be drawn into coolant refill hose, Close valve when hose is full of coolant.
    NOTE: This purges trapped air from the hose.
  157. Monitor gauge for 30 seconds to verify a vacuum is maintained in cooling system.
  158. Reopen the air inlet valve for 3 minutes to continue evacuating cooling system, then close valve.

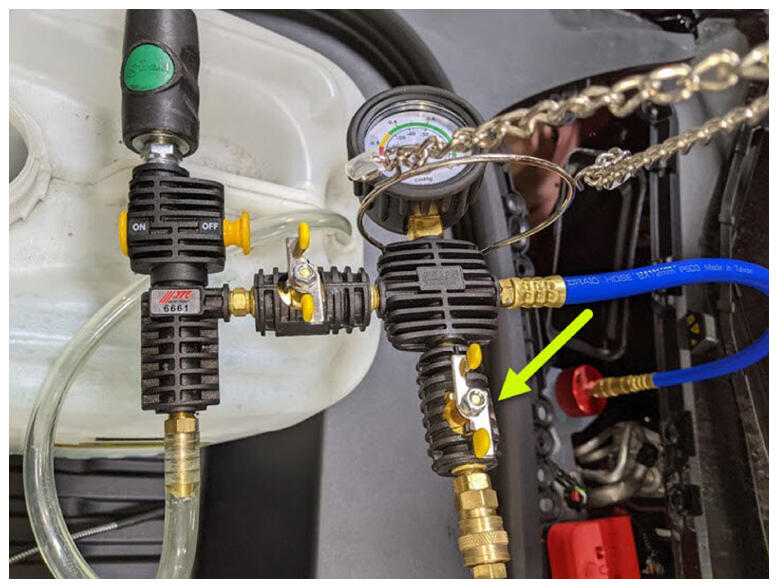

  159. Slowly open refill valve to allow coolant to be drawn into system.
    NOTE: Make sure hose end of refill hose is fully submerged during entire process.
    G16604414Courtesy of TESLA, INC.

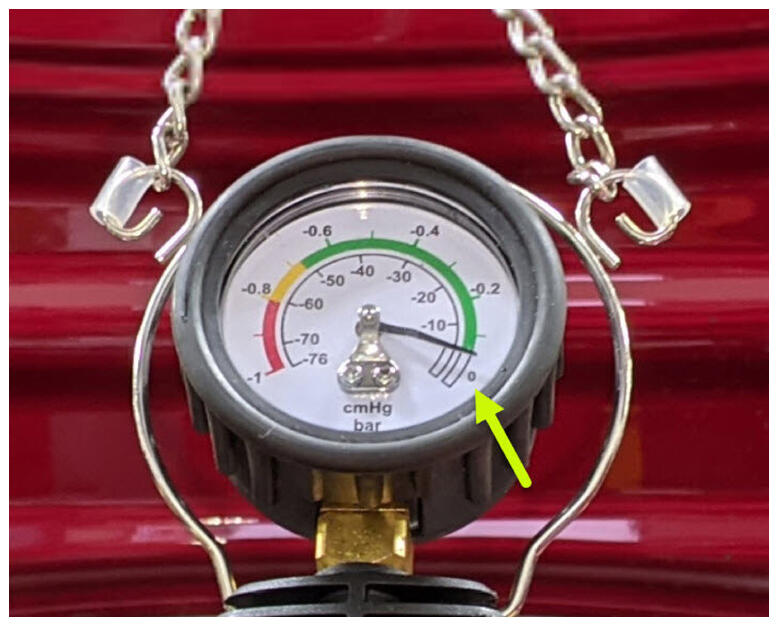

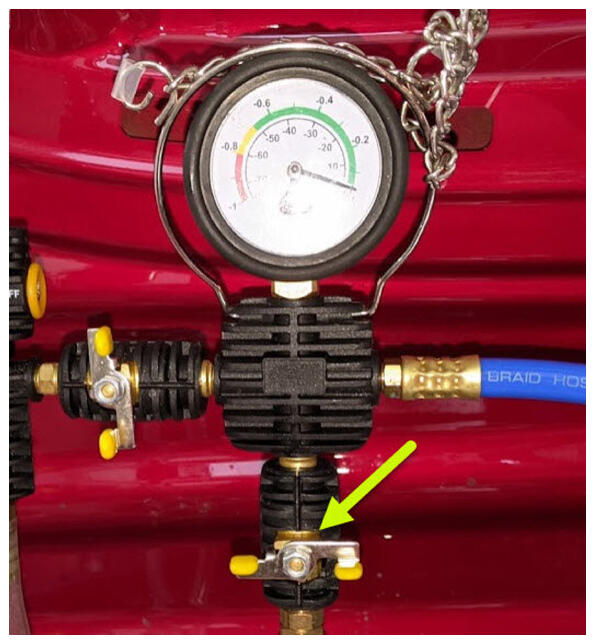

  160. Once gauge reads zero, close refill valve.
    G16604415Courtesy of TESLA, INC.
    G16604416Courtesy of TESLA, INC.

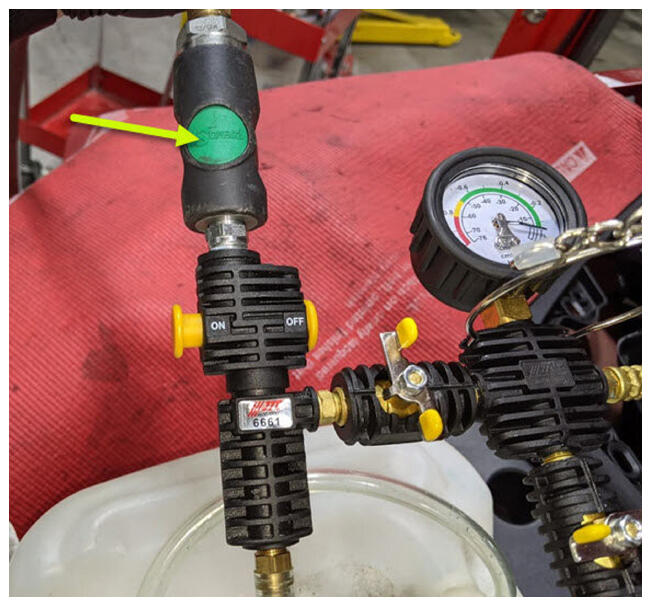

  161. Disconnect shop air supply from coolant refill tool.
    G16604417Courtesy of TESLA, INC.

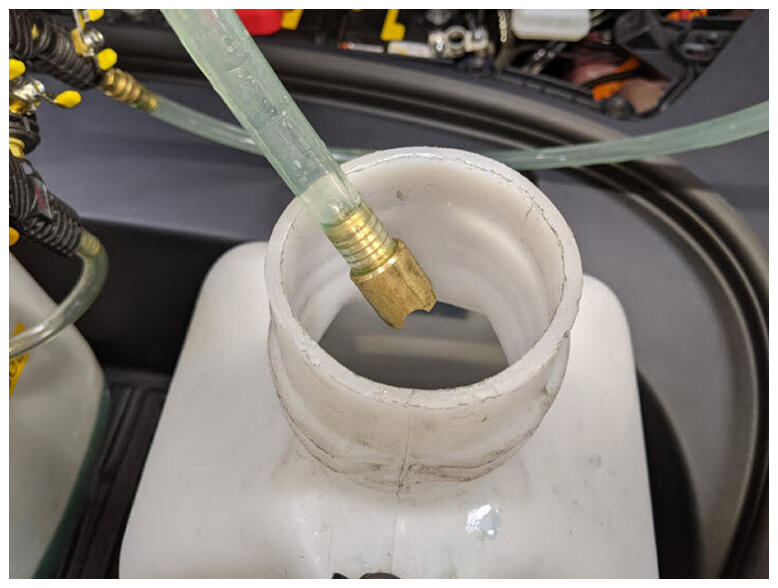

  162. Remove coolant refill hose from coolant container.
    G16604418Courtesy of TESLA, INC.

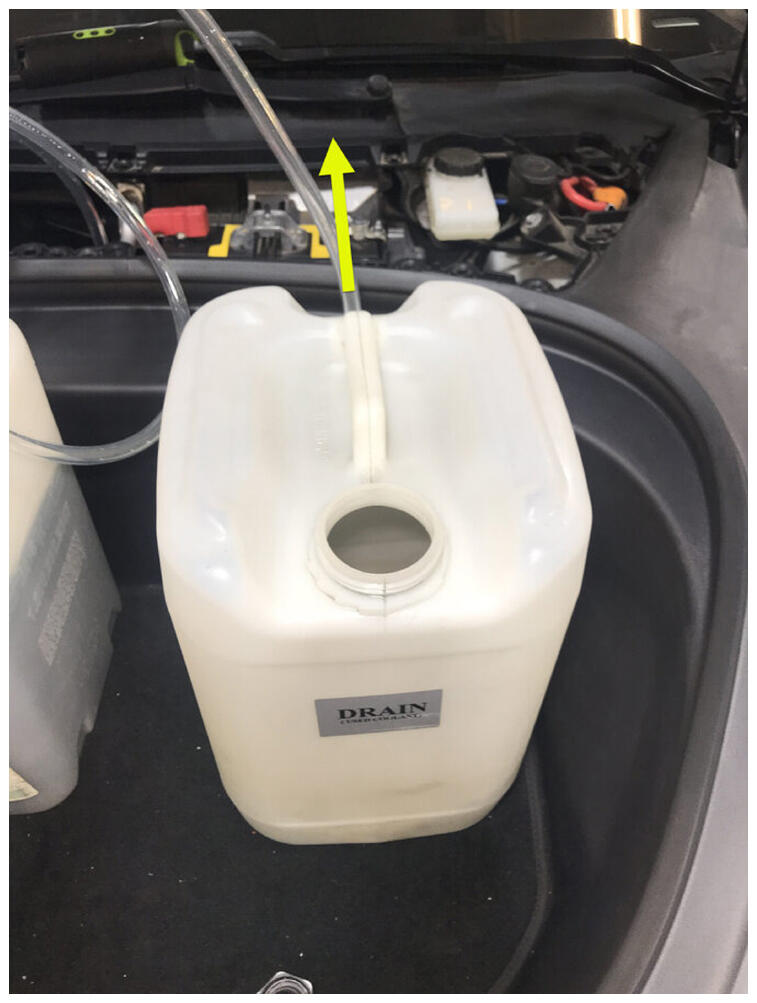

  163. Remove coolant overflow hose from coolant container.
    G16604419Courtesy of TESLA, INC.

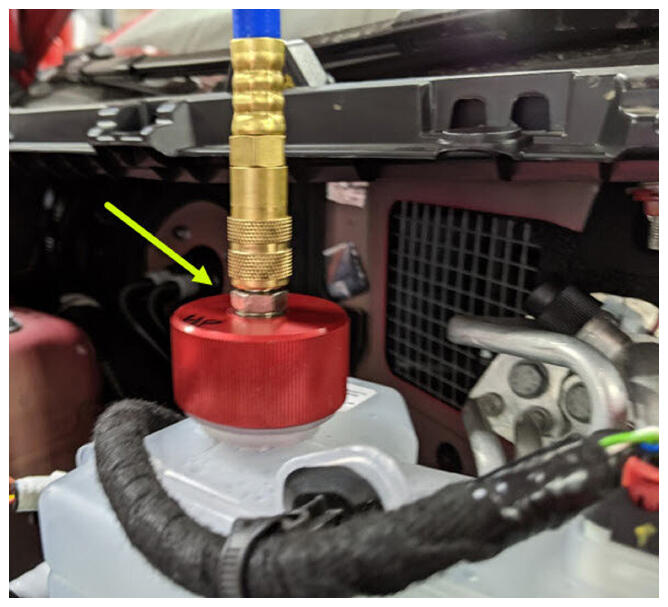

  164. Remove vacuum refill hose from refill cap on coolant bottle.
    G16604420Courtesy of TESLA, INC.

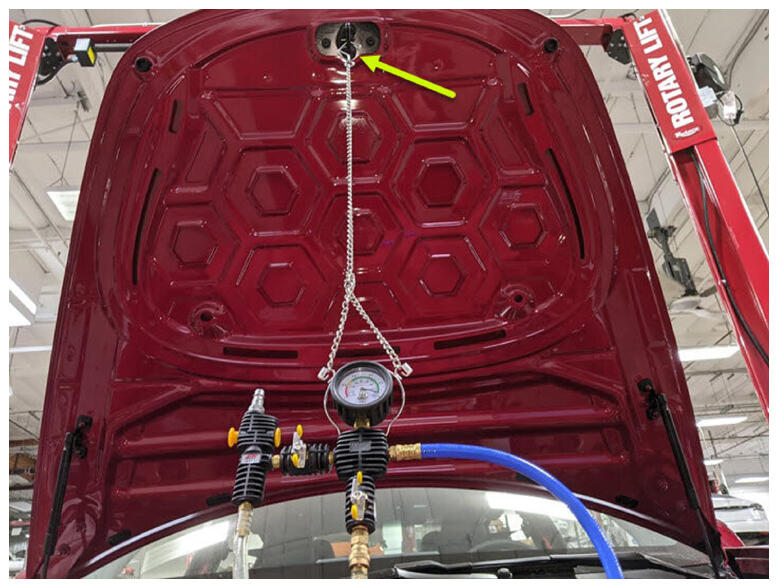

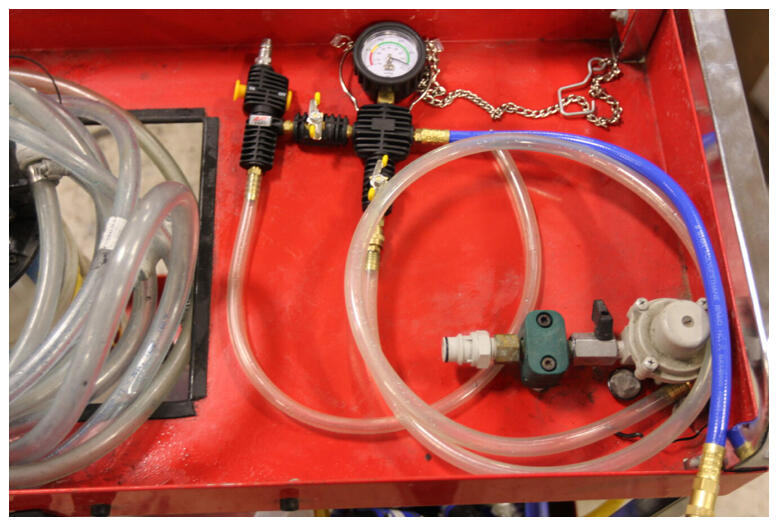

  165. Remove coolant refill tool from vehicle.
    G16604421Courtesy of TESLA, INC.
    G16604422Courtesy of TESLA, INC.

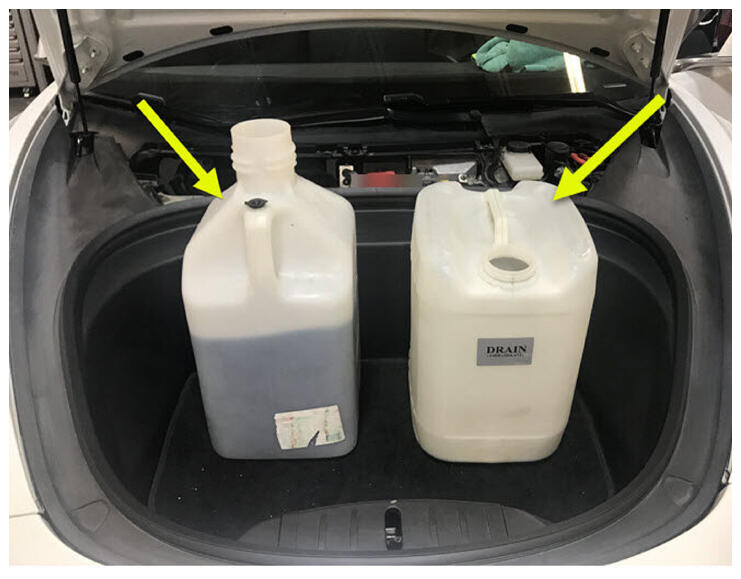

  166. Remove both coolant containers from inside underhood area.
    G16604423Courtesy of TESLA, INC.

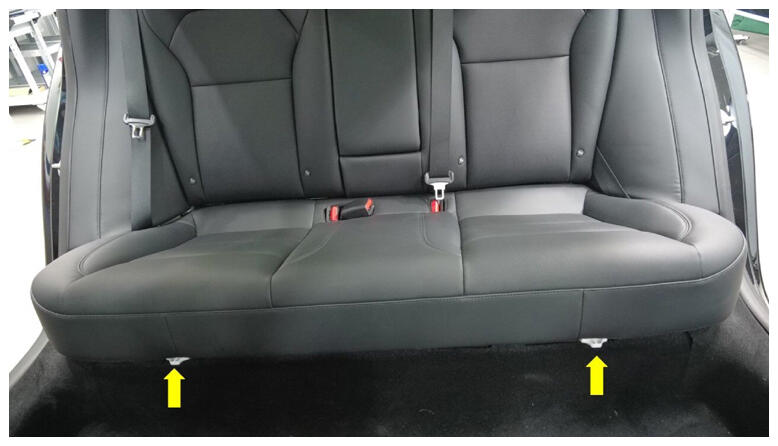

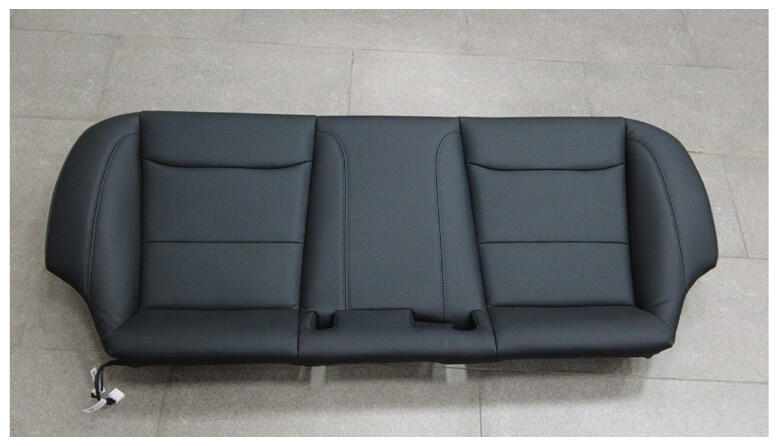

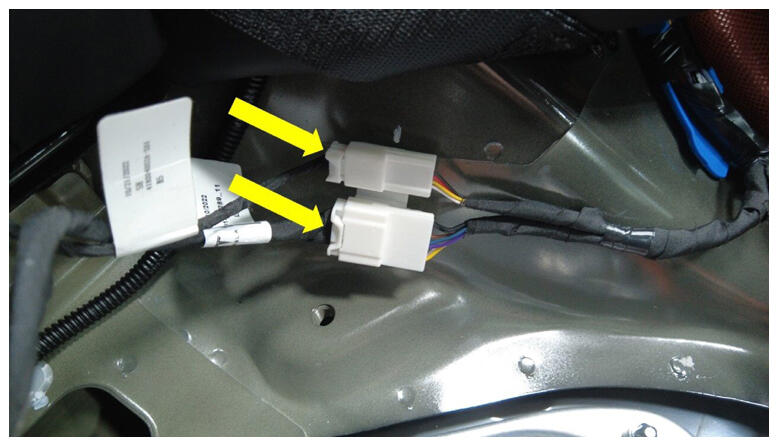

  167. Connect 2nd row seat harness and secure cushion.
    NOTE: 2x clips, 2x connectors, Insert buckles through holes, Slide rear inward then align front clips, Perform push-pull-push test.
    G16604424Courtesy of TESLA, INC.
    G16604425Courtesy of TESLA, INC.
    G16604426Courtesy of TESLA, INC.

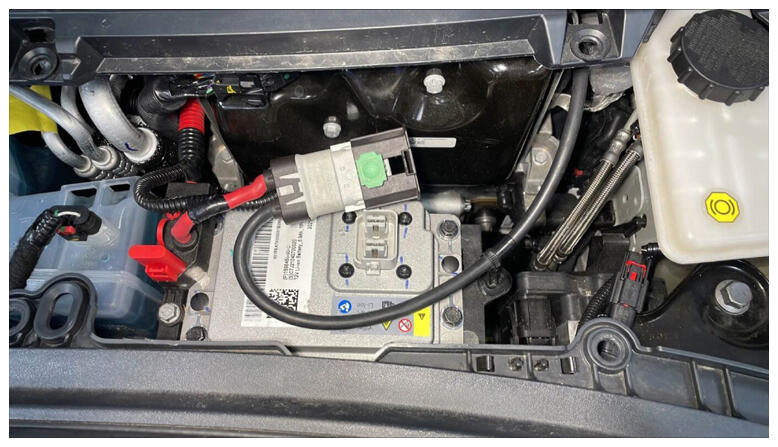

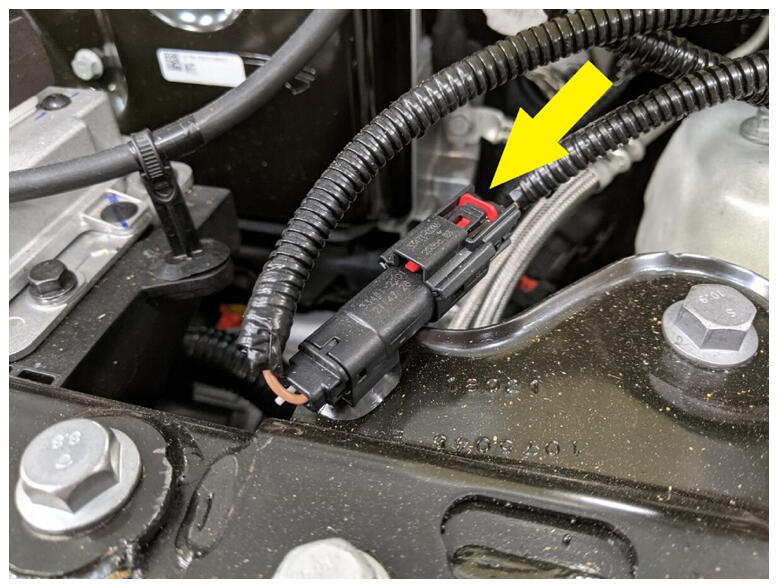

  168. Connect first responder loop and leave LV battery disconnected.
    NOTE: 1x connector, Engage locking tab, Connect FRL but leave LV battery disconnected.
    G16604427Courtesy of TESLA, INC.
    G16604428Courtesy of TESLA, INC.

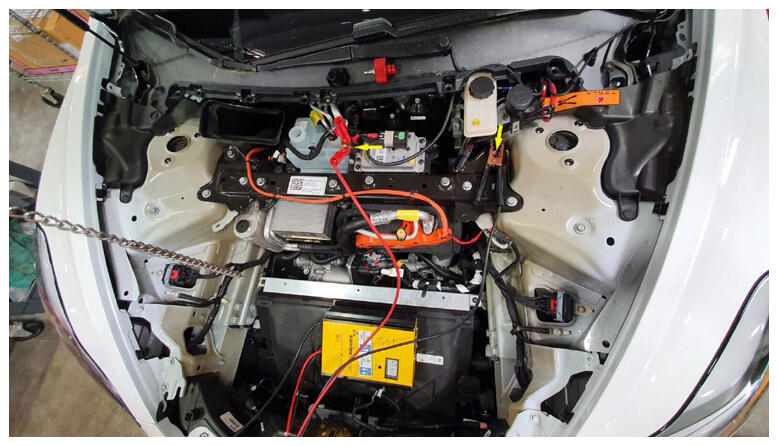

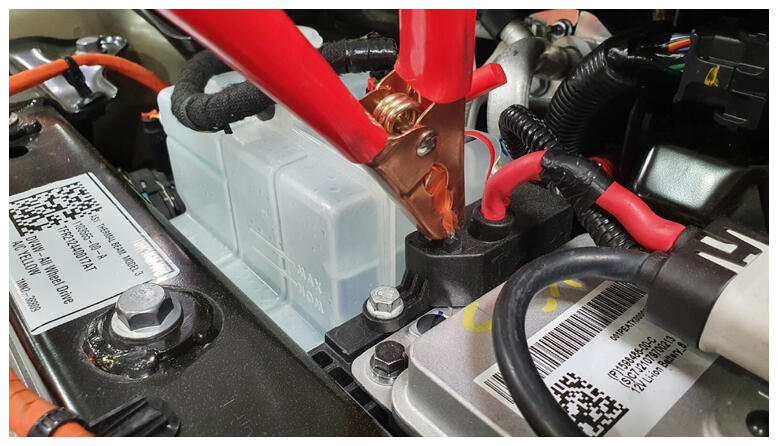

  169. Connecting low-voltage battery maintenance equipment.
    NOTE: Release positive terminal cover, Secure positive terminal to jump post, Secure negative terminal to bolt located between brake fluid reservoir and front trunk, Connect maintainer to power supply, To avoid damaging the vehicle DO NOT allow positive cable to make contact with other metal components, Never have a float charger and the LV battery simultaneously connected for any extended period of time.
    G16604429Courtesy of TESLA, INC.

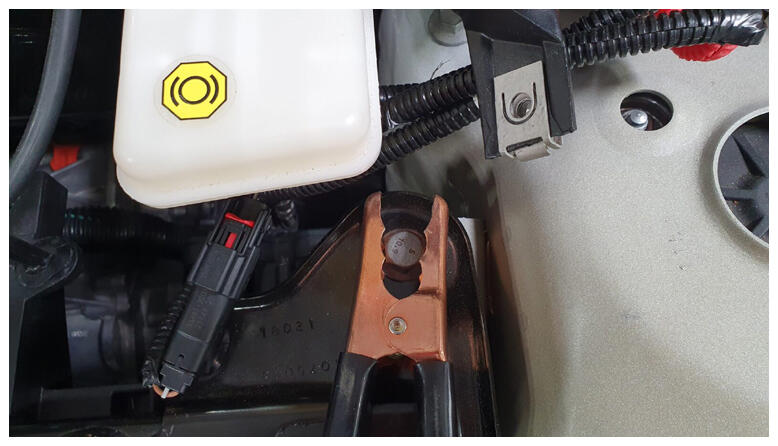

    G16604430Courtesy of TESLA, INC.
    G16604431Courtesy of TESLA, INC.

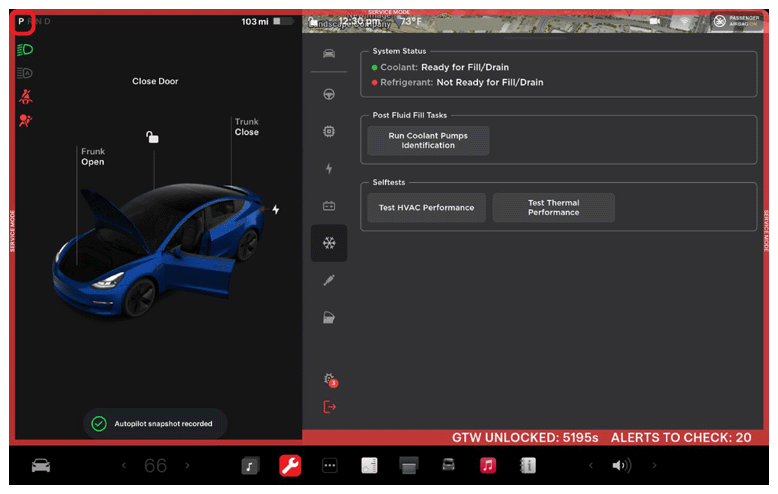

  170. Hold brake pedal and select park on UI to disable EPB service mode.
    G16604432Courtesy of TESLA, INC.
    G16604433Courtesy of TESLA, INC.
  171. On the touchscreen, select Service Mode > Thermal  .

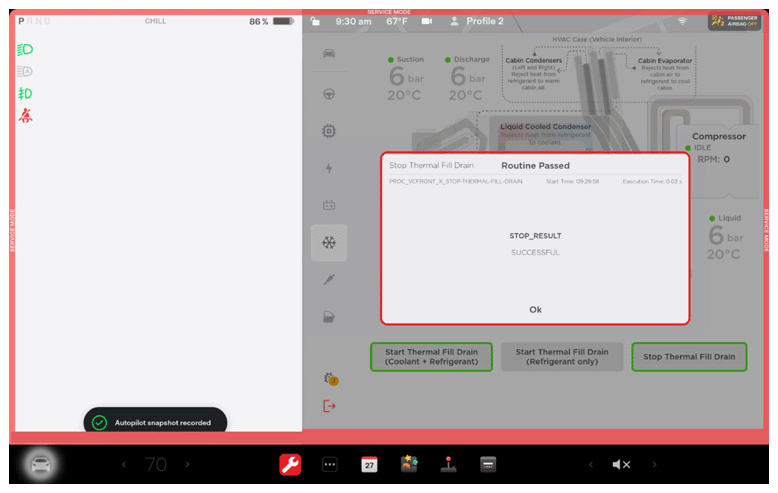

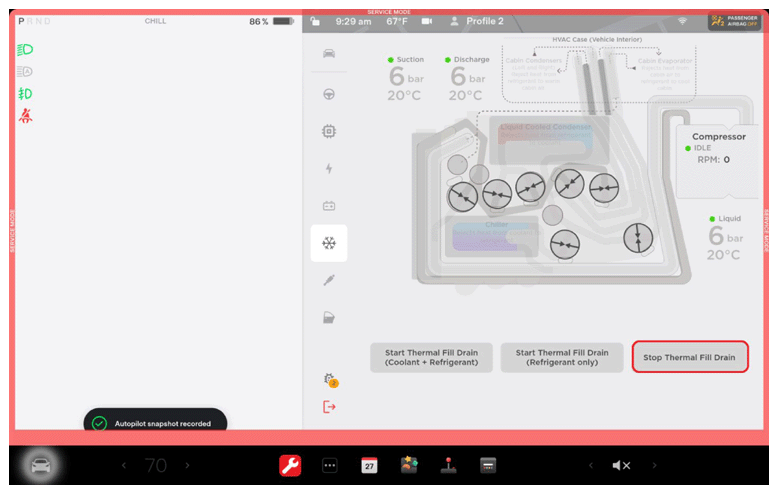

  172. Select "Stop Thermal Fill Drain" through UI.
    NOTE: Allow routine to complete, ensure routine is successful.
    G16604434Courtesy of TESLA, INC.
    G16604435Courtesy of TESLA, INC.

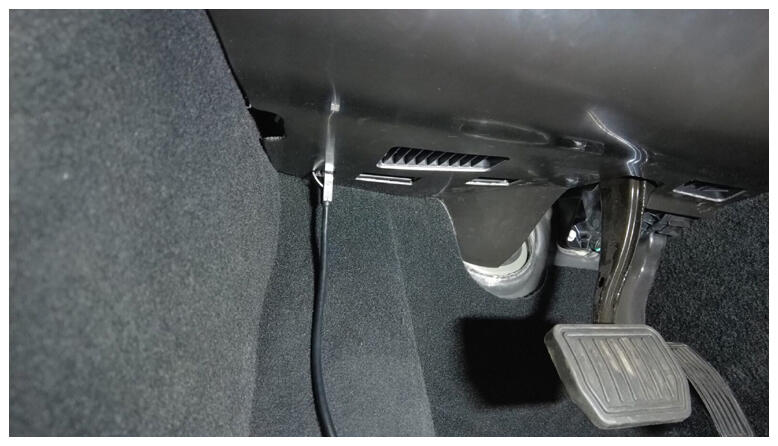

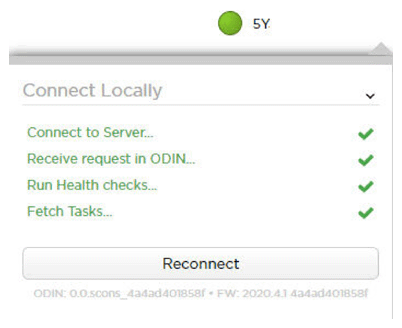

  173. Connect to vehicle using Toolbox 3.0.
    NOTE: Vehicle connection is integrated into drivers footwell cover, Open Toolbox 3 website and establish connection to the vehicle.
    G16604436Courtesy of TESLA, INC.
    G16604437Courtesy of TESLA, INC.
  174. In toolbox, click the Actions/Autodiag  tab, type "Redeploy" in the search field, click on SERVICE CAN REDEPLOY  and then click Run  .
    NOTE: Allow the routine to complete.
    NOTE: Once the firmware redeploy is complete, verify on the touchscreen release notes are present.

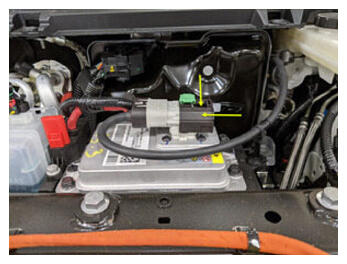

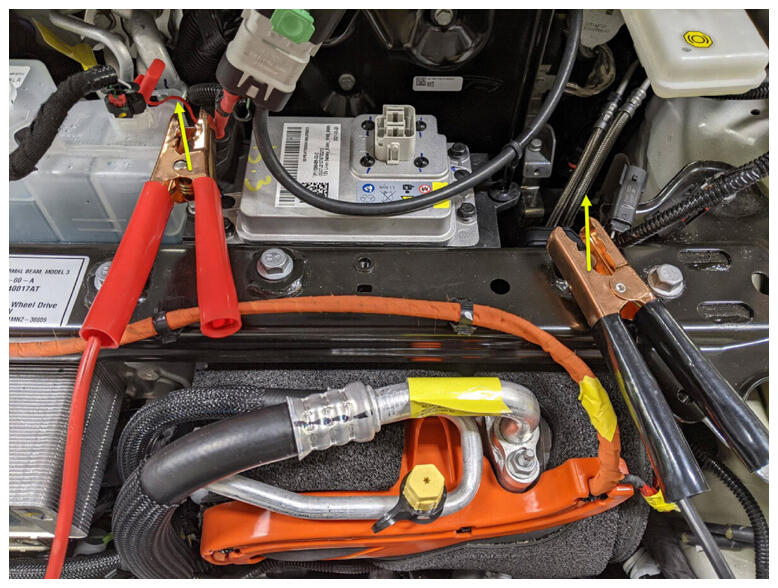

  175. Disconnect low-voltage battery maintenance equipment and connect LV battery.
    NOTE: LV Battery Maintainer 1849737-N0-A7.
    G16604438Courtesy of TESLA, INC.
    G16604439Courtesy of TESLA, INC.
  176. On touchscreen, select Thermal > Coolant System > Coolant Purge  to start the Coolant Air Purge  routine and allow the routine to complete.

    Tip:

    • The routine will last for a while after the stop message displays. The coolant pumps are audible.
    • The test lasts for approximately 10 mins. Do not start another routine during this time.
    • Make sure that the vehicle is not in Drive. Putting the vehicle into Drive will stop this routine.
    • The speed in the test varies from 3500-6500 RPM (idle speed = ~1500 RPM) and the actuated valve varies between SERIES and PARALLEL.
    • The speed can be monitored in Garage under the PT Thermal  tab. If the speed hovers at 7000 RPM, it indicates the pumps are air locked. Perform the vacuum fill again. Continue to add the coolant and purge until the coolant level reaches between the NOM and MAX Lines on the bottle.
  177. Remove diagnostic cable from port to disconnect Toolbox 3.0 from vehicle.
    G16604440Courtesy of TESLA, INC.
  178. Inspect coolant level and top off as necessary.
    NOTE: Ensure that fluid level is at Max line.

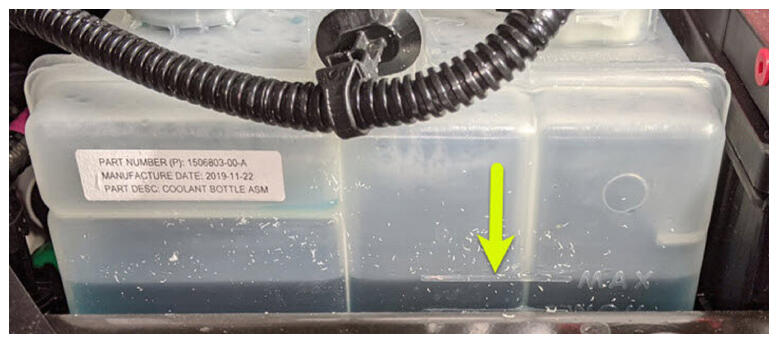

    G16604441Courtesy of TESLA, INC.

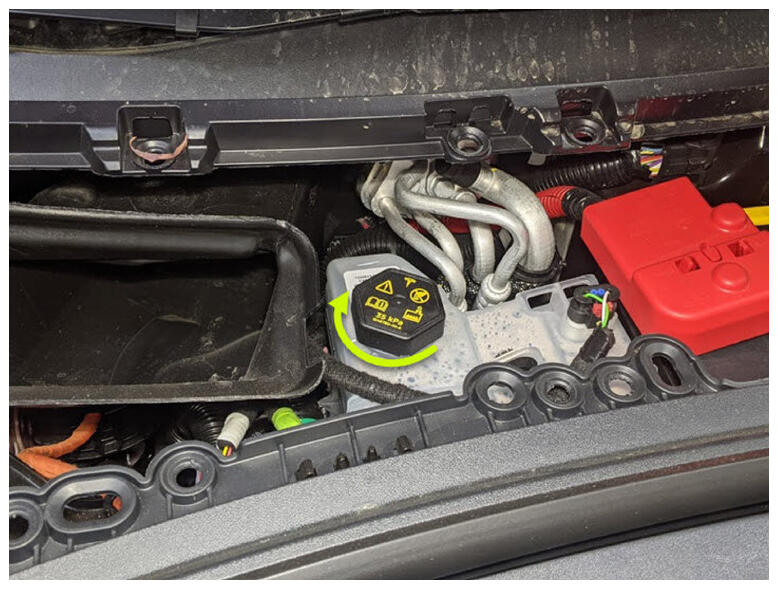

  179. Install coolant bottle cap.
    G16604442Courtesy of TESLA, INC.

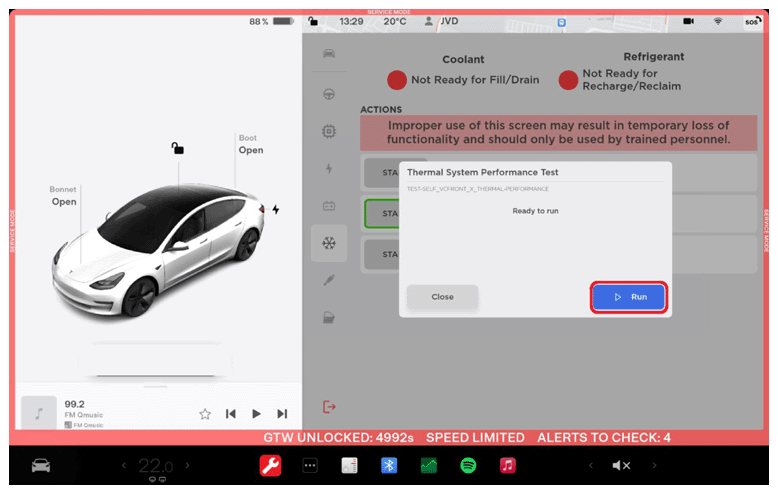

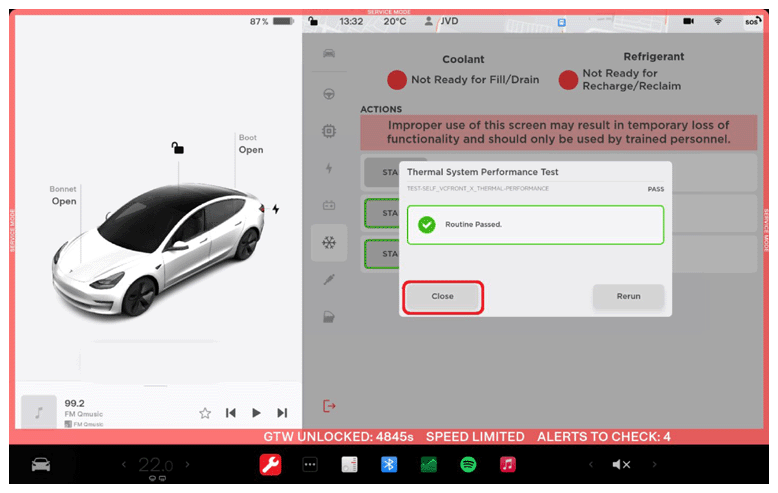

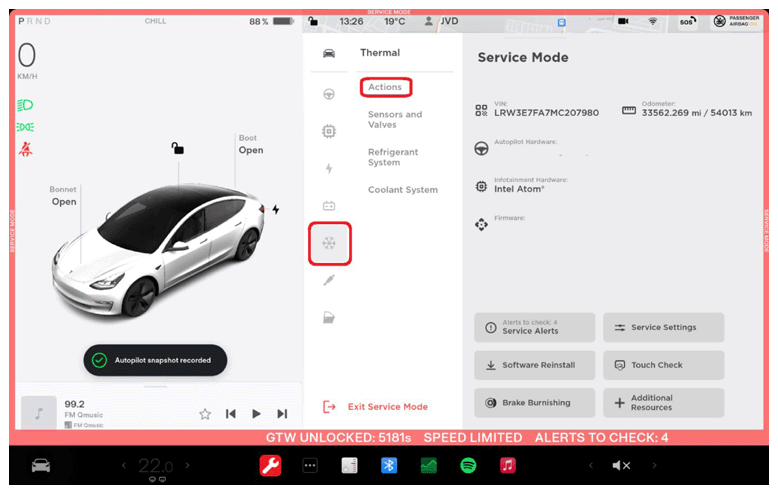

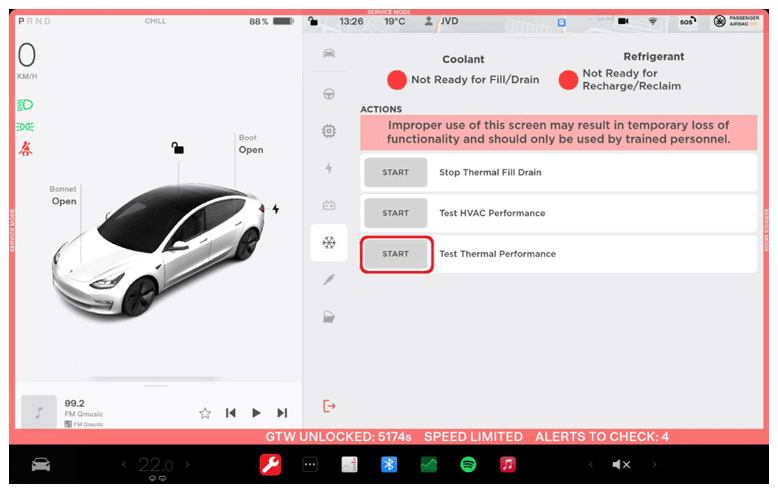

  180. Perform Thermal Performance through the UI.
    NOTE: Select Thermal > Actions > Test Thermal Performance, click Run, close once routine is completed.
    G16604443Courtesy of TESLA, INC.
    G16604444Courtesy of TESLA, INC.
    G16604445Courtesy of TESLA, INC.
    G16604446Courtesy of TESLA, INC.
  181. Install the rear underhood apron. See UNDERHOOD TRIM - REAR APRON ASSEMBLY - REMOVE AND REPLACE .
  182. Move LH and RH front seats to original position.
  183. Disable Service Mode. See SERVICE MODE .
  184. Raise all windows and close all doors.
  185. Remove the lift arms from below vehicle.
  186. For China, Japan and Korea only: Carefully remove the old motor label from the hood, and install a new motor label to match the new motor information.
  187. In this procedure, the front or rear subframe was removed and reinstalled. Therefore, refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust as a separate activity  . See ALIGNMENT REQUIREMENT - SUSPENSION .
scientia non olet · About LEMON Manuals
