Rear Drive Unit Assembly - Bushing, RHs, 3DUR - Remove And Replace: Remove

Remove the rear drive unit. See REAR DRIVE UNIT ASSEMBLY - ASSEMBLY, 3DUR, MOSFET - HC - REMOVE AND REPLACE
Position the rear drive unit above an empty rear drive unit crate.
NOTE: Use a pallet if no crate is available.

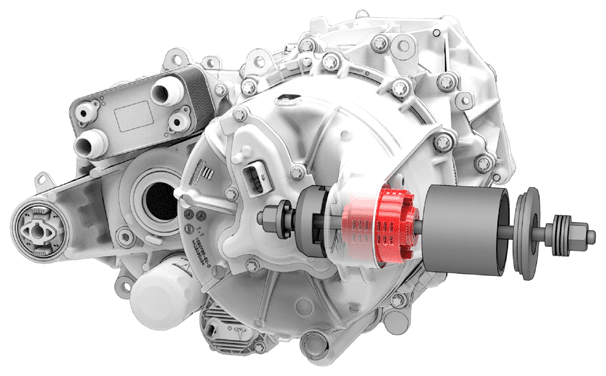

Install the bushing removal tool on the RH bushing.
NOTE: Use cups "A", "C", and "D" when assembling the special tool, as shown.

Courtesy of TESLA, INC.
Turn the bearing-side bushing removal tool nut with a wrench while holding the other nut in place.

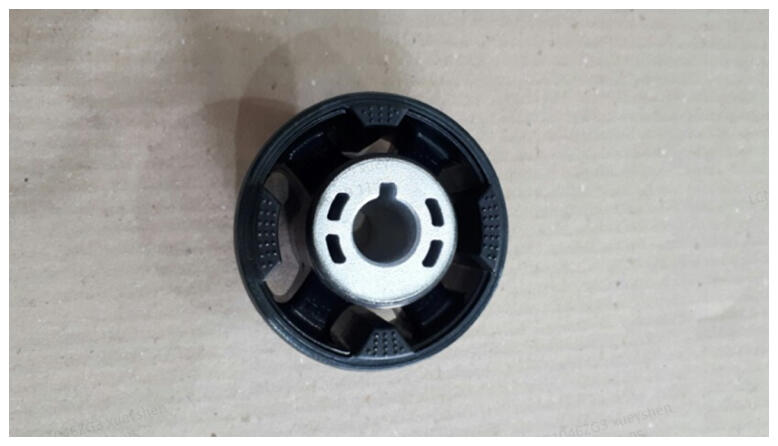

When the bushing has been pushed out of the drive unit, separate the bushing removal tool, and then remove it from the drive unit.

Courtesy of TESLA, INC.
