Passive Entry - Rear BLE Module - Remove And Replace: Remove

  1. Remove the rear fascia. See BUMPER AND FASCIA - REAR BUMPER FASCIA - REAR FASCIA - REMOVE AND INSTALL .
  2. Disconnect the rear BLE module electrical connector.

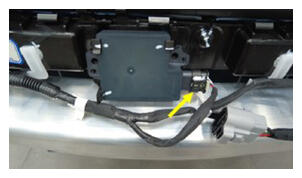

    G16596391Courtesy of TESLA, INC.
  3. Release the tab and datums (x2) that attach the BLE module to the rear fascia, and then remove the BLE module from the vehicle.

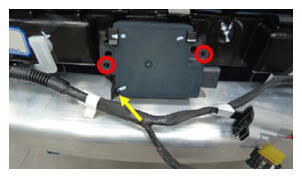

    G16596392Courtesy of TESLA, INC.

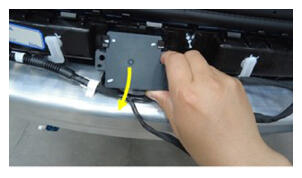

    G16596393Courtesy of TESLA, INC.

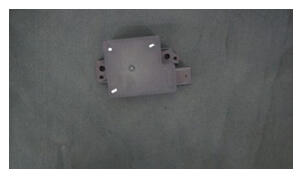

    G16596394Courtesy of TESLA, INC.
