Front Drive Unit Assembly - Assembly, Cover, Phase Out, 3DU - Remove And Replace: Remove
- Open the LH front door and lower all windows.
- Move the front seats forward.
- Perform Vehicle HV Disablement Procedure. See VEHICLE HV DISABLEMENT PROCEDURE .
- Remove the front body controller. See BODY CONTROLLERS - ASSEMBLY, FRONT CONTROLLER GEN 3 - REMOVE AND REPLACE .

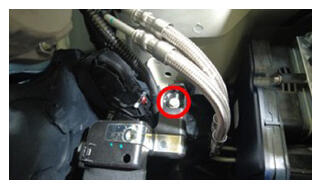

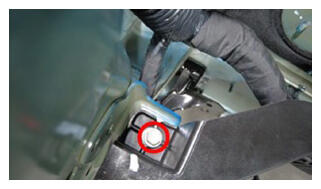

- Remove the bolts (x2) that attach the front harness bracket to the vehicle.
Tip: Use of the following tool(s) is recommended:
- Ratchet/torque wrench
- 10 mm socket
- 2 in extension

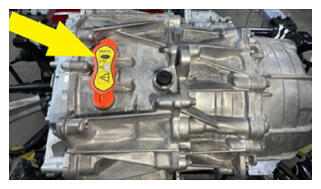

- Remove and discard the front drive unit phase out cover label.

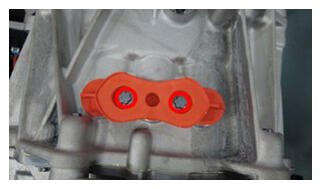

- Remove the bolts (x2) that secure the phase out cover.
Tip: Use of the following tool(s) is recommended:
- Socket 3/8 in Dr EP10
- Cordless 1/4 in Dr Ratchet
- 2 in extension
- Ratchet/torque wrench
- 4 in extension
- 1/4 in to 3/8 in adapter
- ESD Strap

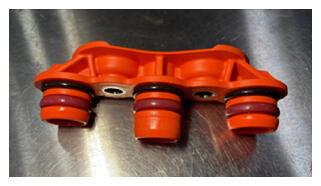

- Remove the phase out cover.NOTE: Use a plastic trim tool as needed. If the phase out cover or the O-rings are damaged, replace with a new unit.
