Front Drive Unit Assembly - Bushing, Gearcase, 3DUF - Remove And Replace: Notes

Last modified: 17/10/2023 18:56:24

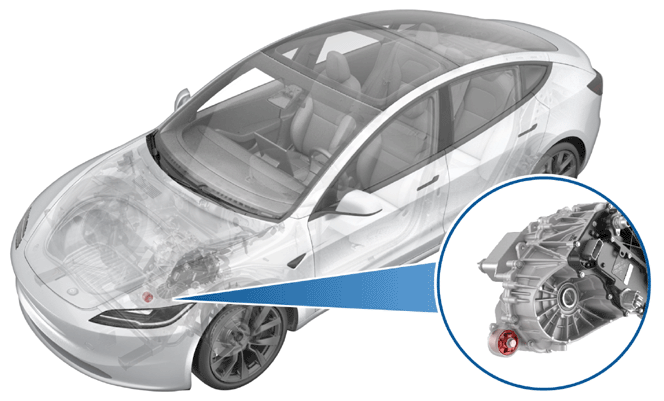

Fig 1: Front Drive Unit (3DU) Gearcase Bushing Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

TORQUE SPECIFICATIONS - FRONT DRIVE UNIT ASSEMBLY - BUSHING, GEARCASE, 3DUF (REMOVE AND REPLACE)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts that attach the LH and the RH motor mounts to the LH and the RH motor mount brackets	105 N.m (77.4 lbs-ft)	External Torx E18 Flex head ratchet/flex head torque wrench 1/4 in to 3/8 in adapter 3/8 in to 1/2 in adapter Cordless 1/4 in Dr Ratchet 6 in extension	Reuse
Front drive unit mount bolt	80 N.m (59.0 lbs-ft)	18 mm socket Cordless Ratchet/Impact Driver Flex head ratchet/flex head torque wrench	Reuse
